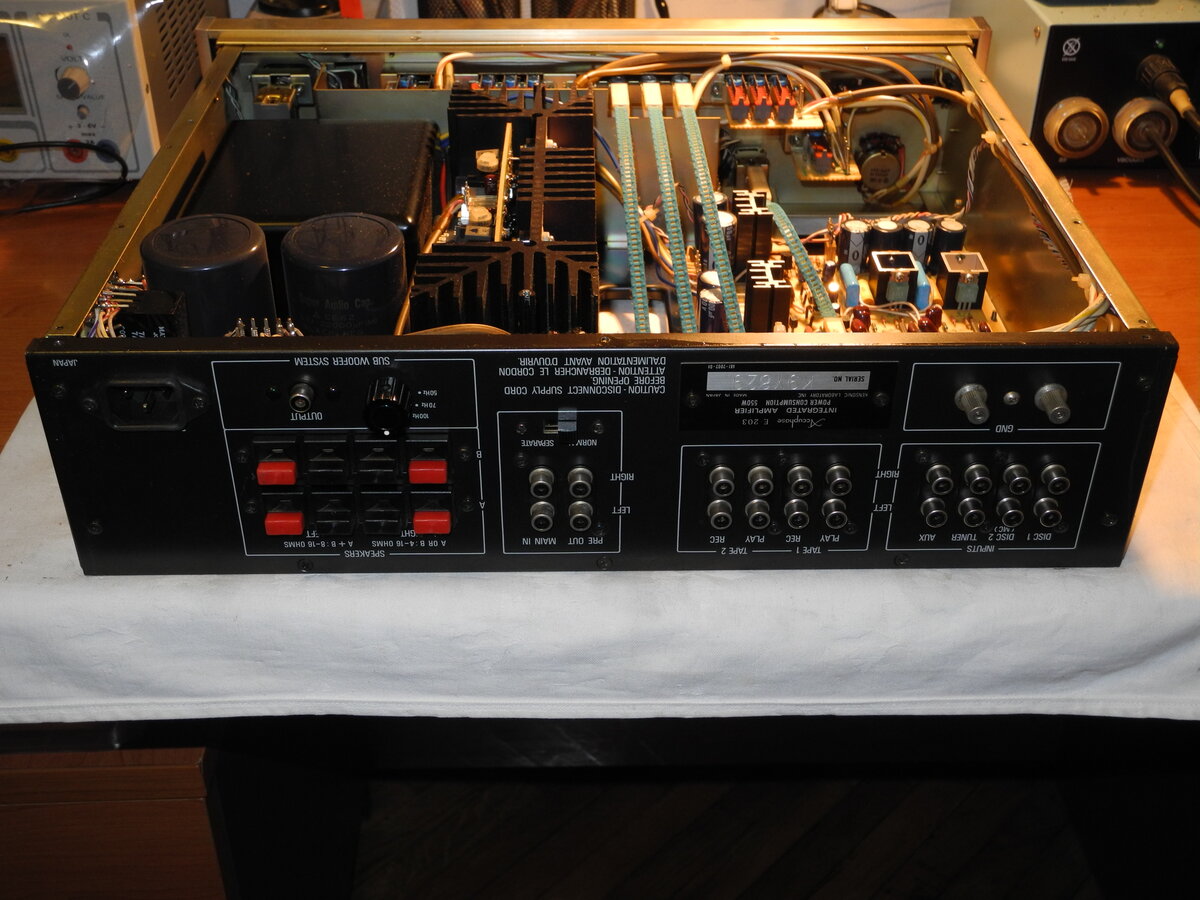

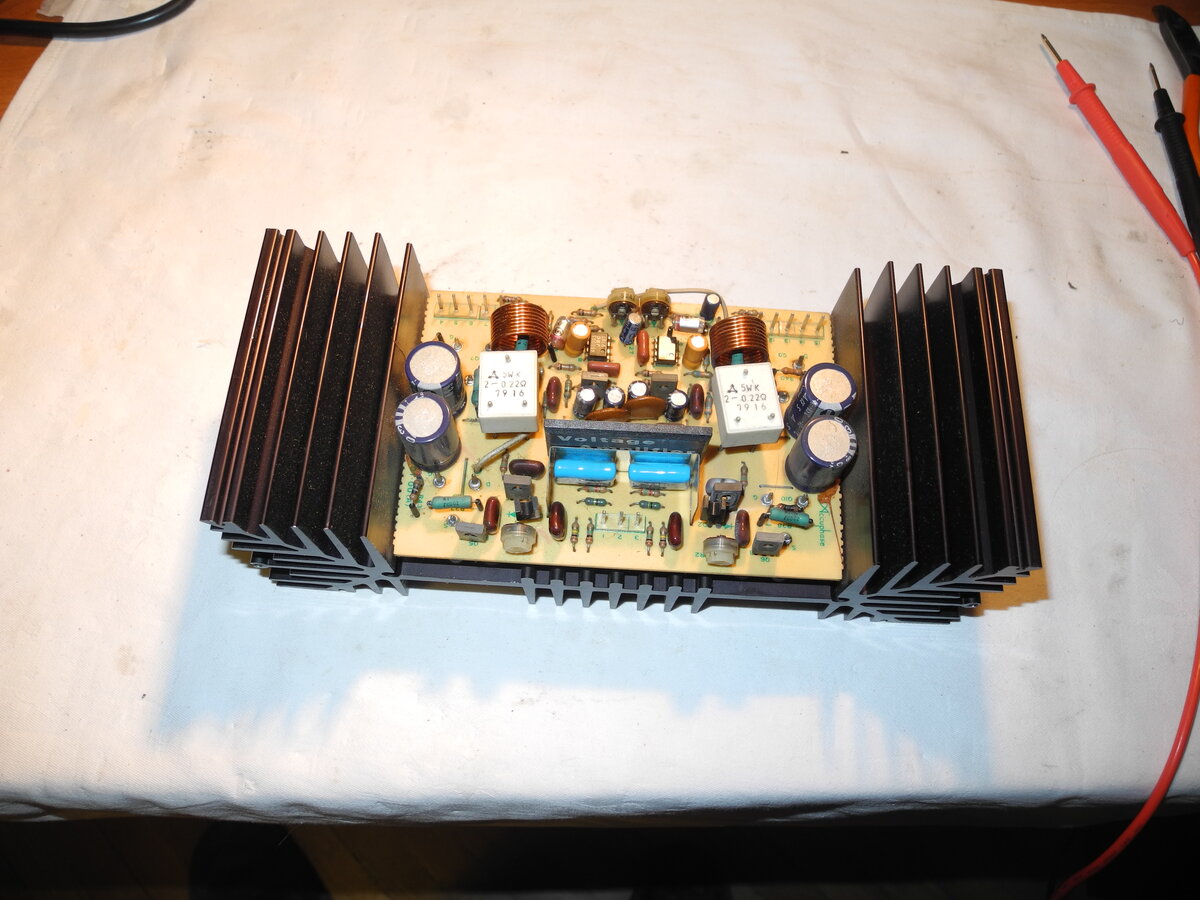

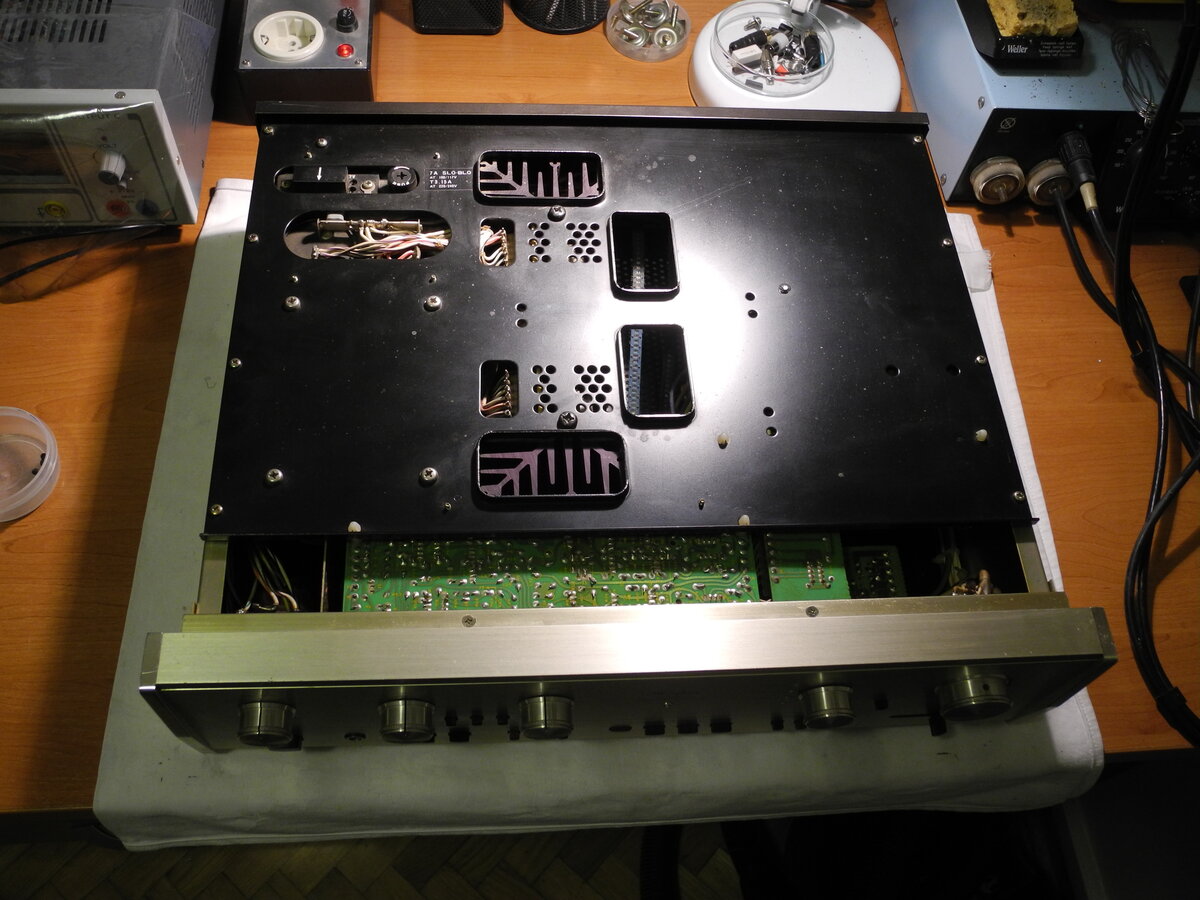

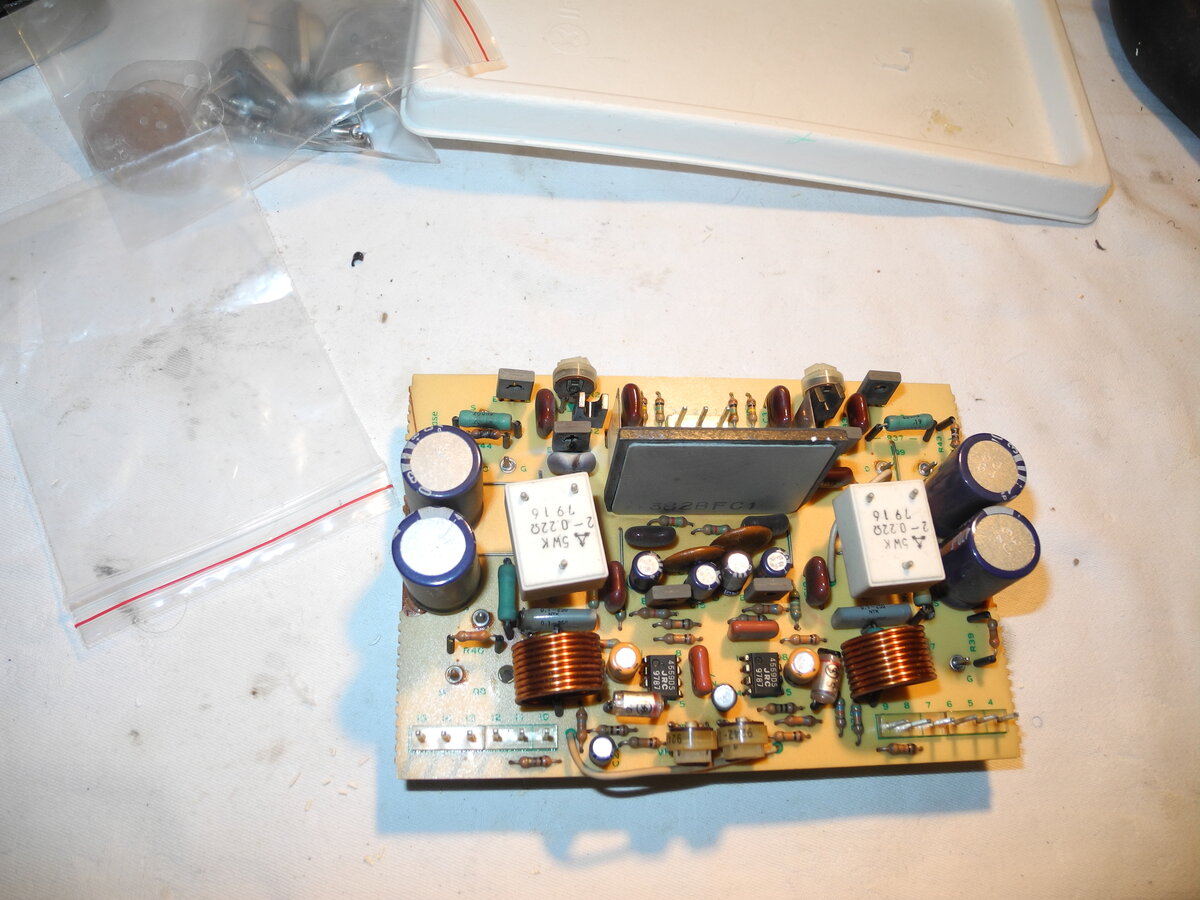

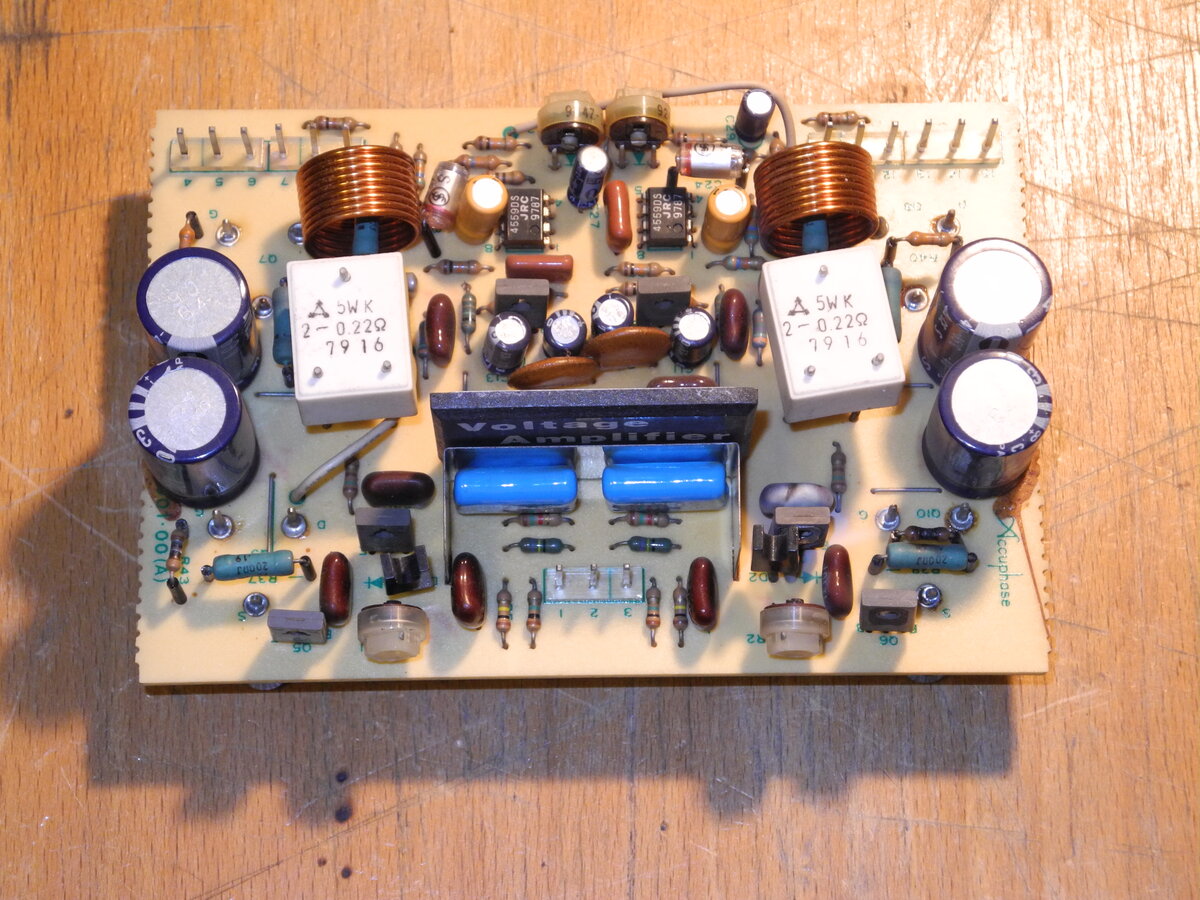

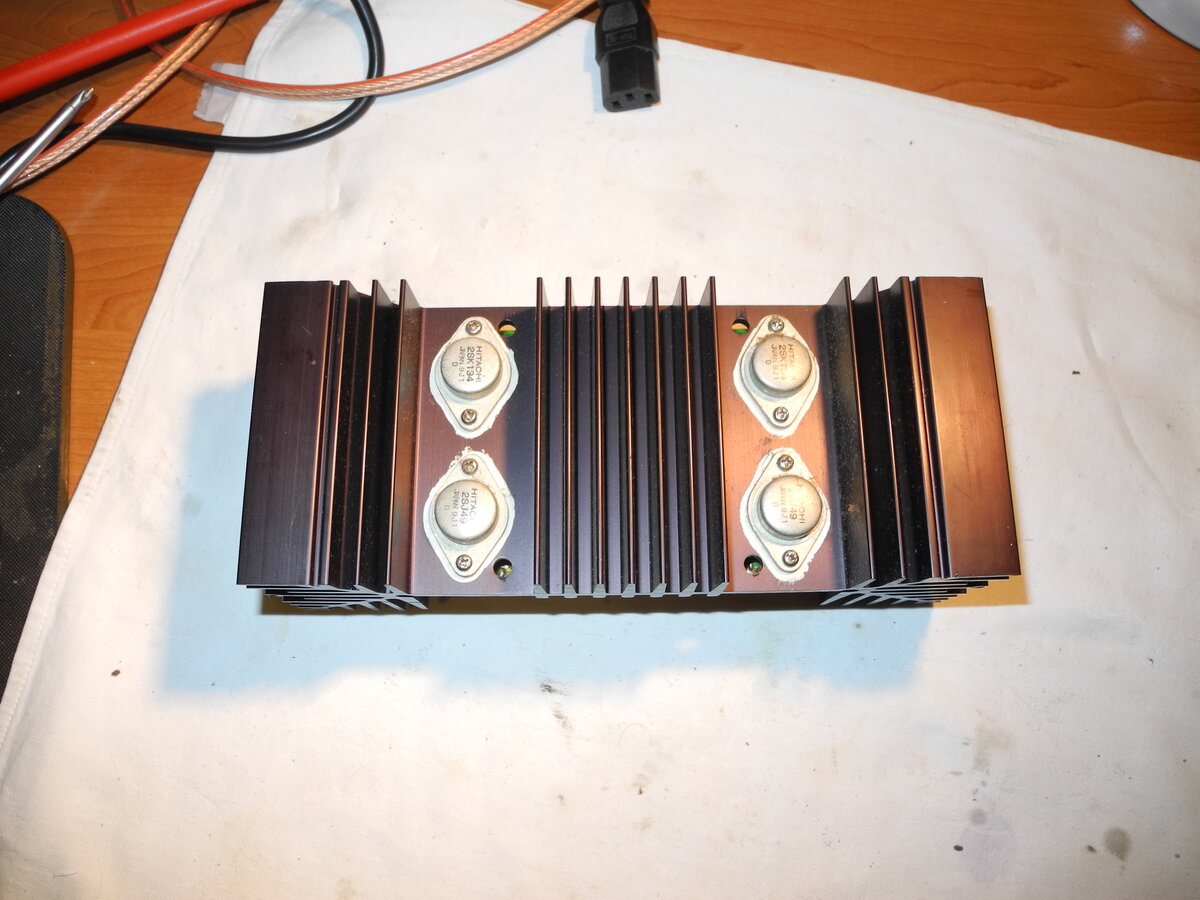

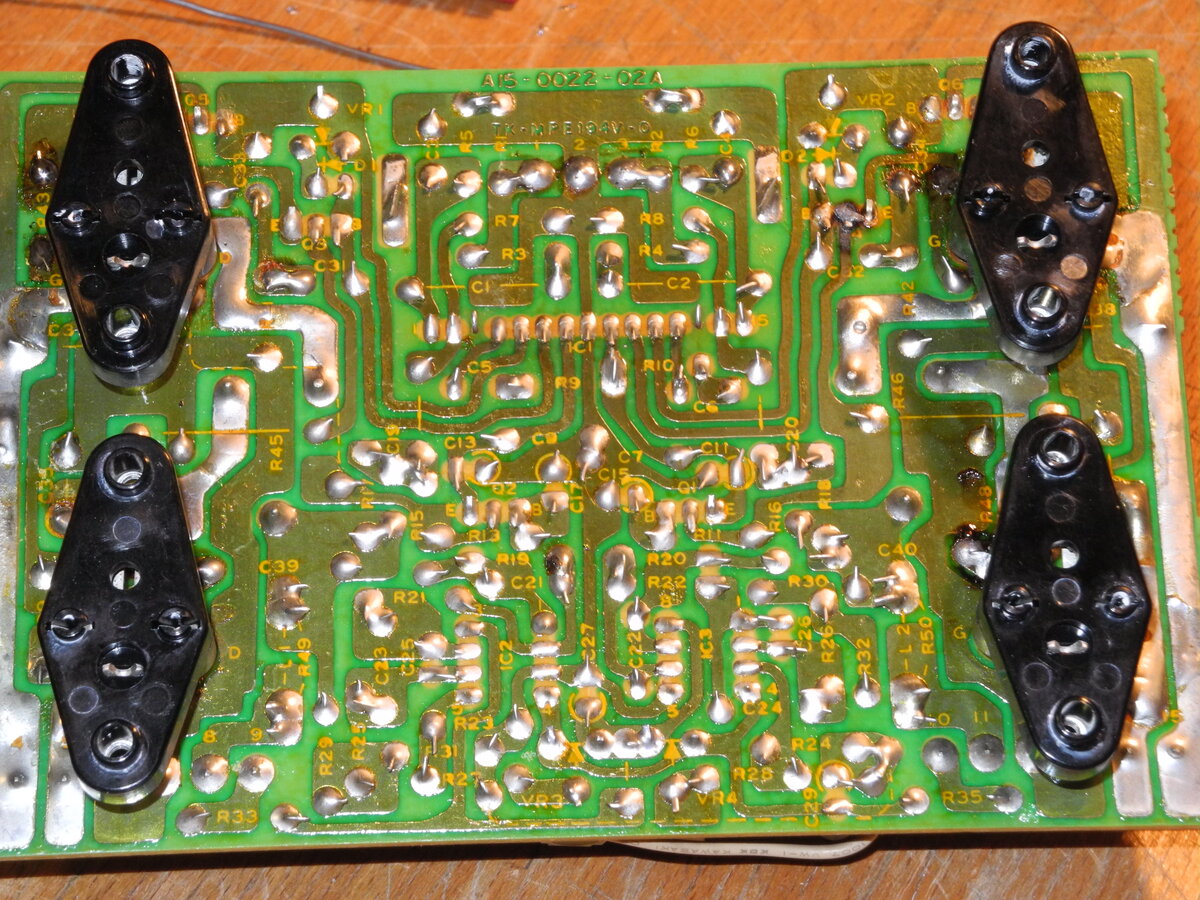

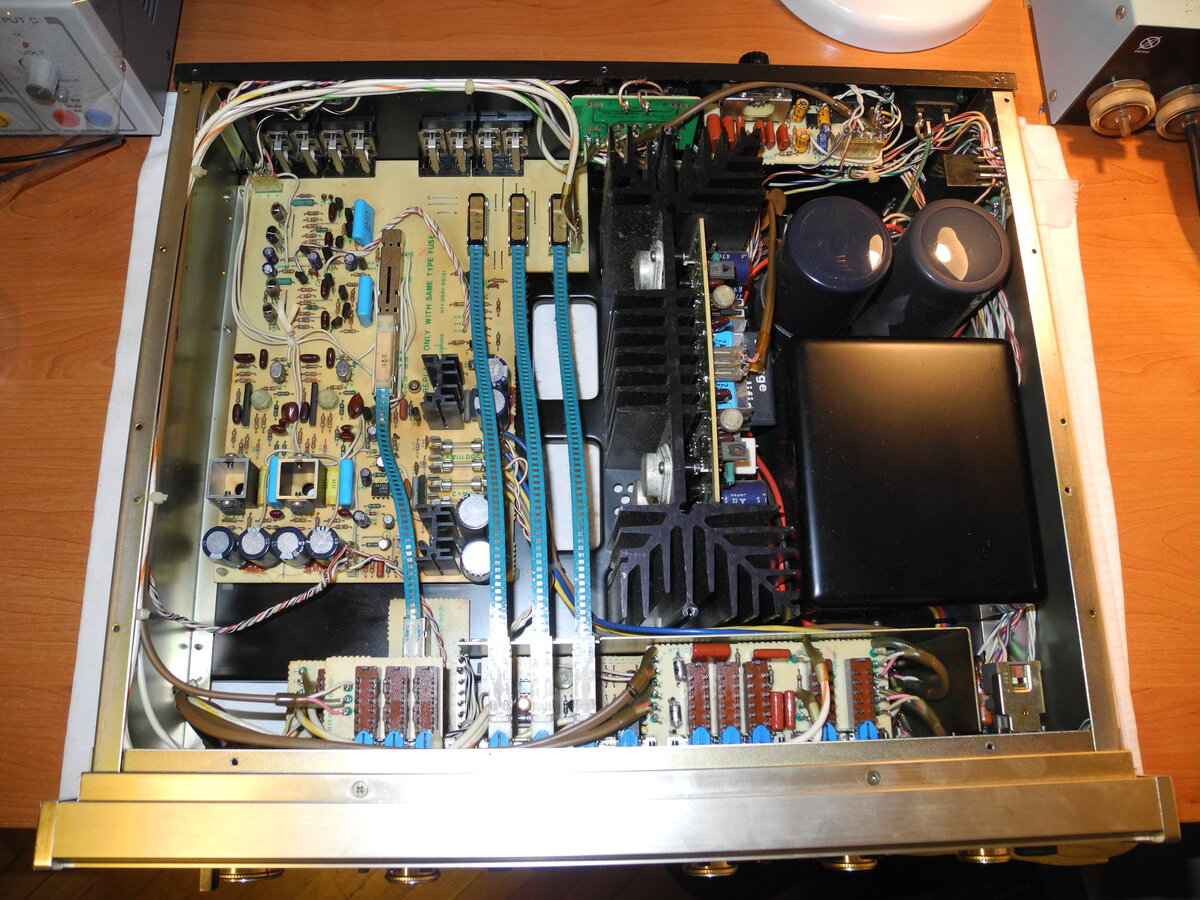

Accuphase E-203

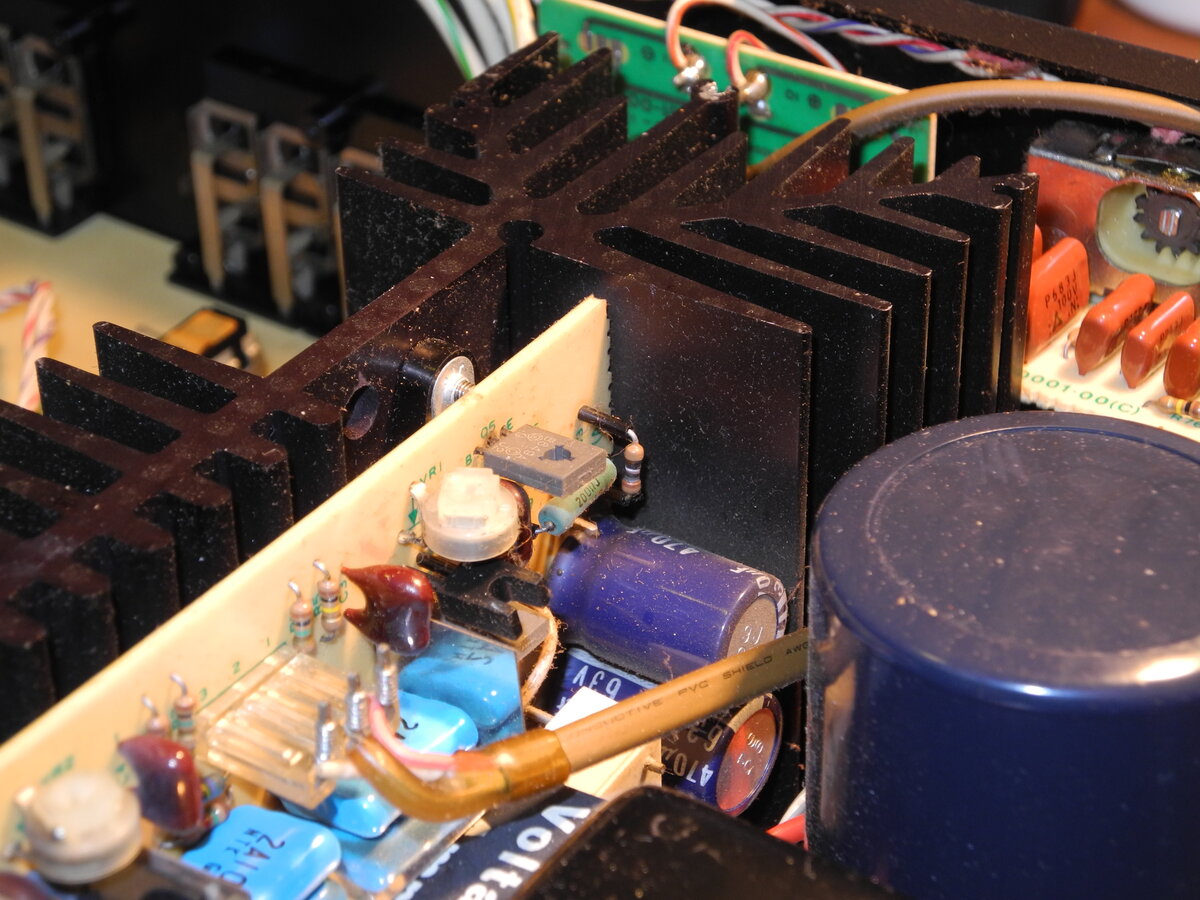

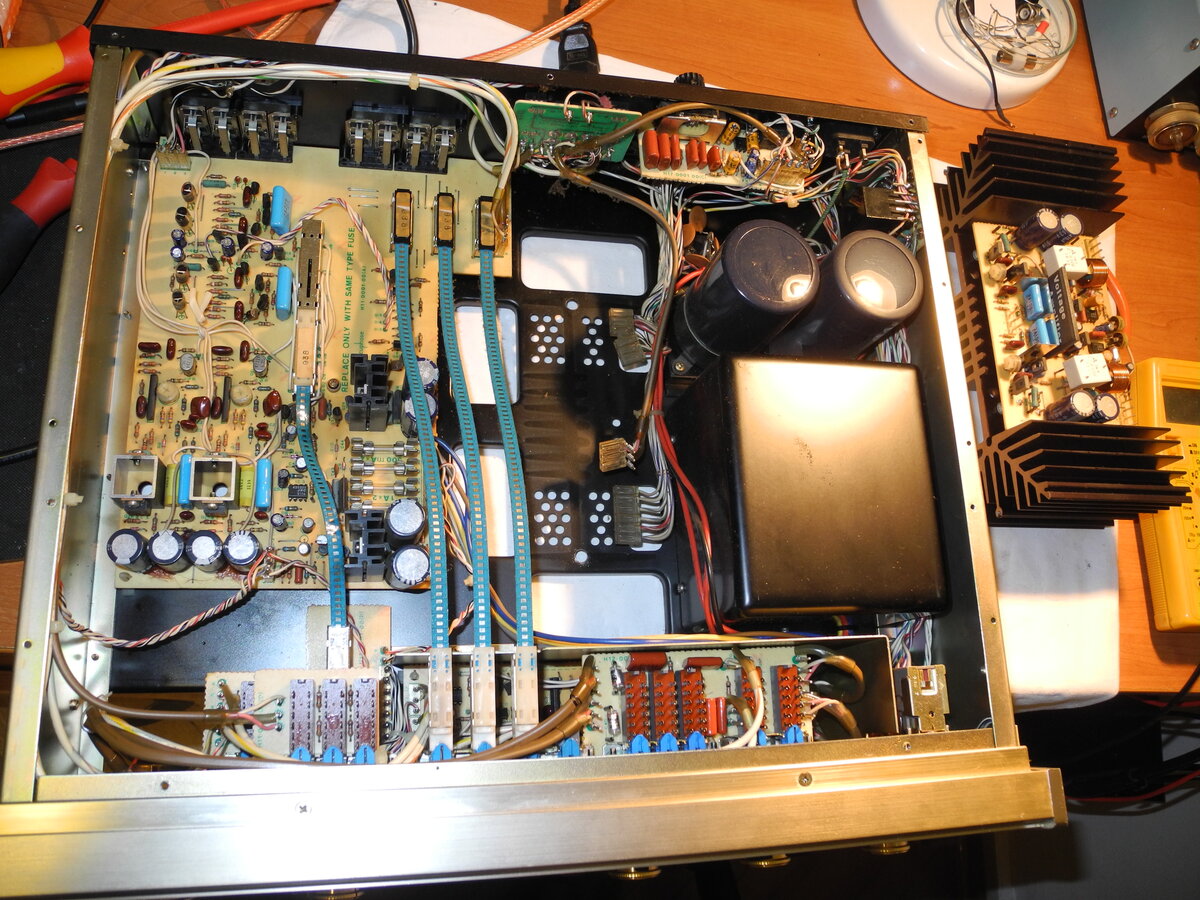

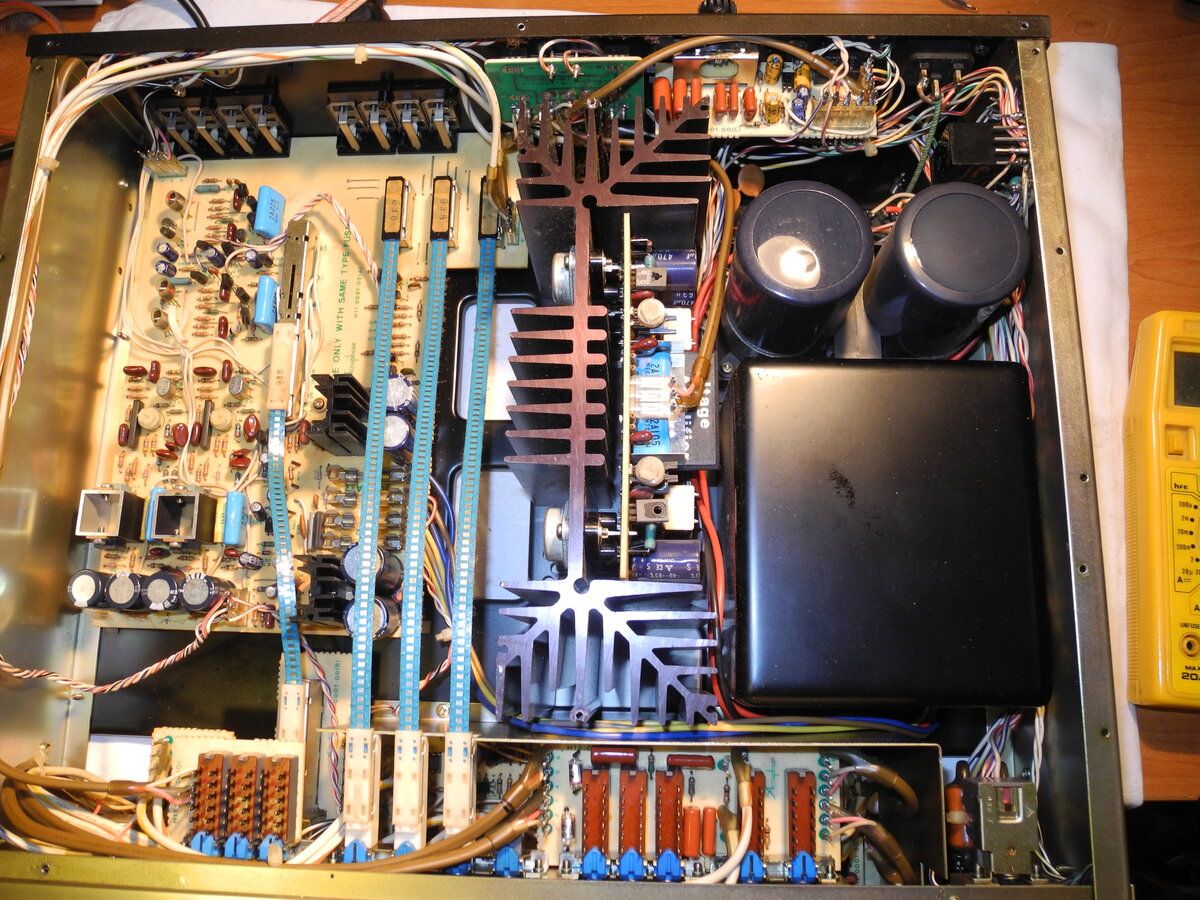

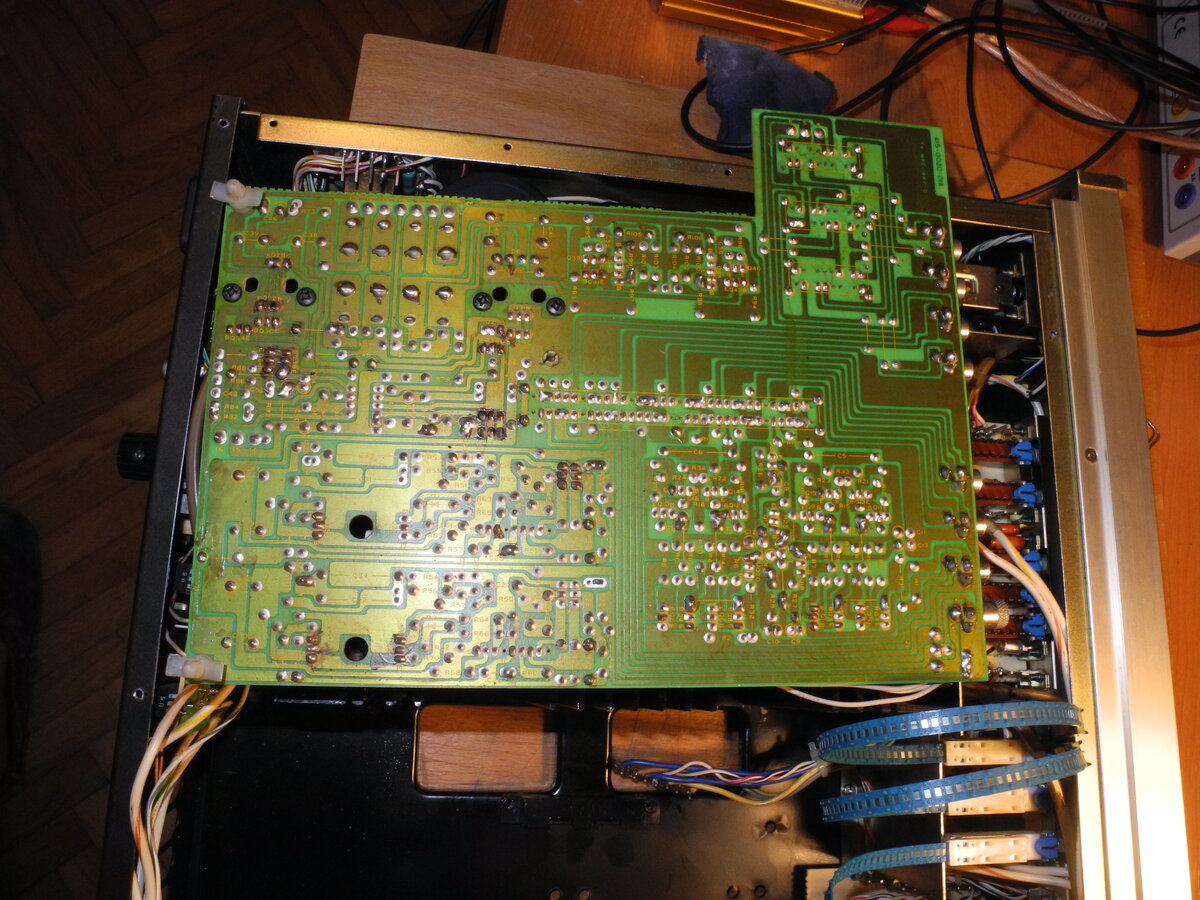

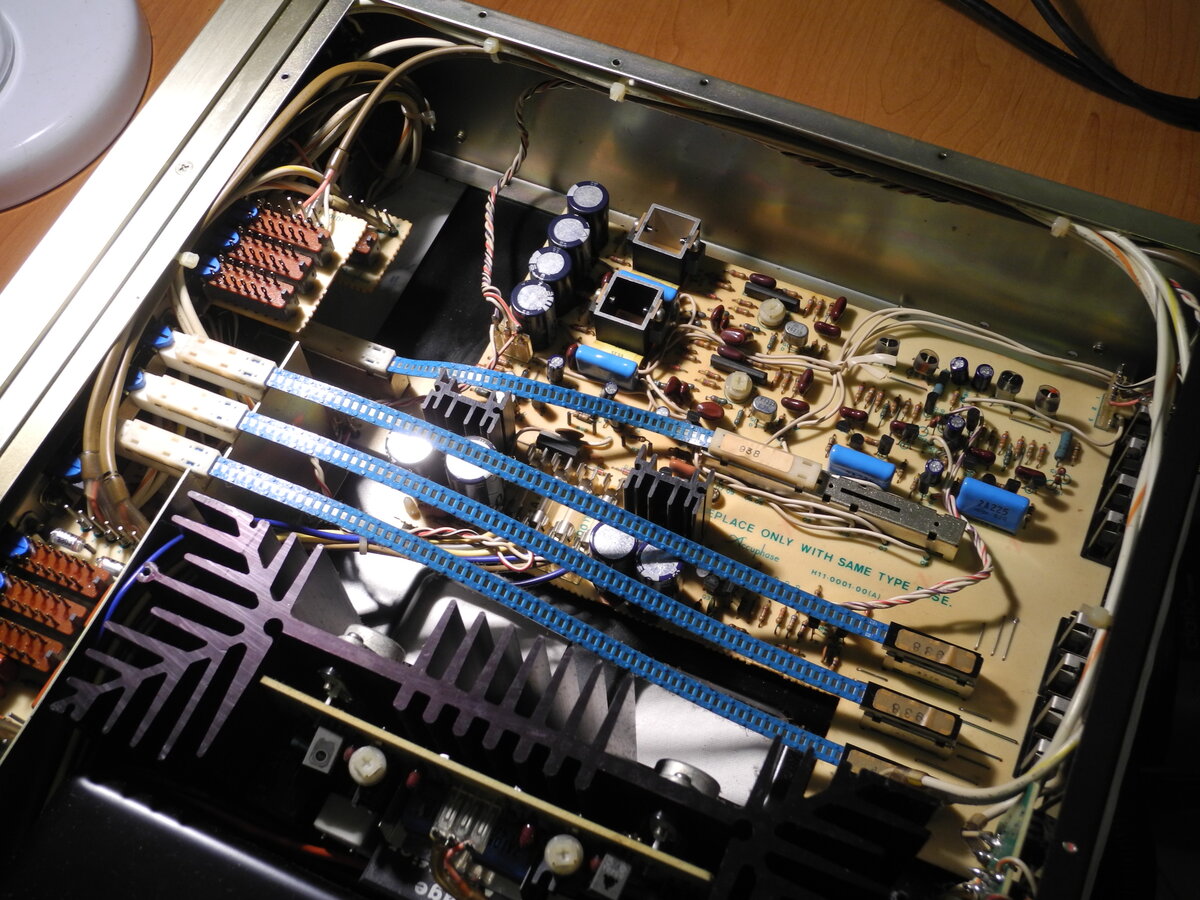

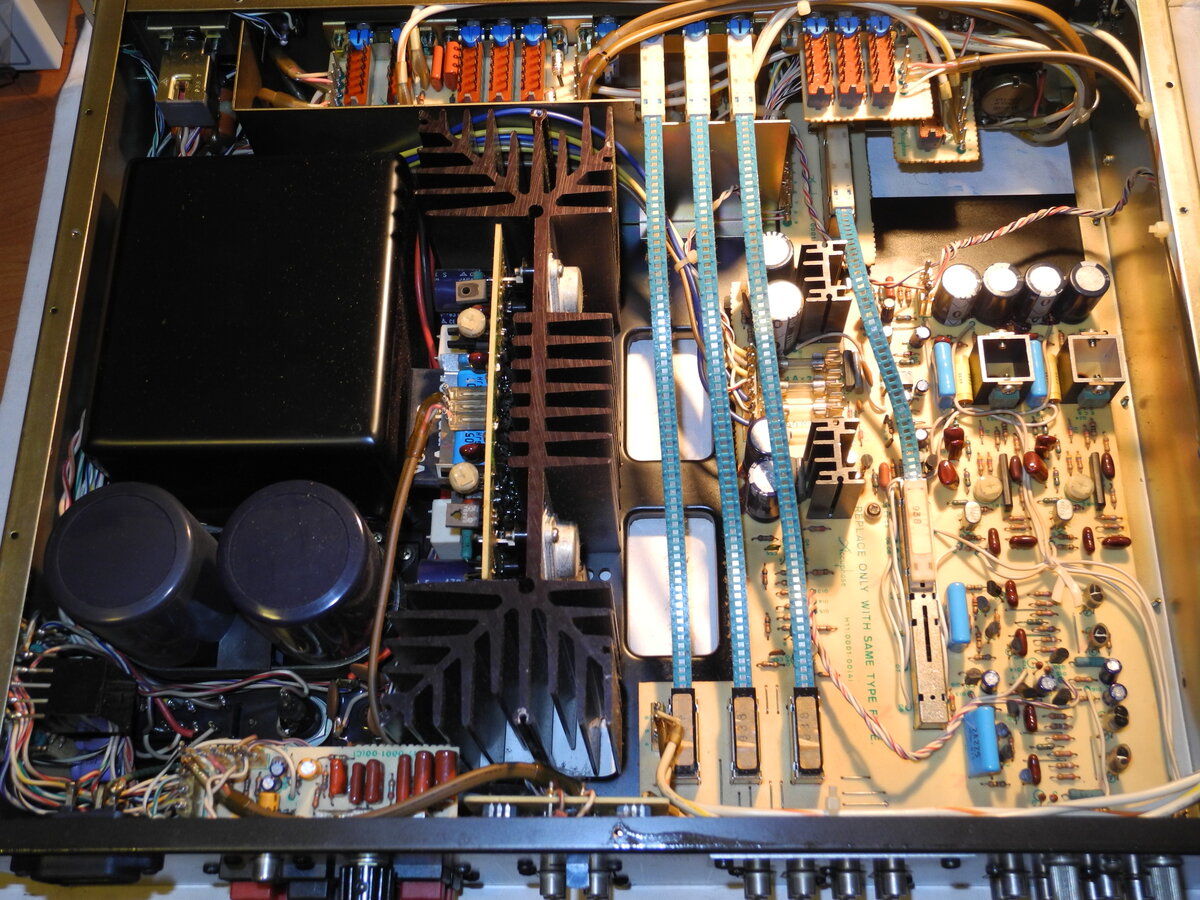

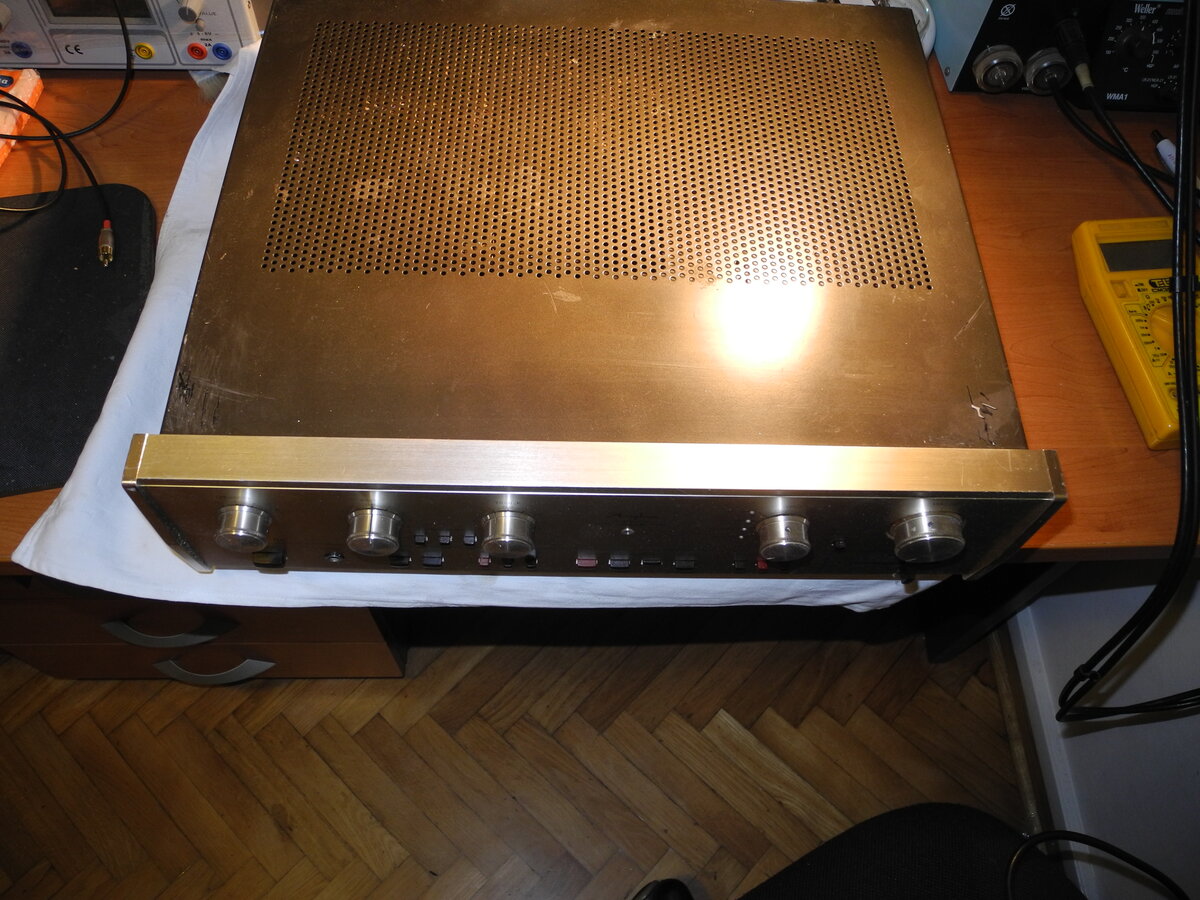

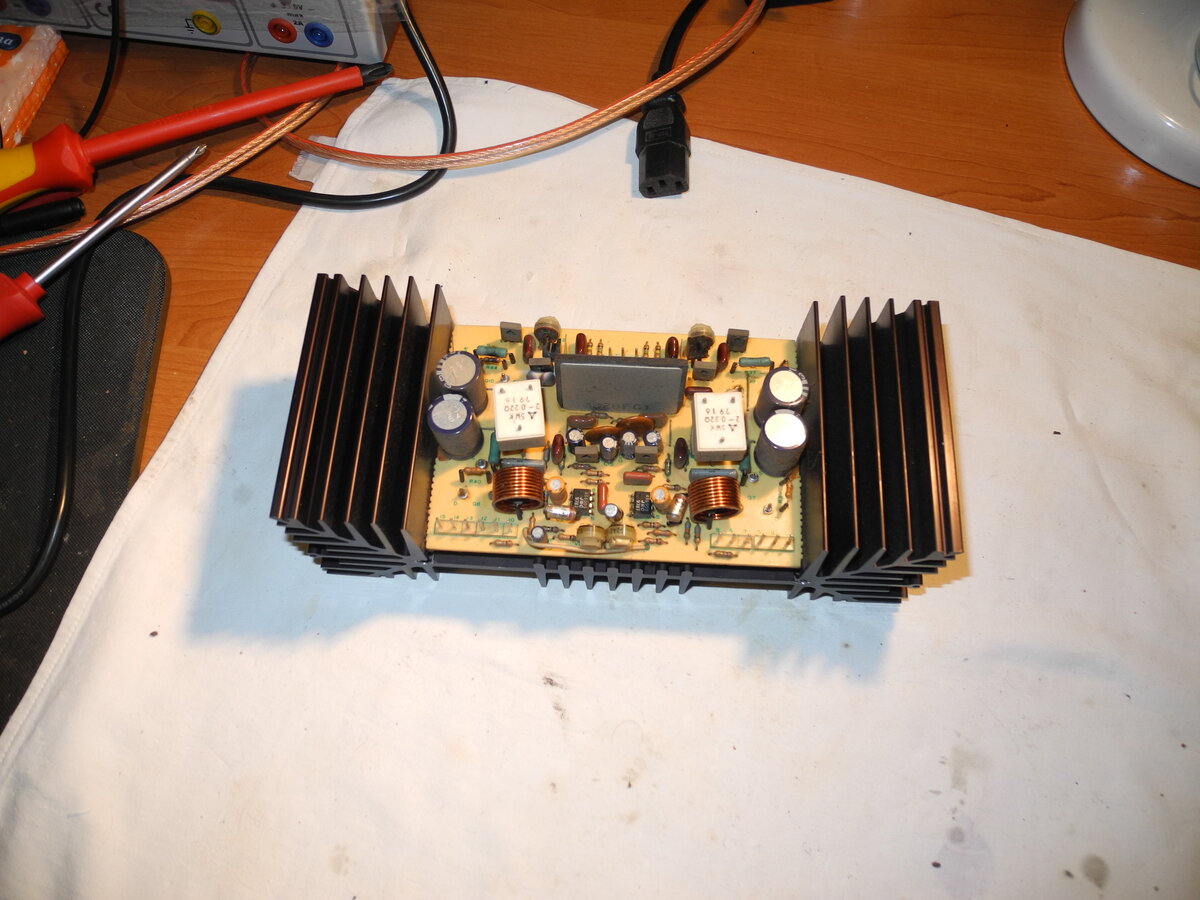

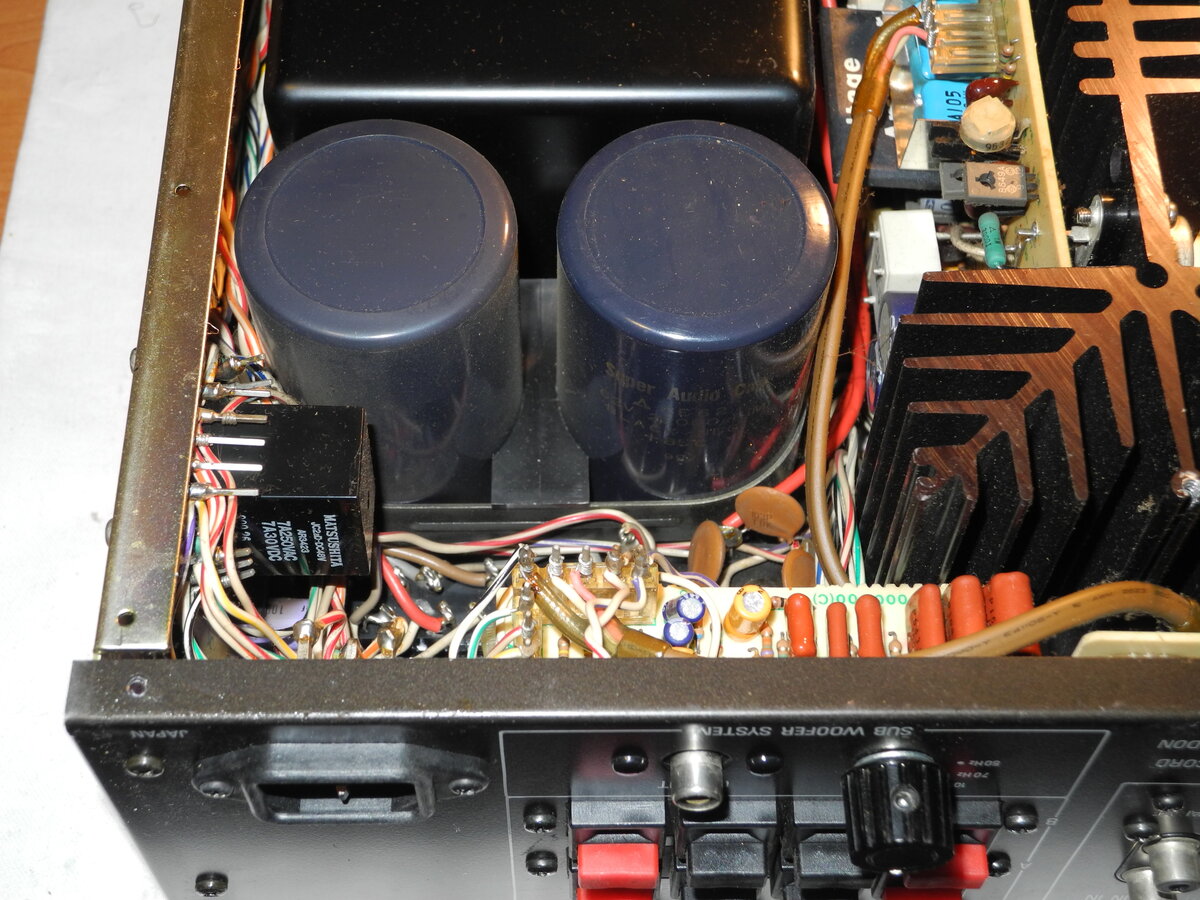

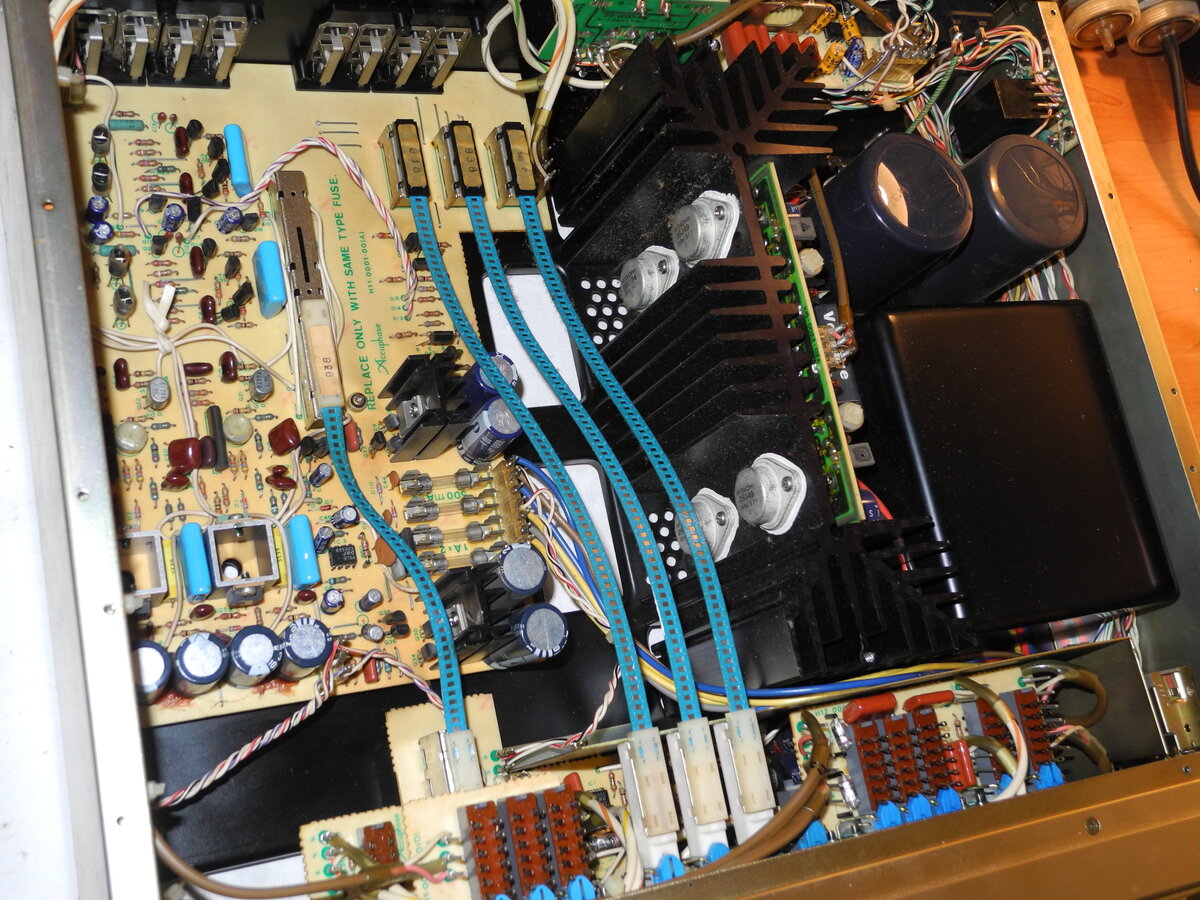

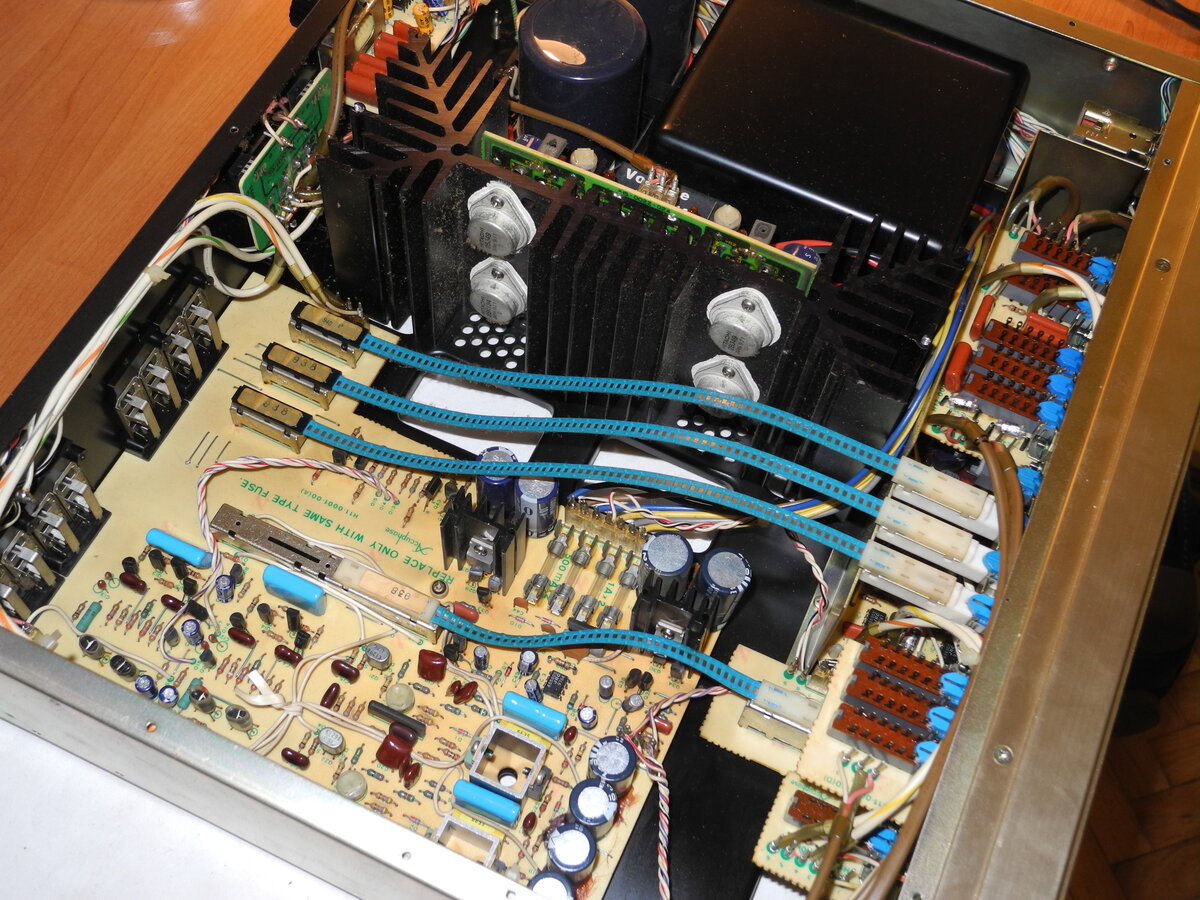

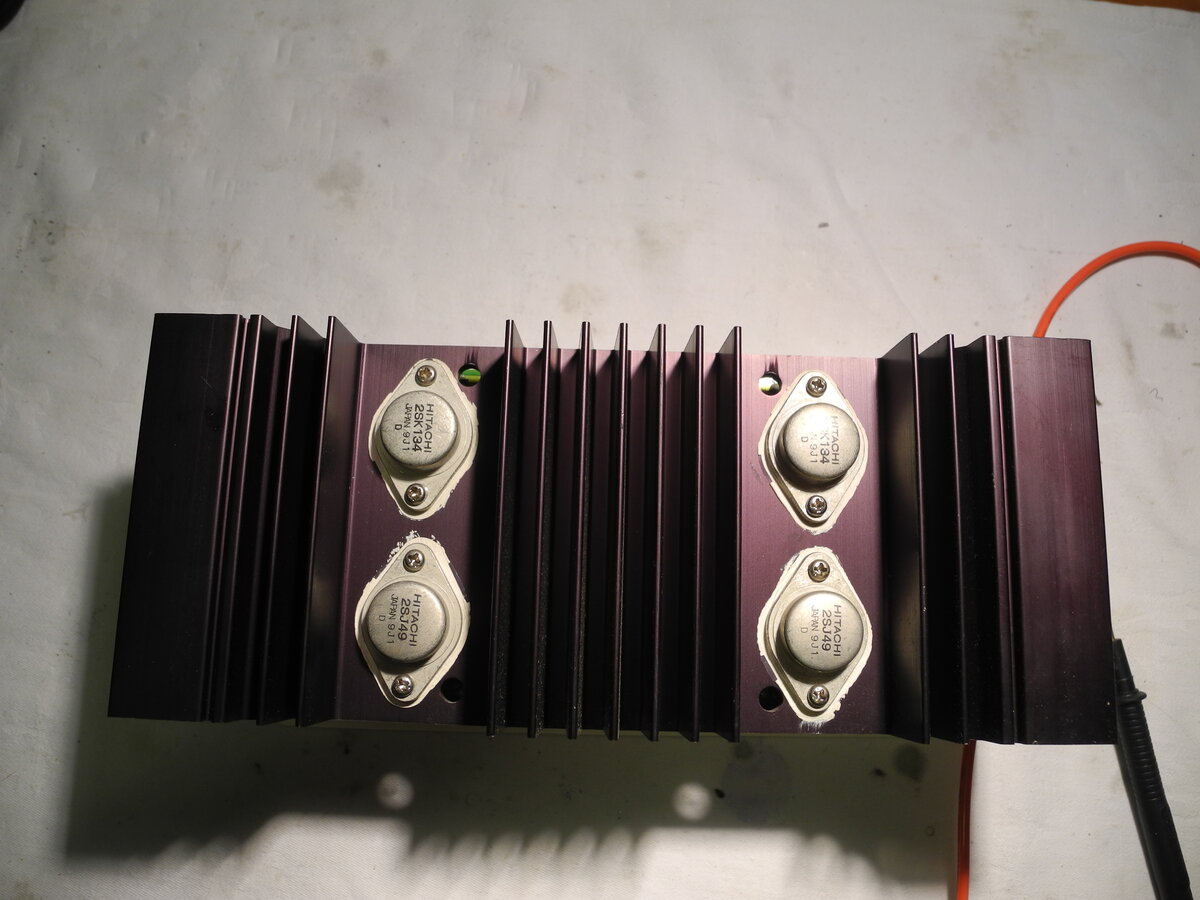

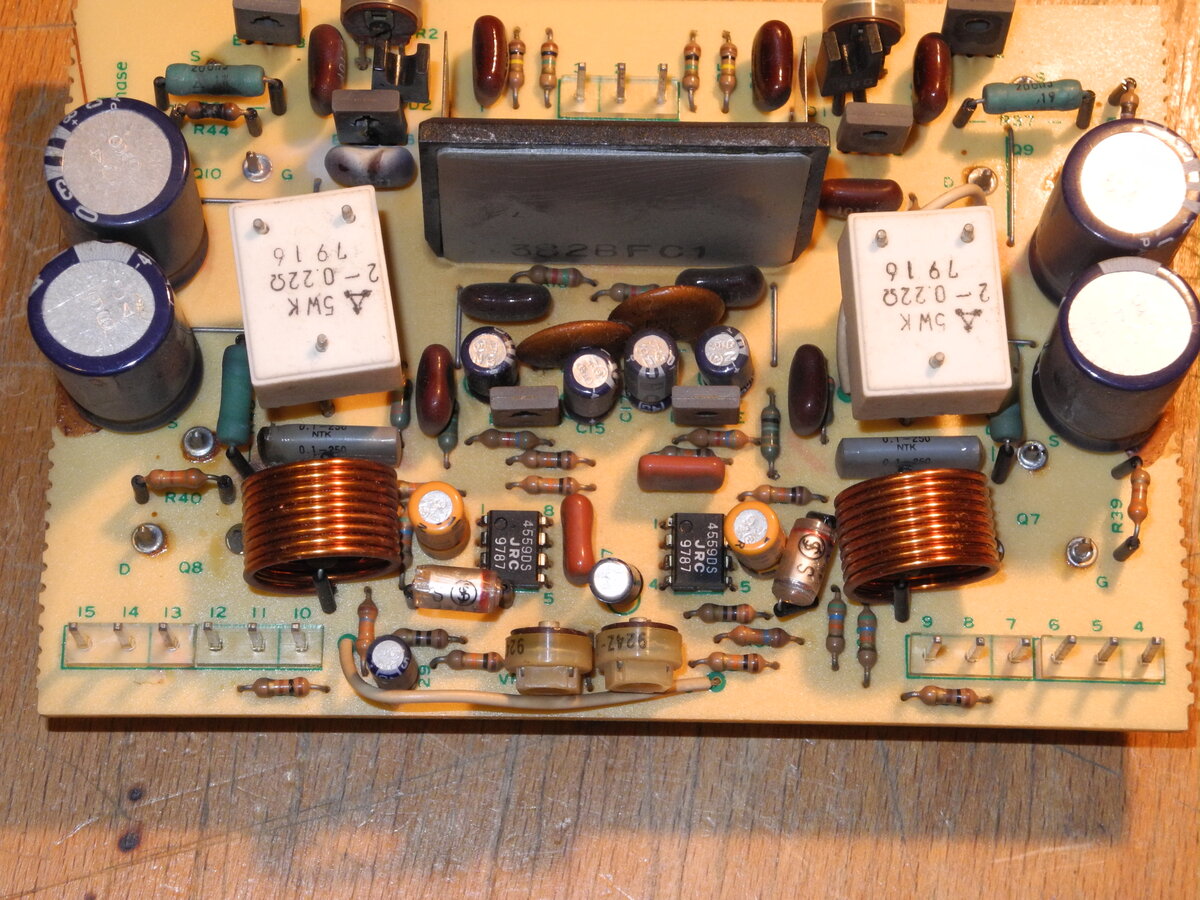

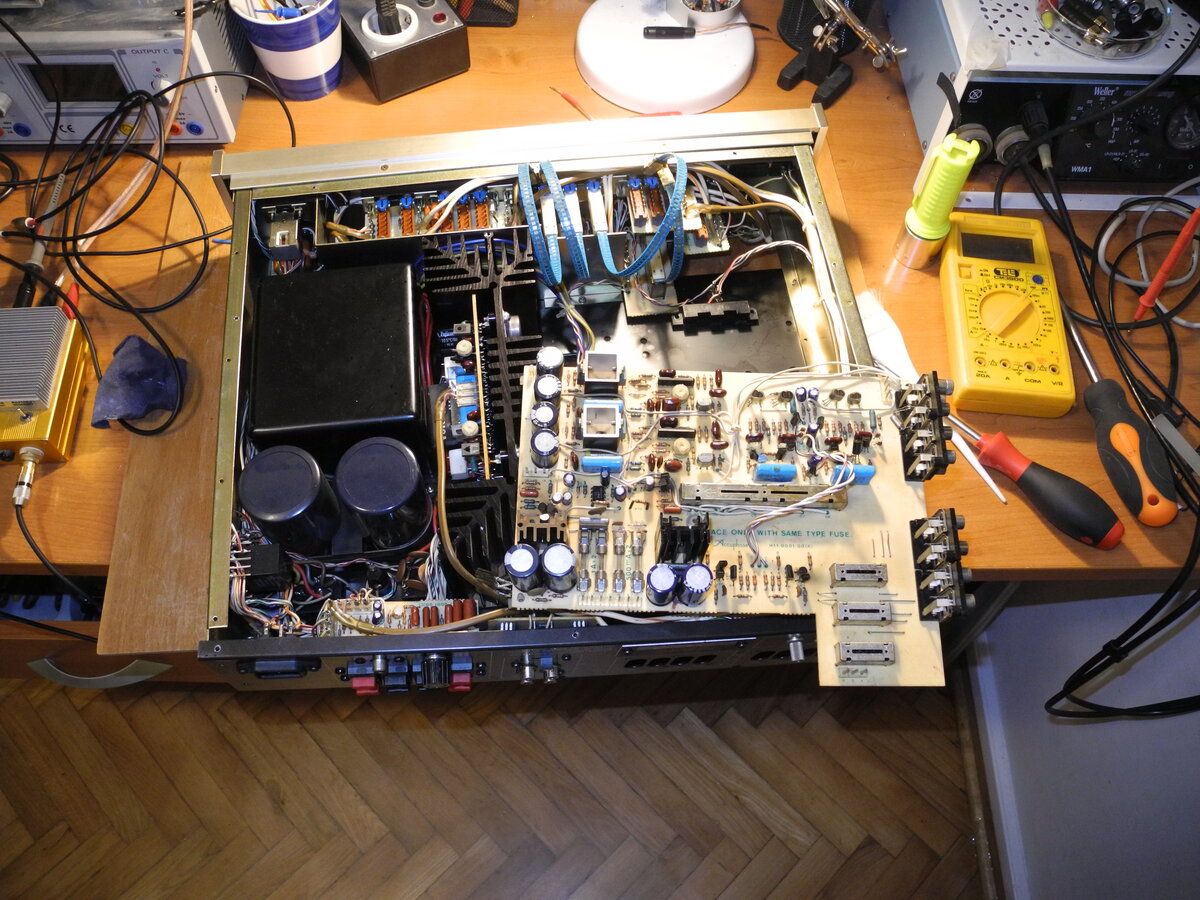

The Accuphase E-203 is a high-end integrated stereo amplifier introduced in the late 1970s, epitomizing Accuphase's commitment to precision engineering and exceptional sound quality. Known for its superior build quality and remarkable performance, the E-203 is a favorite among audiophiles and vintage audio enthusiasts.
General Specifications
Maximum power (8Ω): 70WMaximum power (4Ω): 90W
Frequency response (20Hz-20kHz): ±0.2dB
THD+N: 0.02%
IMD: 0.005%
Signal to noise ratio (Line): 82dB
Signal to noise ratio (MM): 80dB
Signal to noise ratio (MC): 75dB
Input sensitivity (Line): 120mV
Input sensitivity (MM): 1.8mV
Input sensitivity (MC): 0.09mV
Damping factor: 50
Speaker load impedance: 4Ω-16Ω
Dimensions (WHD): 445×128×370mm
Weight: 14.7kg
Produced: 1979-1983
Initial price: 1400DM
Measured Values
Maximum power (8Ω): 73WFrequency response (20Hz-20kHz): ±0.1dB
Channel imbalance: <0.1dB
THD (1kHz, 1W): 0.0018%
THD+N (1kHz, 1W): 0.013%
THD (1kHz, 20W): 0.0016%
THD+N (1kHz, 20W): 0.007%
IMD (70Hz, 5kHz, 1W): 0.010%
Noise: -69.1dB
Amplification (Line): 204.8
DC offset L: -1.7mV
DC offset R: -1.6mV
Maximum Power
Maximum power is measured using 8Ω resistors on both channels. A 1kHz sine wave input signal is applied and gradually increased until higher harmonics rise significantly. Typically, this is the point at which output clipping occurs.

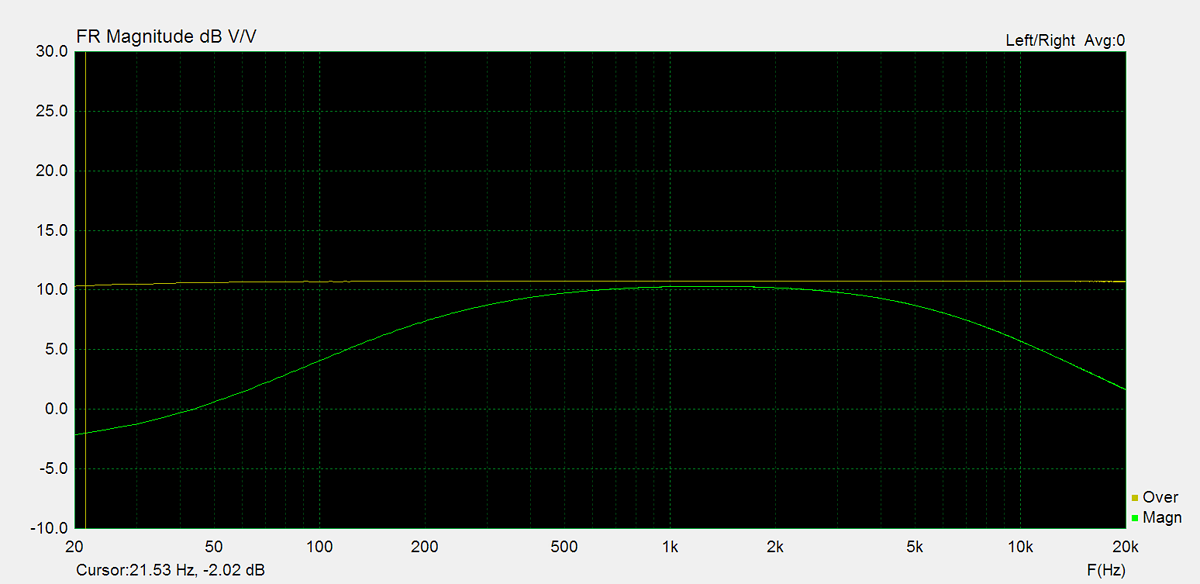

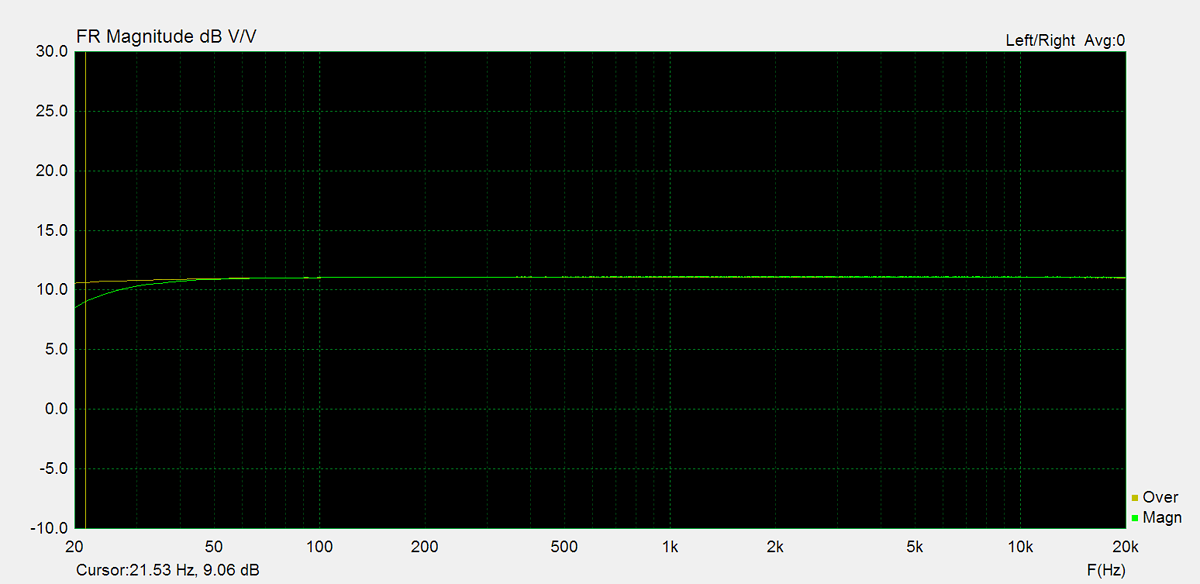

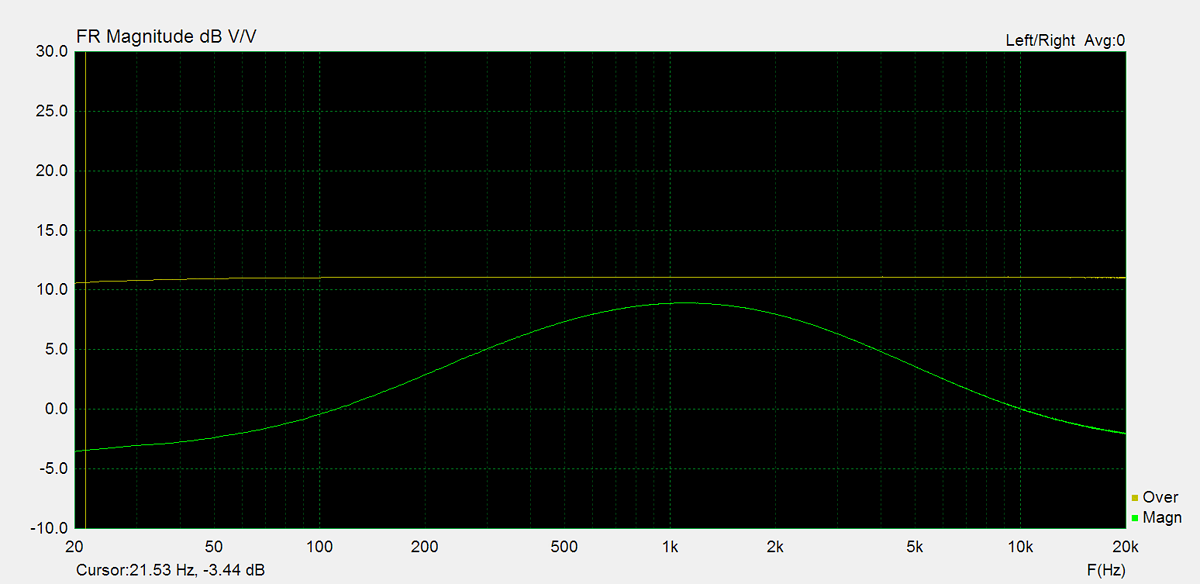

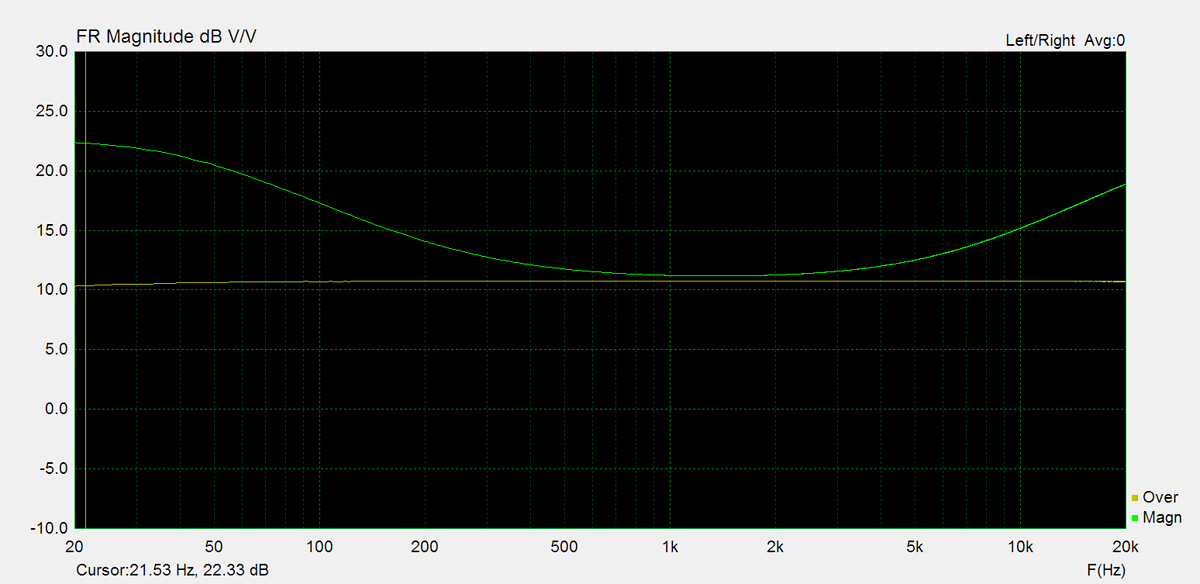

Frequency Response

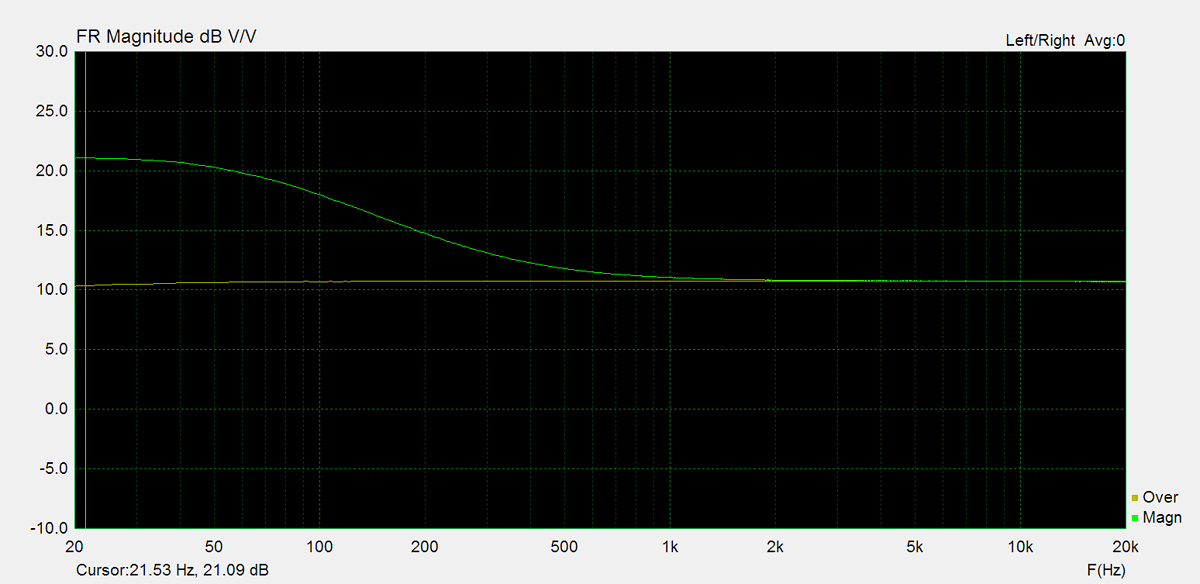

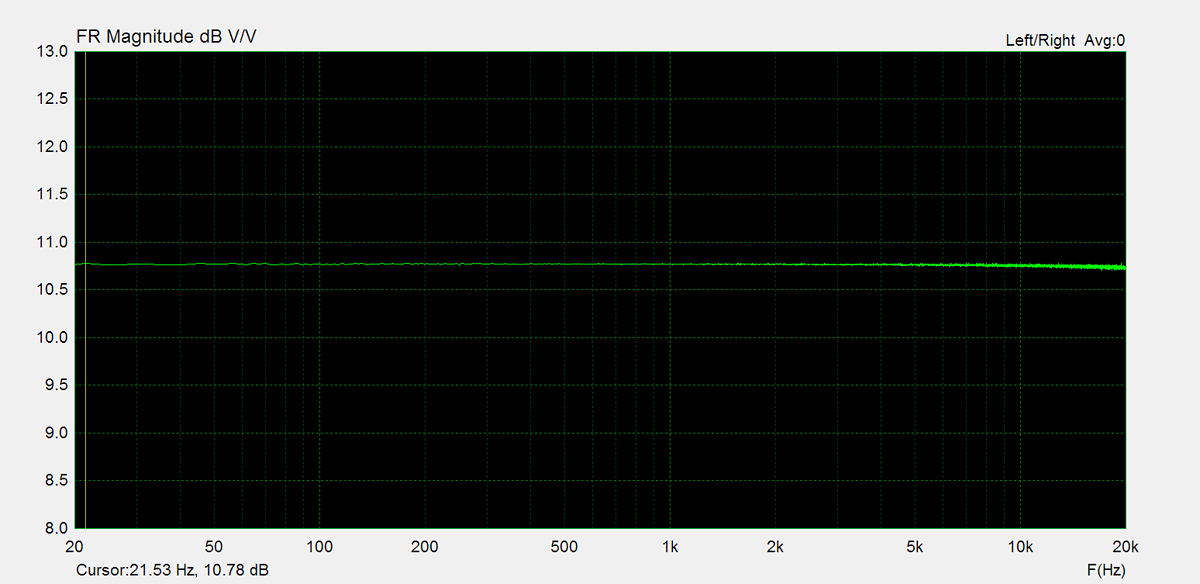

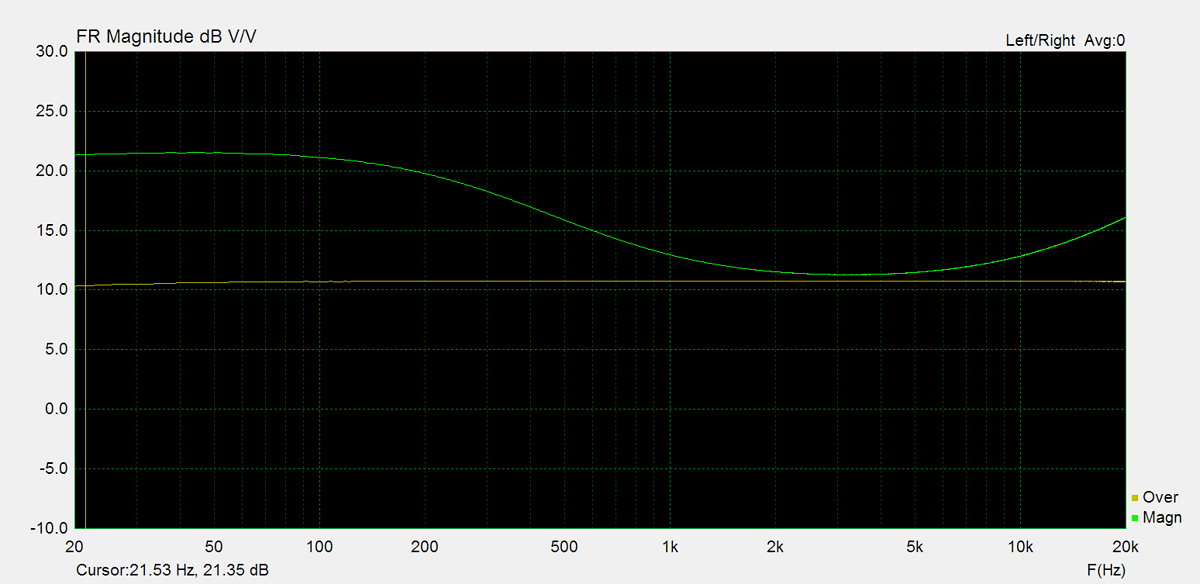

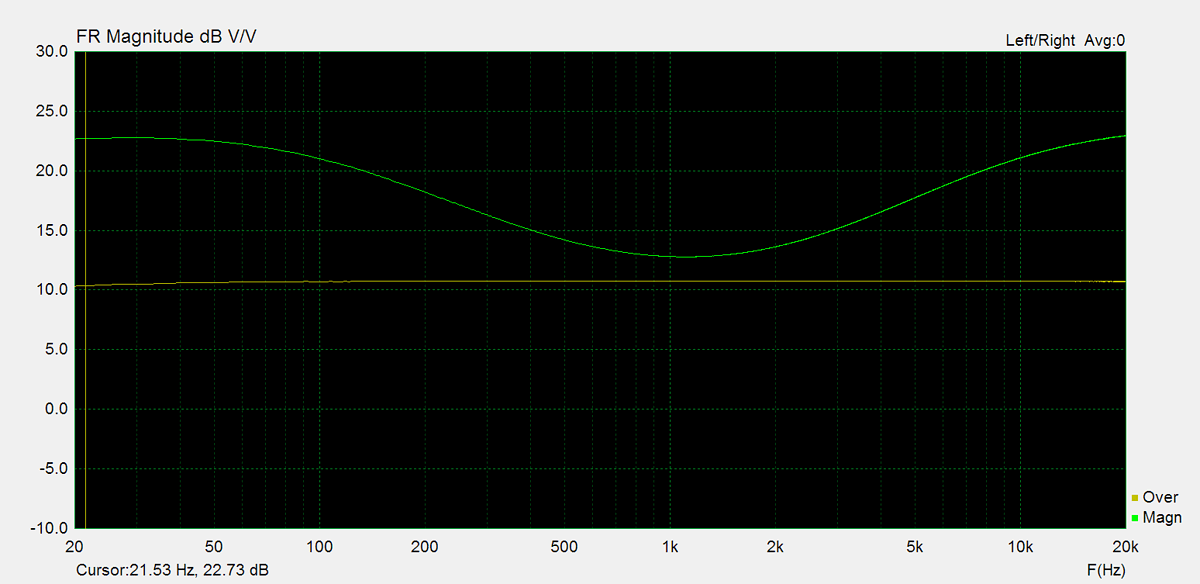

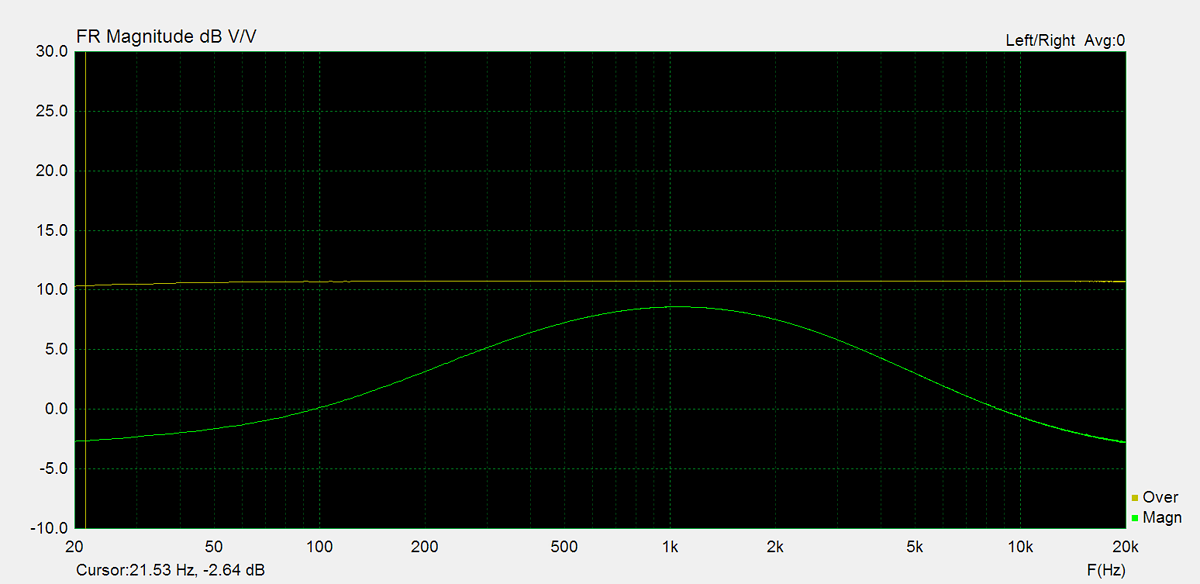

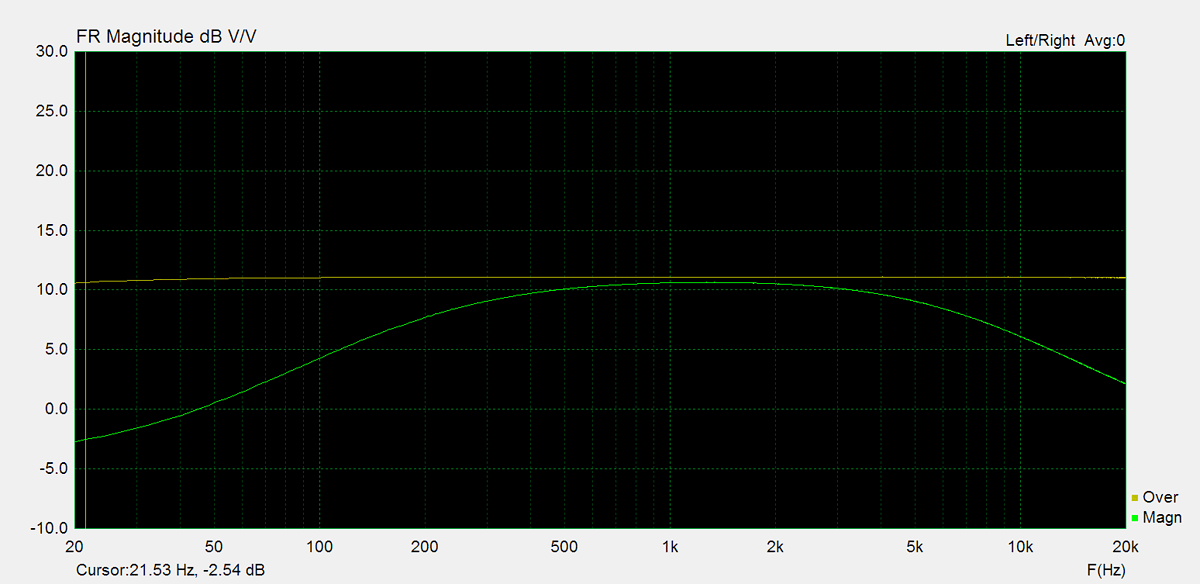

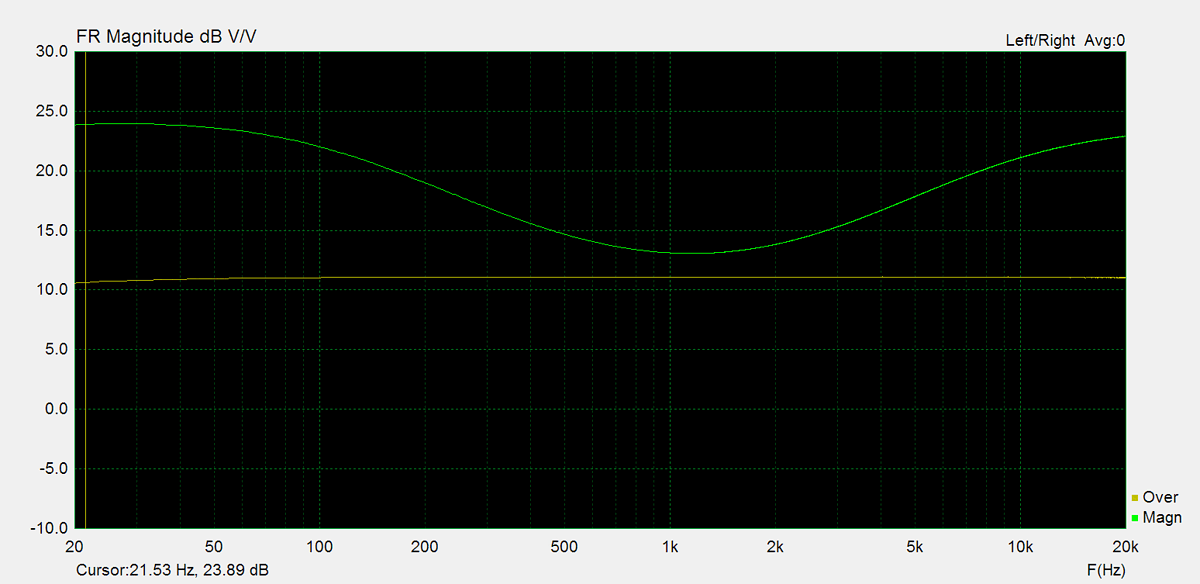

Frequency response is measured using several equilizer settings. 'Flat' indicates the tone controls are either turned off or set to their neutral position. 'Max' and 'Min' refer to the maximum and minimum tone control positions, respectively. In the phono section, the expected response follows the RIAA equalization curve.

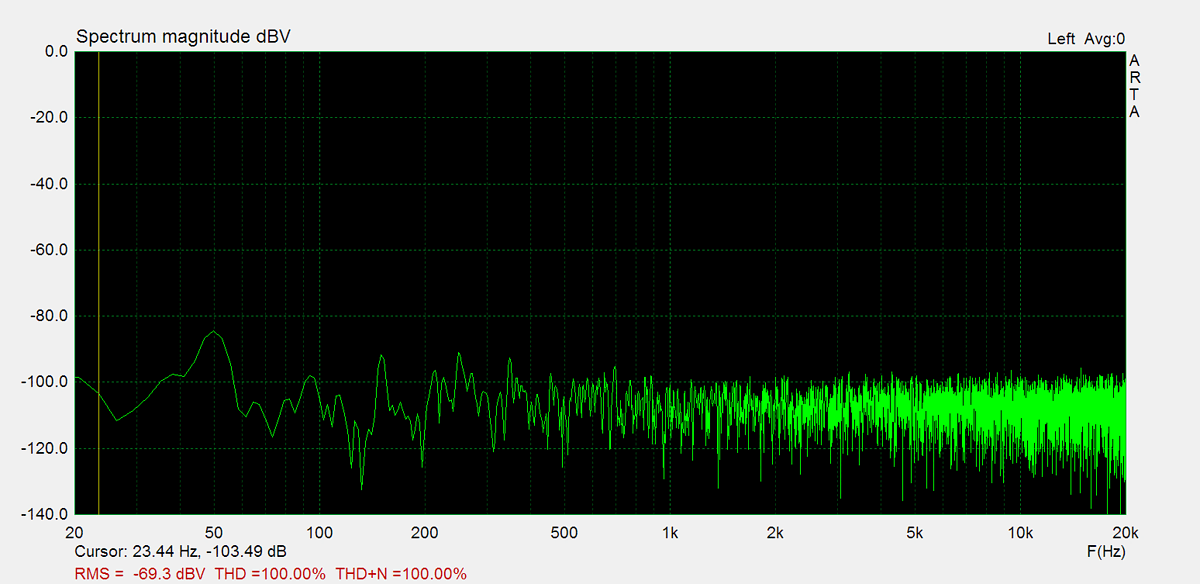

Residual Noise

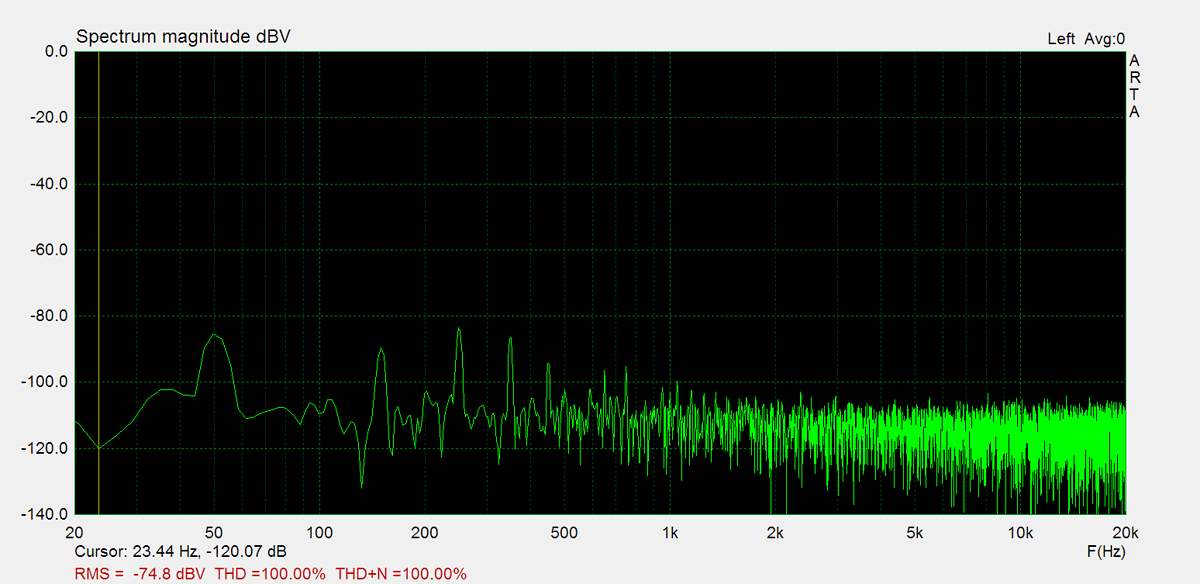

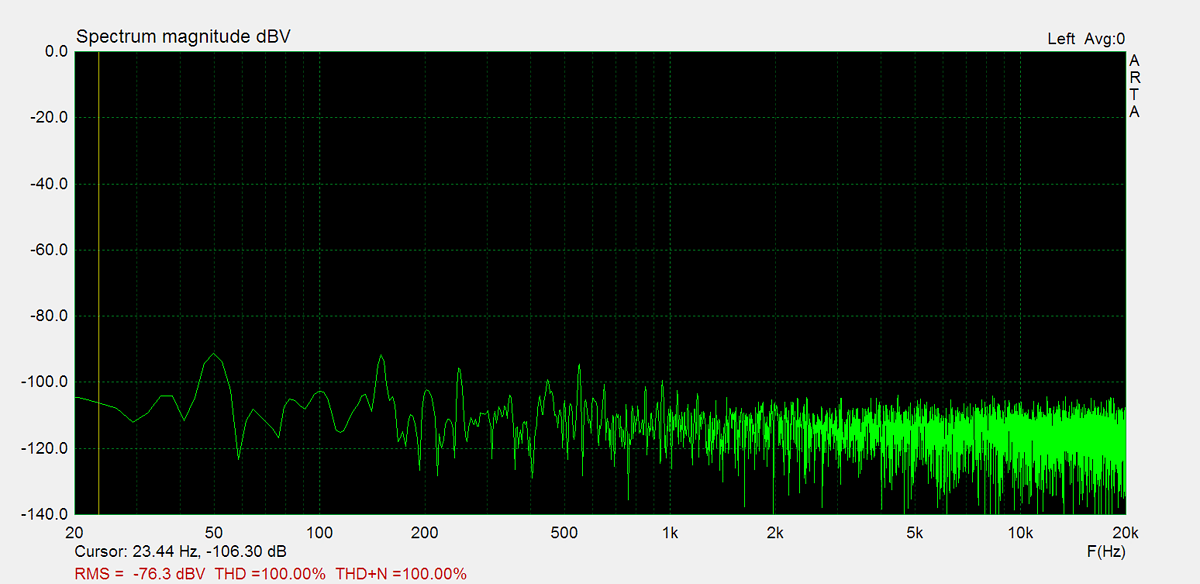

These graphs display the noise levels at various volume positions. To eliminate any interference from the input signal, the input lines are shorted during the measurement. Generally, the noise is highest at the mid-point of the volume range (50%)

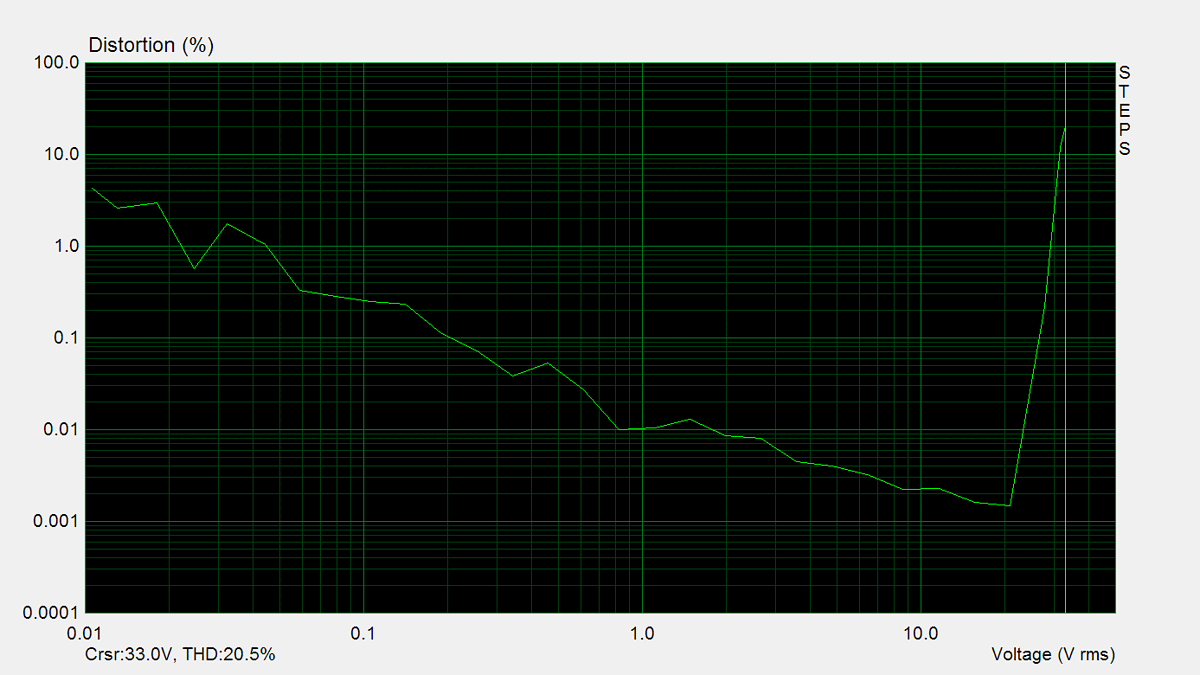

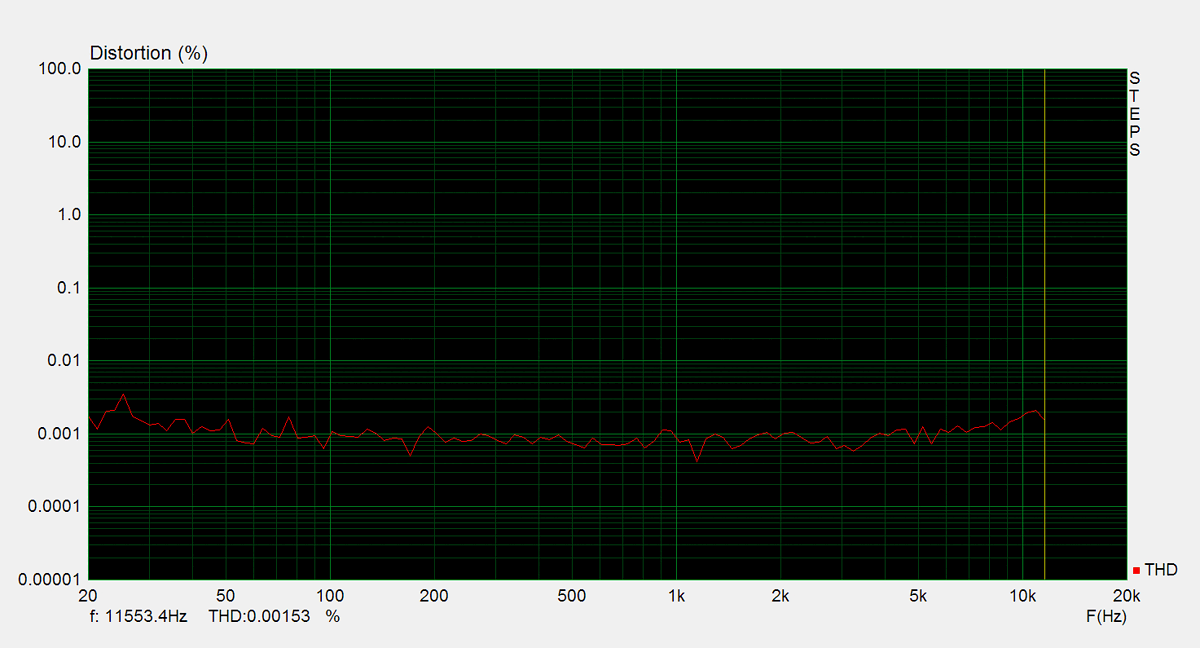

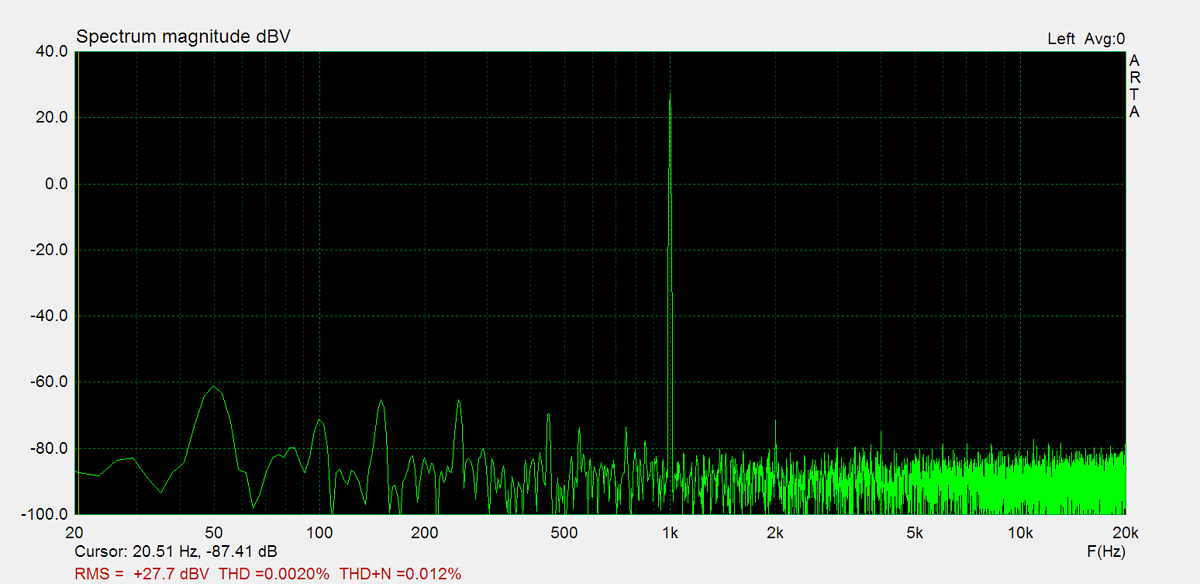

Distorsion

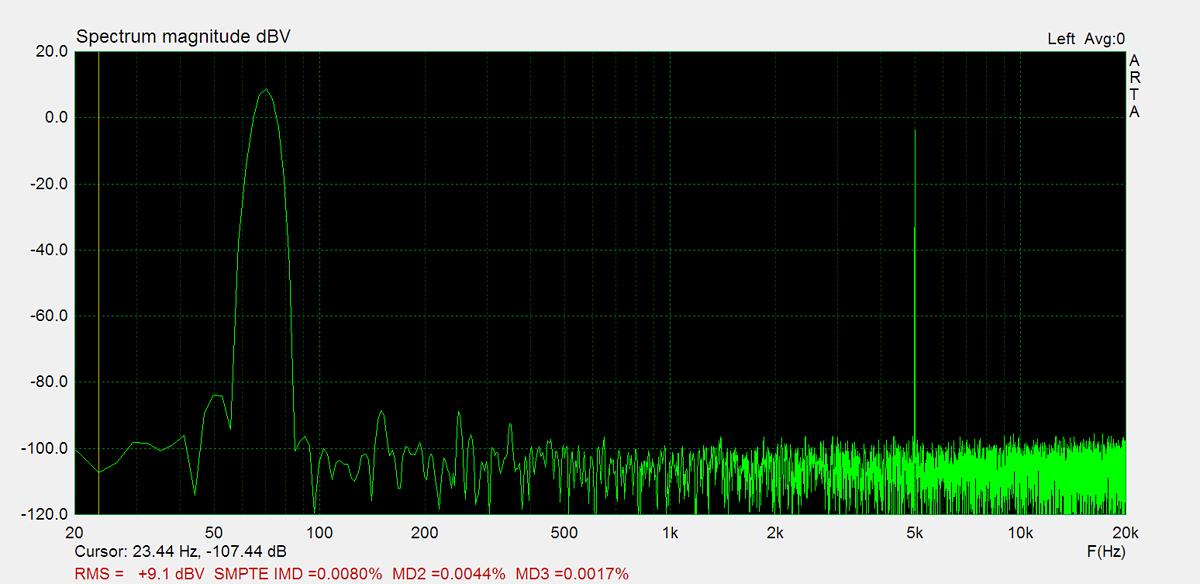

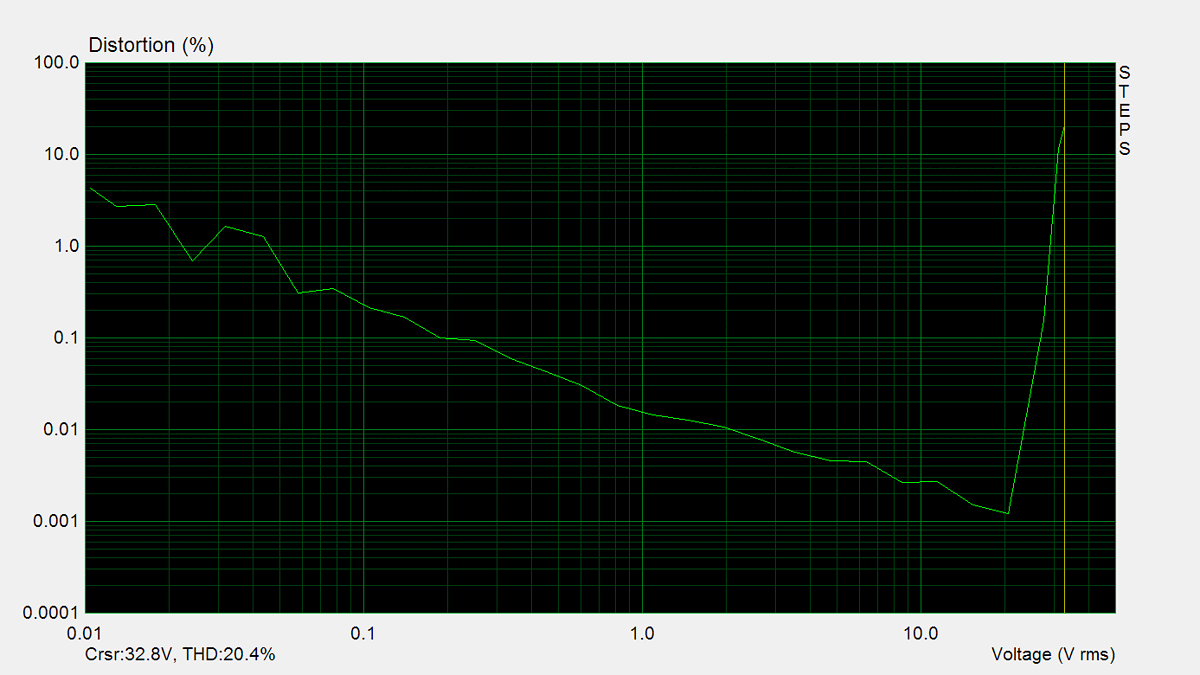

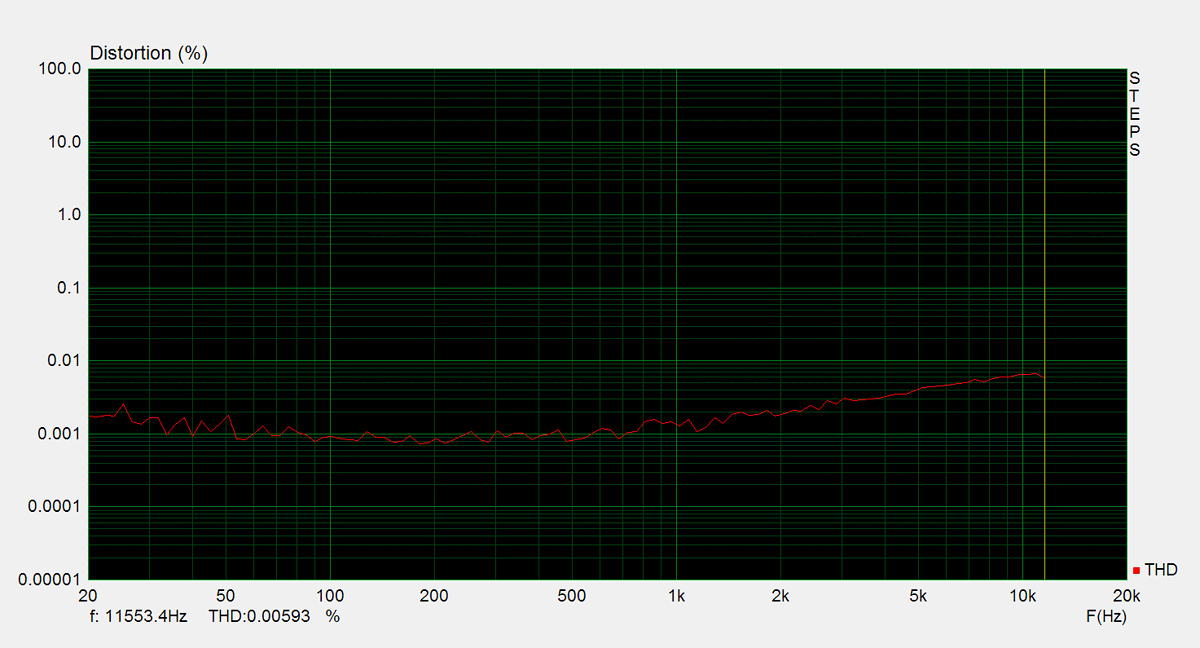

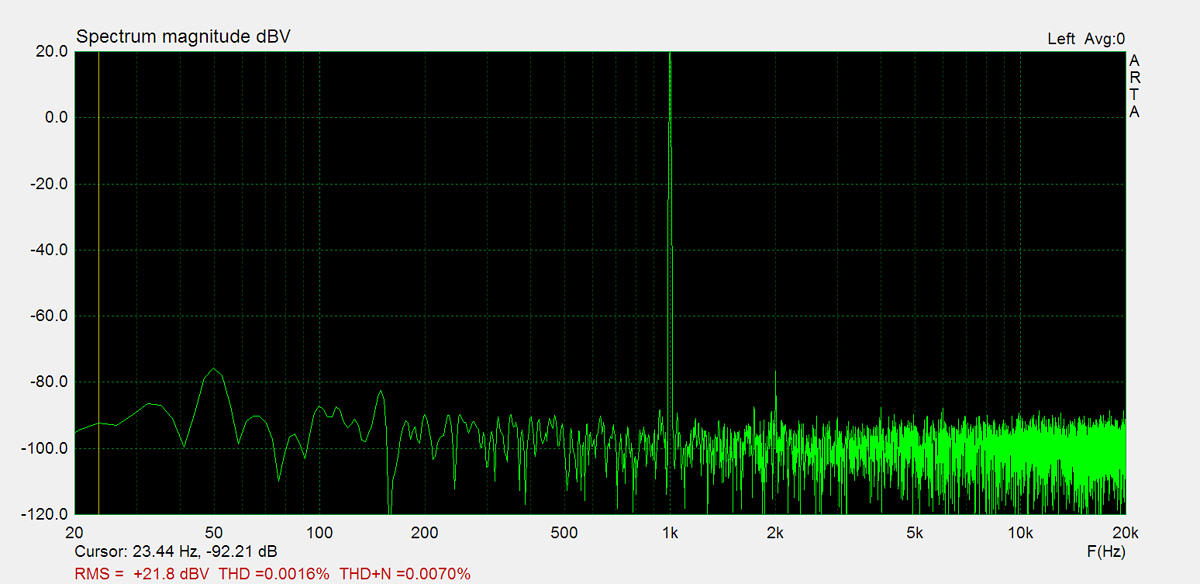

Total harmonic distortion (THD) is measured using a 1kHz sine wave input, with the output level adjusted to meet different conditions. Intermodulation distortion (IMD) is measured using 'two sine' input signal. THD versus voltage is measured with a 1kHz sine wave input, while THD versus frequency is measured at various output levels.
