Marantz 2215BL
Marantz 2215BL is a classic stereo receiver from the early 1970s, delivering 15 watts per channel into 8Ω. Designed for the European market, it features FM/AM/LW radio reception, a silver faceplate with blue dial, and Marantz's signature warm sound. The "L" variant includes Long Wave tuning and multi-voltage support, making it distinct from the US-market 2215B. A compact and elegant entry into vintage Marantz hi-fi.
General Specifications
Maximum power (8Ω): 15WFrequency response (±1.5dB): 20Hz-60kHz
Frequency response (±0.5dB): 40Hz-20kHz
THD: 0.8%
IMD: 0.8%
Signal to noise ratio (Line): 85dB
Signal to noise ratio (Phono): 74dB
Input sensitivity (Line): 150mV
Input sensitivity (Phono): 2.2mV
Damping factor: 40
Speaker load impedance: 8Ω-16Ω
Dimensions (WHD): 441×137×292mm
Weight: 10.4kg
Produced: 1973-1977
Initial price: 1395DM
Measured Values
Maximum power (8Ω): 15WFrequency response (20Hz-20kHz): <1.0dB
Channel imbalance: <0.5dB
THD (1kHz, 1W): 0.053%
THD+N (1kHz, 1W): 0.066%
THD (1kHz, 10W): 0.11%
THD+N (1kHz, 10W): 0.11%
IMD (70Hz, 5kHz, 1W): 0.17%
Noise: -58.5dB
Amplification: 72.4
DC offset L: 0mV - by design
DC offset R: 0mV - by design
Maximum Power

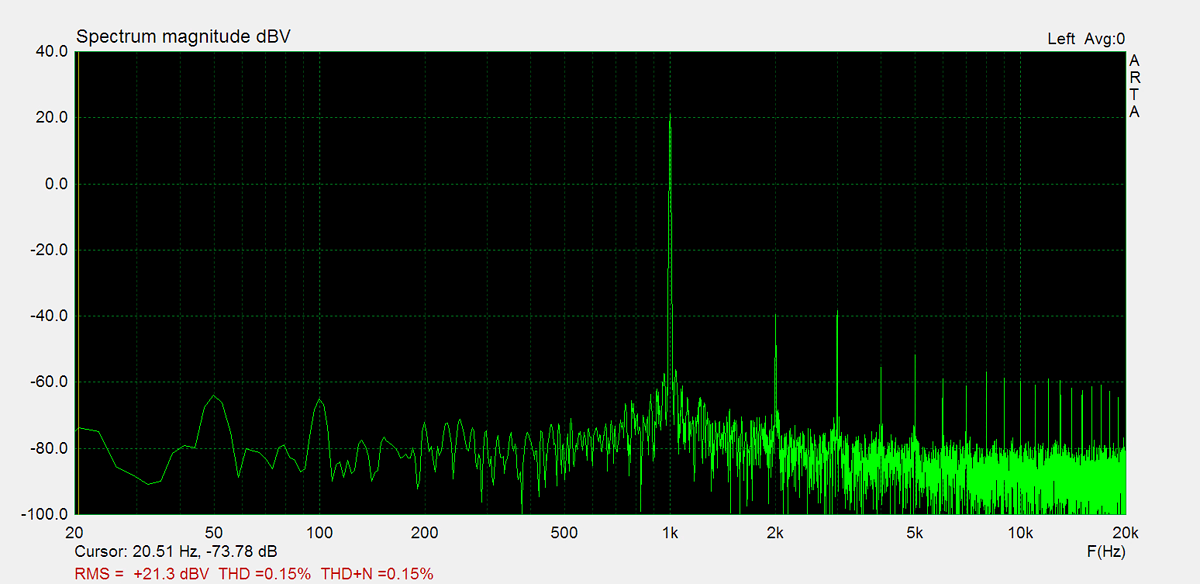

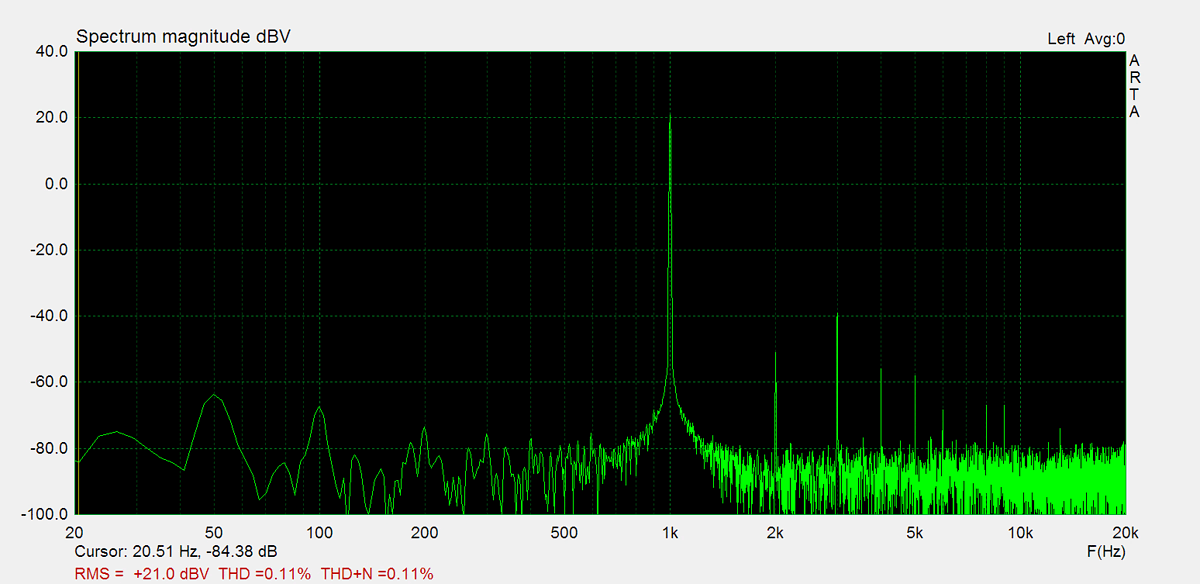

Maximum power is measured using 8Ω resistors on both channels. A 1kHz sine wave input signal is applied and gradually increased until higher harmonics rise significantly. Typically, this is the point at which output clipping occurs.

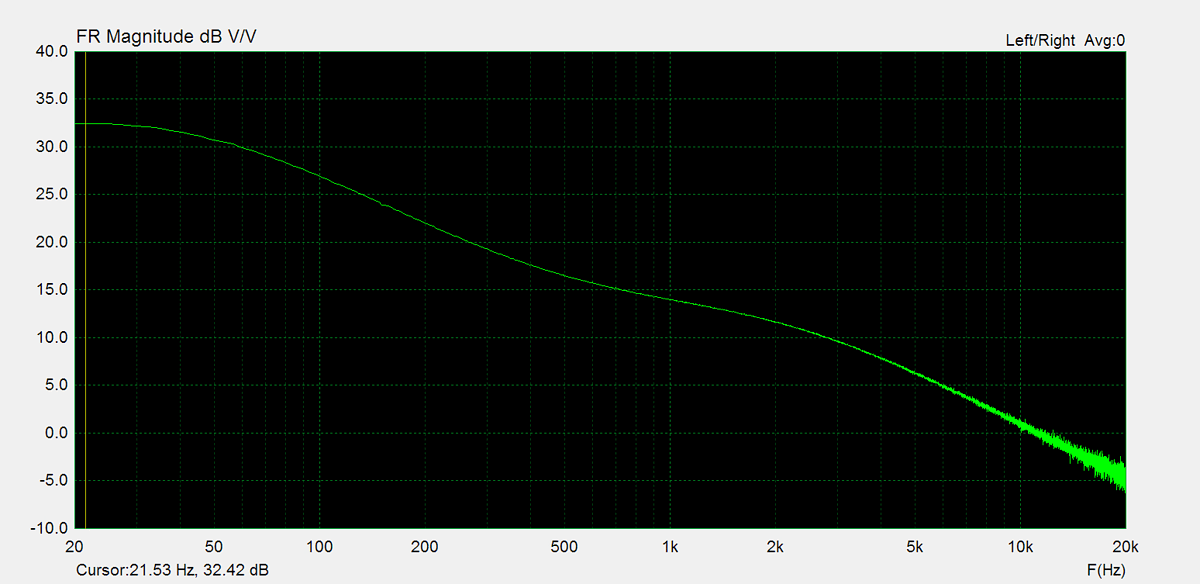

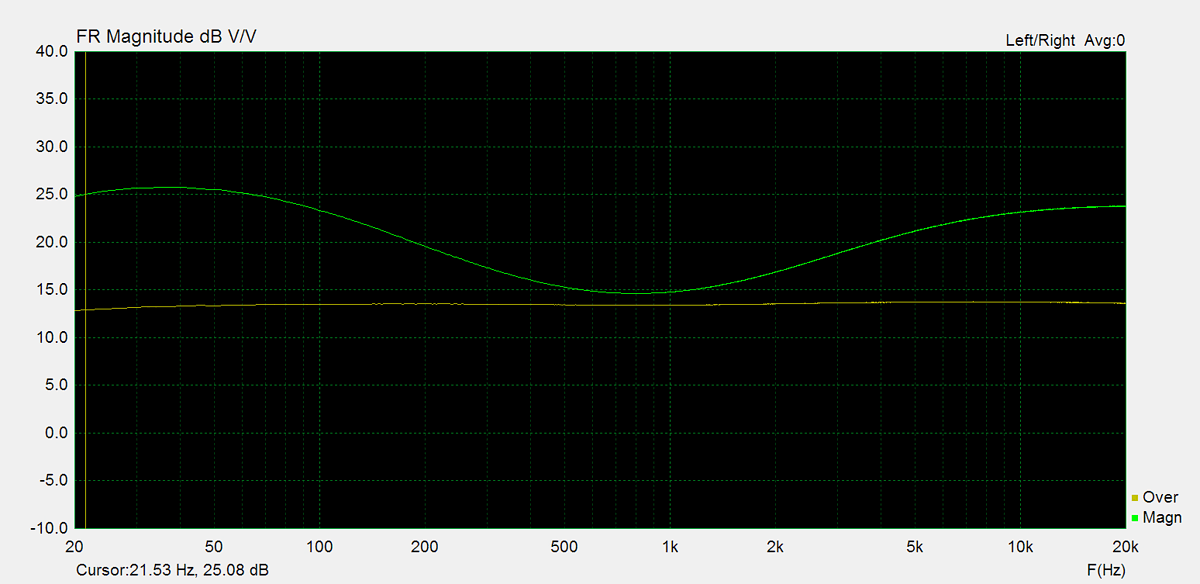

Frequency Response

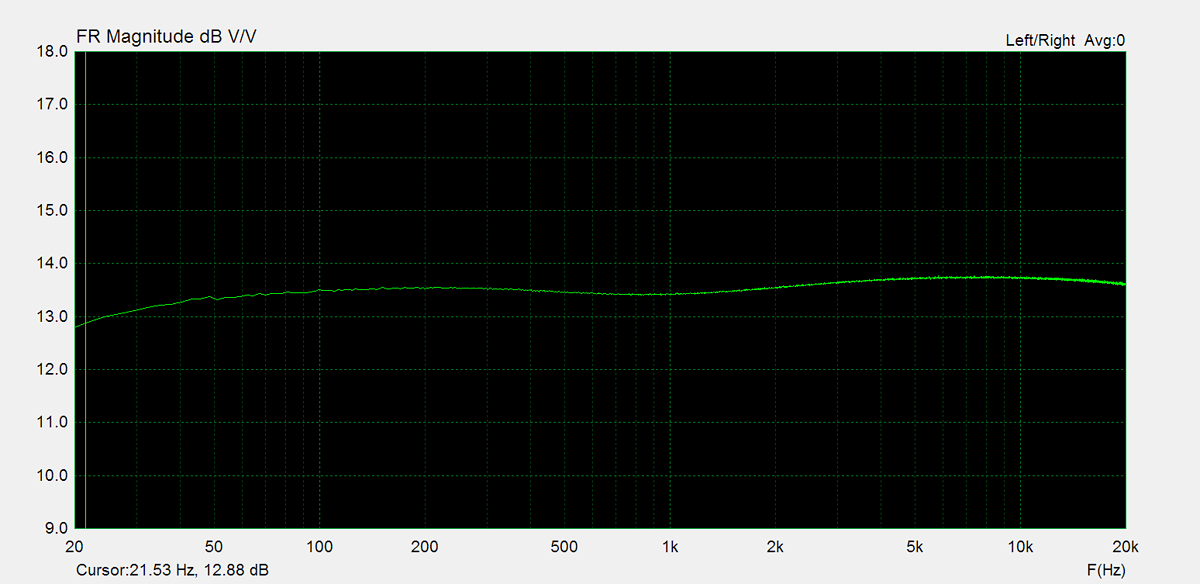

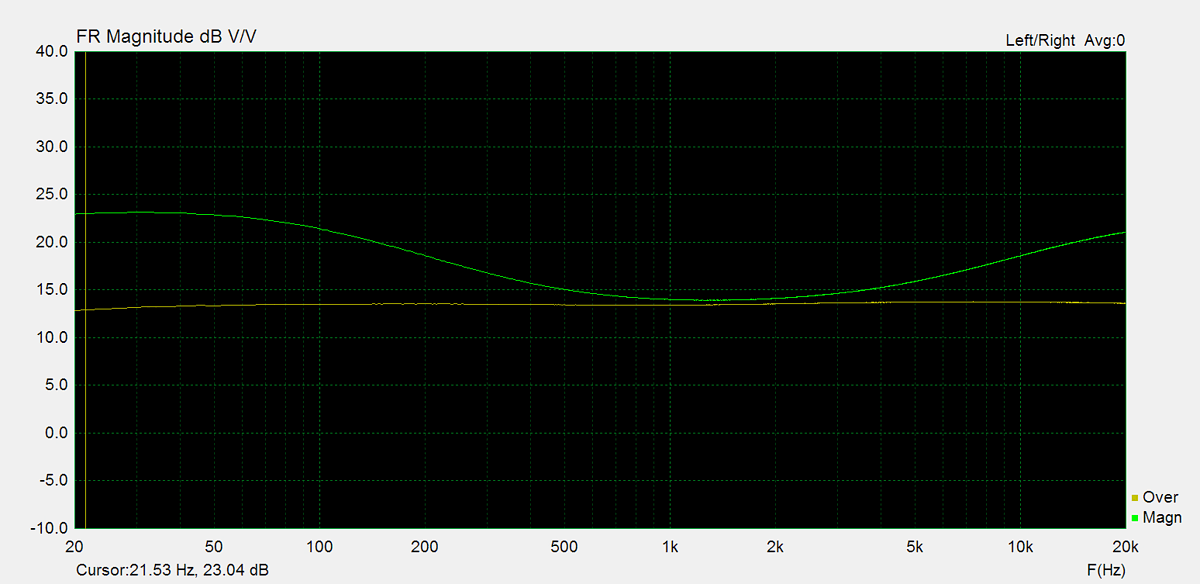

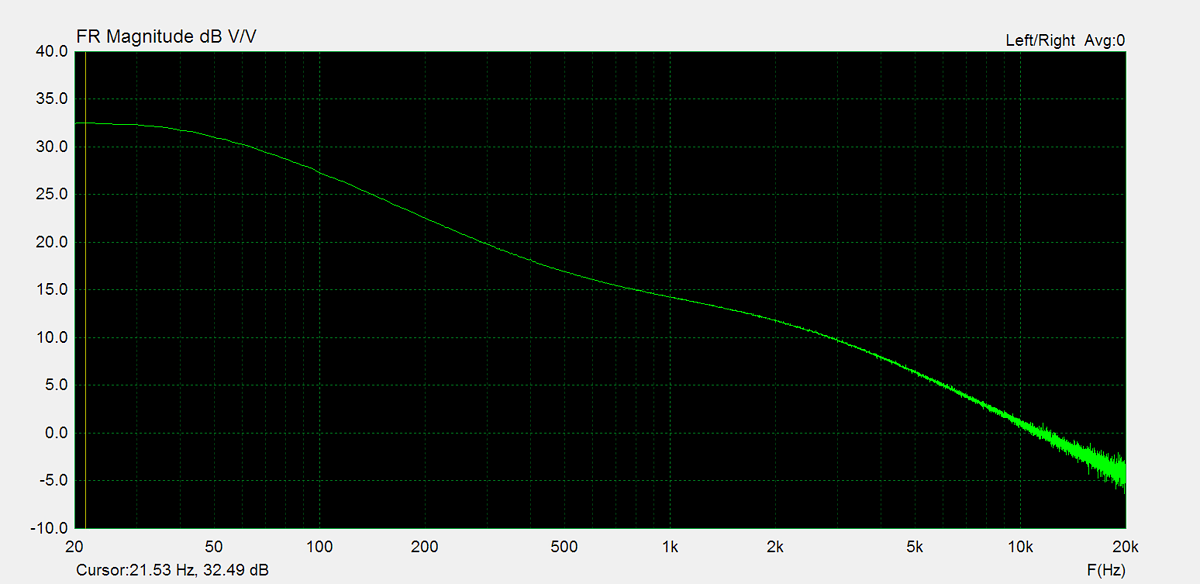

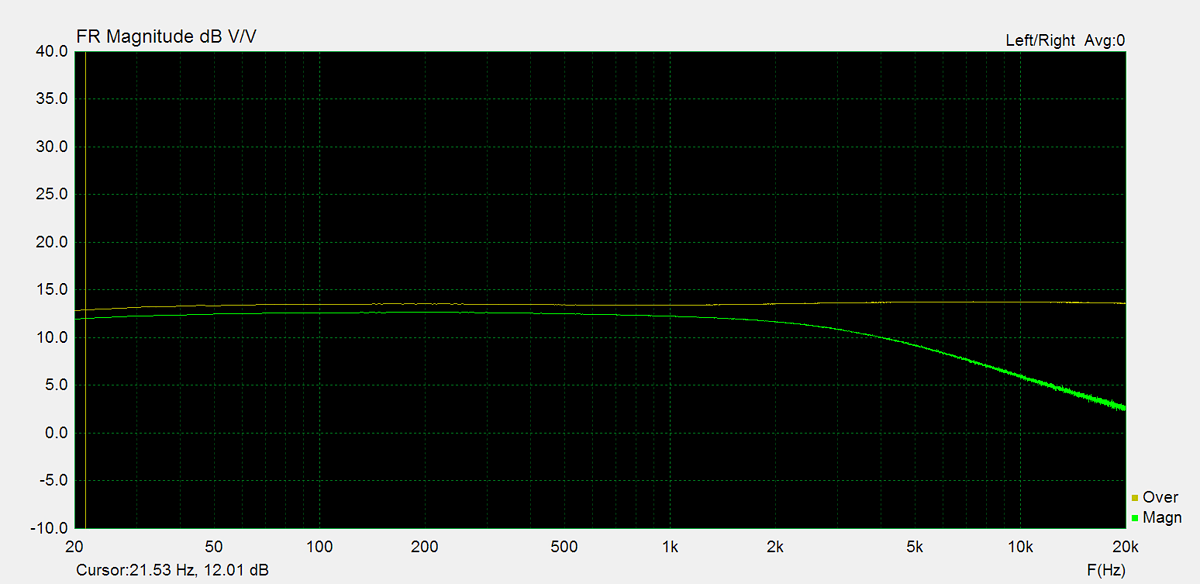

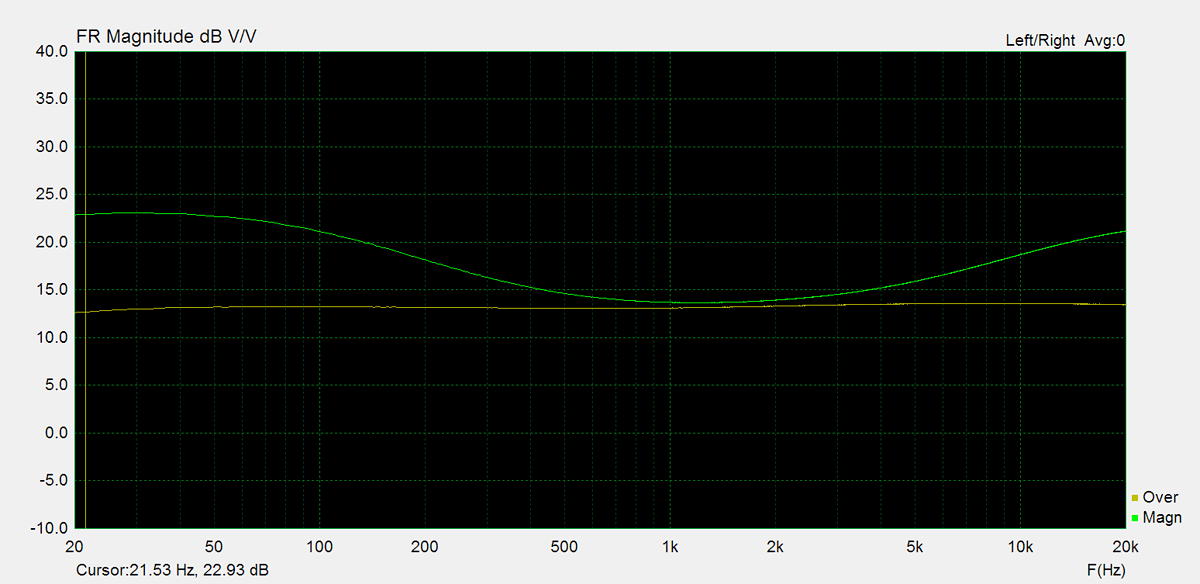

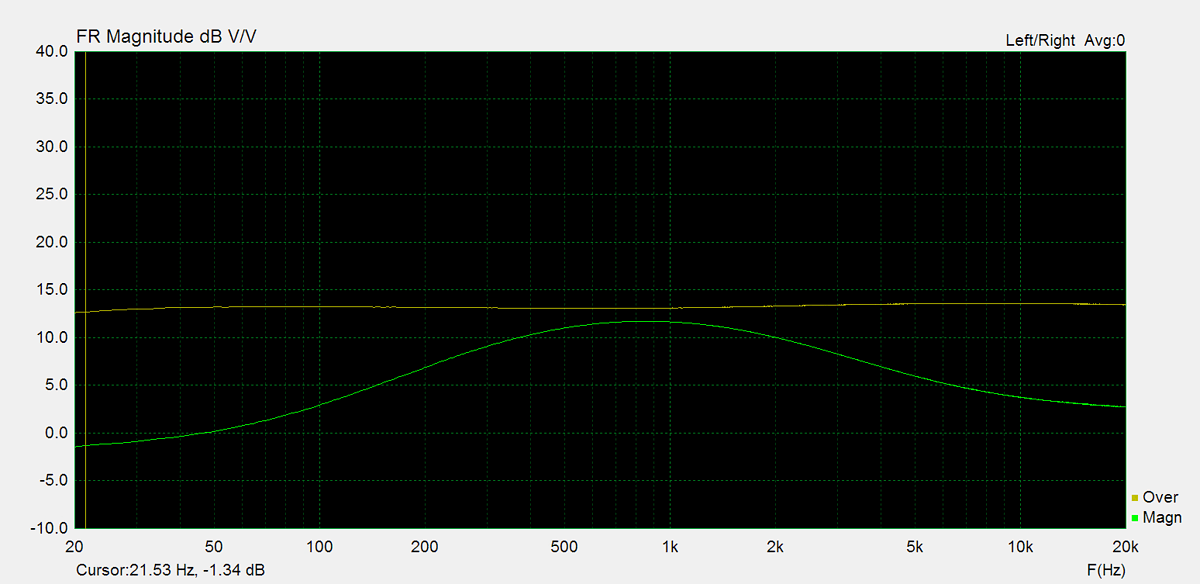

Frequency response is measured using several equilizer settings. 'Flat' indicates the tone controls are either turned off or set to their neutral position. 'Max' and 'Min' refer to the maximum and minimum tone control positions, respectively. In the phono section, the expected response follows the RIAA equalization curve.

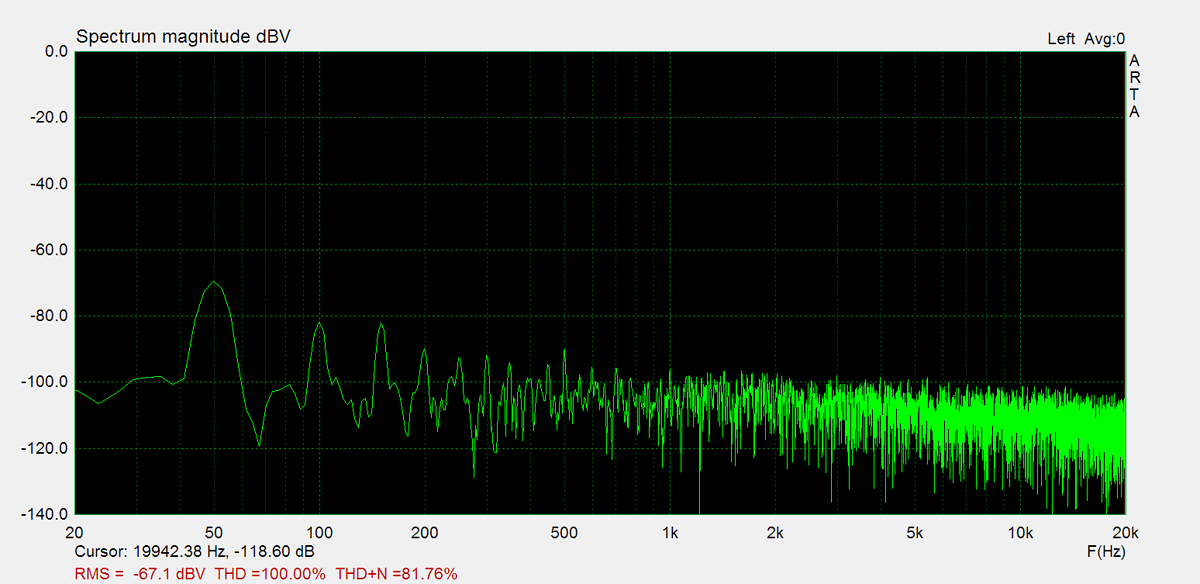

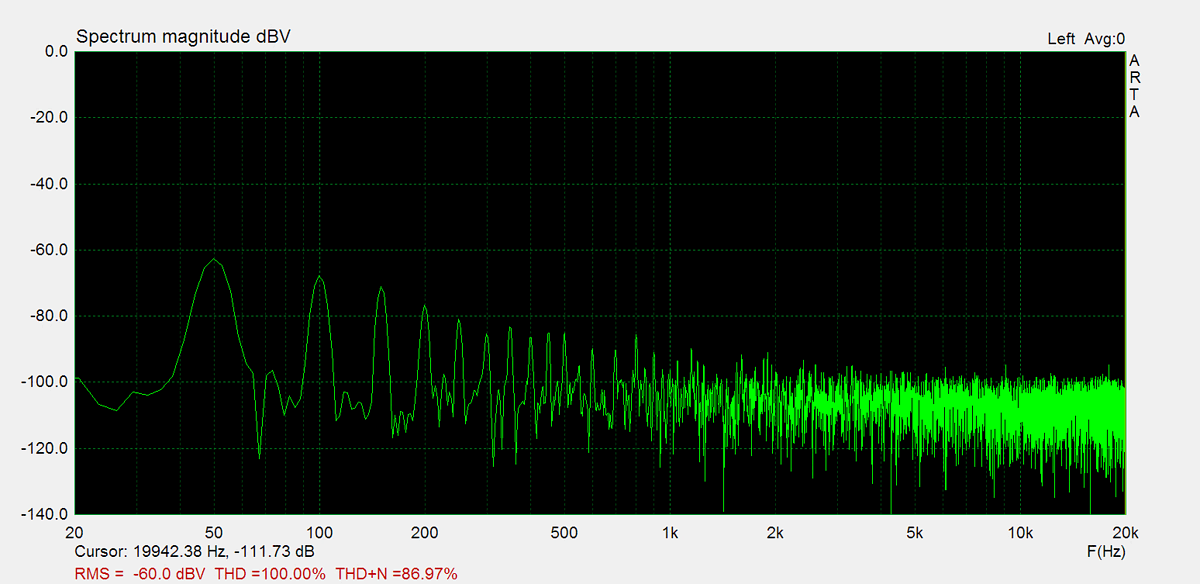

Residual Noise

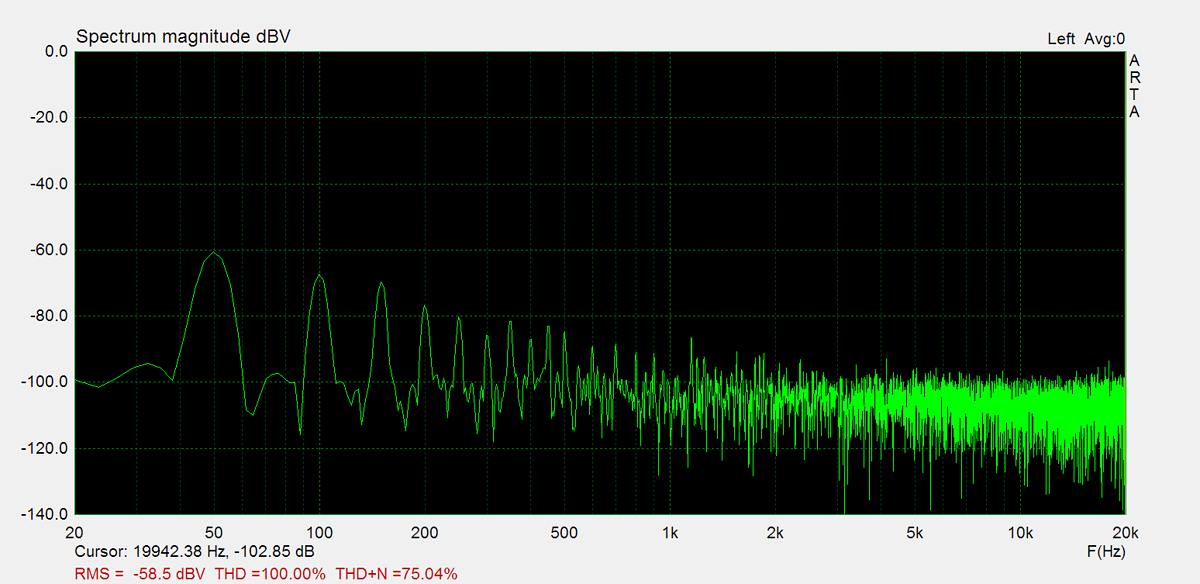

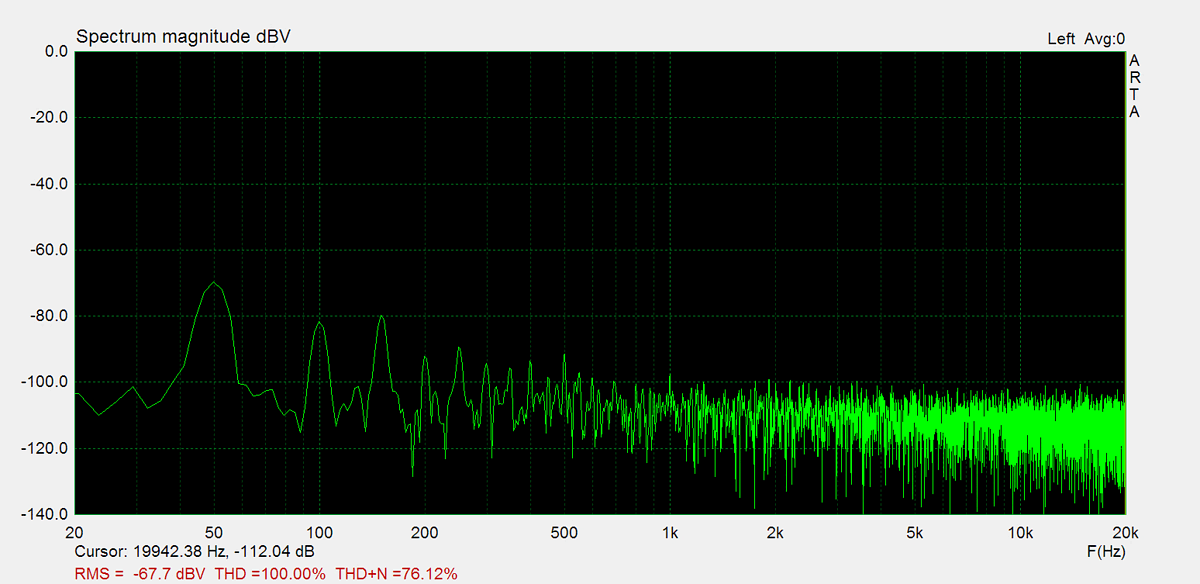

These graphs display the noise levels at various volume positions. To eliminate any interference from the input signal, the input lines are shorted during the measurement. Generally, the noise is highest at the mid-point of the volume range (50%)

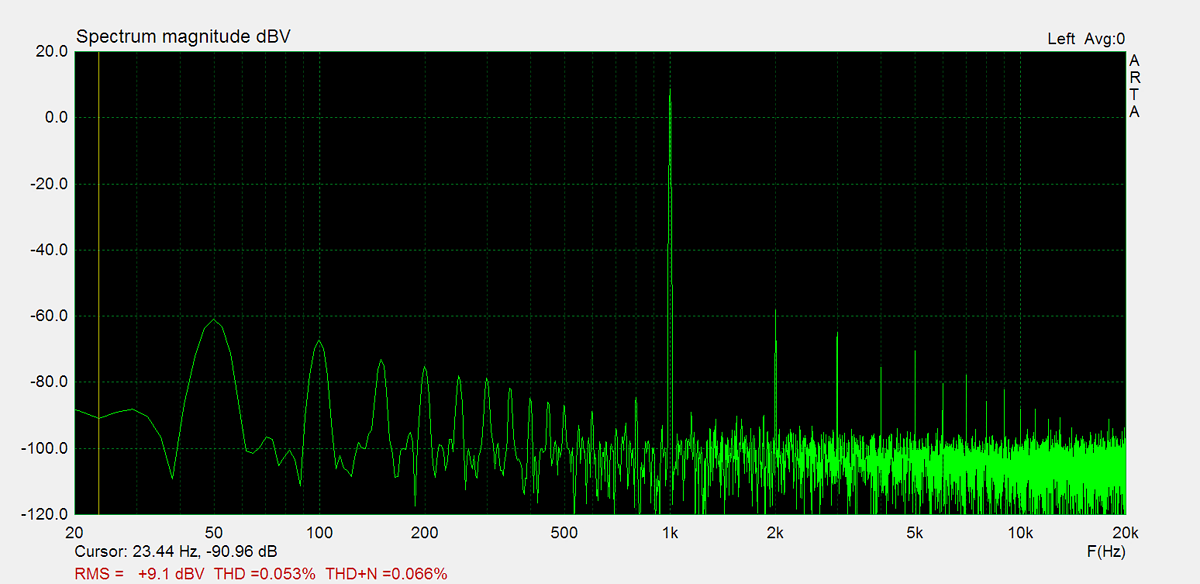

Distorsion
Total harmonic distortion (THD) is measured using a 1kHz sine wave input, with the output level adjusted to meet different conditions. Intermodulation distortion (IMD) is measured using 'two sine' input signal. THD versus voltage is measured with a 1kHz sine wave input, while THD versus frequency is measured at various output levels.

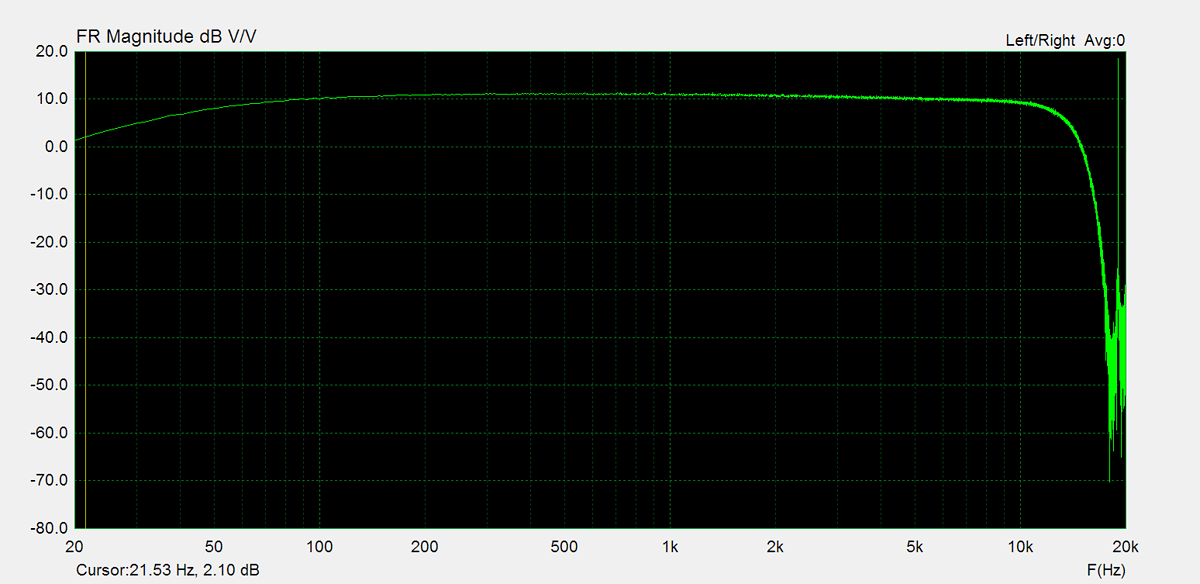

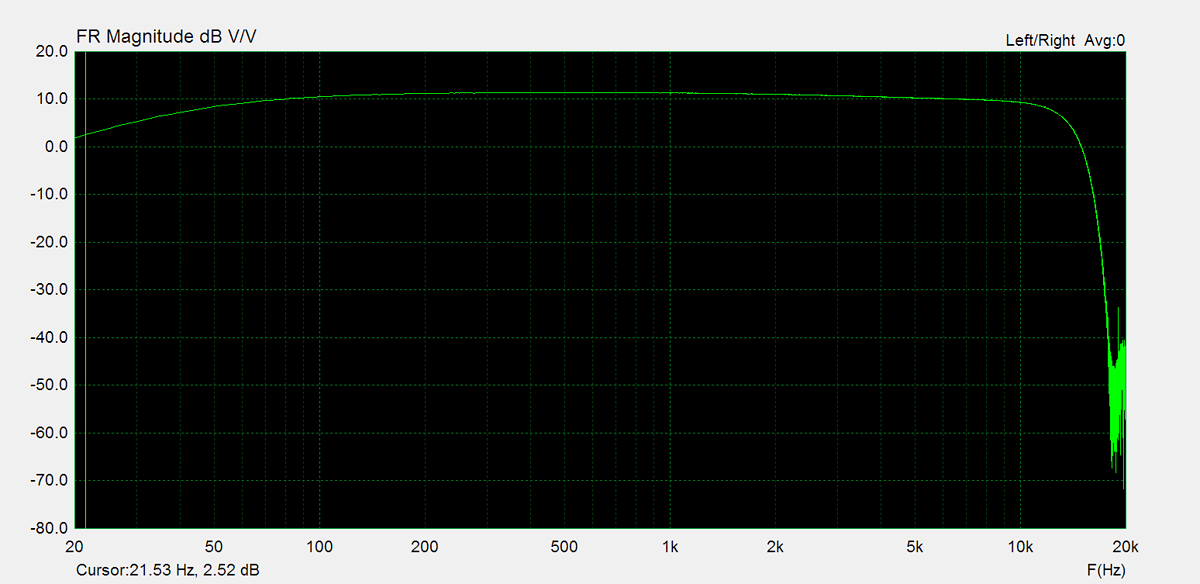

FM Tuner

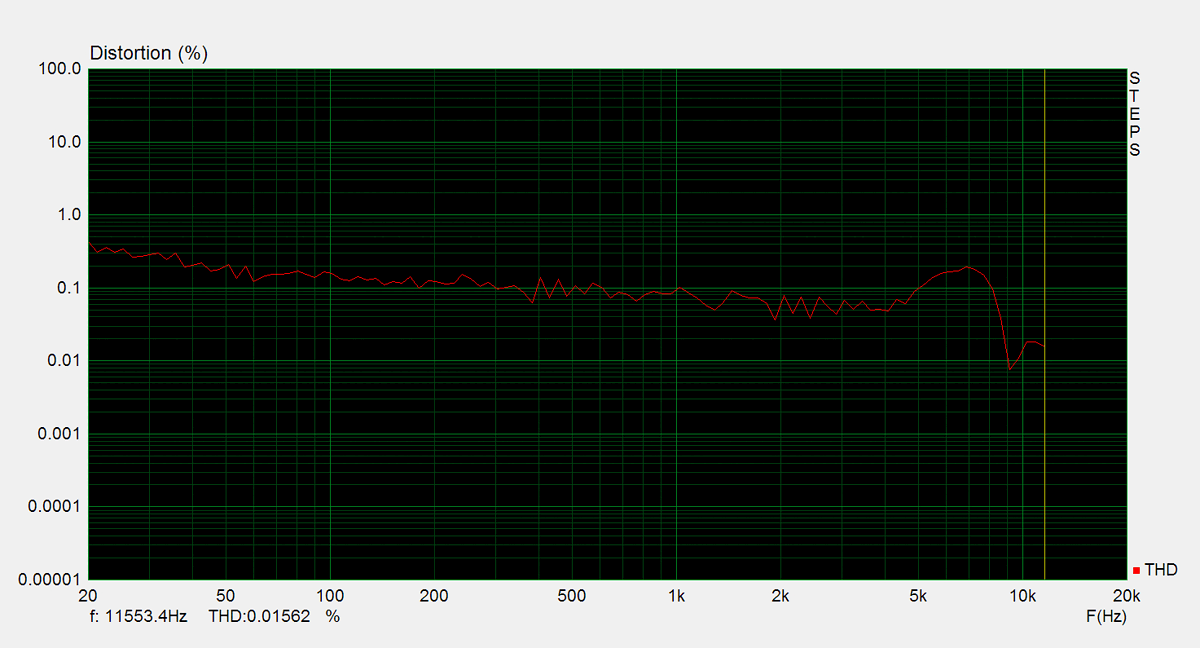

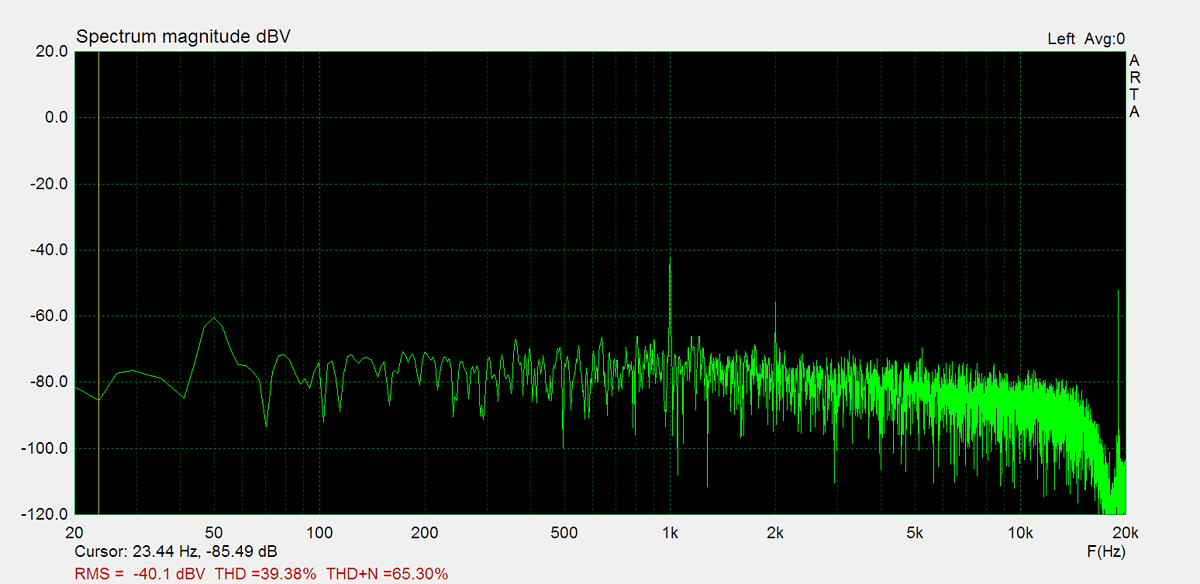

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.
