Tandberg TR 2025

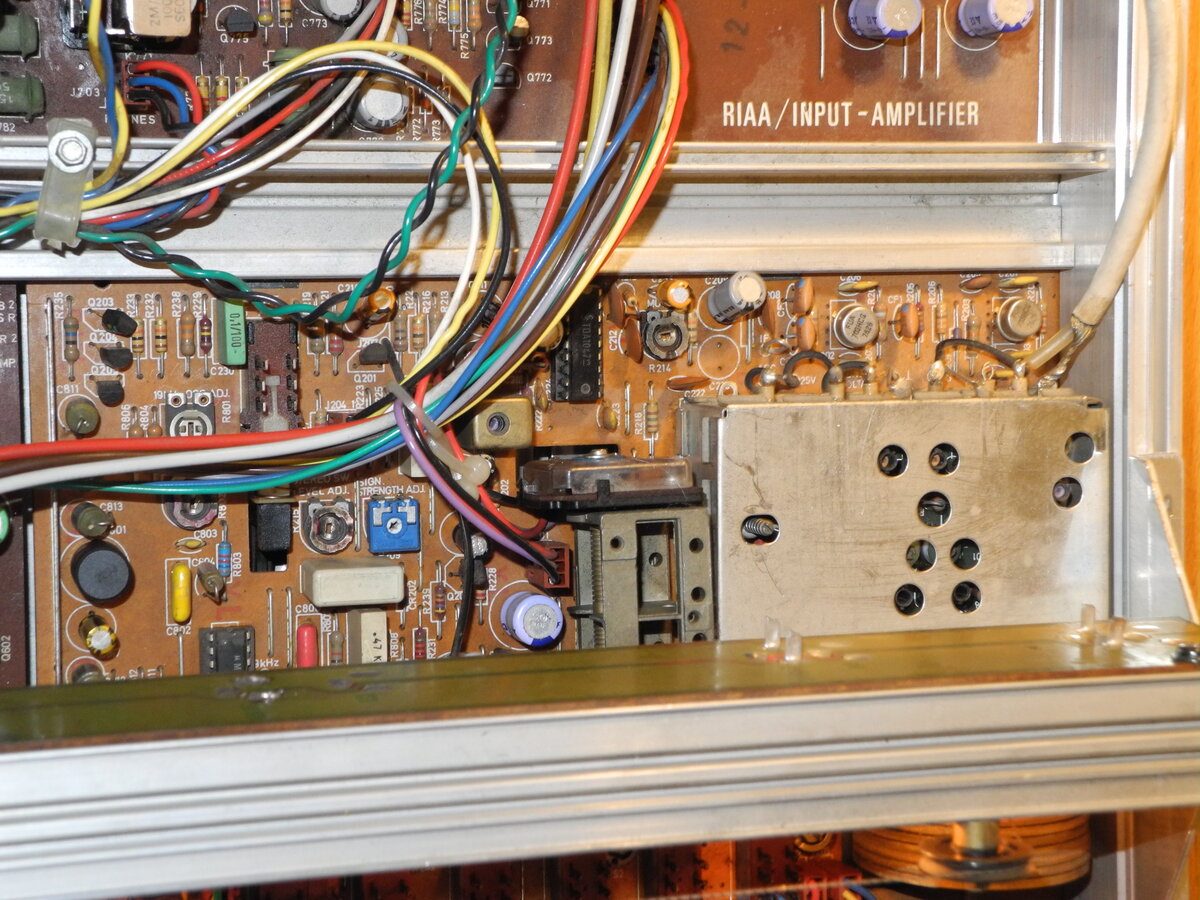

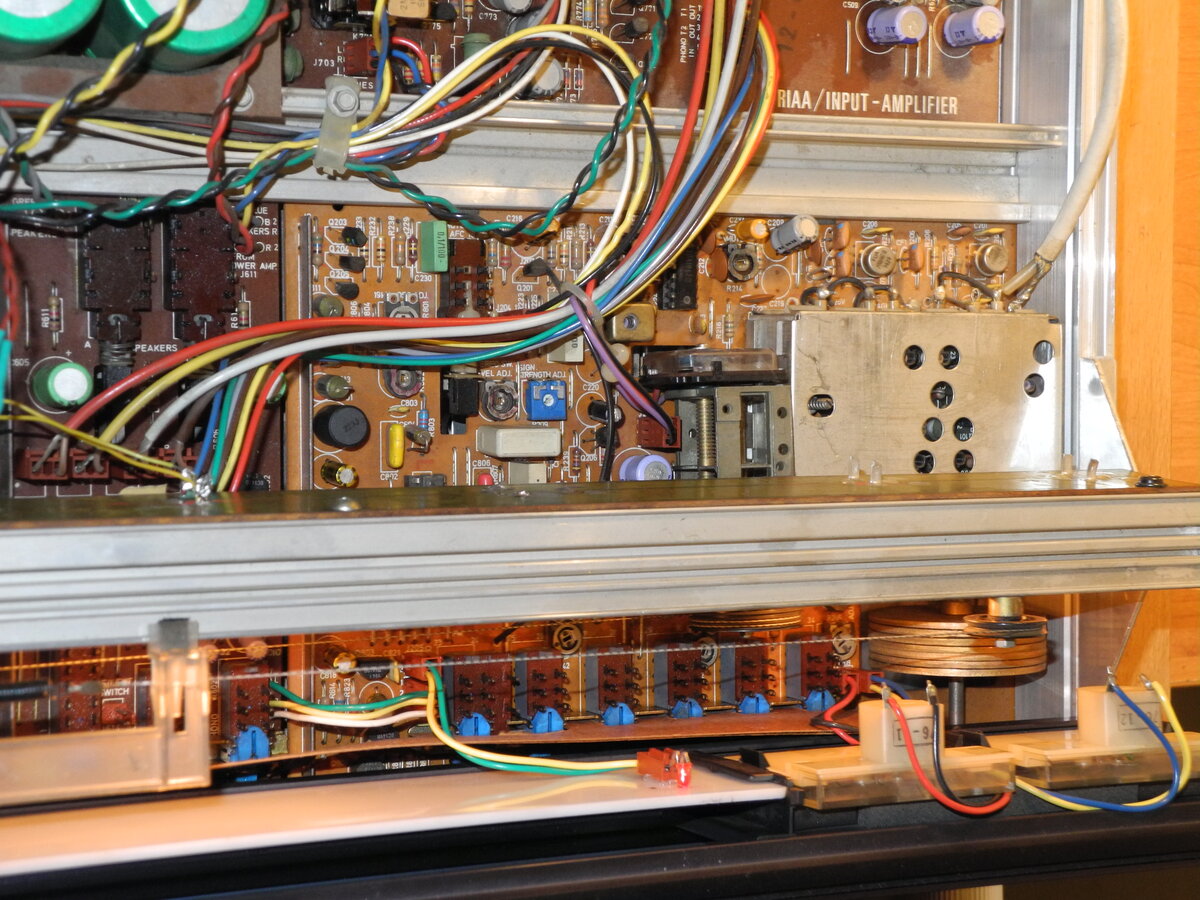

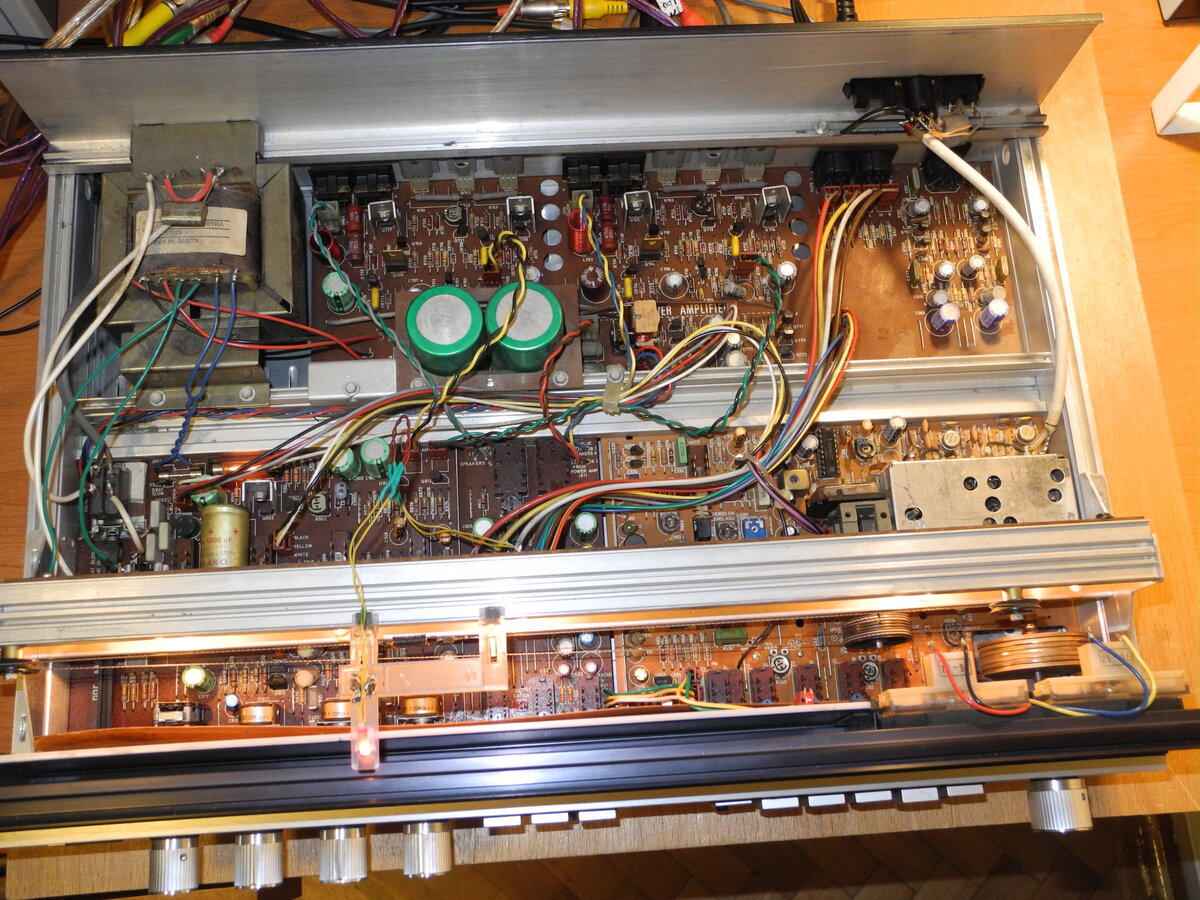

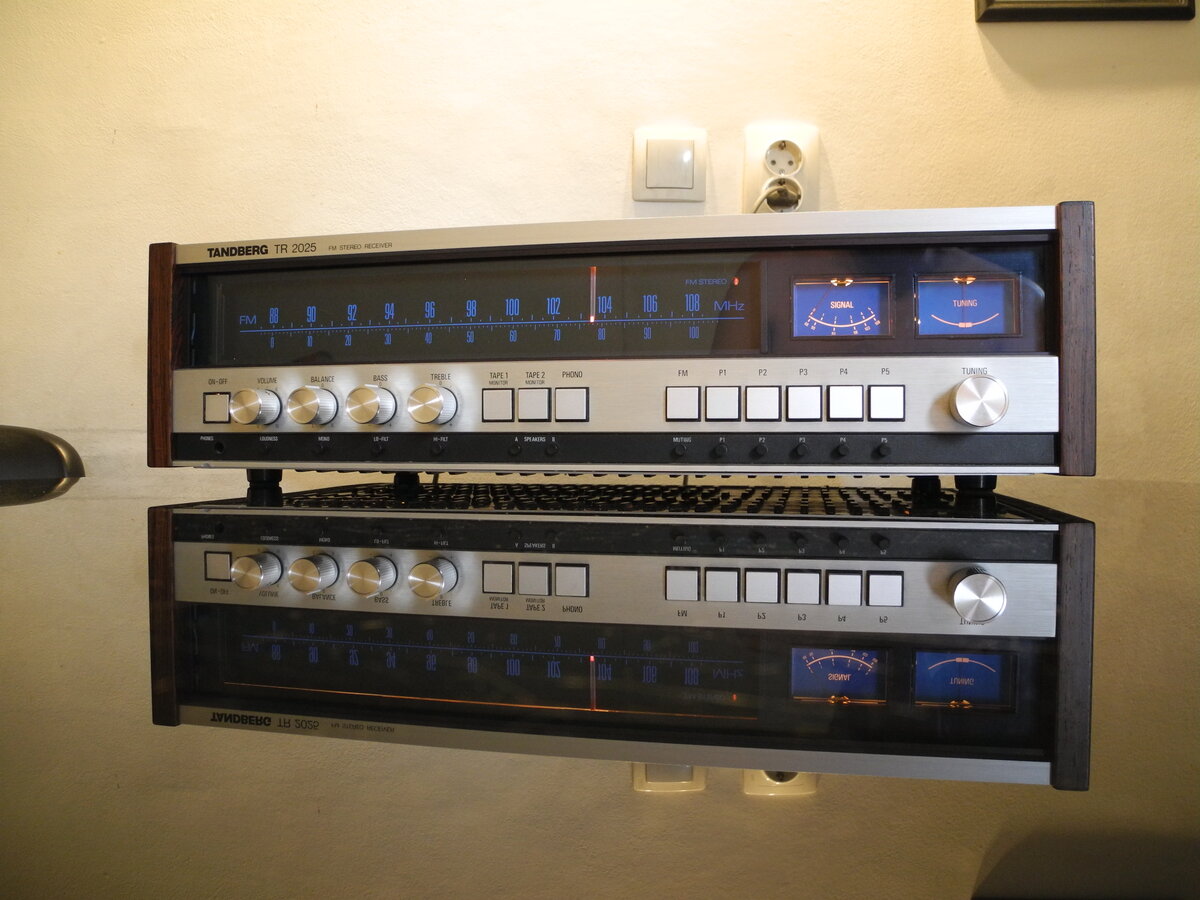

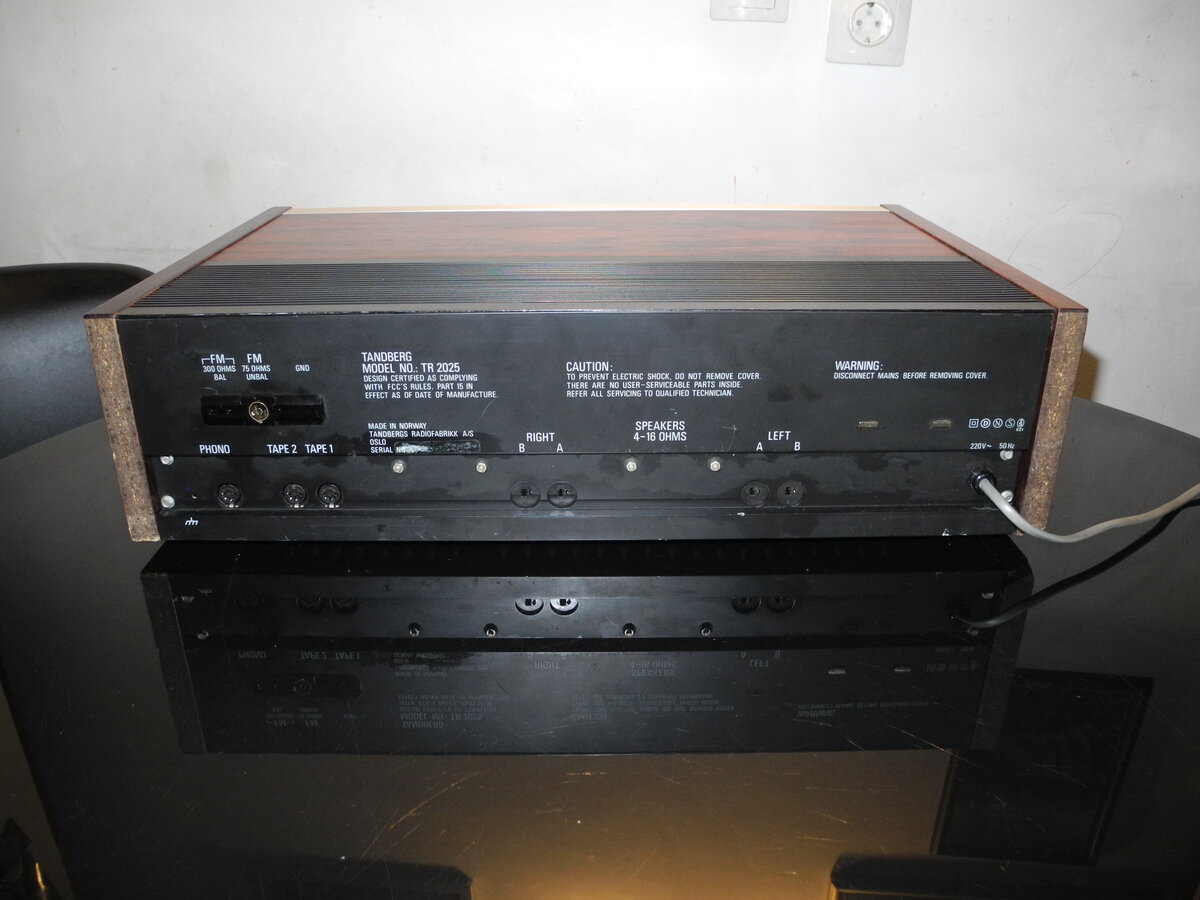

The Tandberg TR 2025 is a compact stereo receiver from the late 1970s, capable of delivering up to 27 watts per channel into 8Ω speakers. As the smallest model in the Tandberg TR 20xx series, it blends clean Scandinavian design with excellent FM tuner performance. Combining solid build quality with warm and detailed sound, the TR 2025 is a fine example of Tandberg's precision engineering and understated elegance.
General Specifications
Maximum power (8Ω): 27WFrequency response (-1.5dB): 8Hz-50kHz
THD: 0.15%
IMD: 0.15%
Signal to noise ratio (Line): 82dB
Signal to noise ratio (Phono): 66dB
Input sensitivity (Line): 170mV
Input sensitivity (Phono): 2.3mV
Damping factor: 50
Speaker load impedance: 4Ω-16Ω
Dimensions (WHD): 510×145×341mm
Weight: 8.3kg
Produced: 1976-1977
Initial price: 1200DM
Measured Values
Maximum power (8Ω): 28WFrequency response (20Hz-20kHz): <1.0dB
Channel imbalance: <1.0dB
THD (1kHz, 1W): 0.073%
THD+N (1kHz, 1W): 0.04%
THD (1kHz, 10W): 0.0095%
THD+N (1kHz, 10W): 0.021%
IMD (70Hz, 5kHz, 1W): 0.031%
Noise: -48.4dB
Amplification: 89.4
DC offset L: 9.2mV
DC offset R: 2.3mV
Maximum Power
Maximum power is measured using 8Ω resistors on both channels. A 1kHz sine wave input signal is applied and gradually increased until higher harmonics rise significantly. Typically, this is the point at which output clipping occurs.

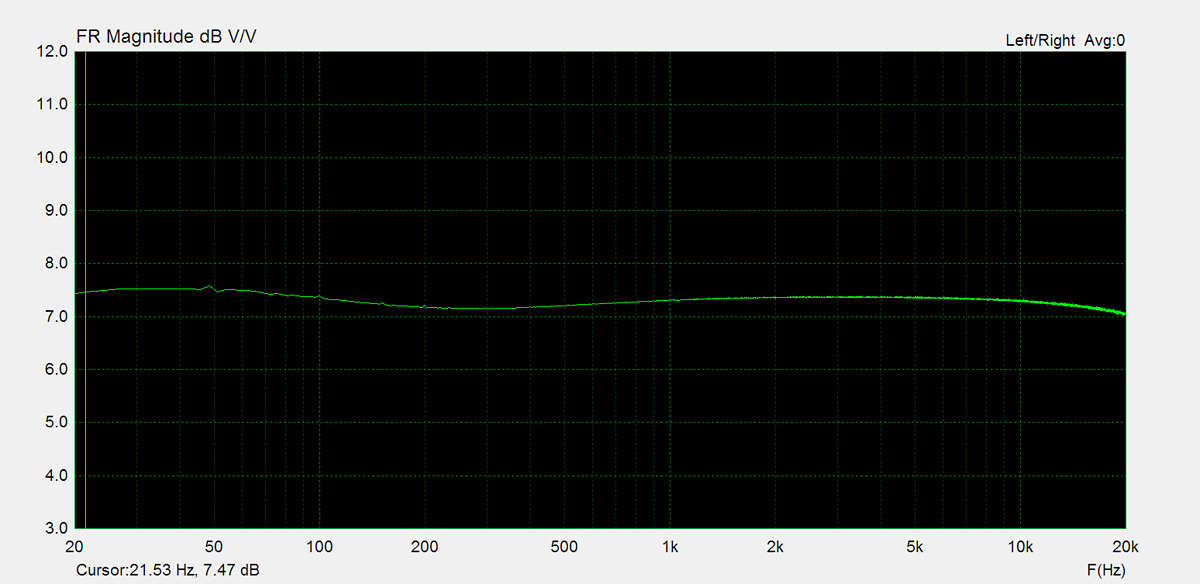

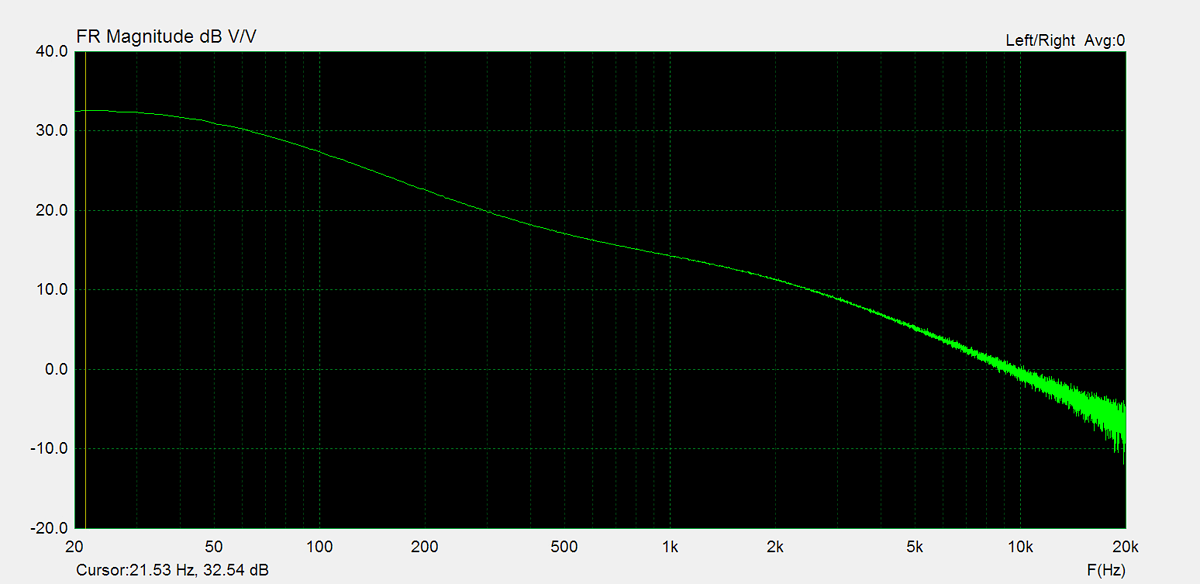

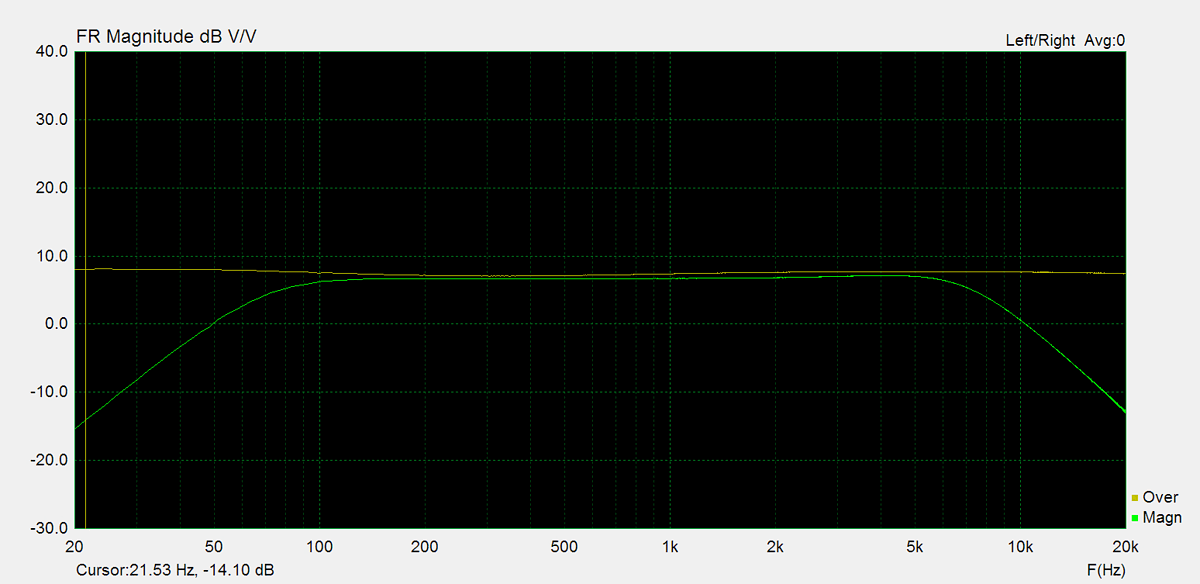

Frequency Response

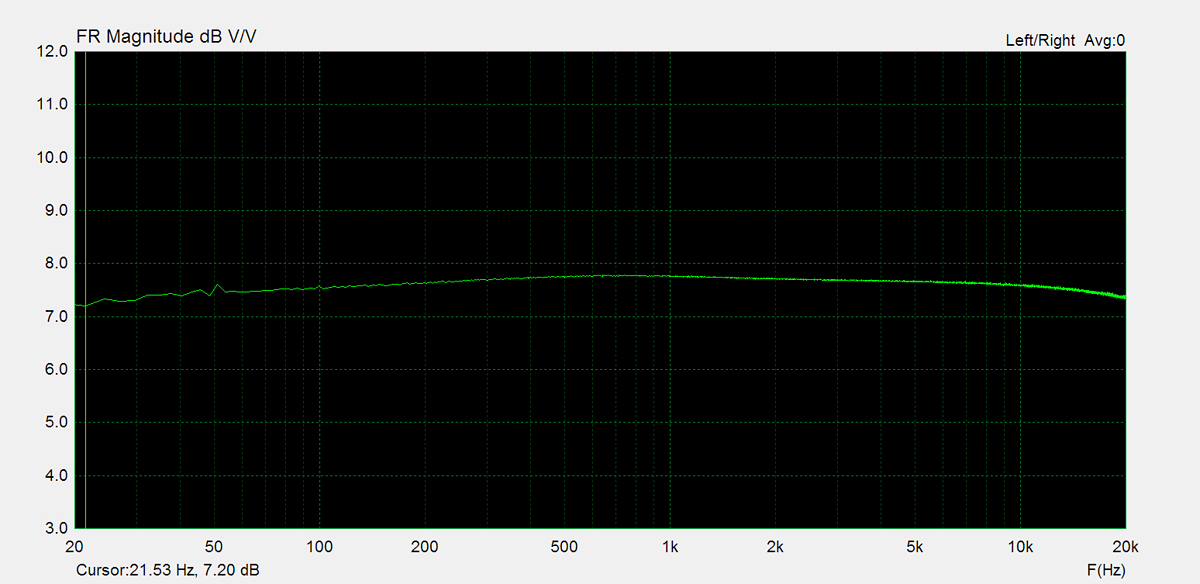

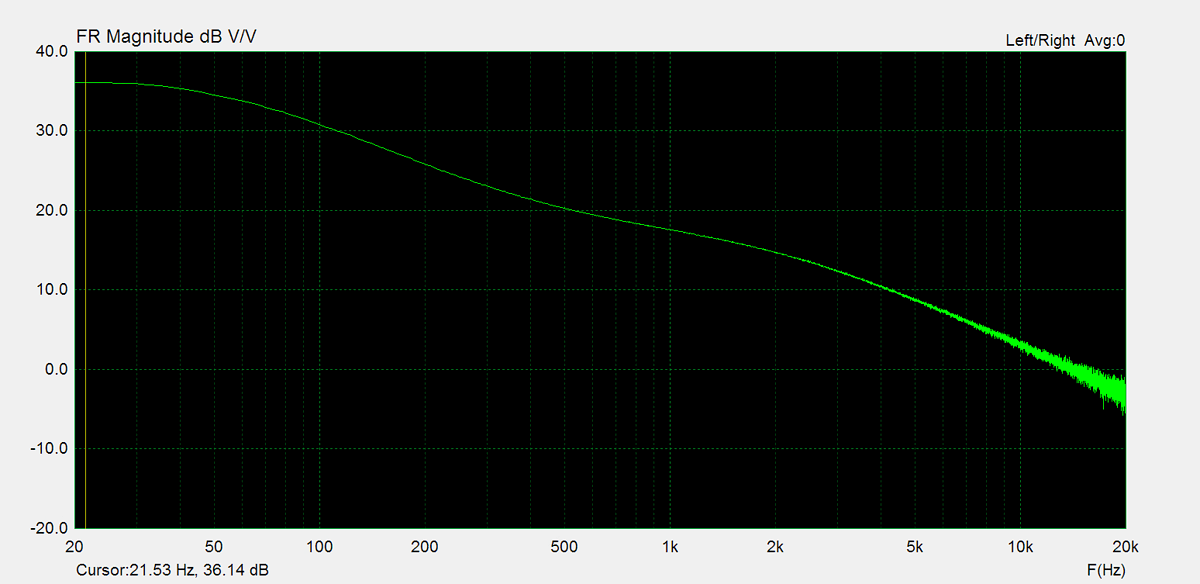

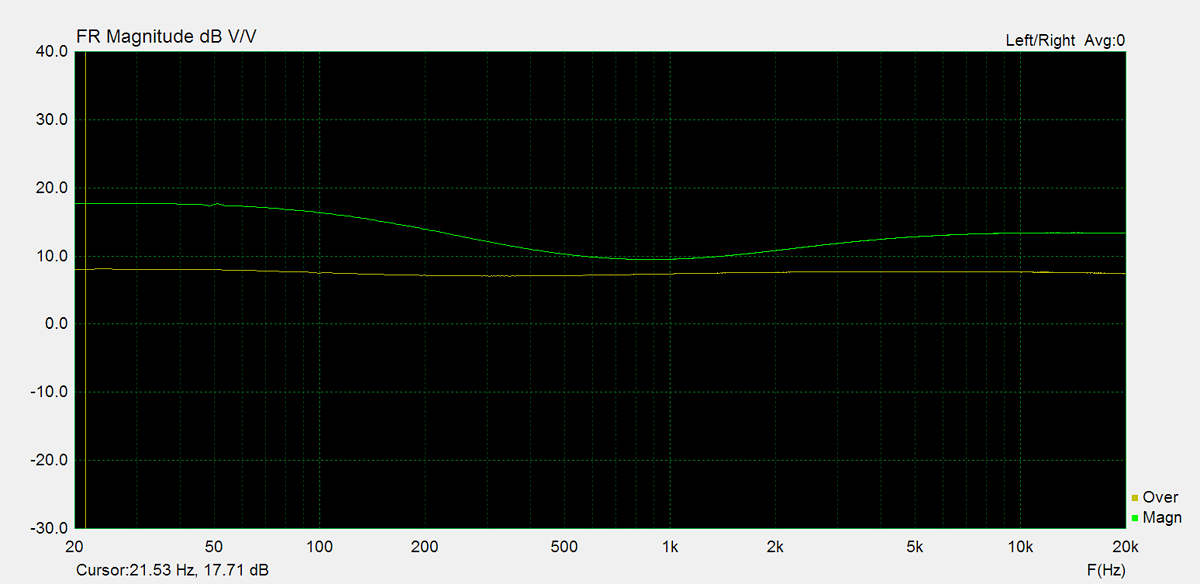

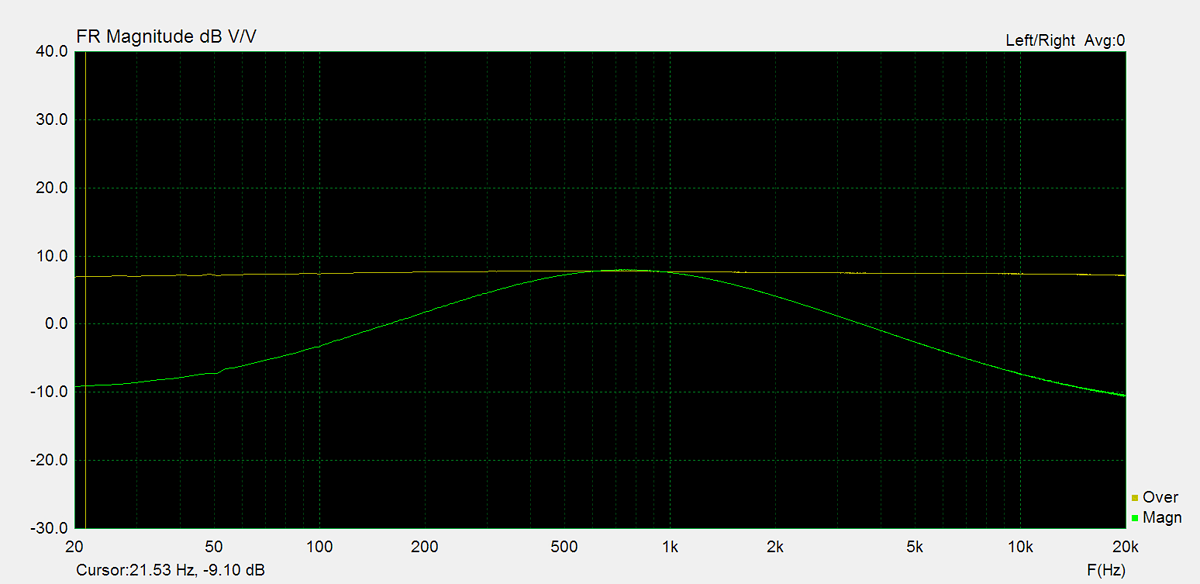

Frequency response is measured using several equilizer settings. 'Flat' indicates the tone controls are either turned off or set to their neutral position. 'Max' and 'Min' refer to the maximum and minimum tone control positions, respectively. In the phono section, the expected response follows the RIAA equalization curve.

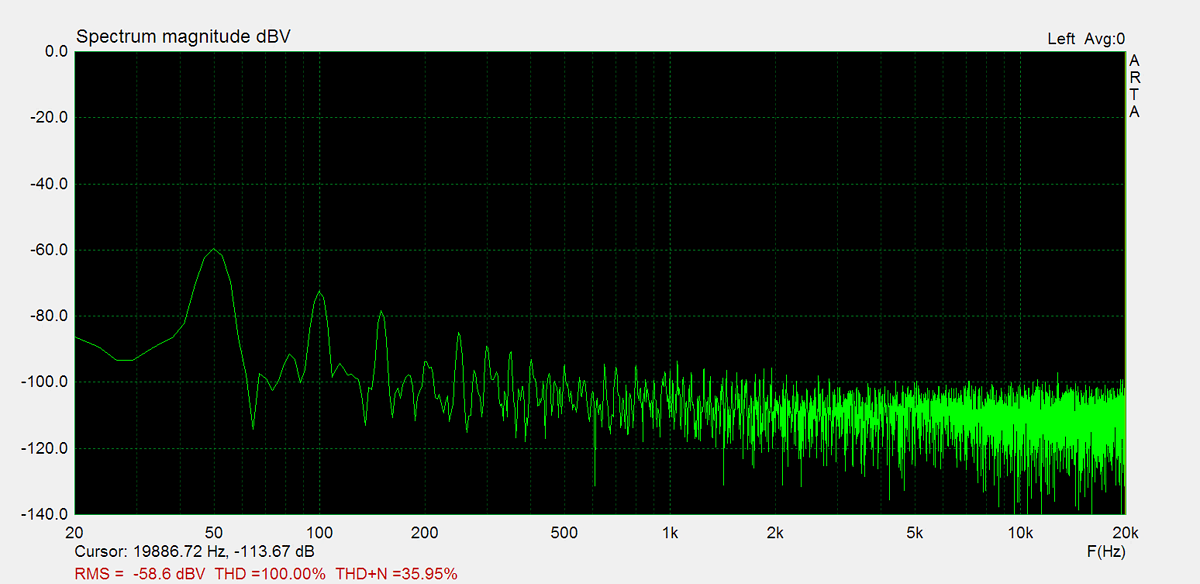

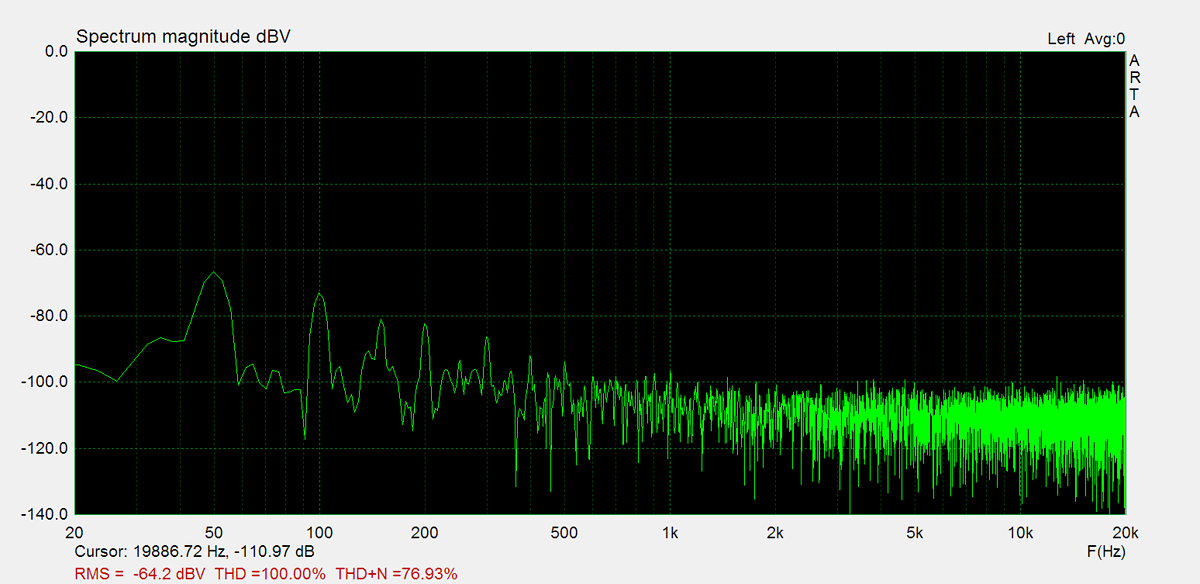

Residual Noise

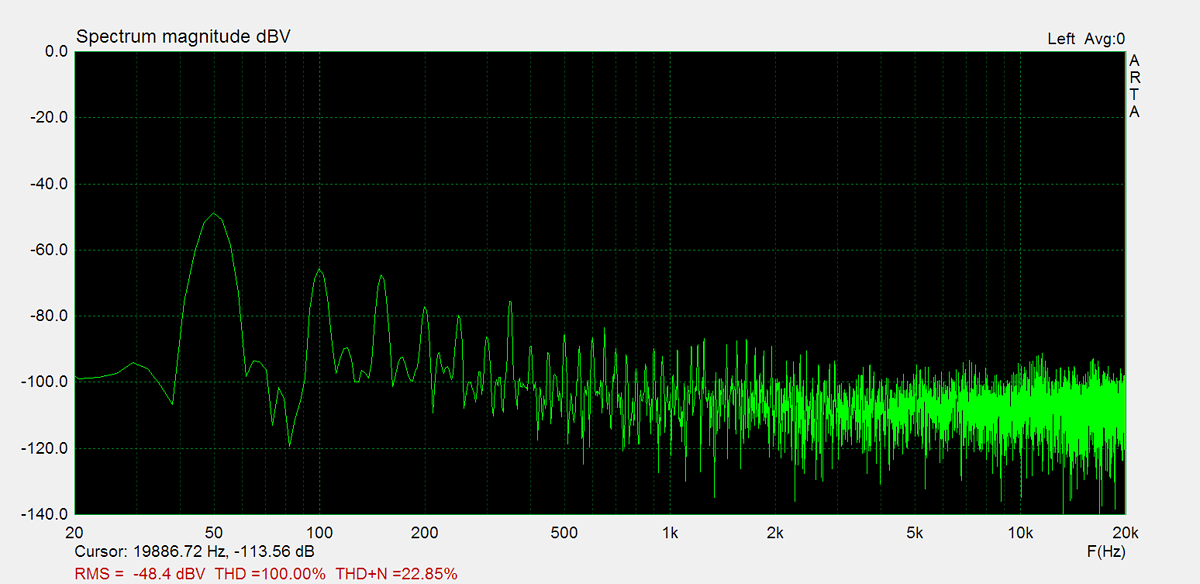

These graphs display the noise levels at various volume positions. To eliminate any interference from the input signal, the input lines are shorted during the measurement. Generally, the noise is highest at the mid-point of the volume range (50%)

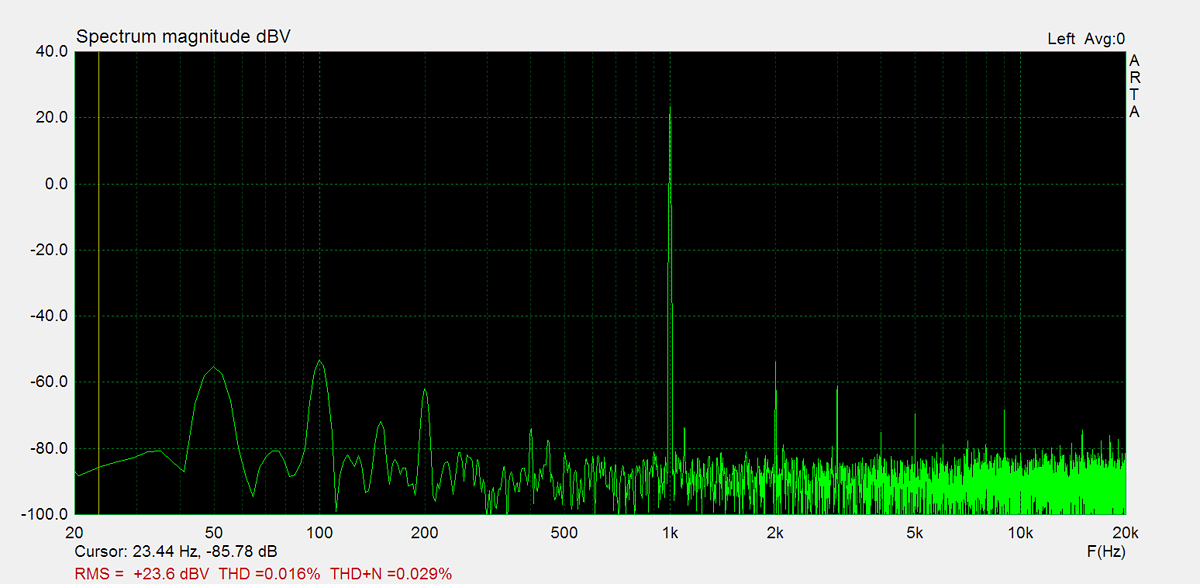

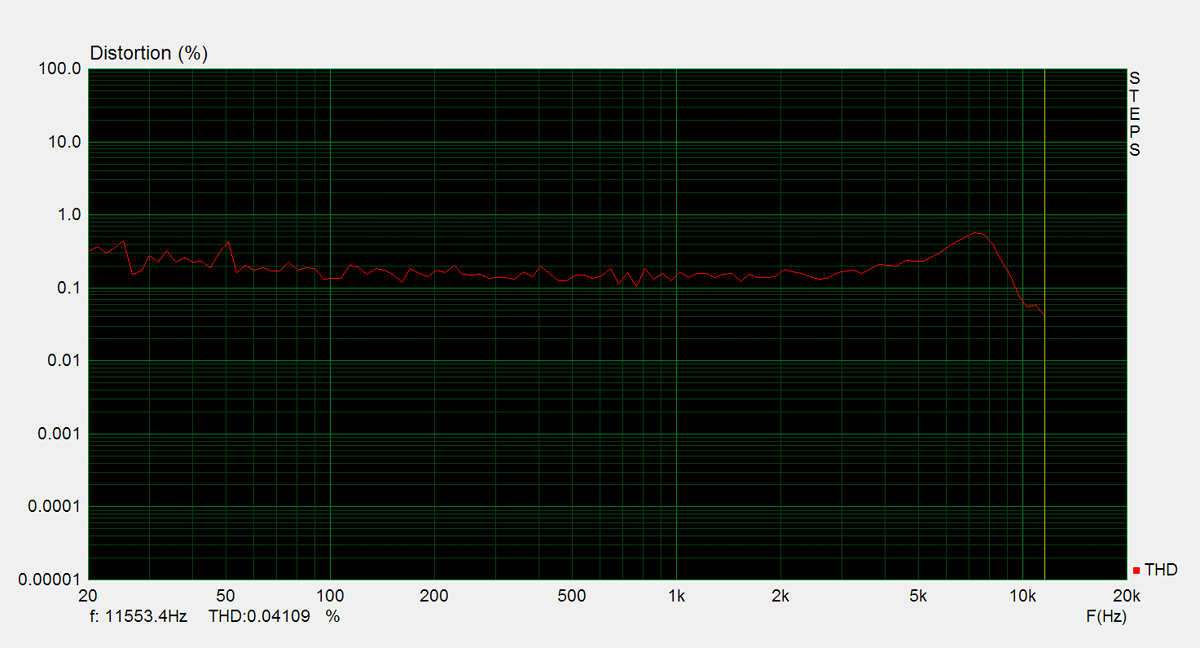

Distorsion

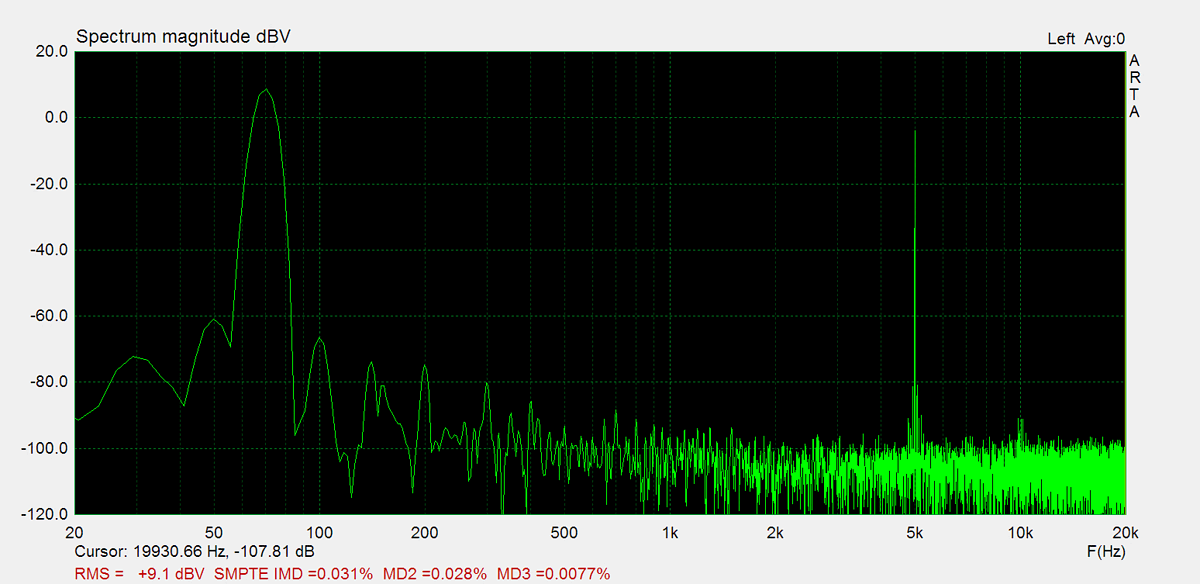

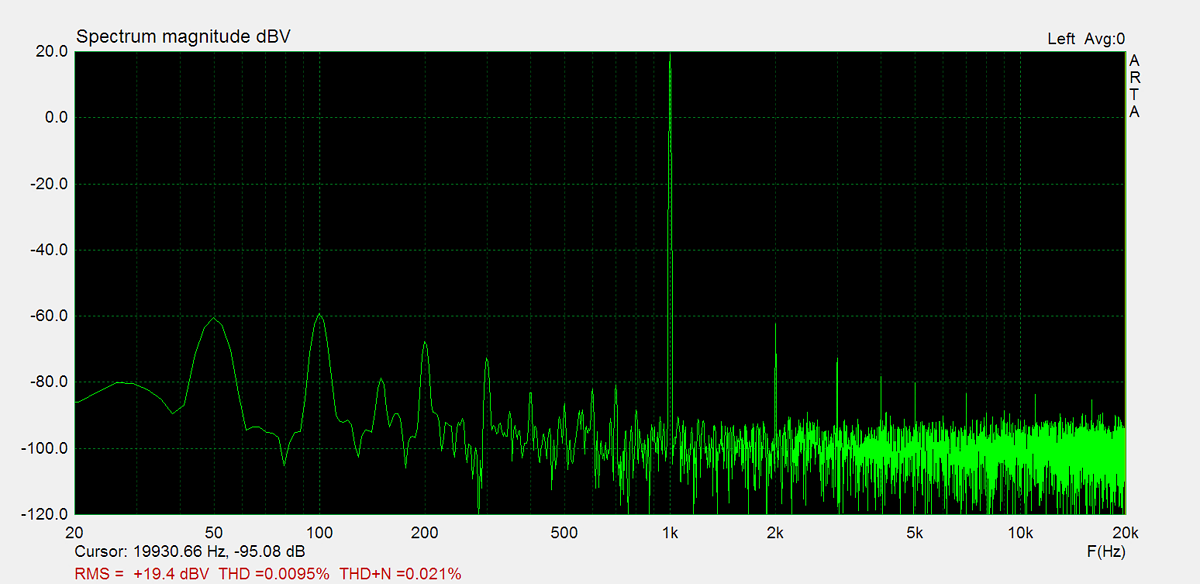

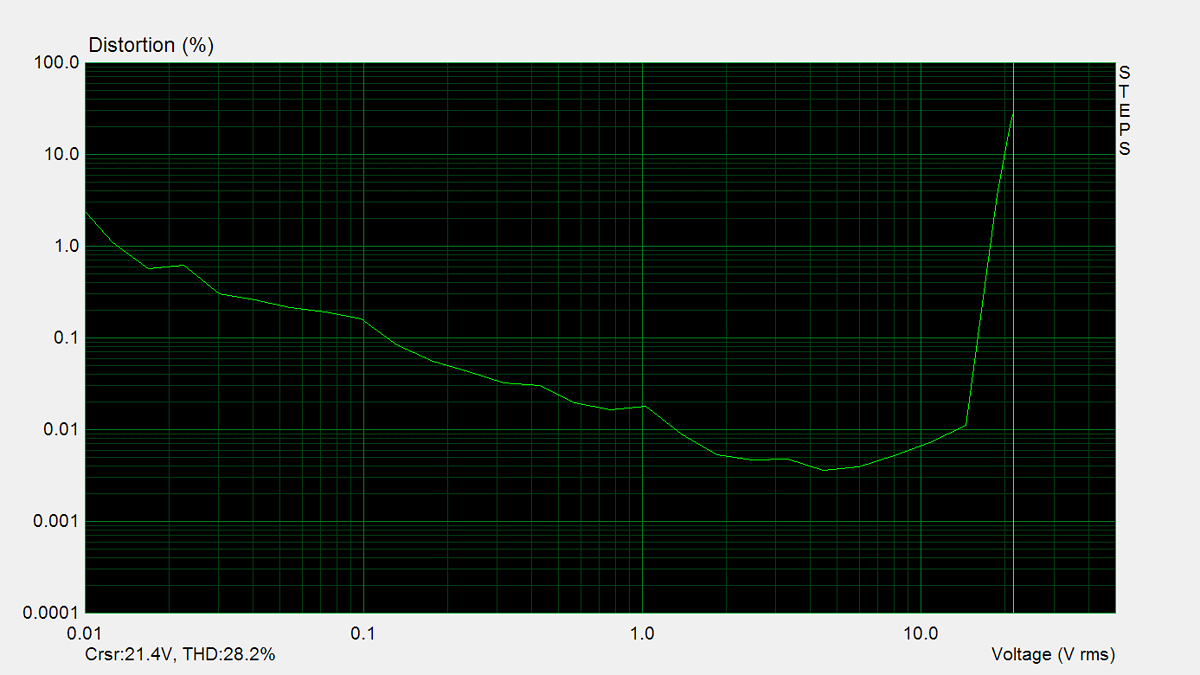

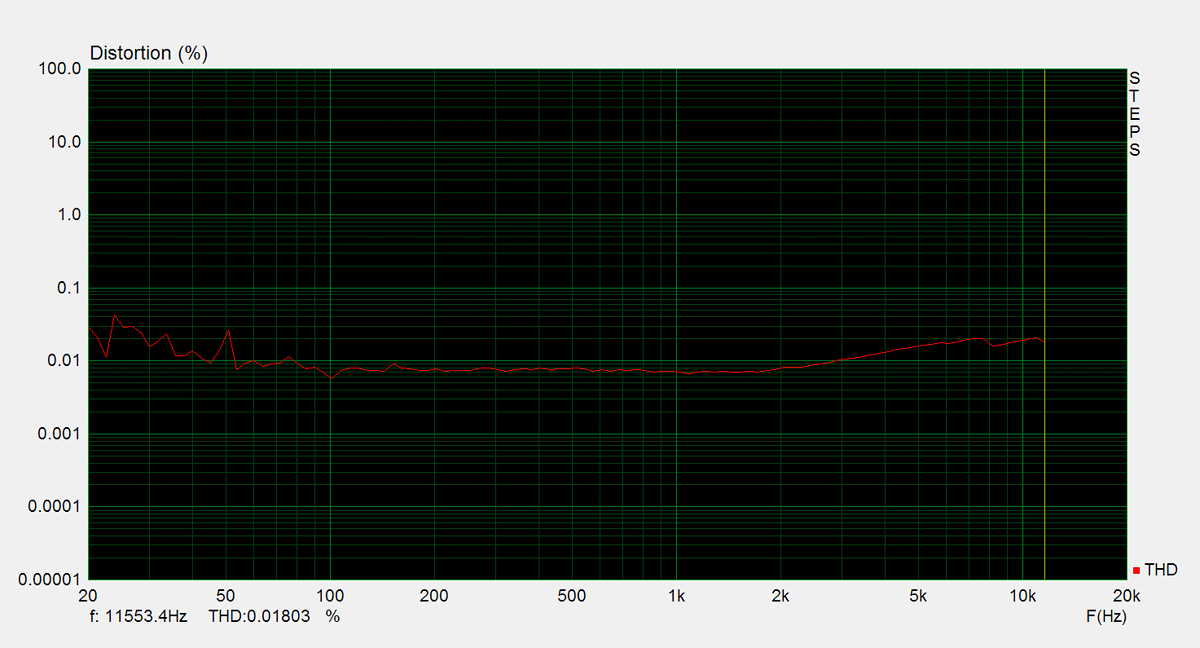

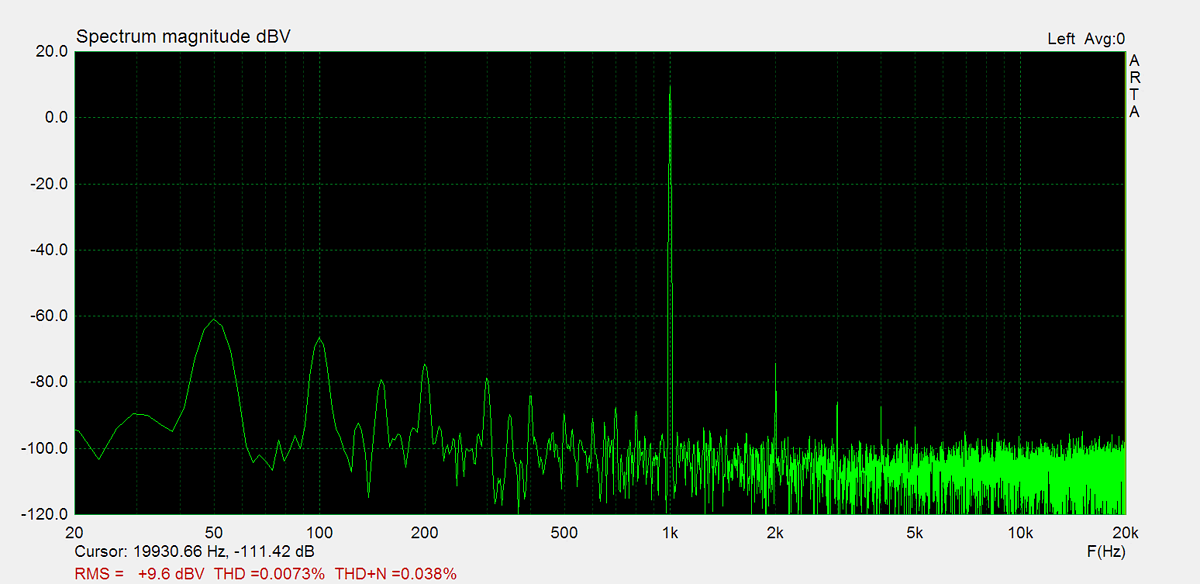

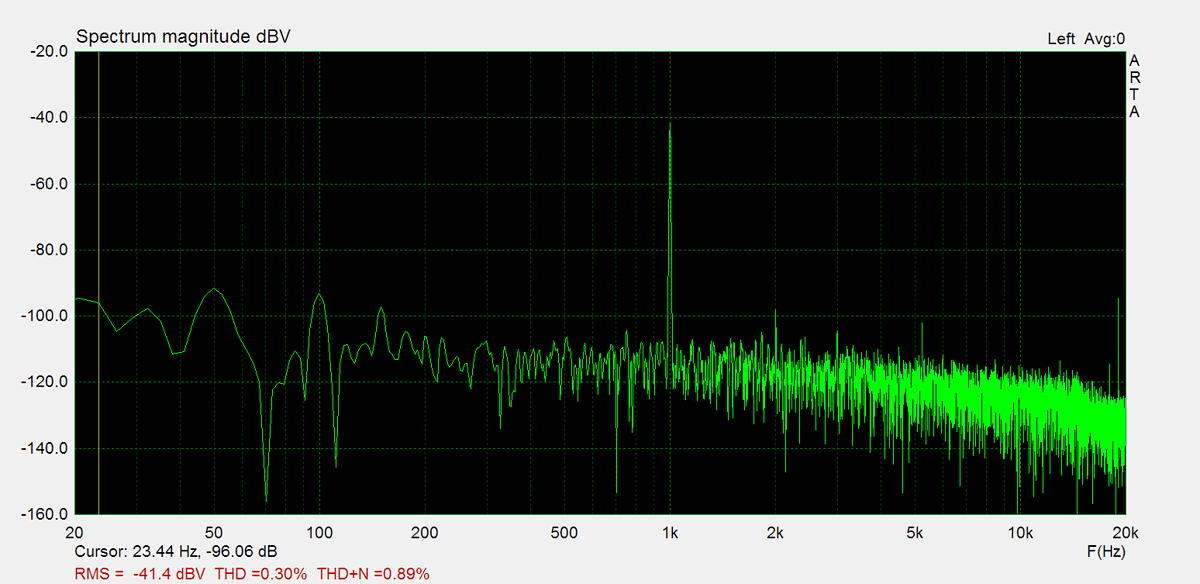

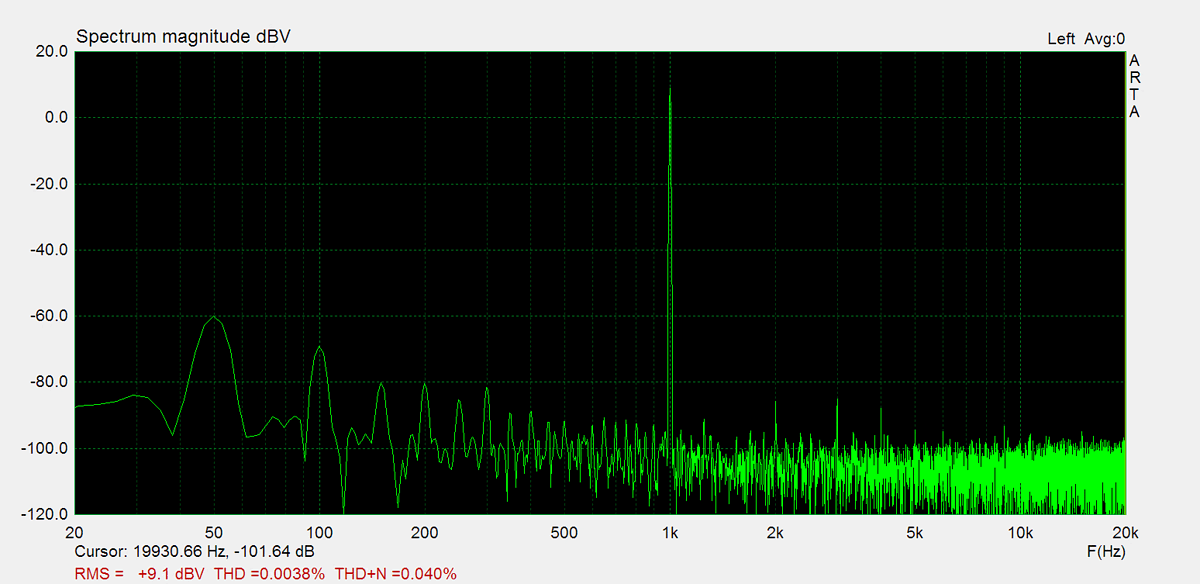

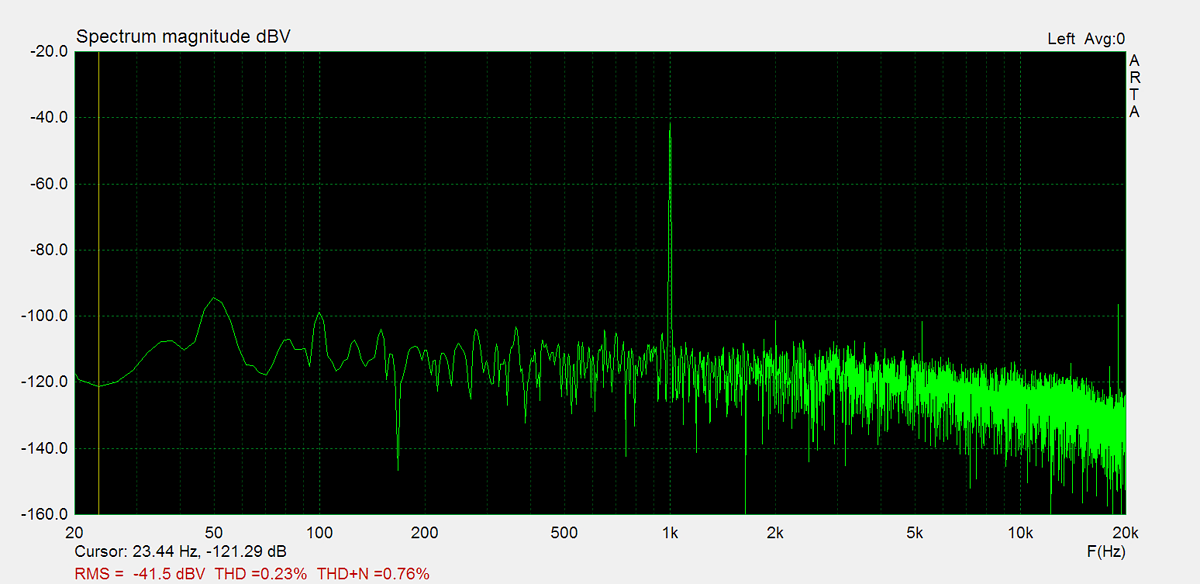

Total harmonic distortion (THD) is measured using a 1kHz sine wave input, with the output level adjusted to meet different conditions. Intermodulation distortion (IMD) is measured using 'two sine' input signal. THD versus voltage is measured with a 1kHz sine wave input, while THD versus frequency is measured at various output levels.

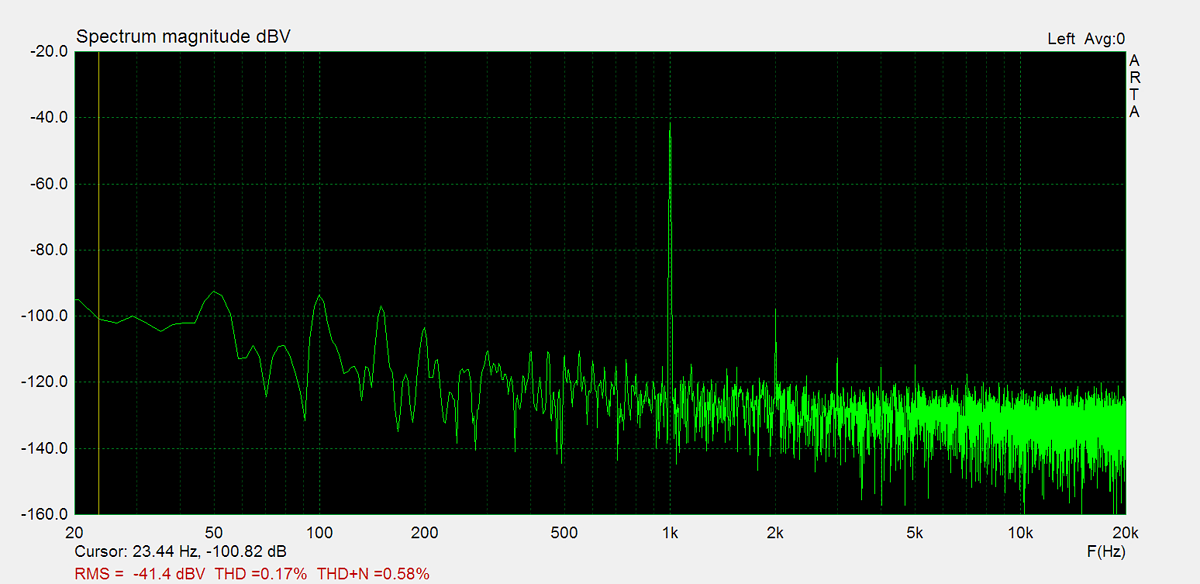

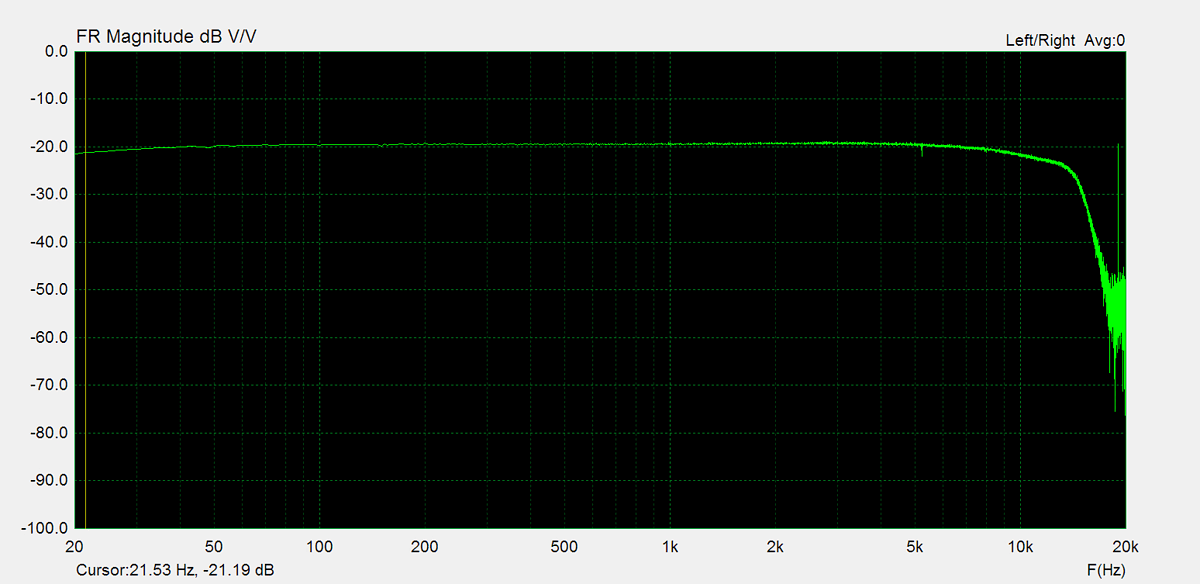

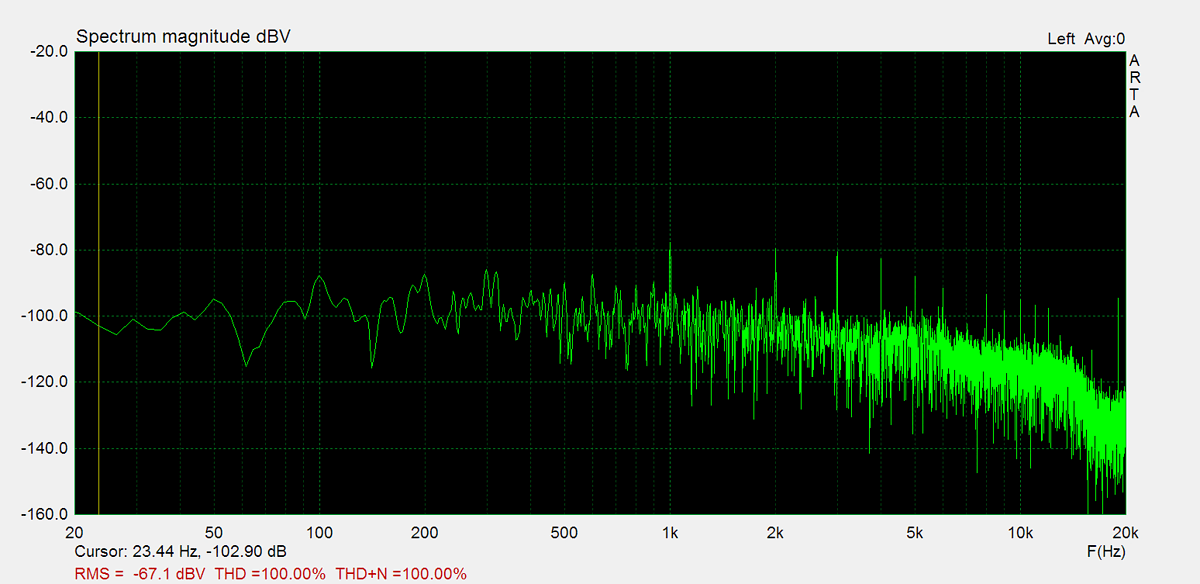

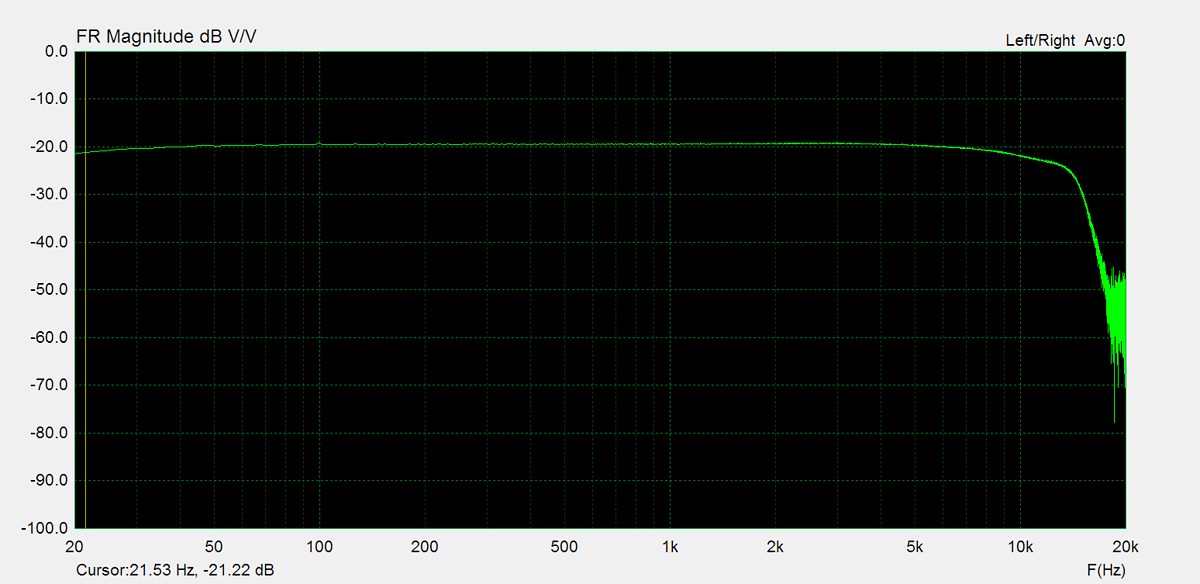

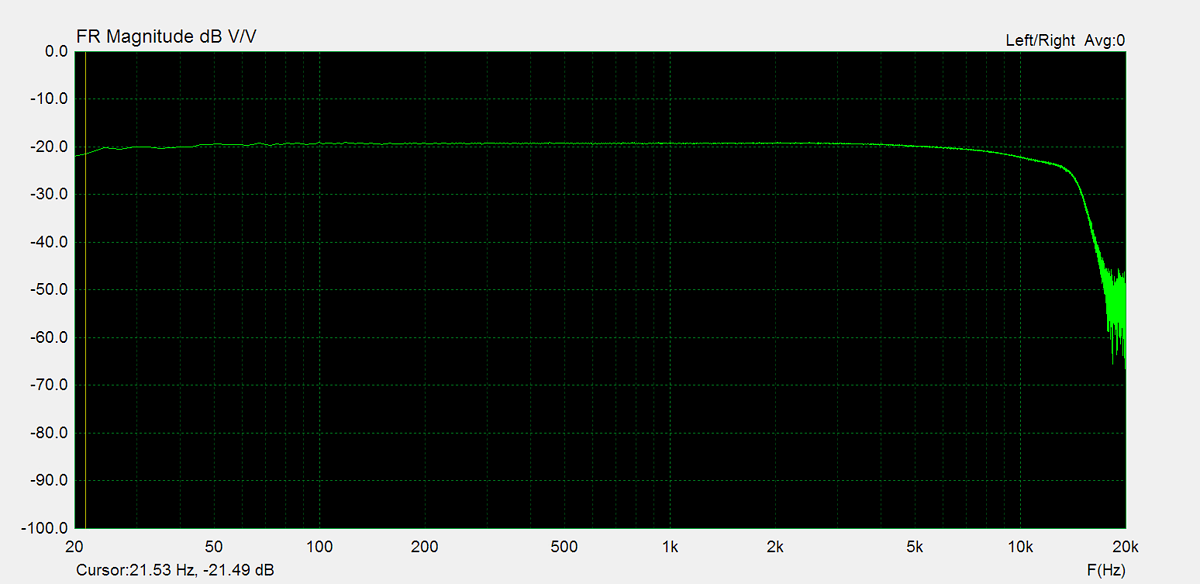

FM Tuner
Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.
