Accuphase T-11

The Accuphase T-11 is a premium FM stereo tuner renowned for its precise engineering and outstanding audio quality. Its exceptional performance and build make it highly desired by audiophiles and collectors alike.

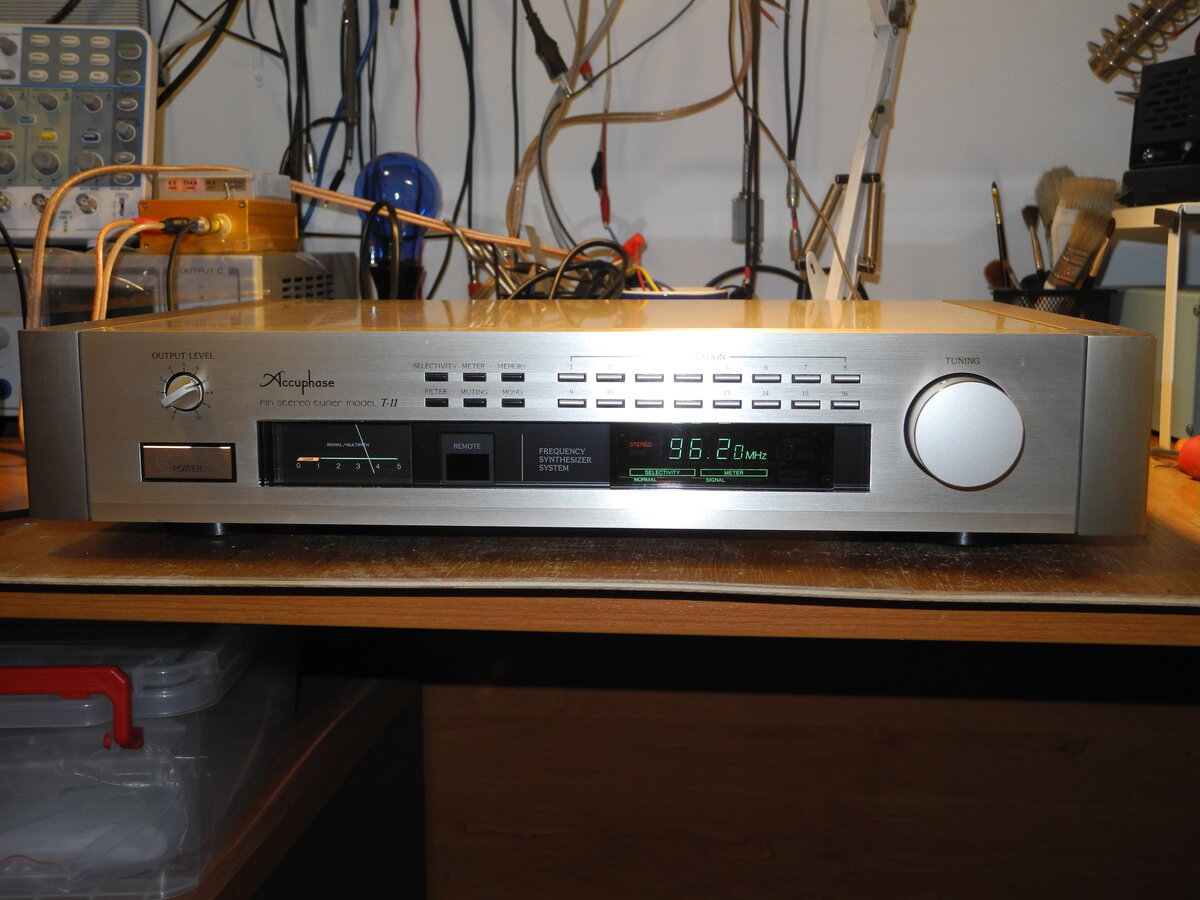

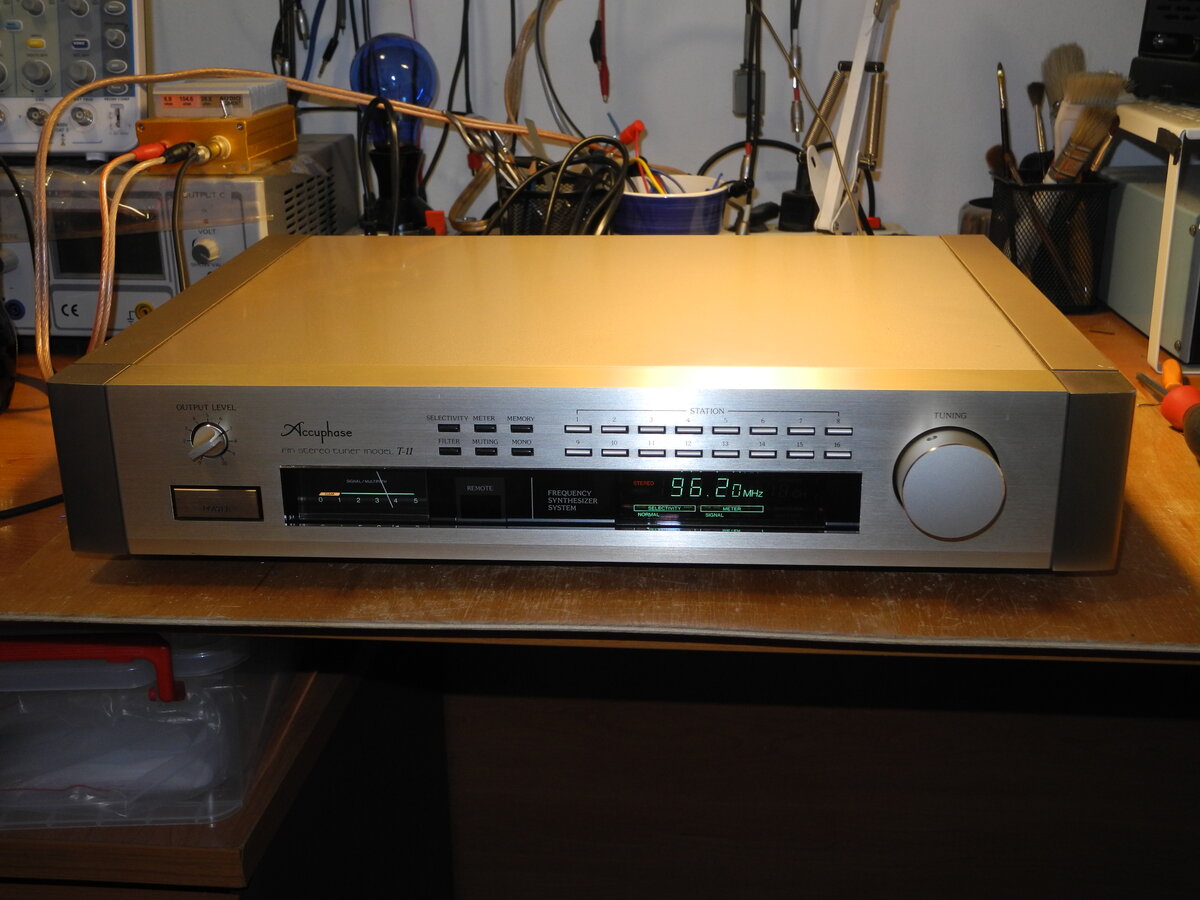

1. Accuphase T-11 - Front View1. Front View
2. Accuphase T-11 - Front View2. Front View

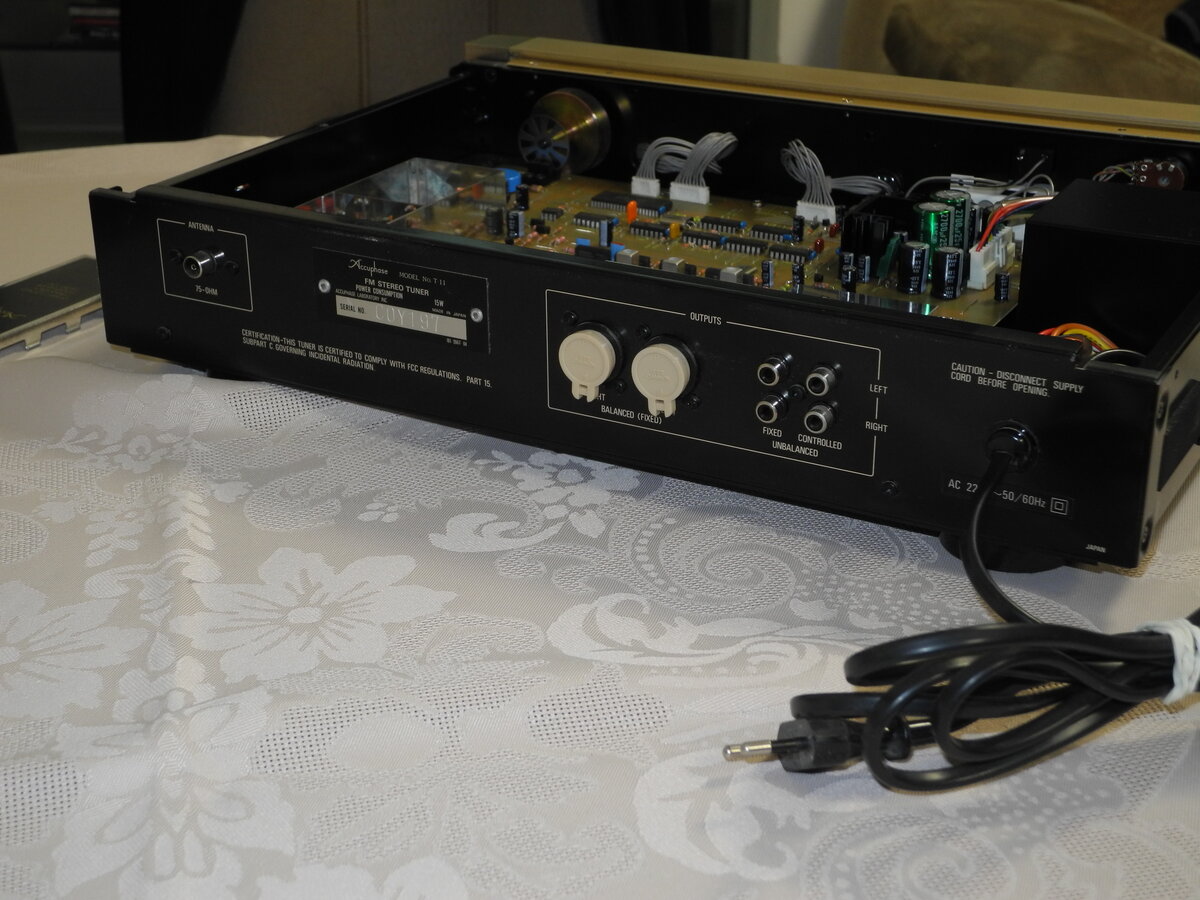

3. Accuphase T-11 - Back View3. Back View

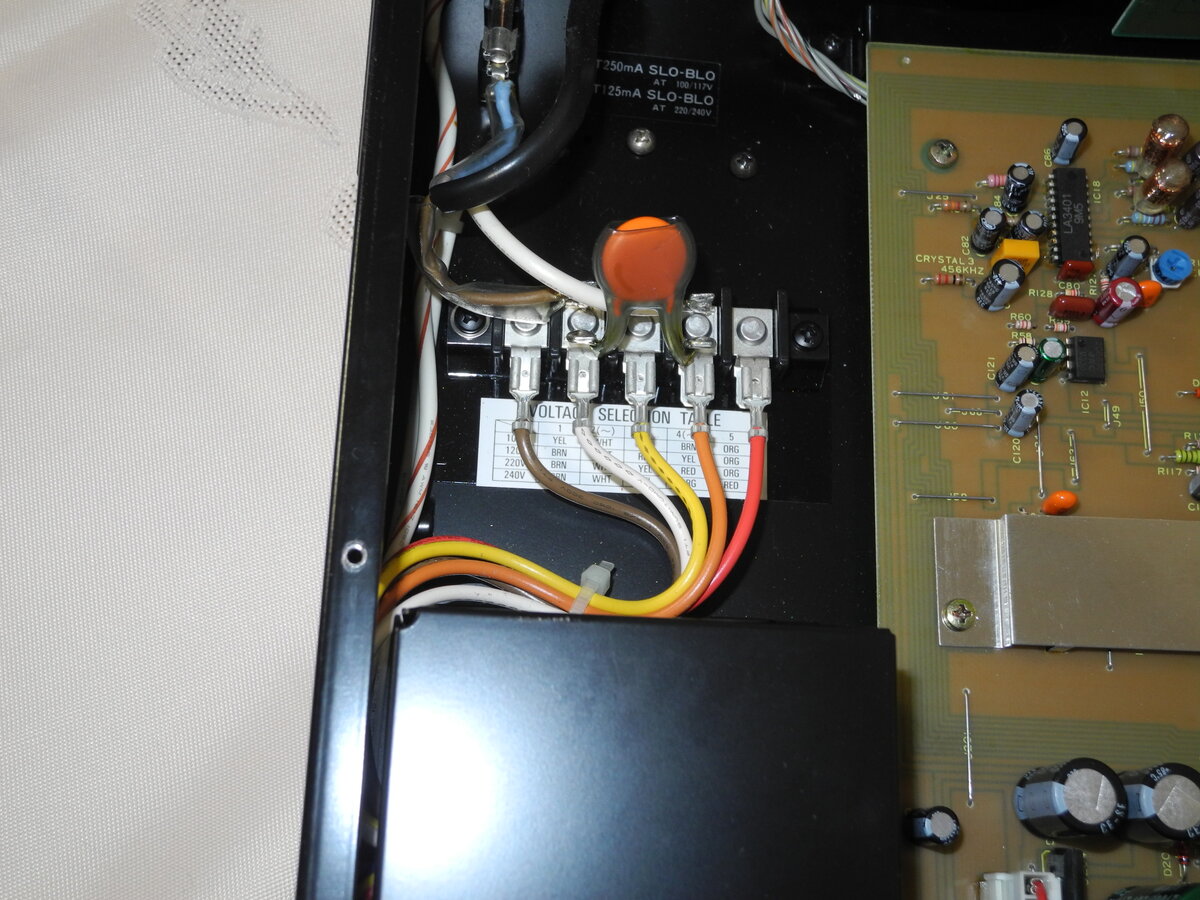

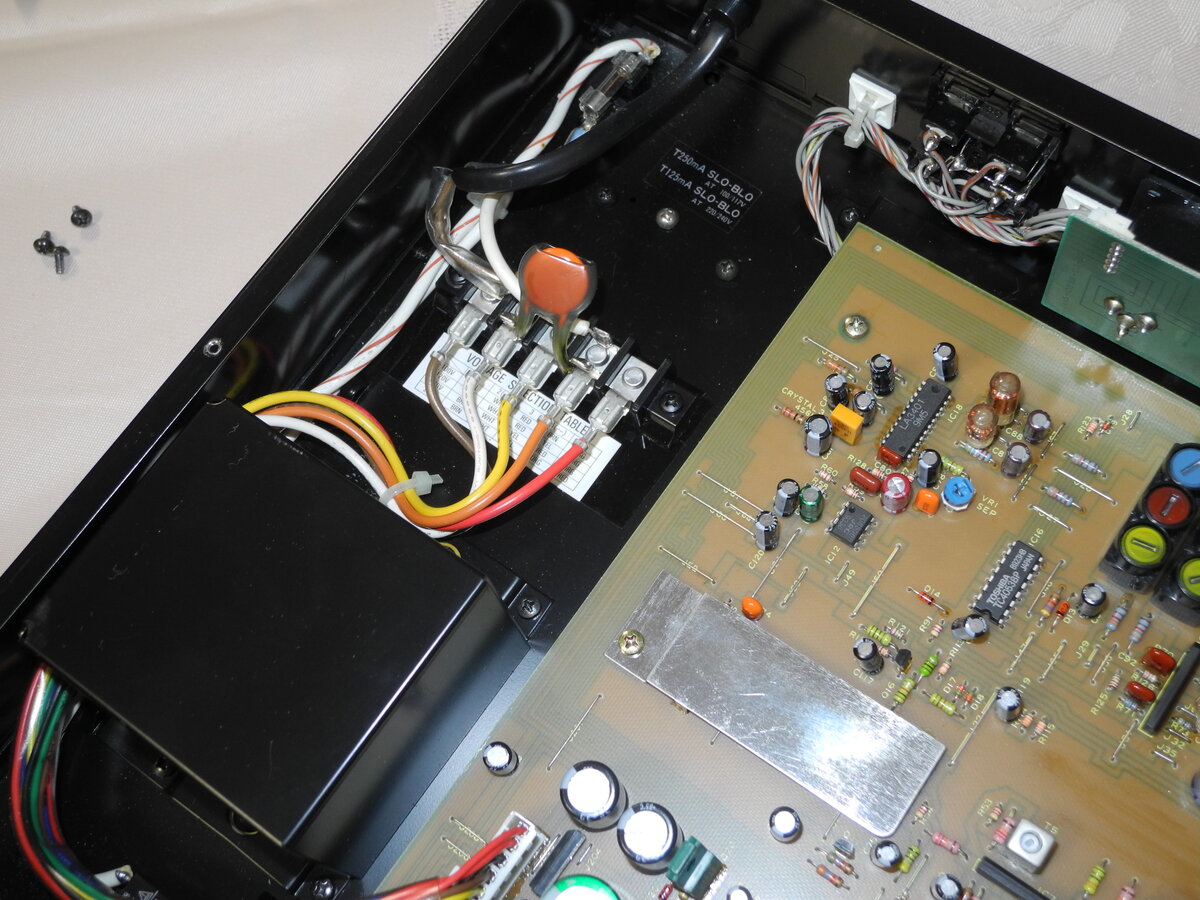

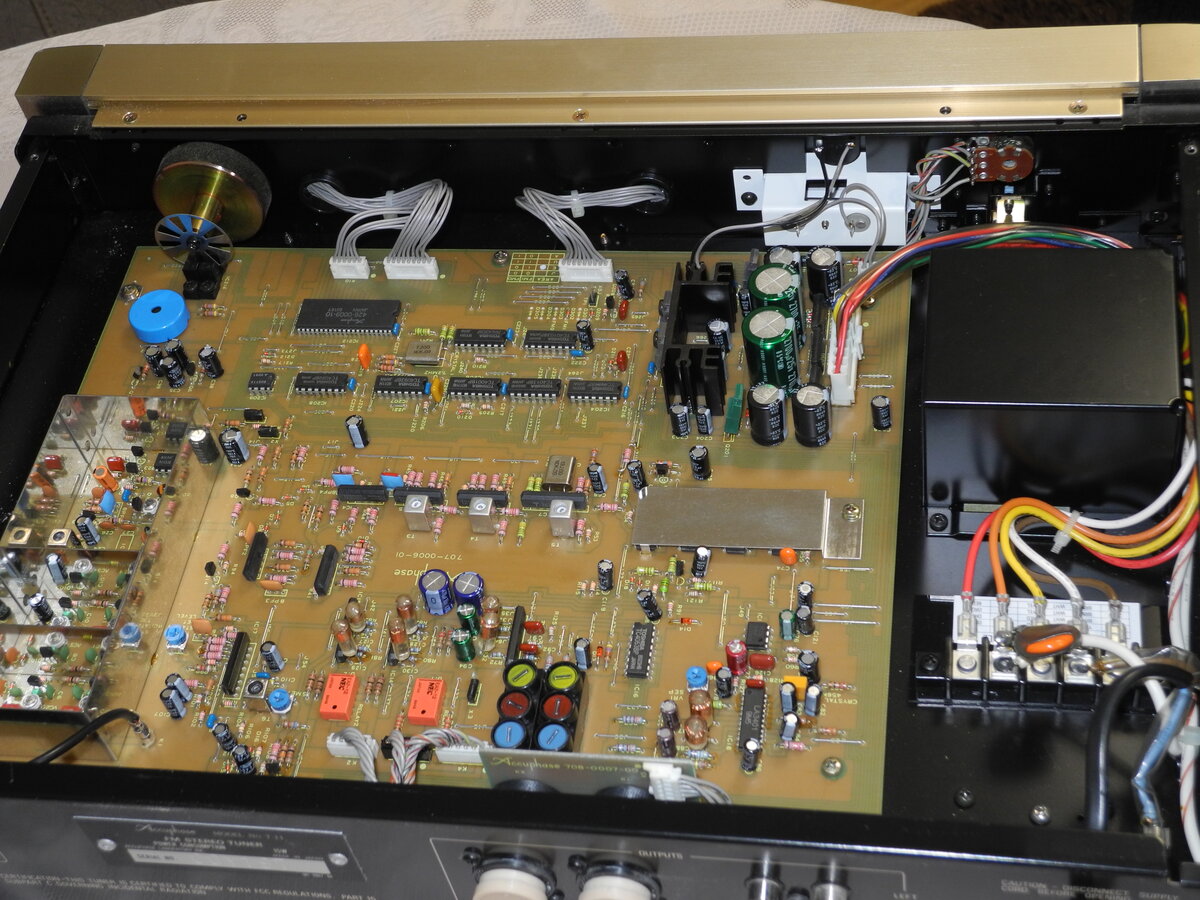

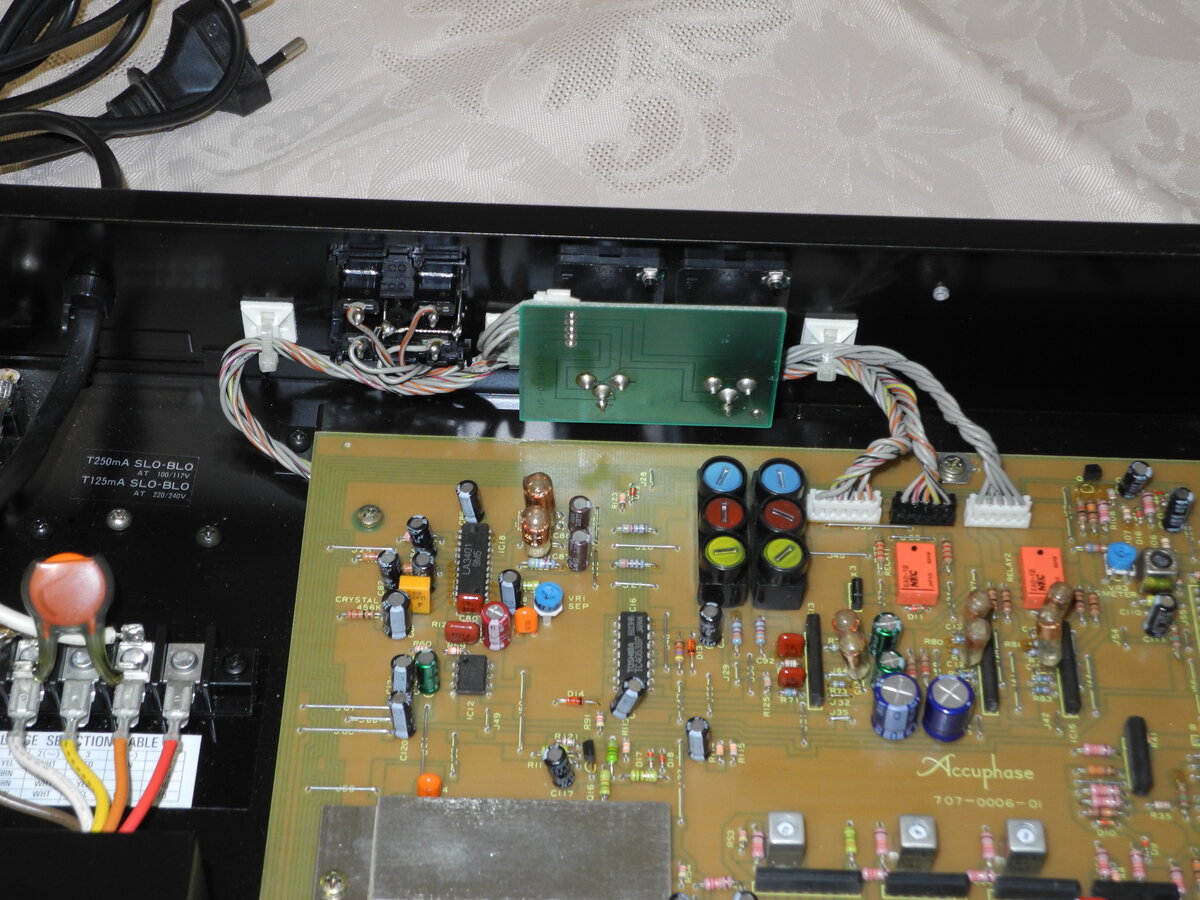

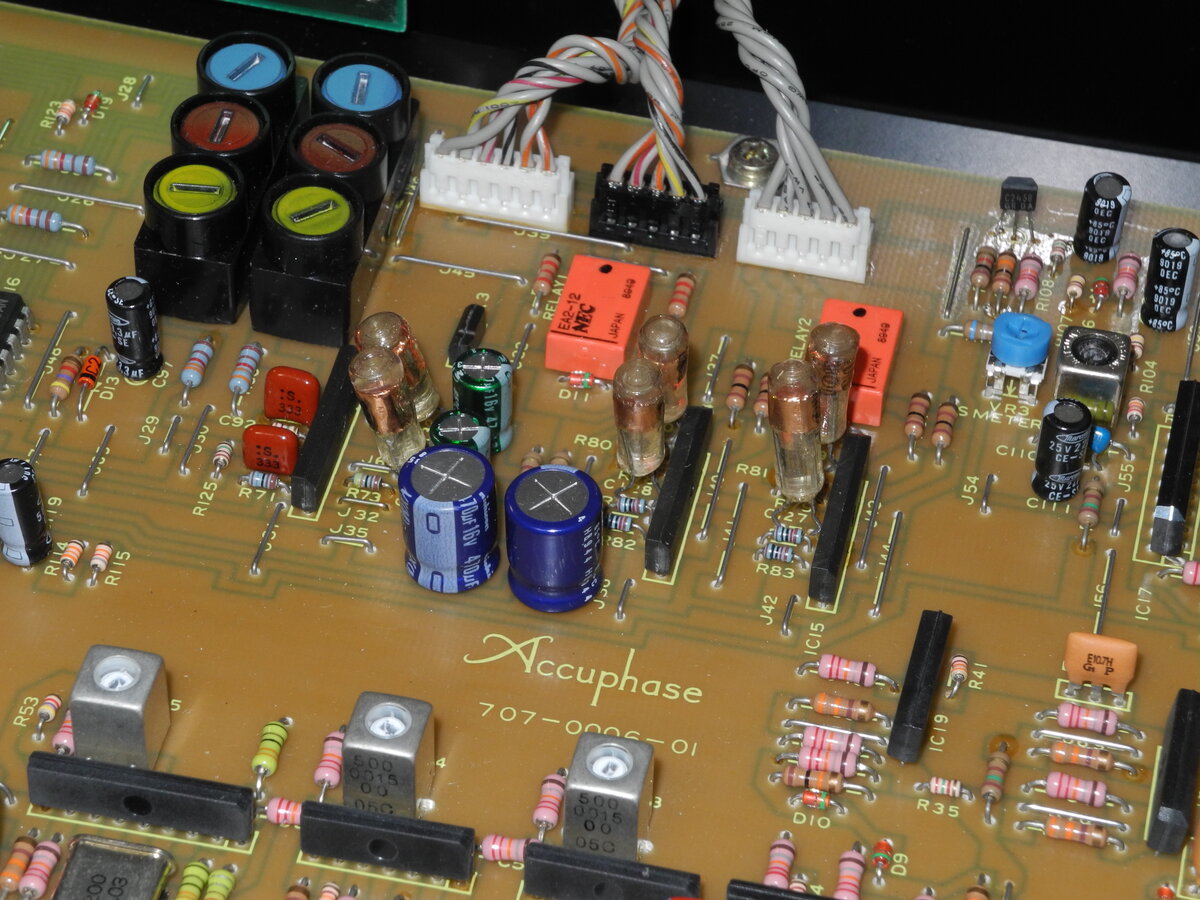

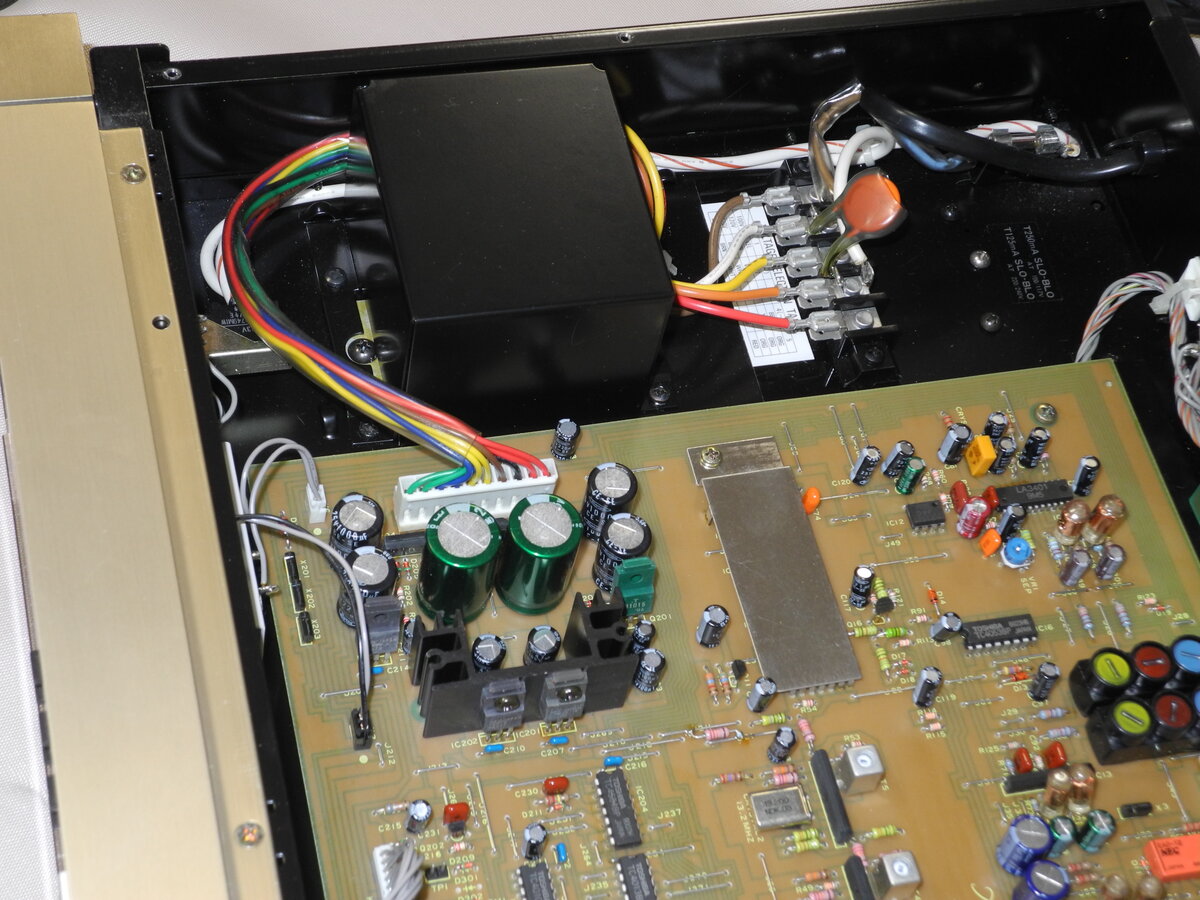

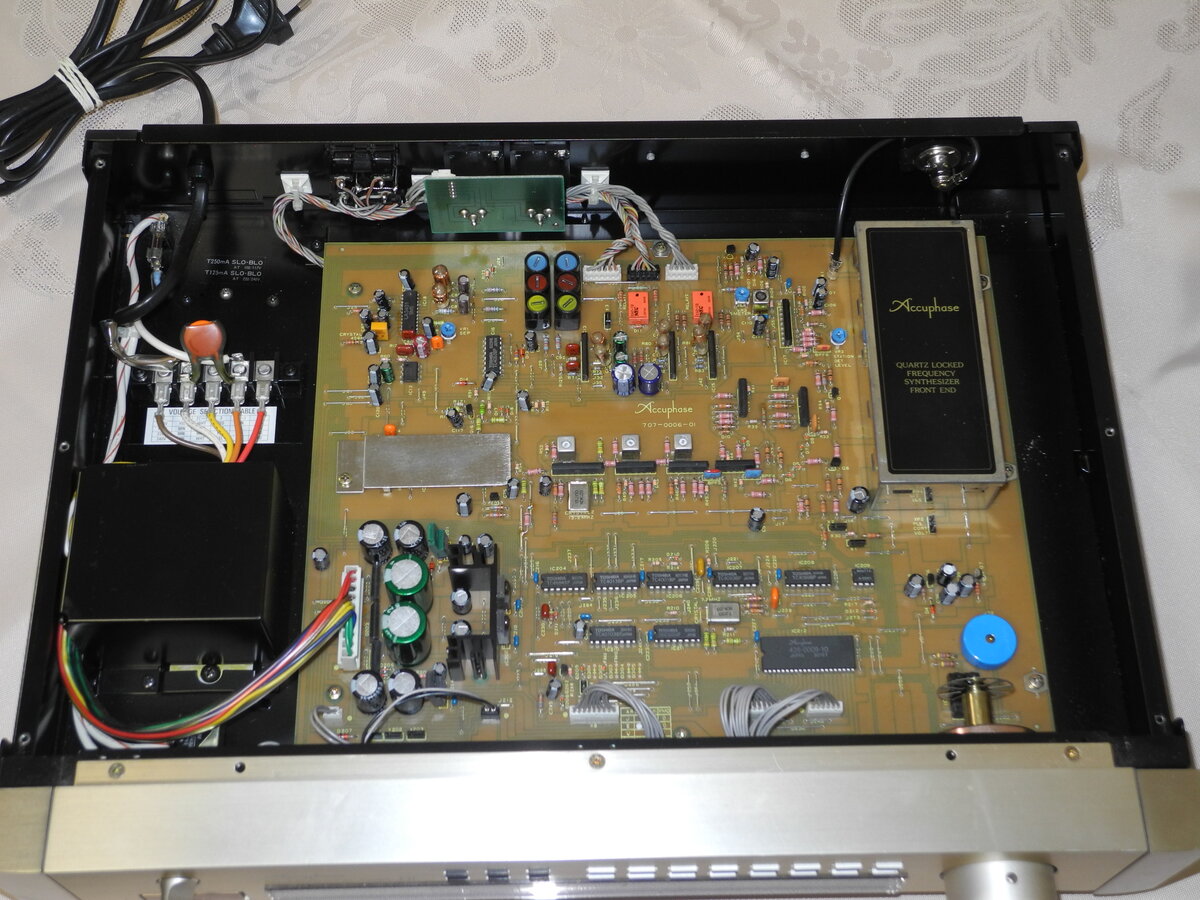

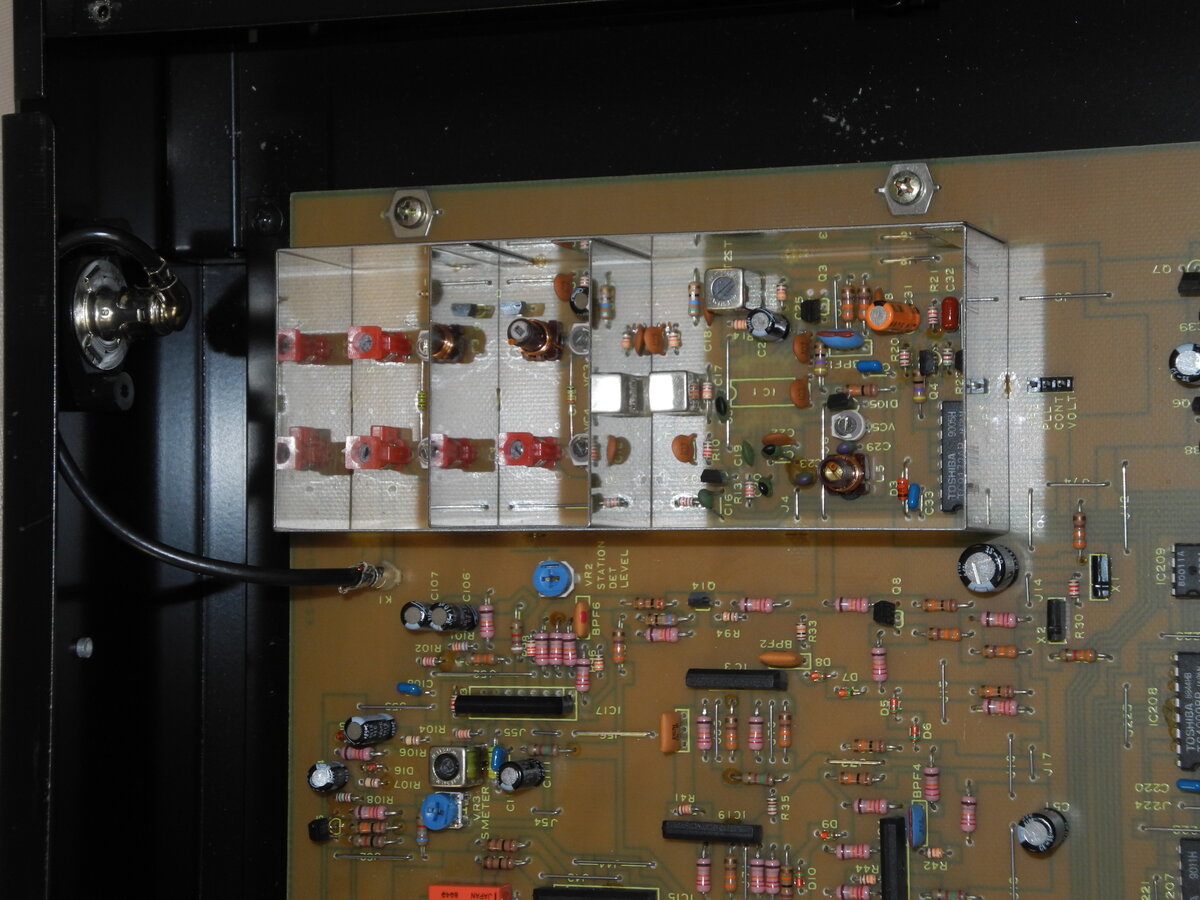

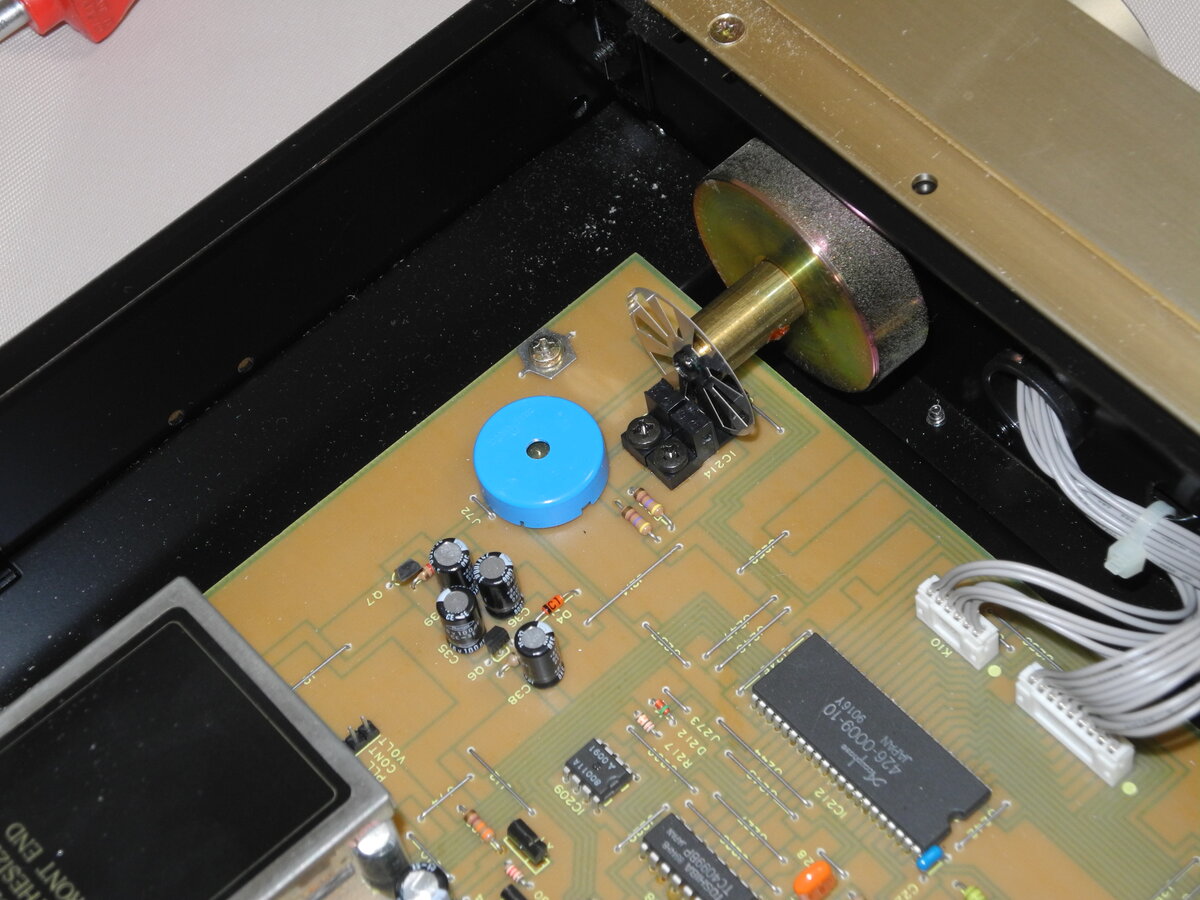

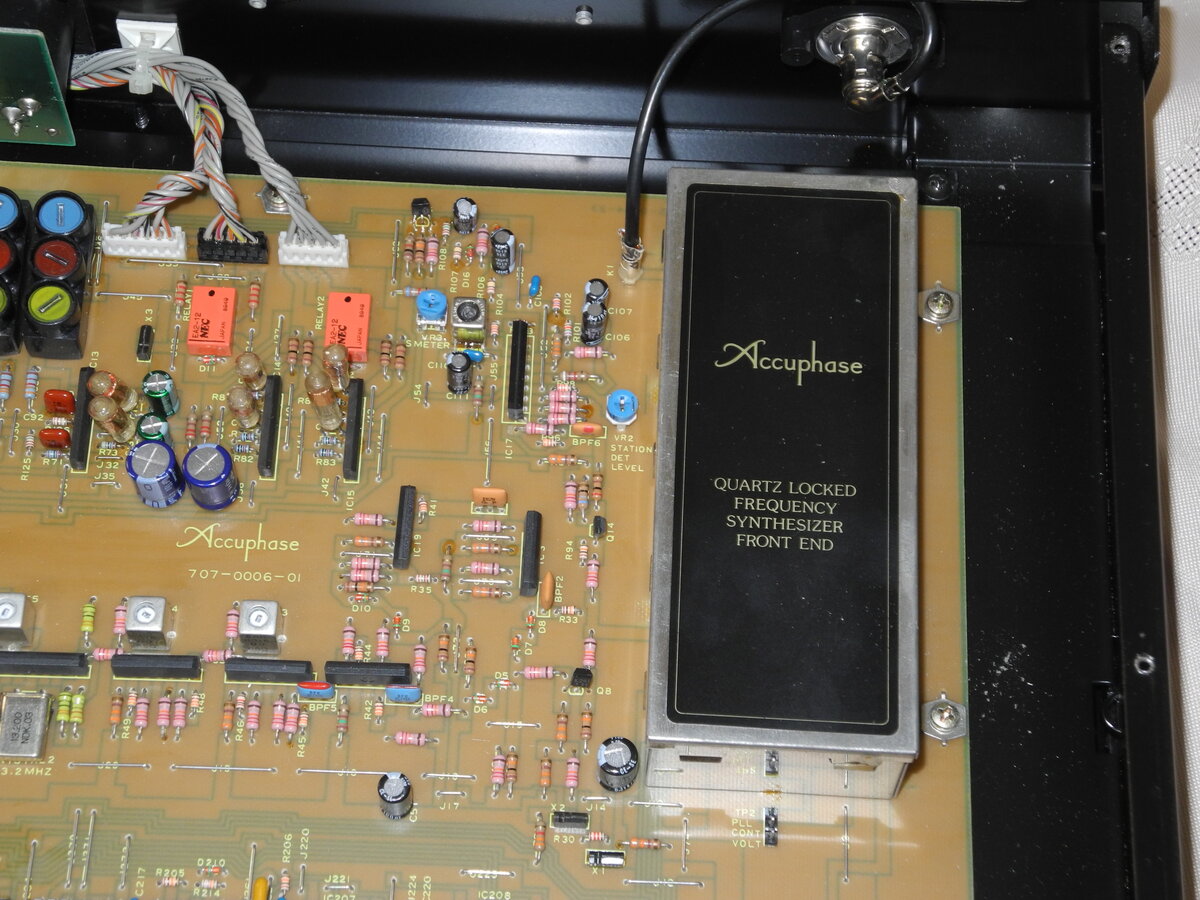

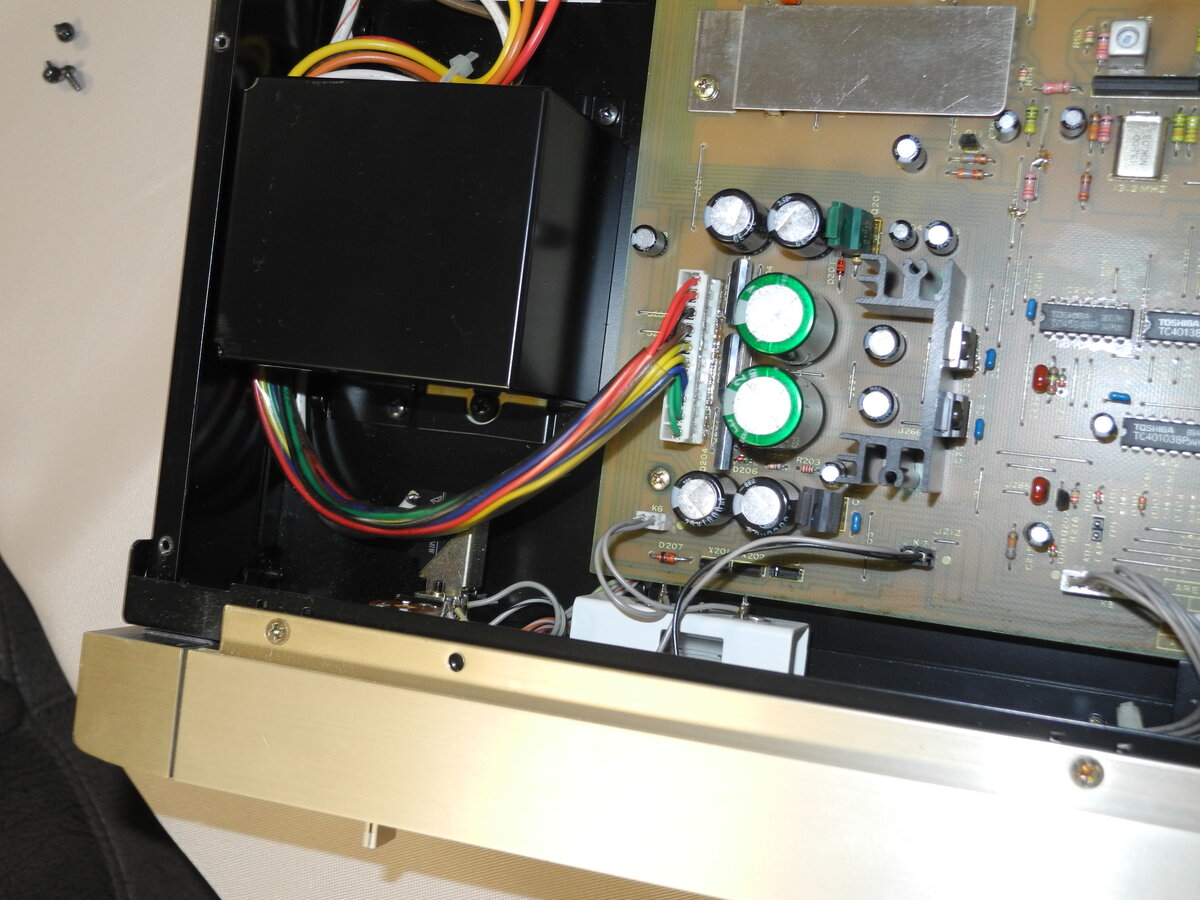

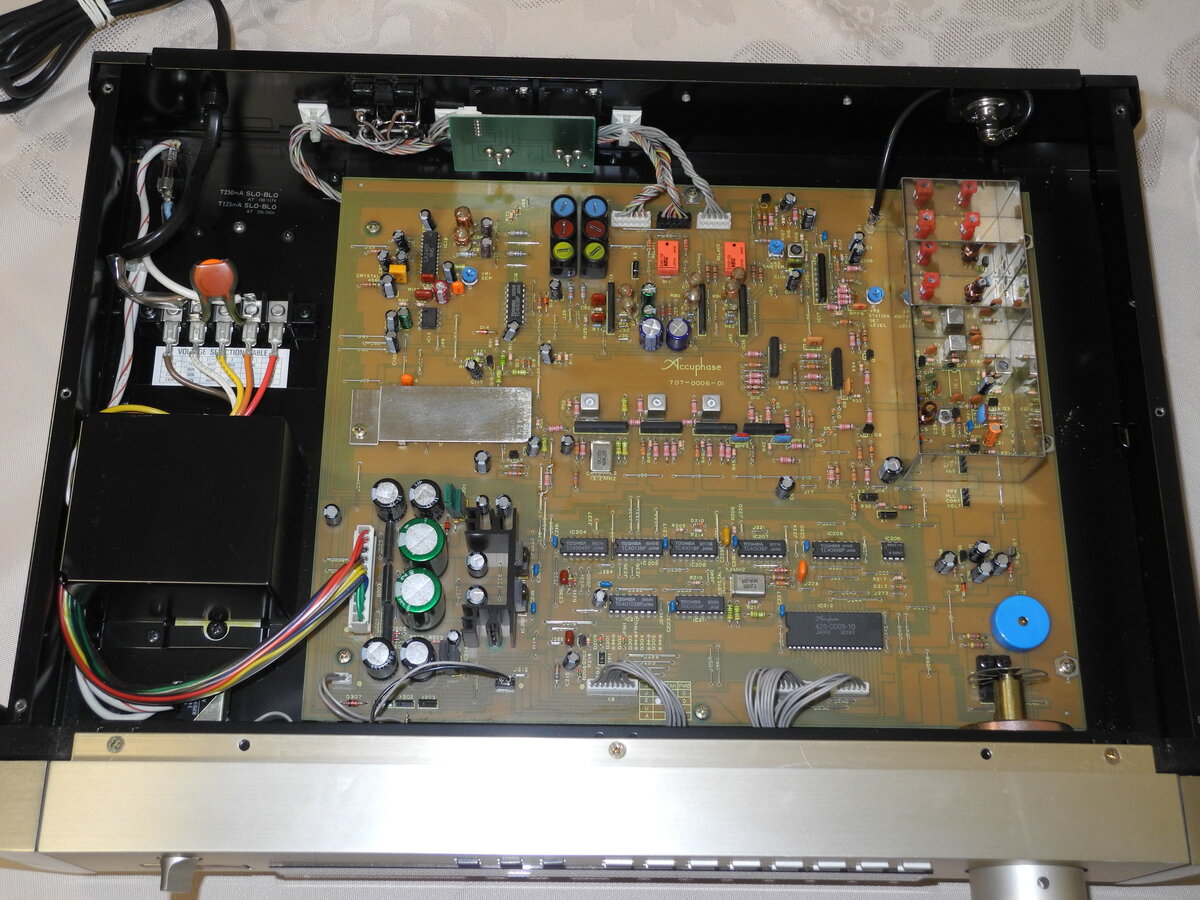

4. Accuphase T-11 - Inside View4. Inside View
5. Accuphase T-11 - Inside View5. Inside View
6. Accuphase T-11 - Inside View6. Inside View
7. Accuphase T-11 - Inside View7. Inside View
8. Accuphase T-11 - Inside View8. Inside View
9. Accuphase T-11 - Inside View9. Inside View
10. Accuphase T-11 - Inside View10. Inside View
11. Accuphase T-11 - Inside View11. Inside View
12. Accuphase T-11 - Inside View12. Inside View
13. Accuphase T-11 - Inside View13. Inside View
14. Accuphase T-11 - Inside View14. Inside View
15. Accuphase T-11 - Inside View15. Inside View

General Specifications

FM Tuning Range: 87.5MHz-108.0MHz
Antenna Input: 75Ω
Quieting Sensitivity (50dB): 37dBf
Signal-to-Noise Ratio (80dBf): 85dB
Total Harmonic Distortion: 0.04%
Intermodulation Distortion: <0.03%
Frequency Response (10Hz-16KHz): +0,-1.0dB
Stereo Separation (1KHz): 50dB
Stereo and Muting Threshold: 20dBf

Dimensions (WHD): 445×95×325mm
Weight: 9.3kg
Produced: 1989-1995
Initial price: 2600DM

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

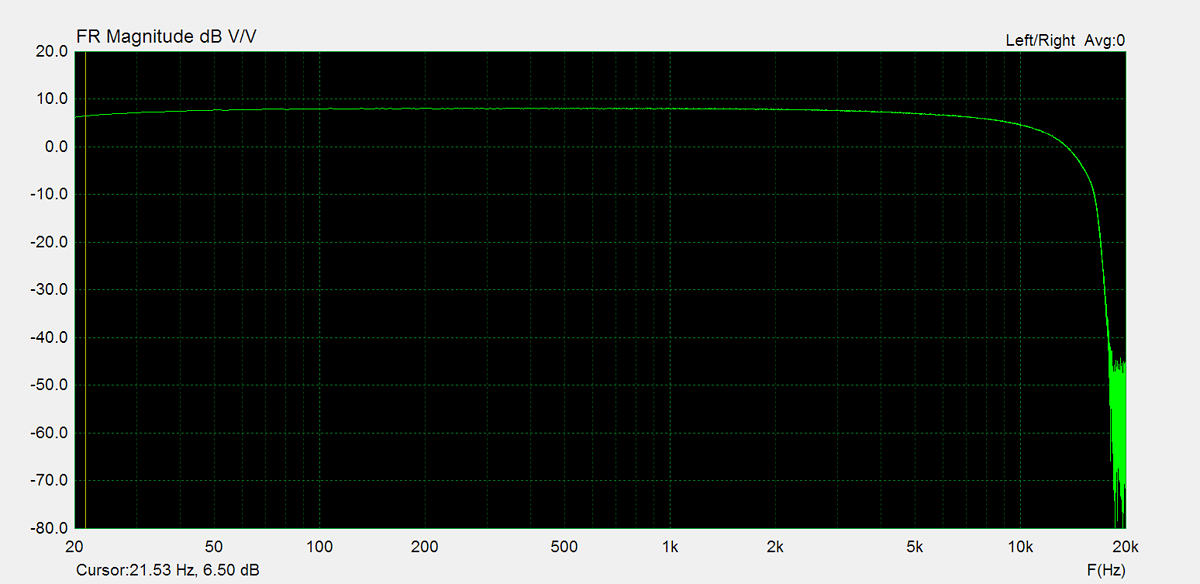

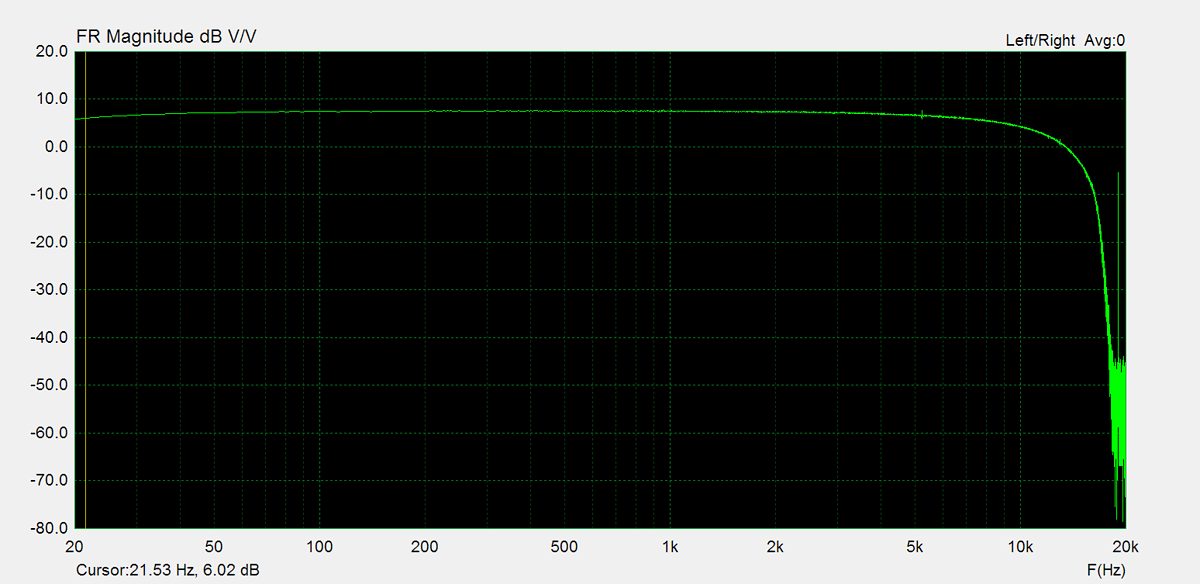

16. Accuphase T-11 - FR Mono - Left Chanel16. FR Mono - Left Chanel
17. Accuphase T-11 - FR Mono - Right Chanel17. FR Mono - Right Chanel
18. Accuphase T-11 - FR Stereo - Left Chanel18. FR Stereo - Left Chanel
19. Accuphase T-11 - FR Stereo - Right Chanel19. FR Stereo - Right Chanel

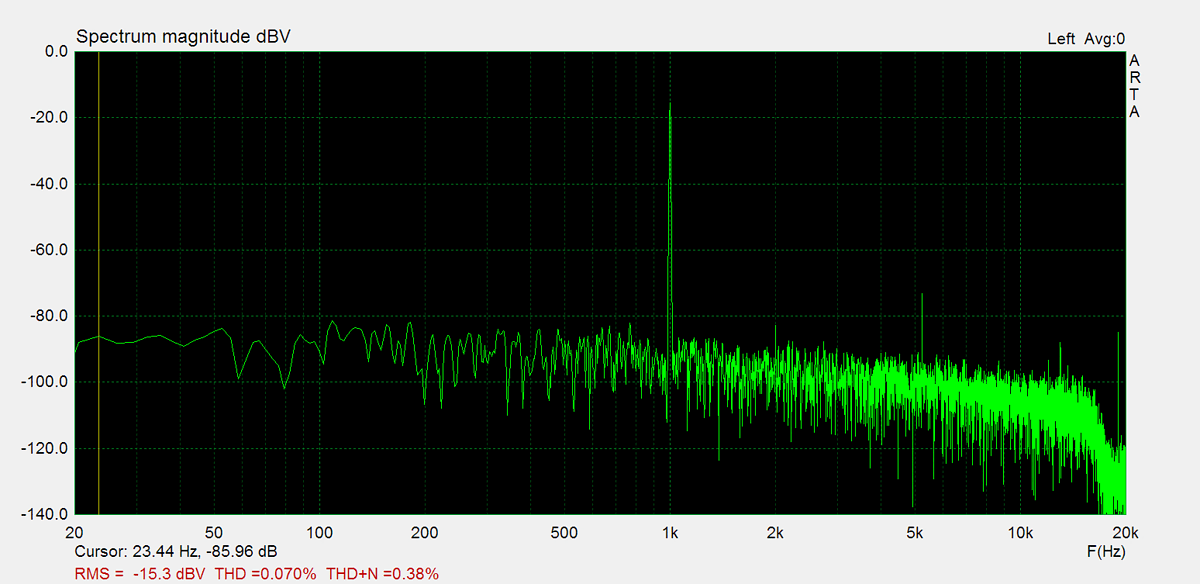

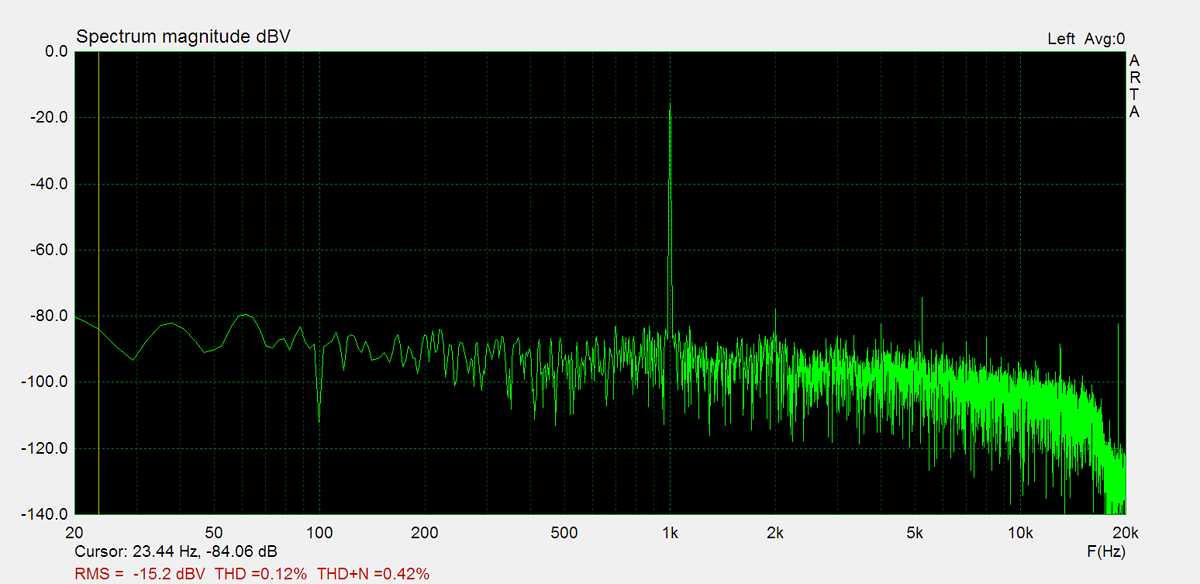

20. Accuphase T-11 - THD Mono - Left Chanel20. THD Mono - Left Chanel
21. Accuphase T-11 - THD Mono - Right Chanel21. THD Mono - Right Chanel
22. Accuphase T-11 - THD Stereo - Left Chanel22. THD Stereo - Left Chanel
23. Accuphase T-11 - THD Stereo - Right Chanel23. THD Stereo - Right Chanel

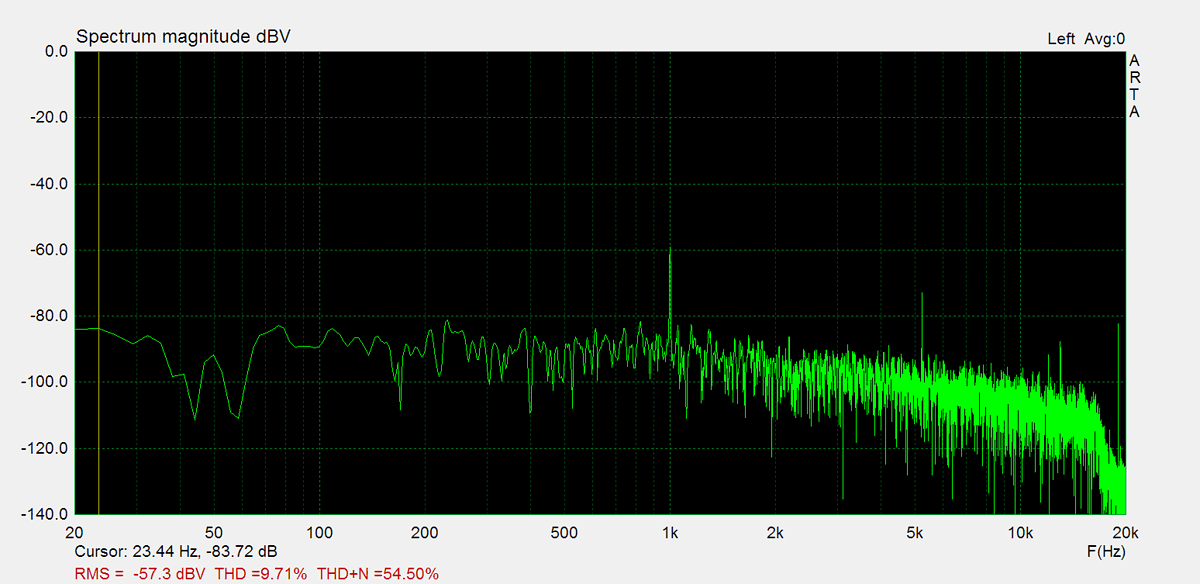

24. Accuphase T-11 - Separation Right Off - Left Chanel24. Separation Right Off - Left Chanel

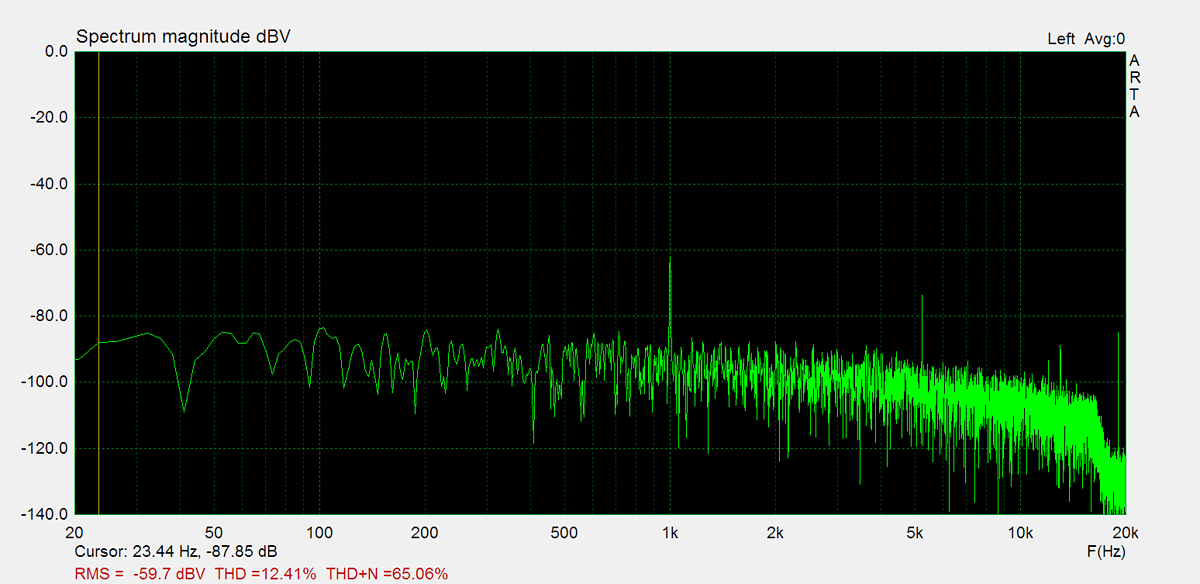

25. Accuphase T-11 - Separation Left Off - Right Chanel25. Separation Left Off - Right Chanel

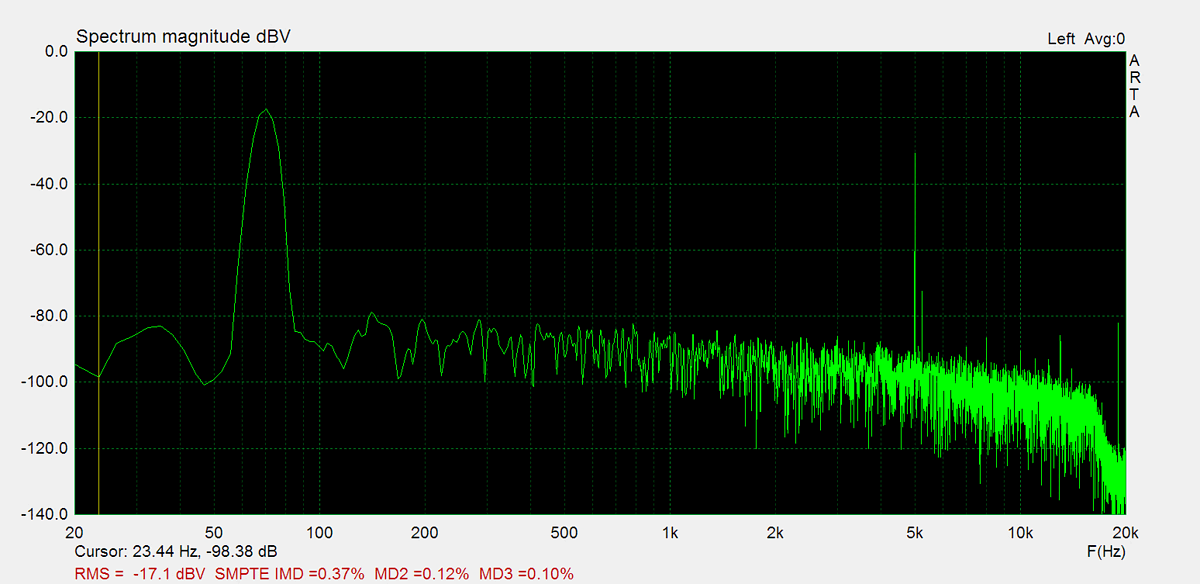

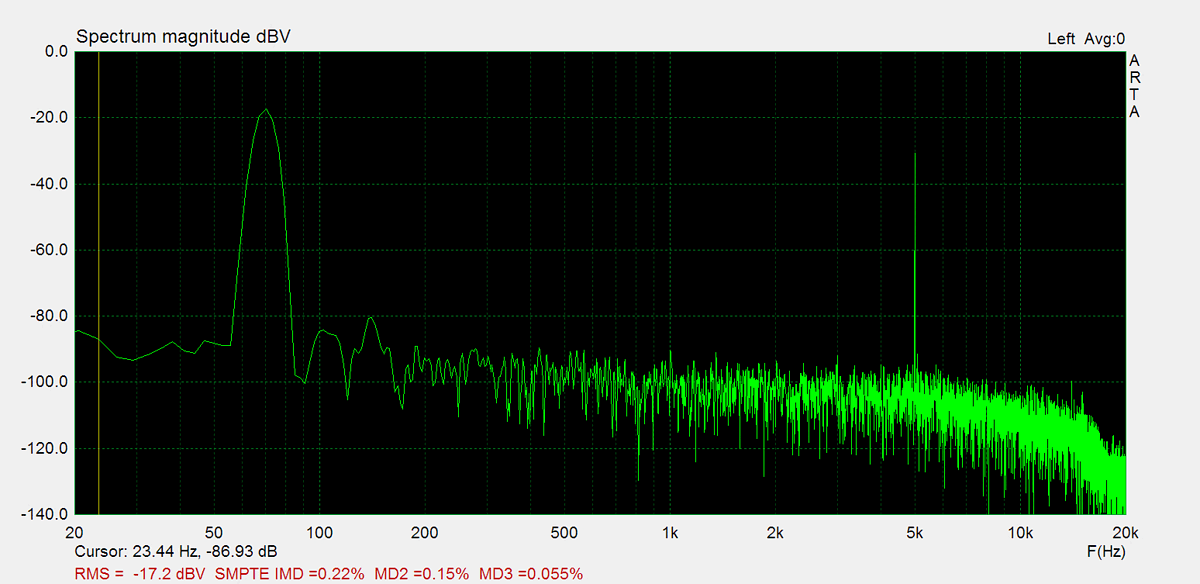

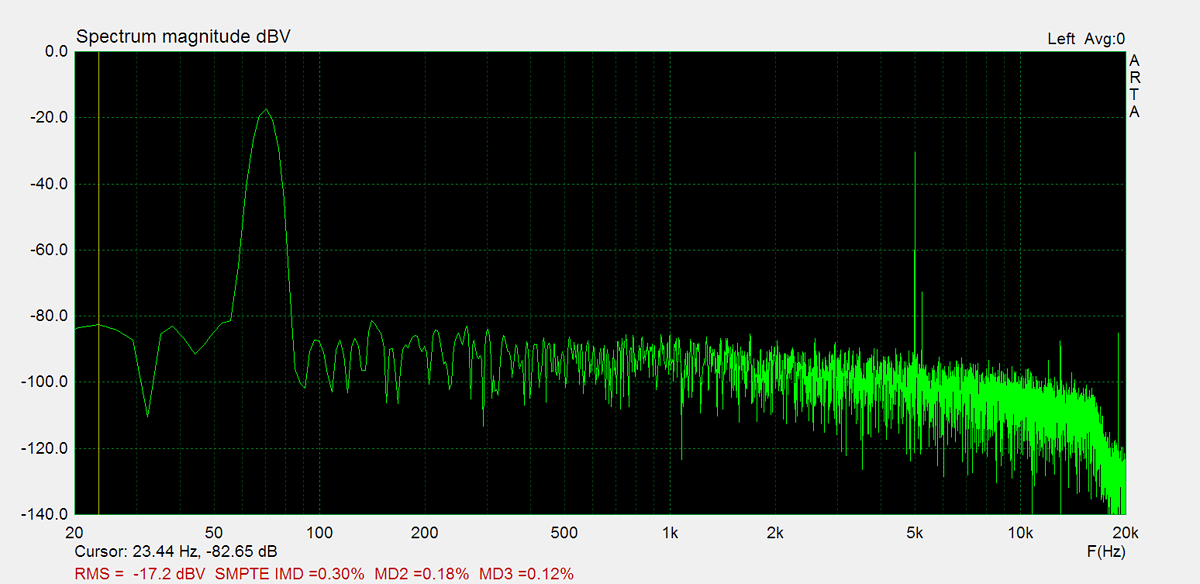

26. Accuphase T-11 - IMD Mono - Left Chanel26. IMD Mono - Left Chanel
27. Accuphase T-11 - IMD Mono - Right Chanel27. IMD Mono - Right Chanel
28. Accuphase T-11 - IMD Stereo - Left Chanel28. IMD Stereo - Left Chanel
29. Accuphase T-11 - IMD Stereo - Right Chanel29. IMD Stereo - Right Chanel

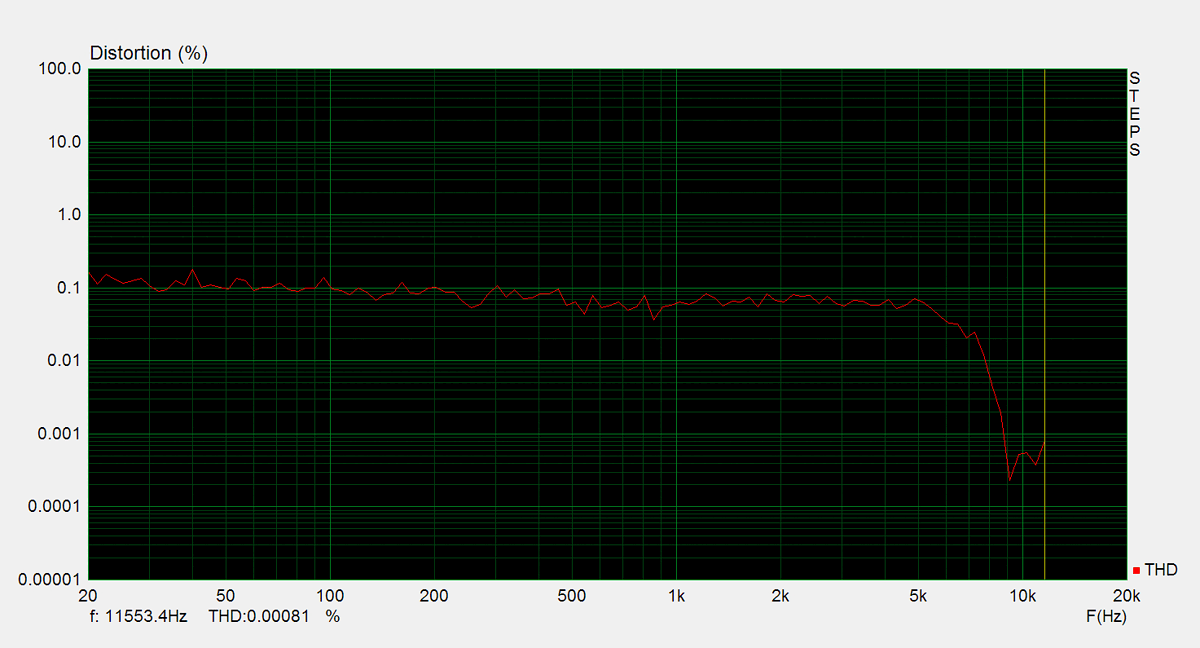

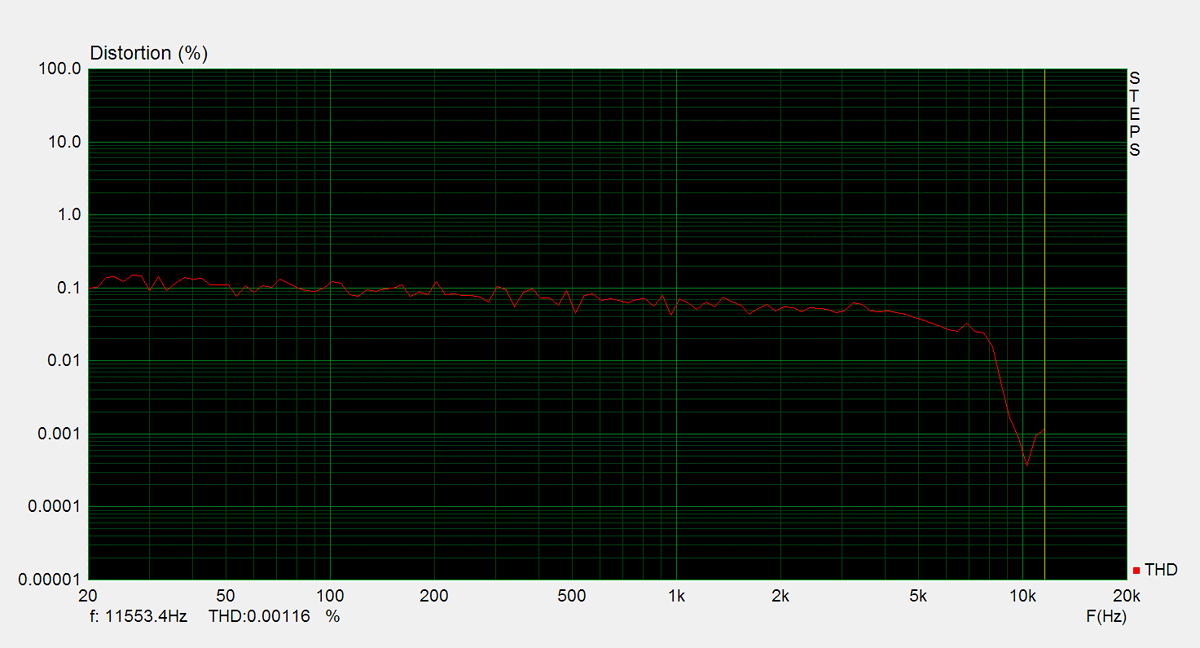

30. Accuphase T-11 - THD vs Frequency Mono - Left Chanel30. THD vs Frequency Mono - Left Chanel
31. Accuphase T-11 - THD vs Frequency Mono - Right Chanel31. THD vs Frequency Mono - Right Chanel
32. Accuphase T-11 - THD vs Frequency Stereo - Left Chanel32. THD vs Frequency Stereo - Left Chanel
33. Accuphase T-11 - THD vs Frequency Stereo - Right Chanel33. THD vs Frequency Stereo - Right Chanel
