Accuphase T-11
The Accuphase T-11 is a premium FM stereo tuner renowned for its precise engineering and outstanding build quality. Its advanced circuitry, refined construction, and excellent sound quality have made it highly regarded among audiophiles and vintage audio collectors.

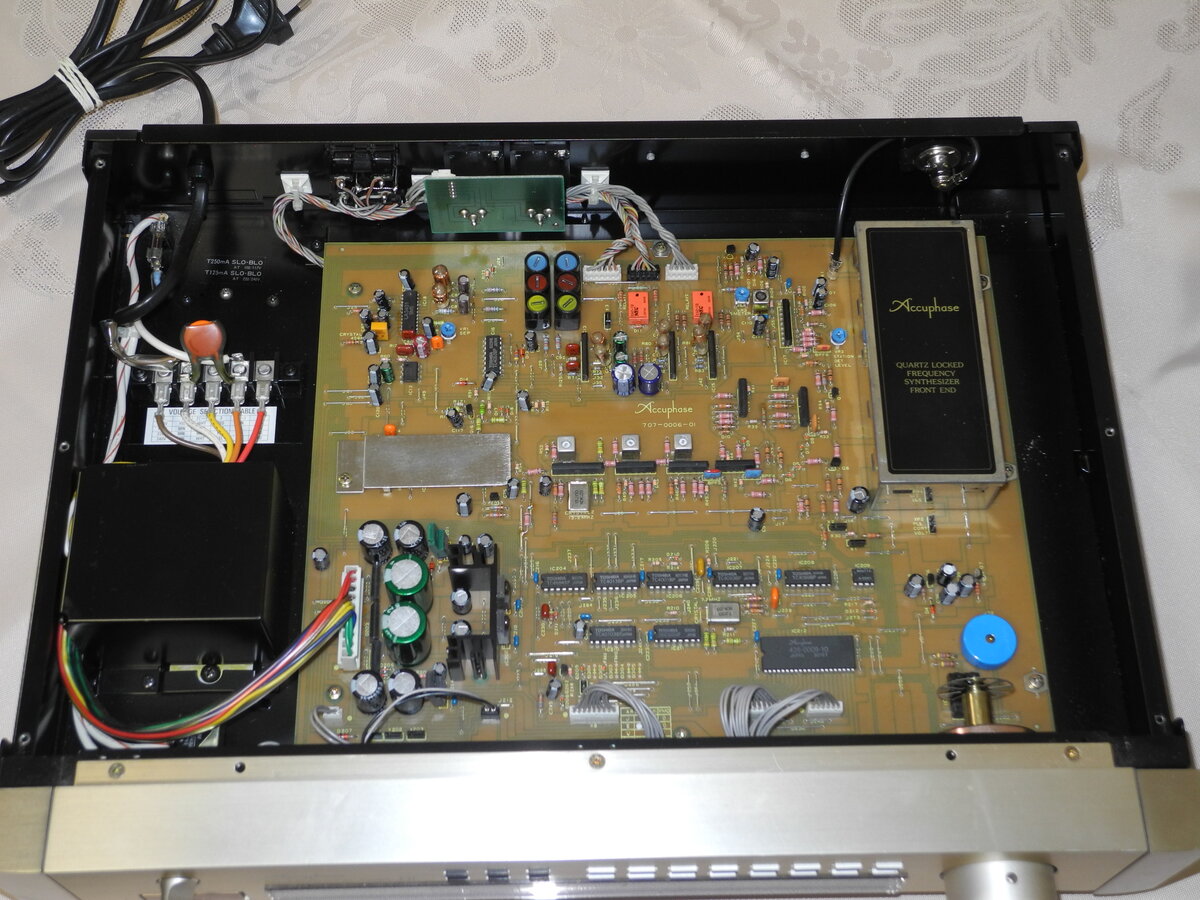

The frontend uses a double-tuned RF stage, while the IF mixer is based on a push-pull MOSFET configuration. The IF section supports a Narrow mode, allowing better rejection of adjacent-channel interference. A signal meter can display multipath reception, helping optimize antenna positioning for the best possible reception.
For long-term reception stability, a PLL-based circuit is used to lock the tuner oscillator by synchronizing it with the 38kHz subcarrier signal contained in the FM broadcast.

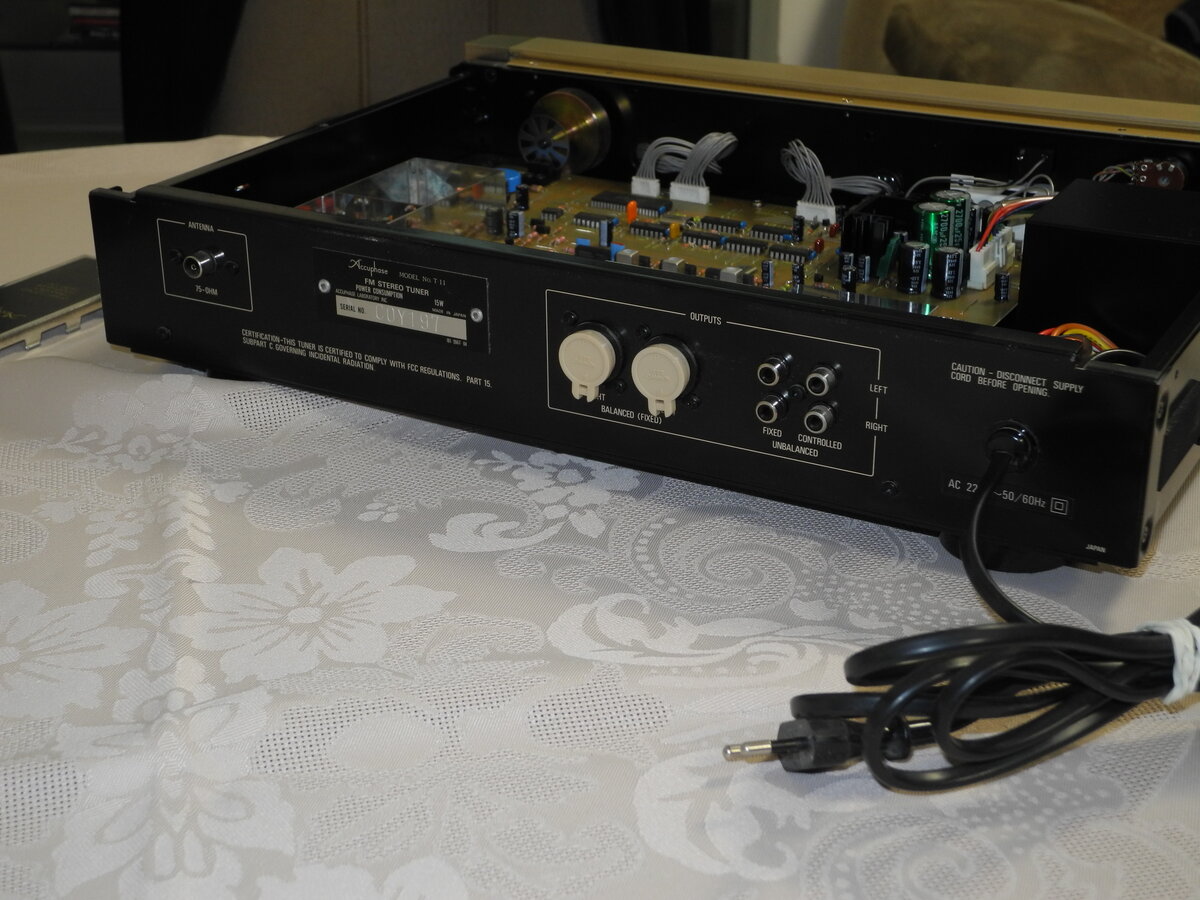

The T-11 supports remote control operation and offers 16 FM station memory presets. Additional features include balanced audio outputs and adjustable output level control.
Manufacturer: Accuphase
Status: Active company
Official website: accuphase.com
General Specifications
Antenna Input: 75ΩFM Tuning Range: 87.5MHz-108.0MHz
Quieting Sensitivity (50dB): 37dBf
Signal-to-Noise Ratio (80dBf): 85dB
Total Harmonic Distortion: 0.04%
Intermodulation Distortion: <0.03%
Frequency Response (10Hz-16KHz): +0,-1.0dB
Stereo Separation (1KHz): 50dB
Stereo and Muting Threshold: 20dBf
Dimensions (WHD): 445×95×325mm
Weight: 9.3kg
Produced: 1989-1995
Initial price: 2600DM

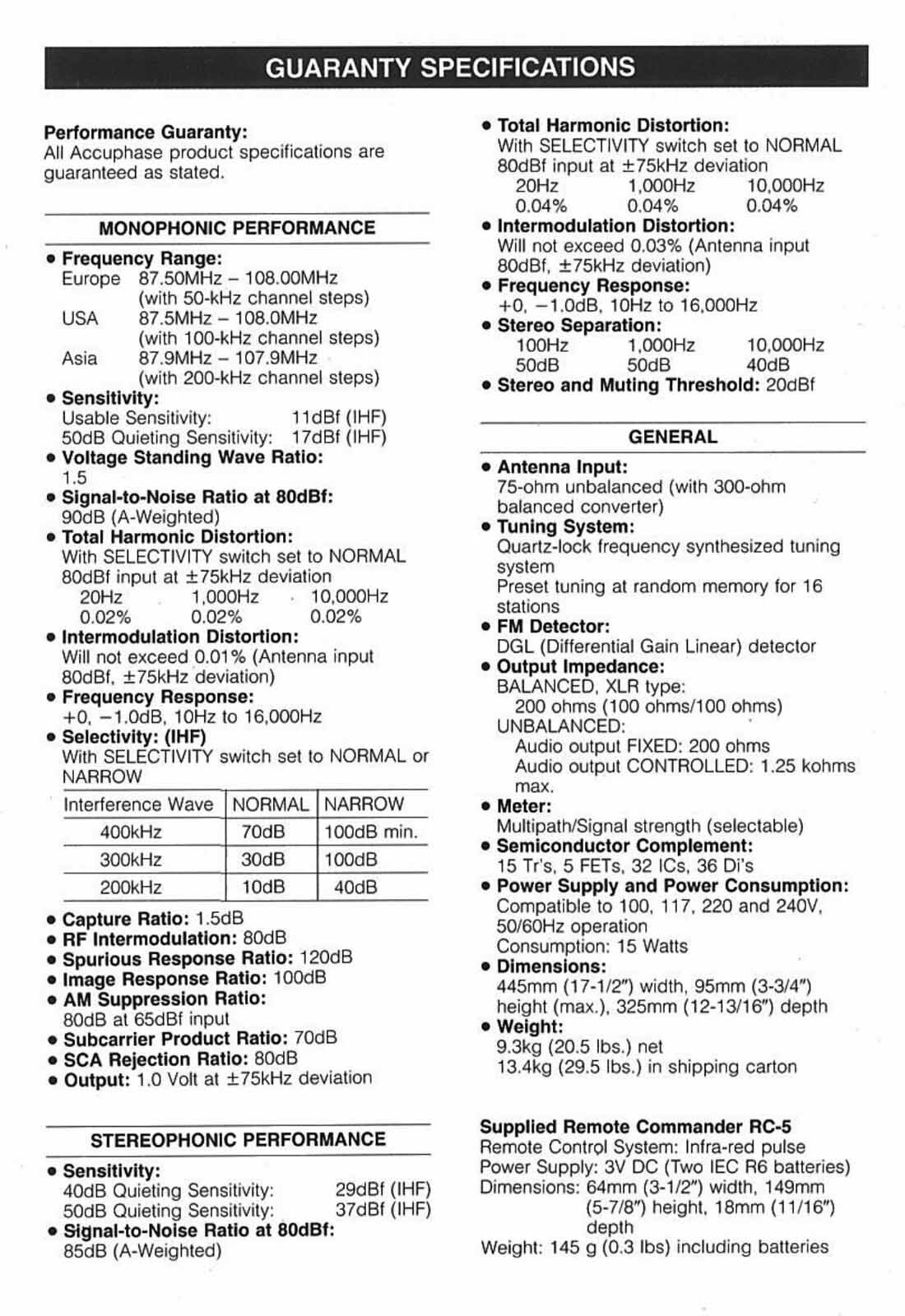

Factory Specification Sheet
Factory specification images are sourced directly from the device's original service manual or user manual. These documents are produced by the manufacturer and provide authoritative information on the product's specifications.
FM Tuner

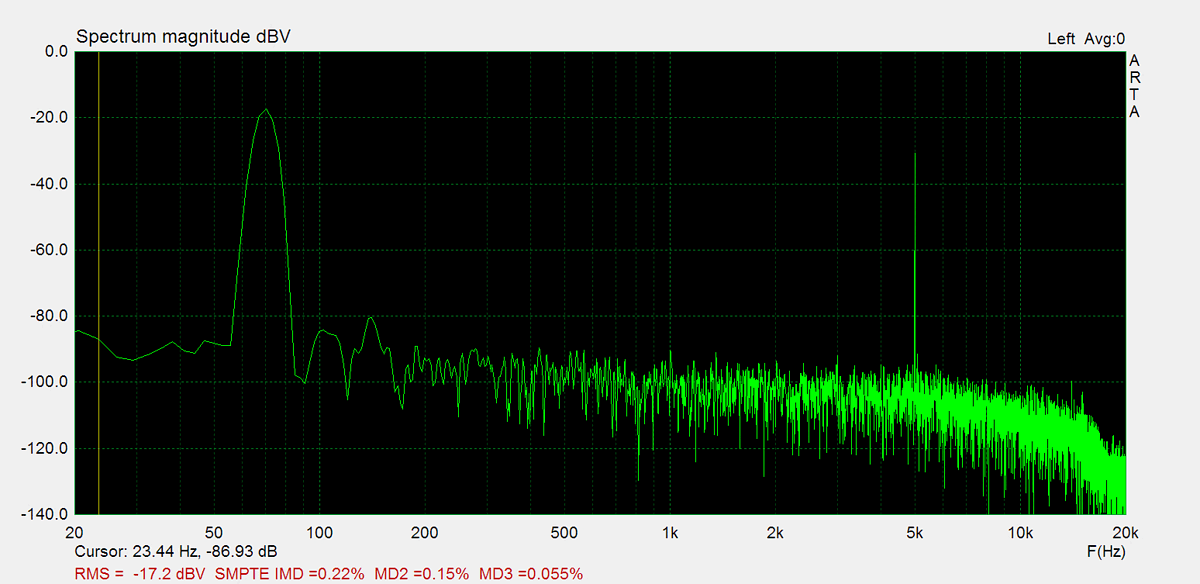

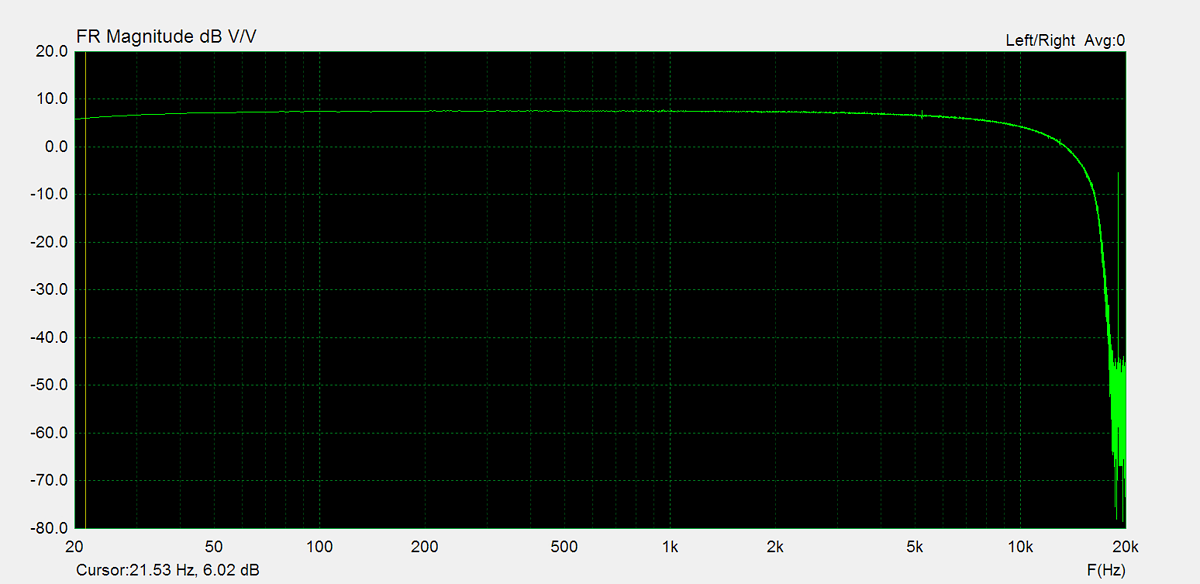

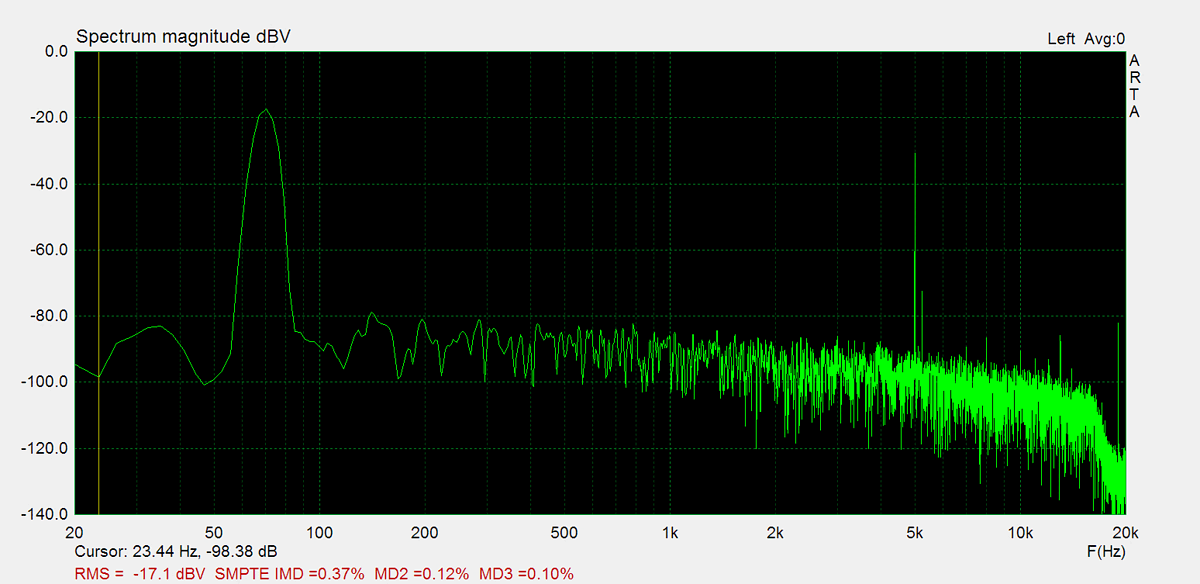

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.
