Hitachi FT-8000

The Hitachi FT-8000 is a vintage stereo FM tuner from the early 1980s.

Manufacturer: Hitachi
Status: Active company
Official website: hitachi.com

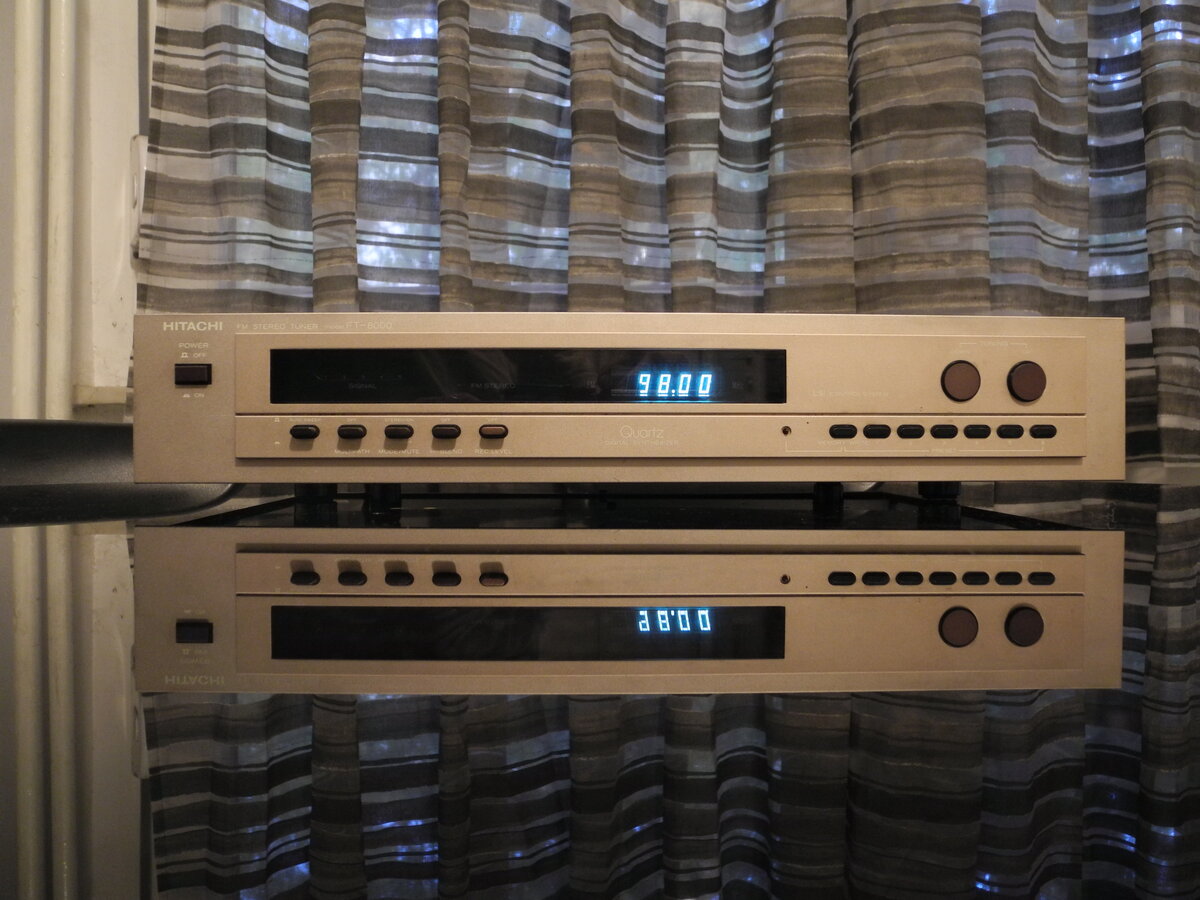

1. Hitachi FT-8000 - Front View1. Front View

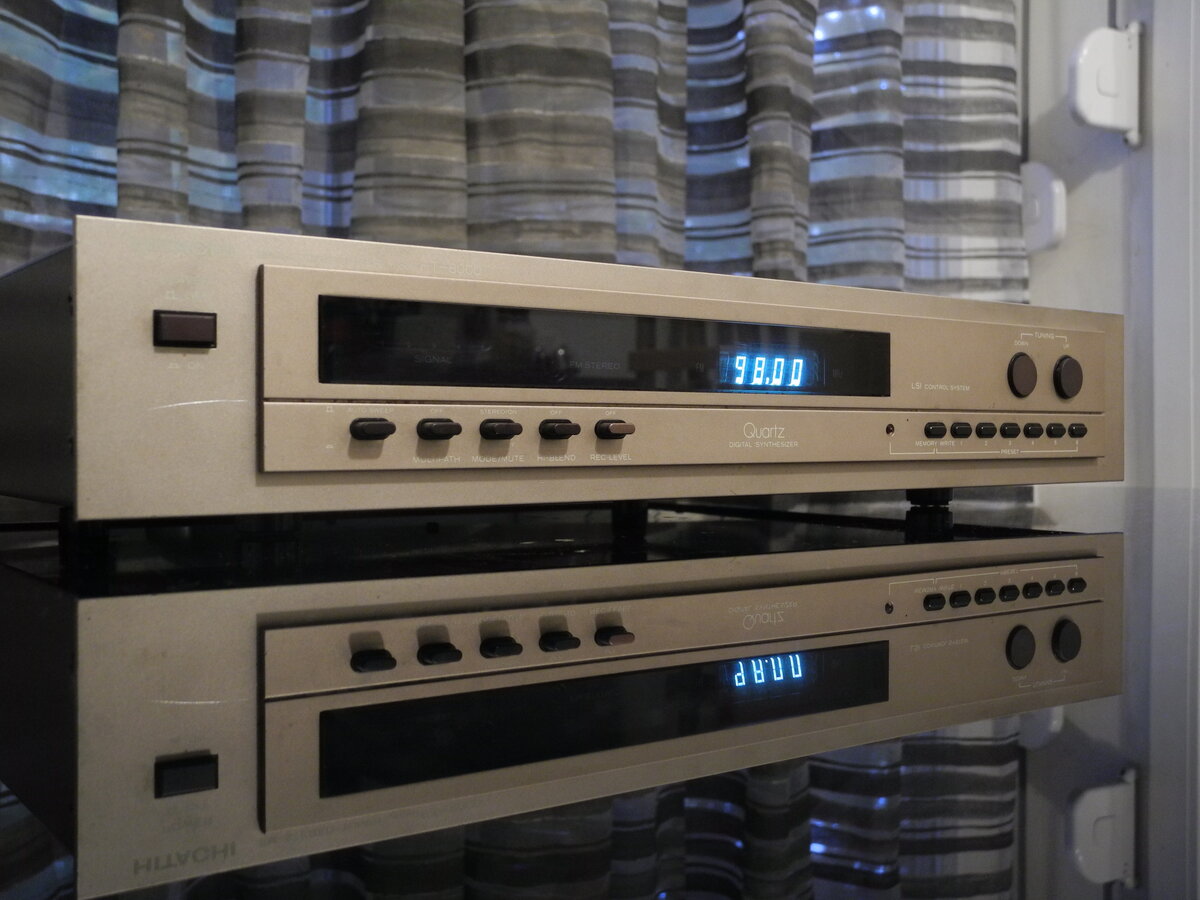

2. Hitachi FT-8000 - Left View2. Left View

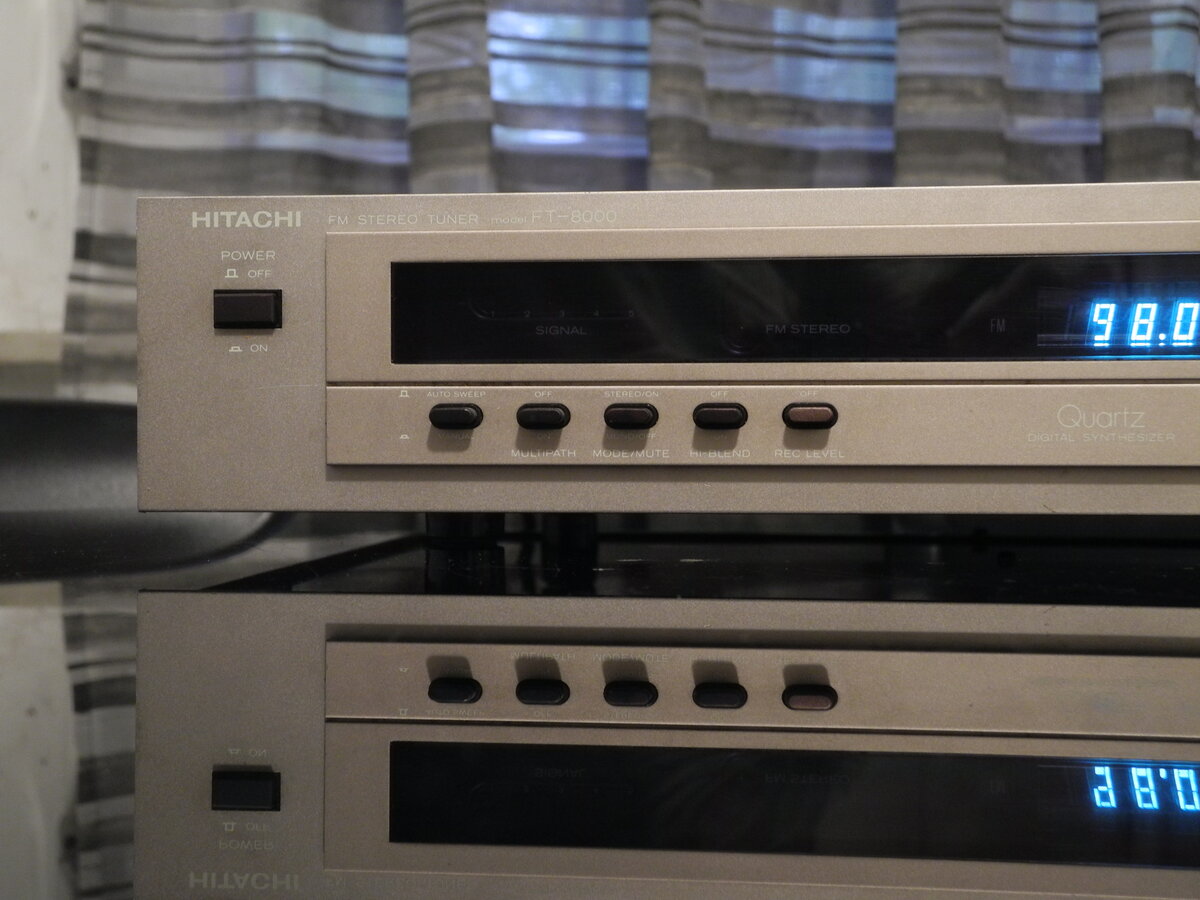

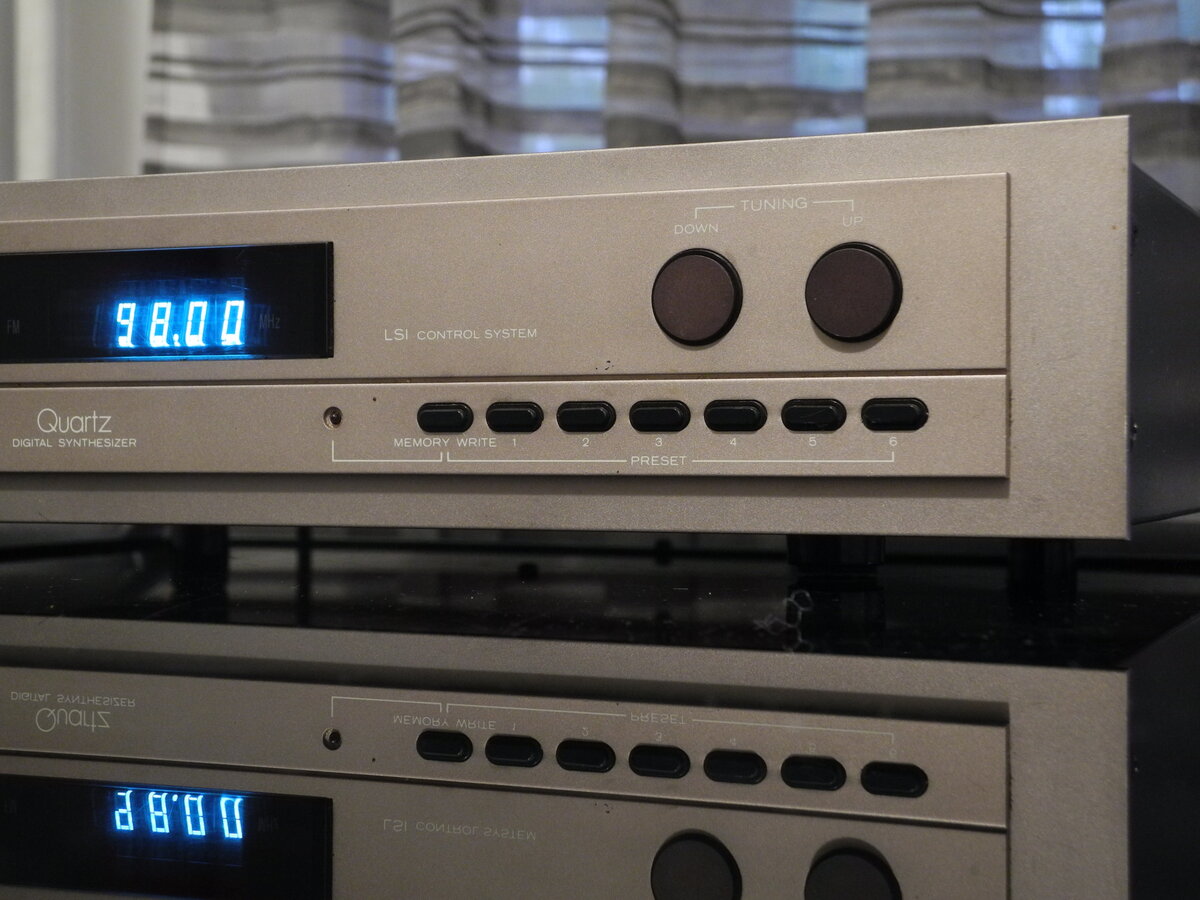

3. Hitachi FT-8000 - Zoom Left3. Zoom Left
4. Hitachi FT-8000 - Zoom Right4. Zoom Right

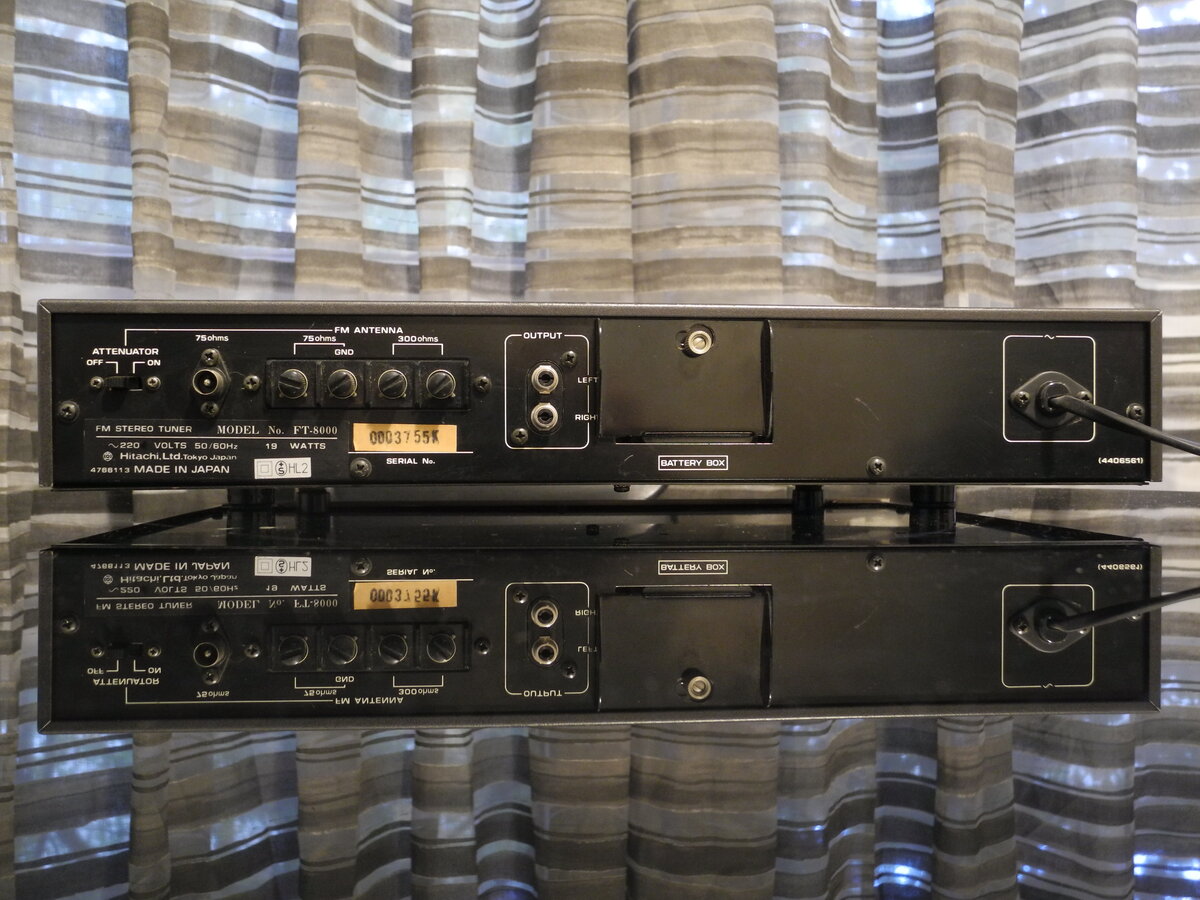

5. Hitachi FT-8000 - Back View5. Back View

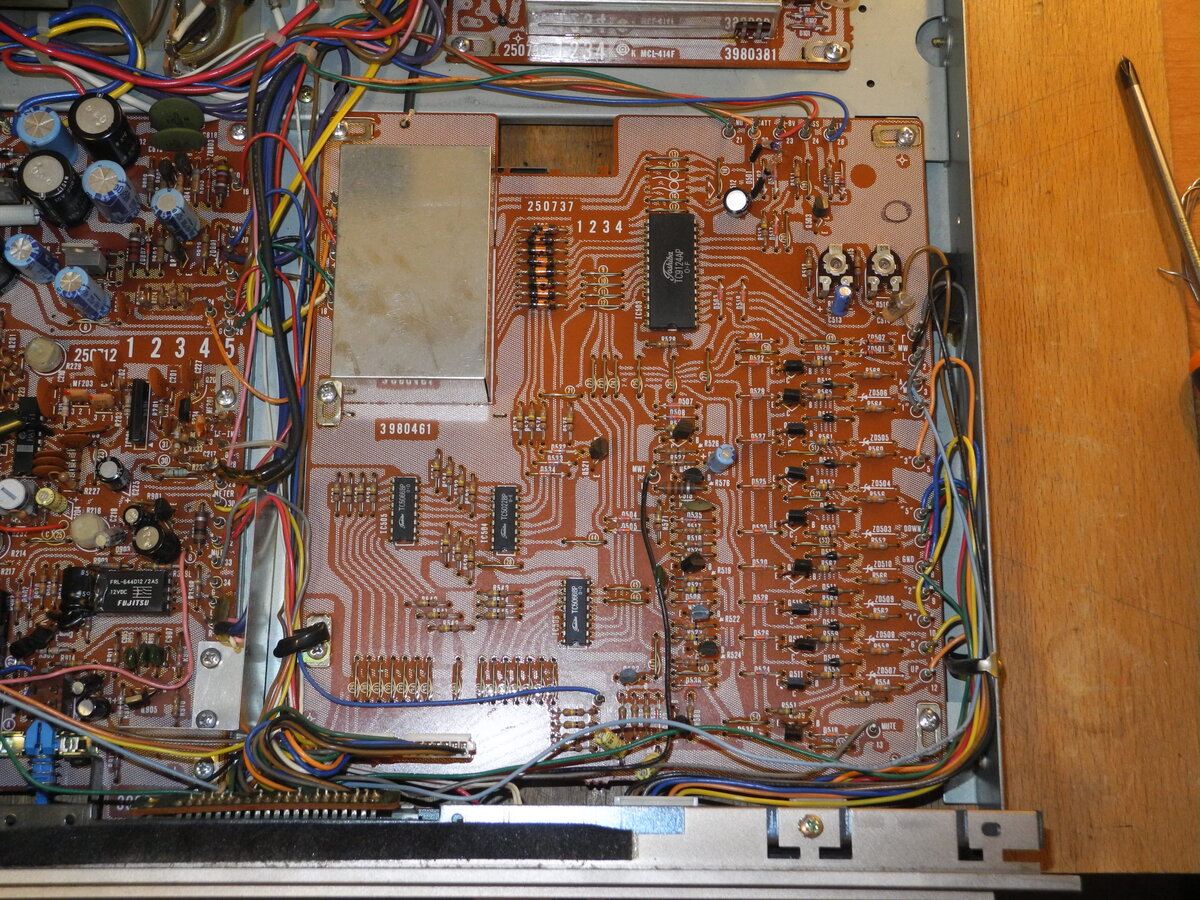

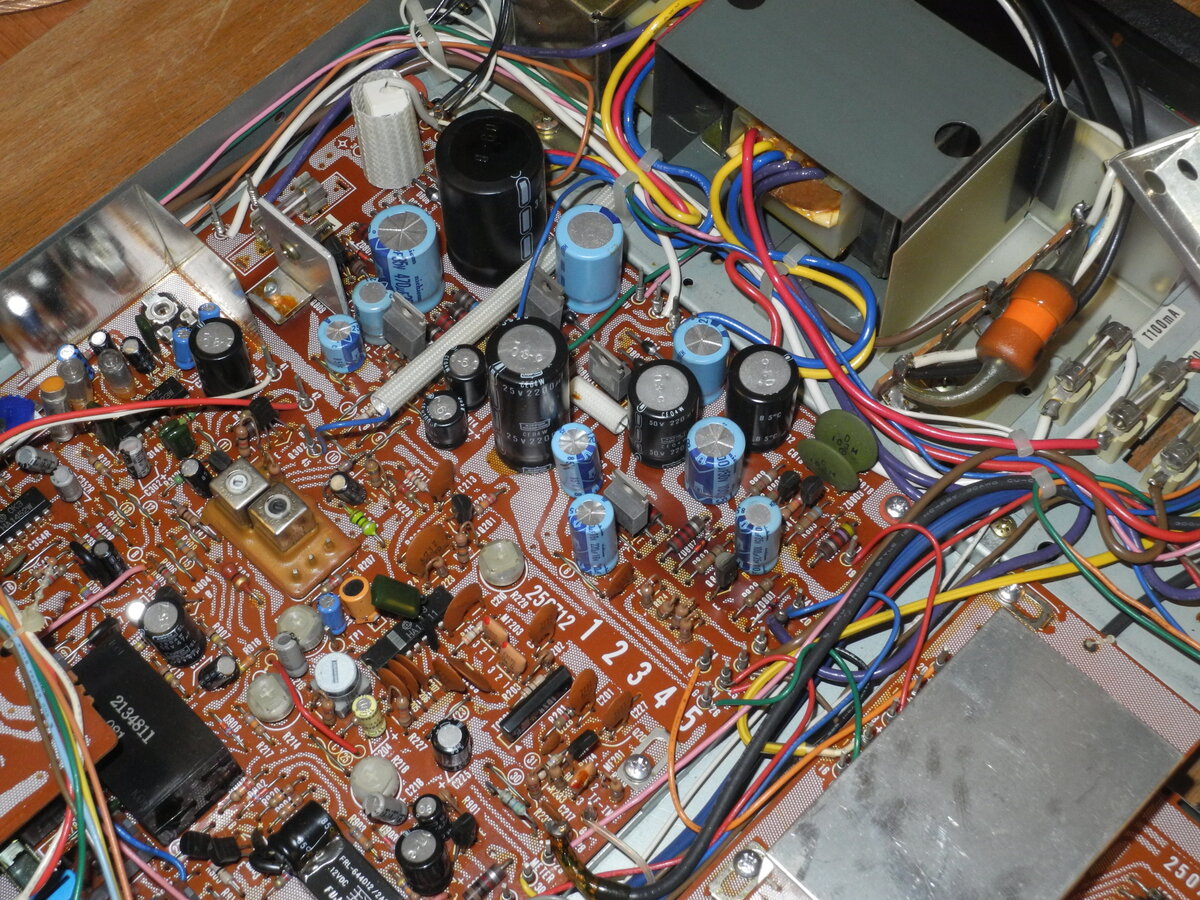

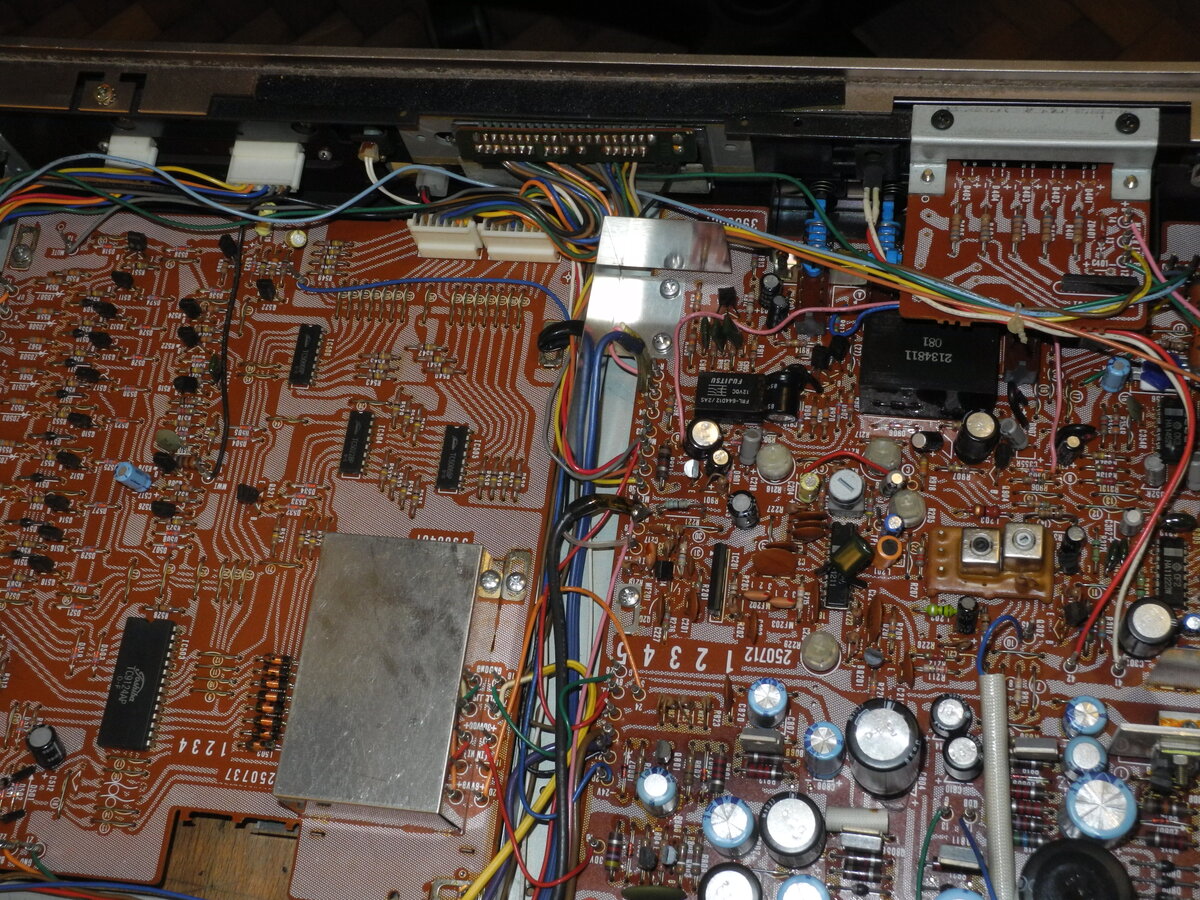

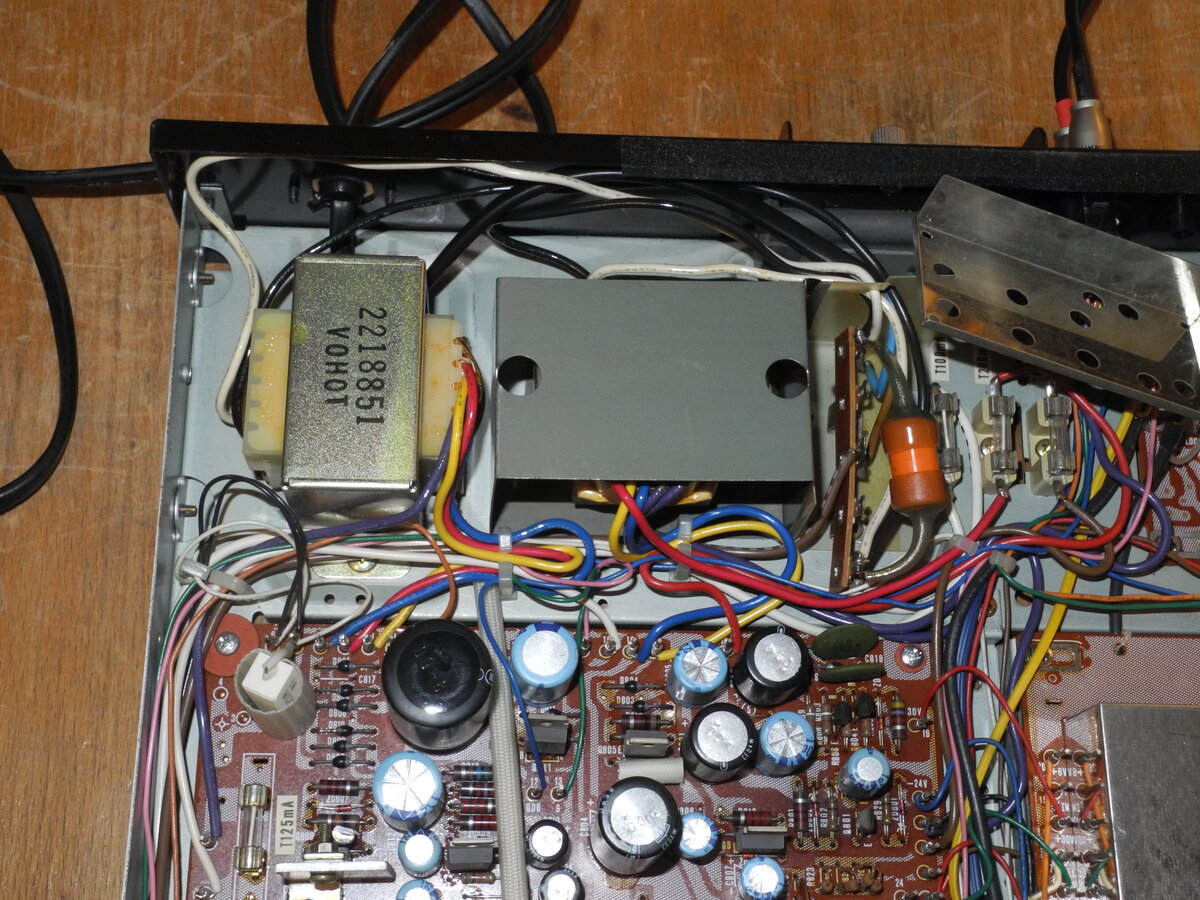

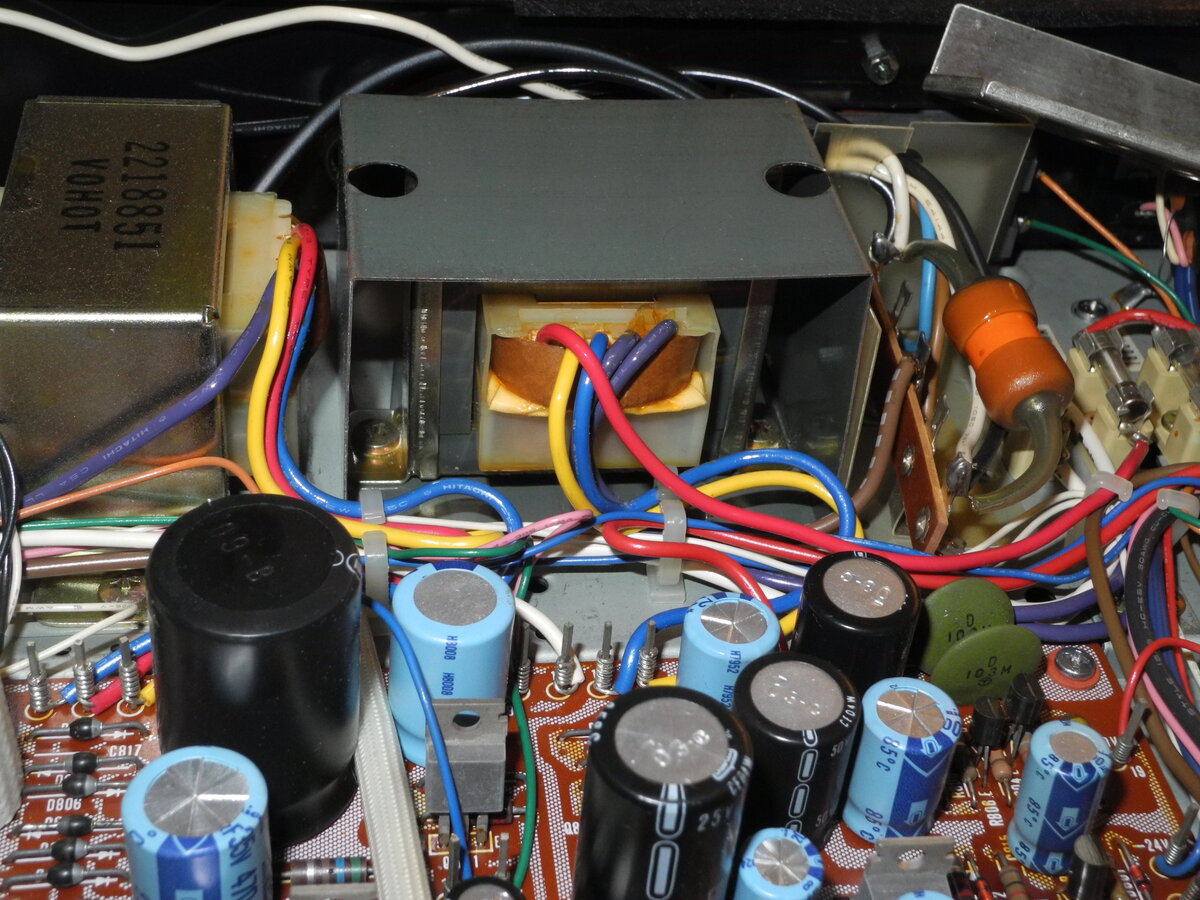

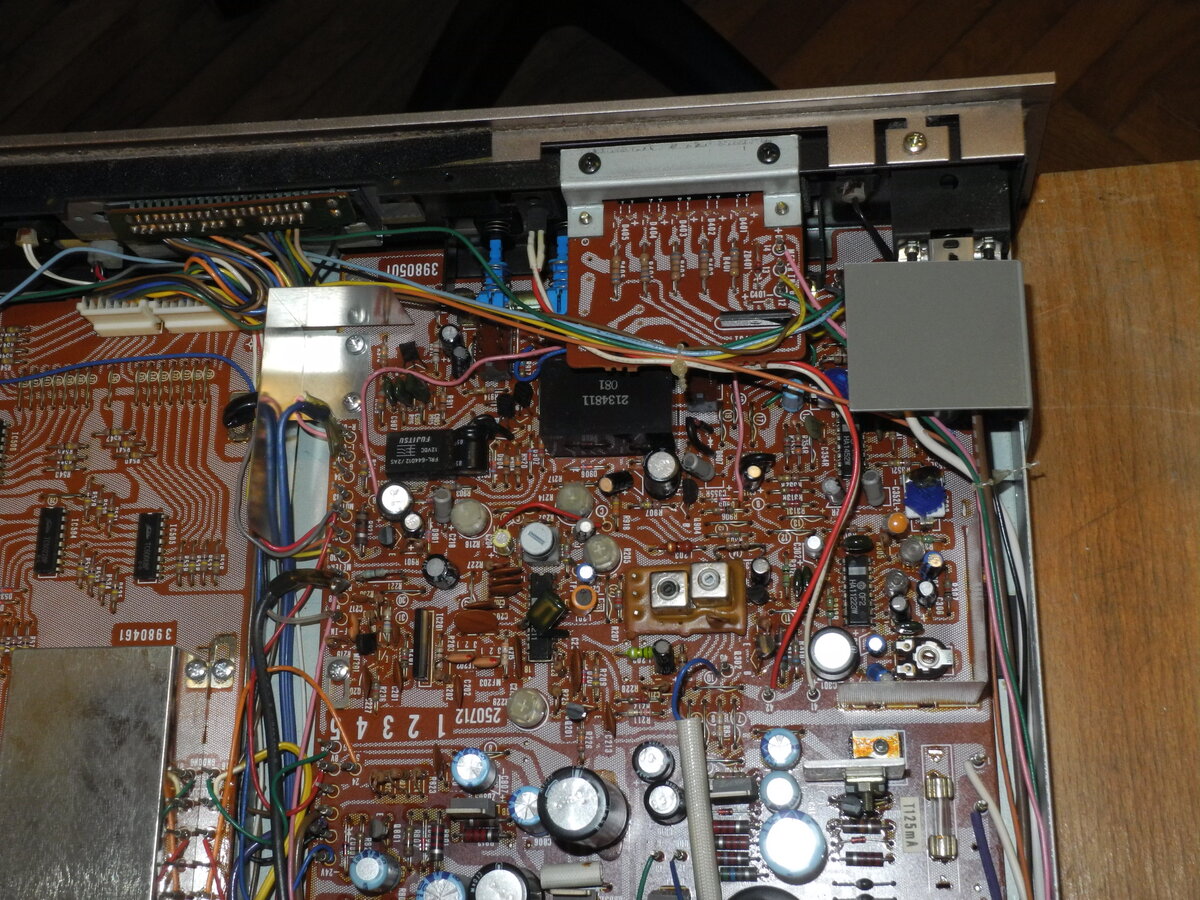

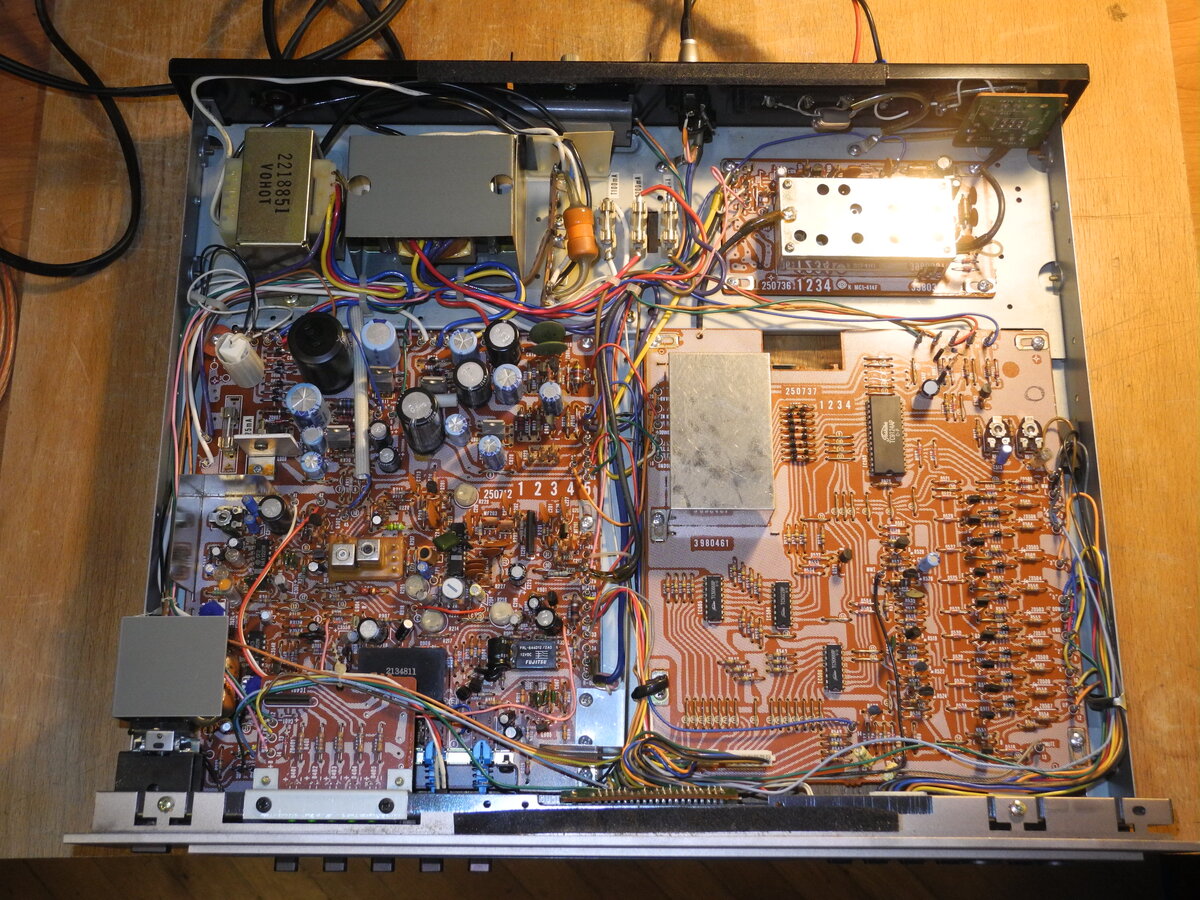

6. Hitachi FT-8000 - Inside View6. Inside View

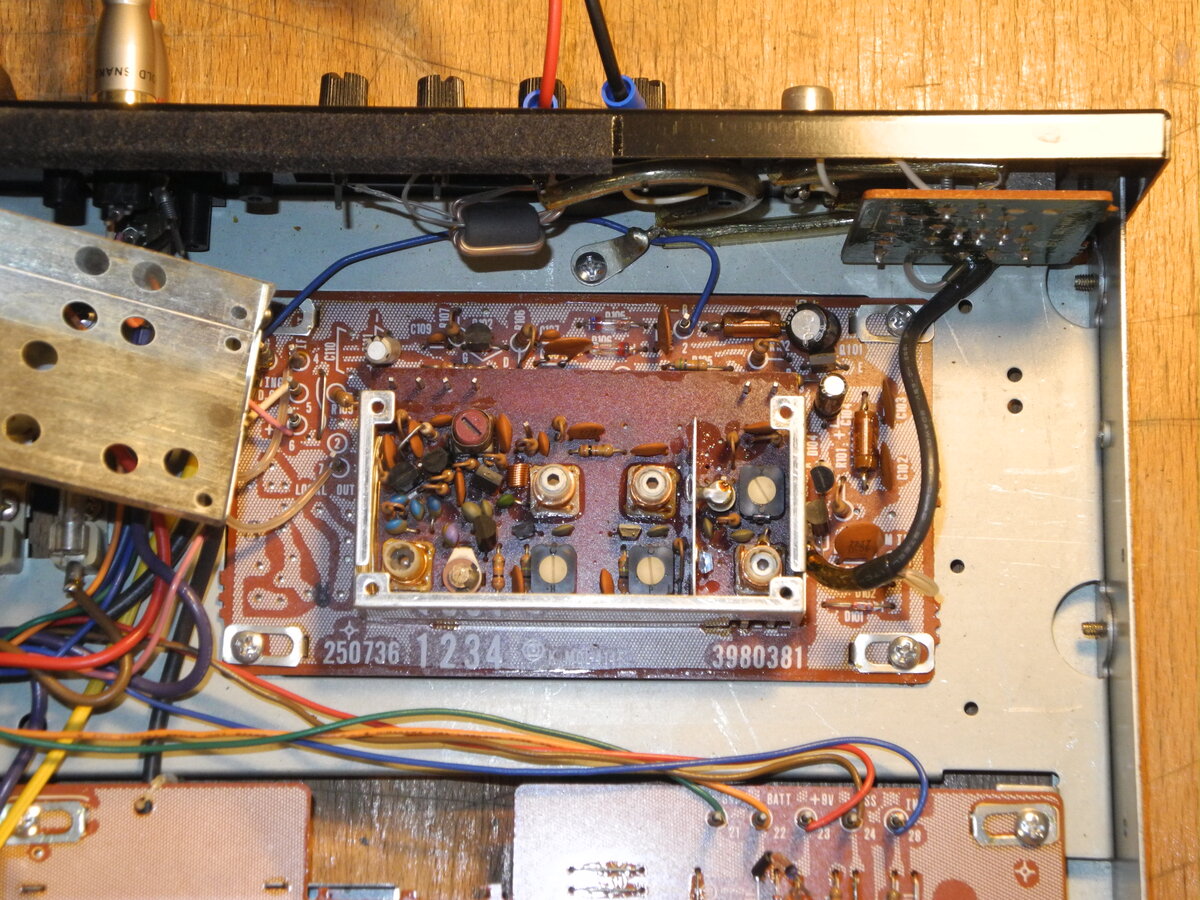

7. Hitachi FT-8000 - RF Front End7. RF Front End

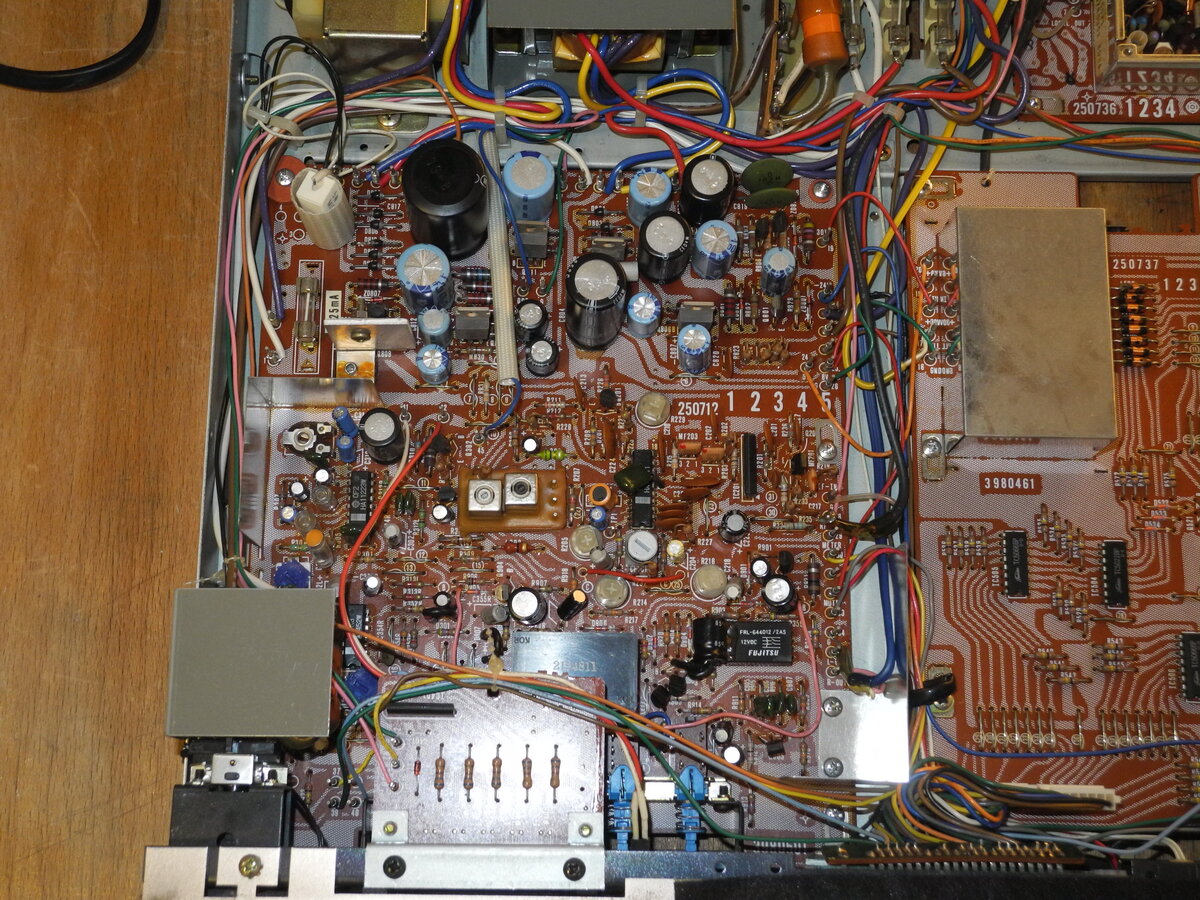

8. Hitachi FT-8000 - Inside View8. Inside View
9. Hitachi FT-8000 - Inside View9. Inside View
10. Hitachi FT-8000 - Inside View10. Inside View
11. Hitachi FT-8000 - Inside View11. Inside View
12. Hitachi FT-8000 - Inside View12. Inside View
13. Hitachi FT-8000 - Inside View13. Inside View
14. Hitachi FT-8000 - Inside View14. Inside View

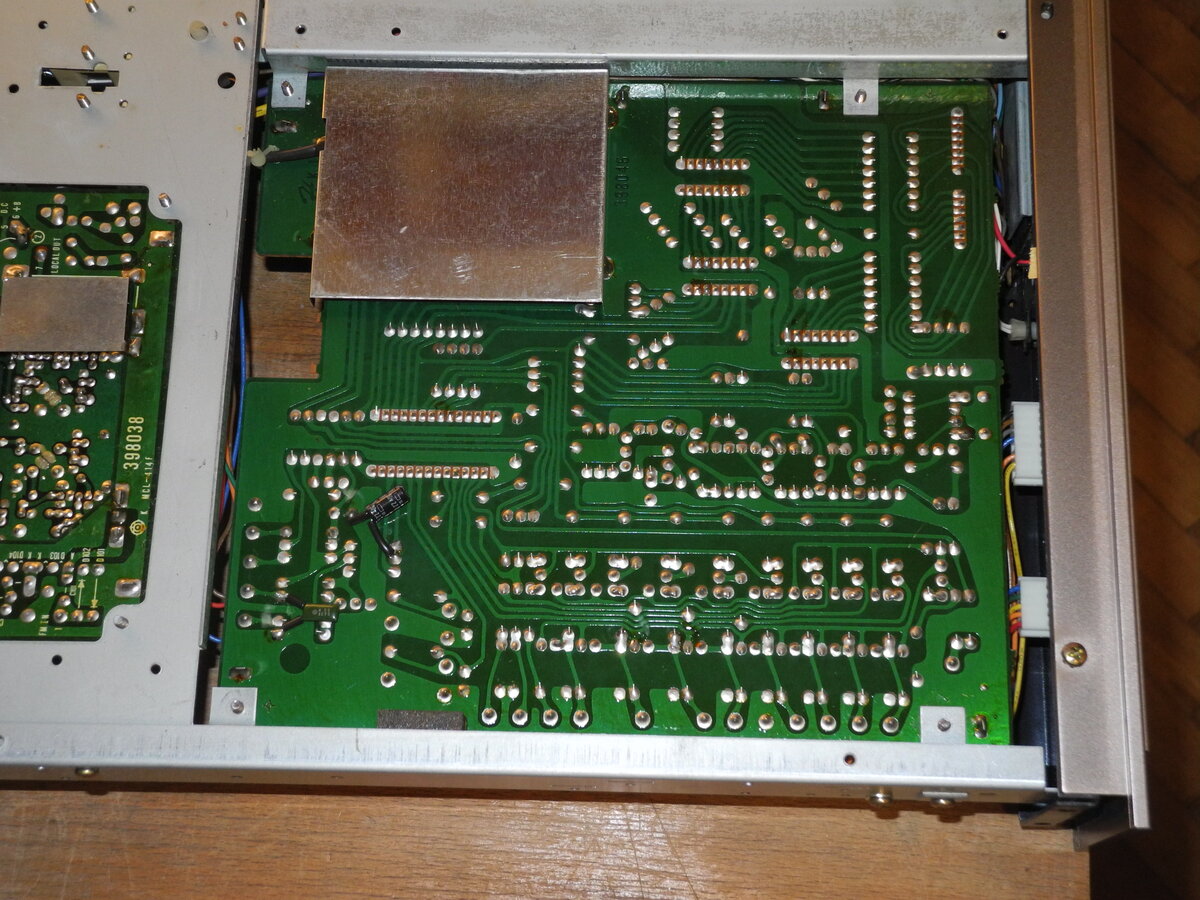

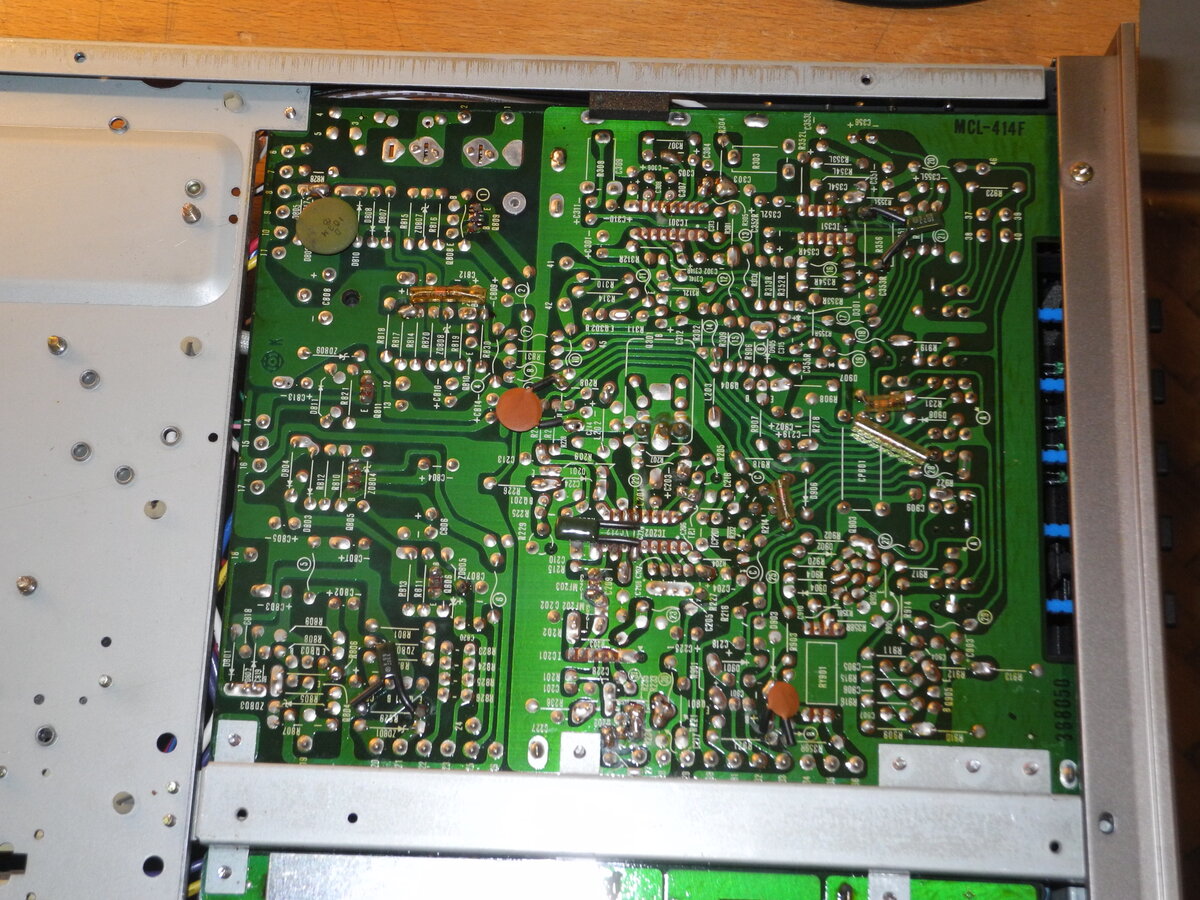

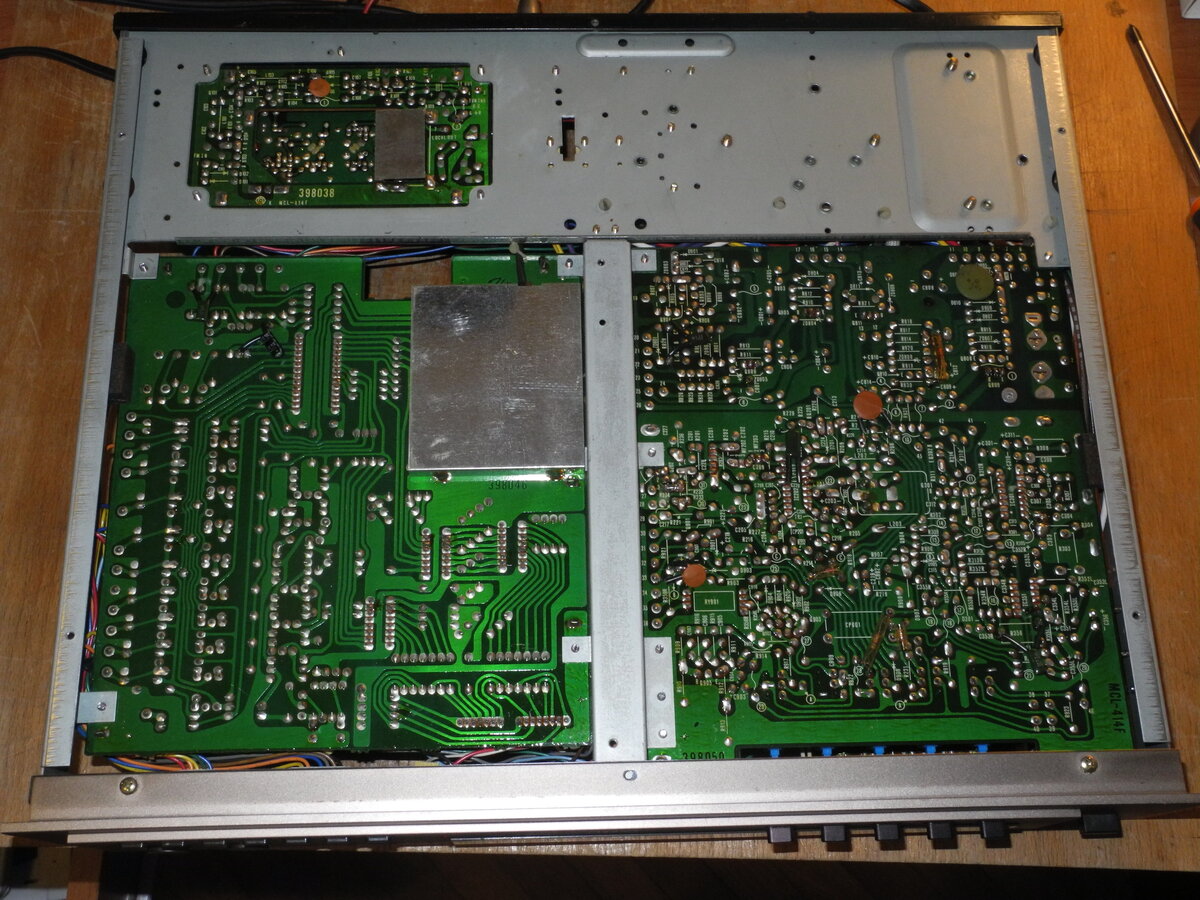

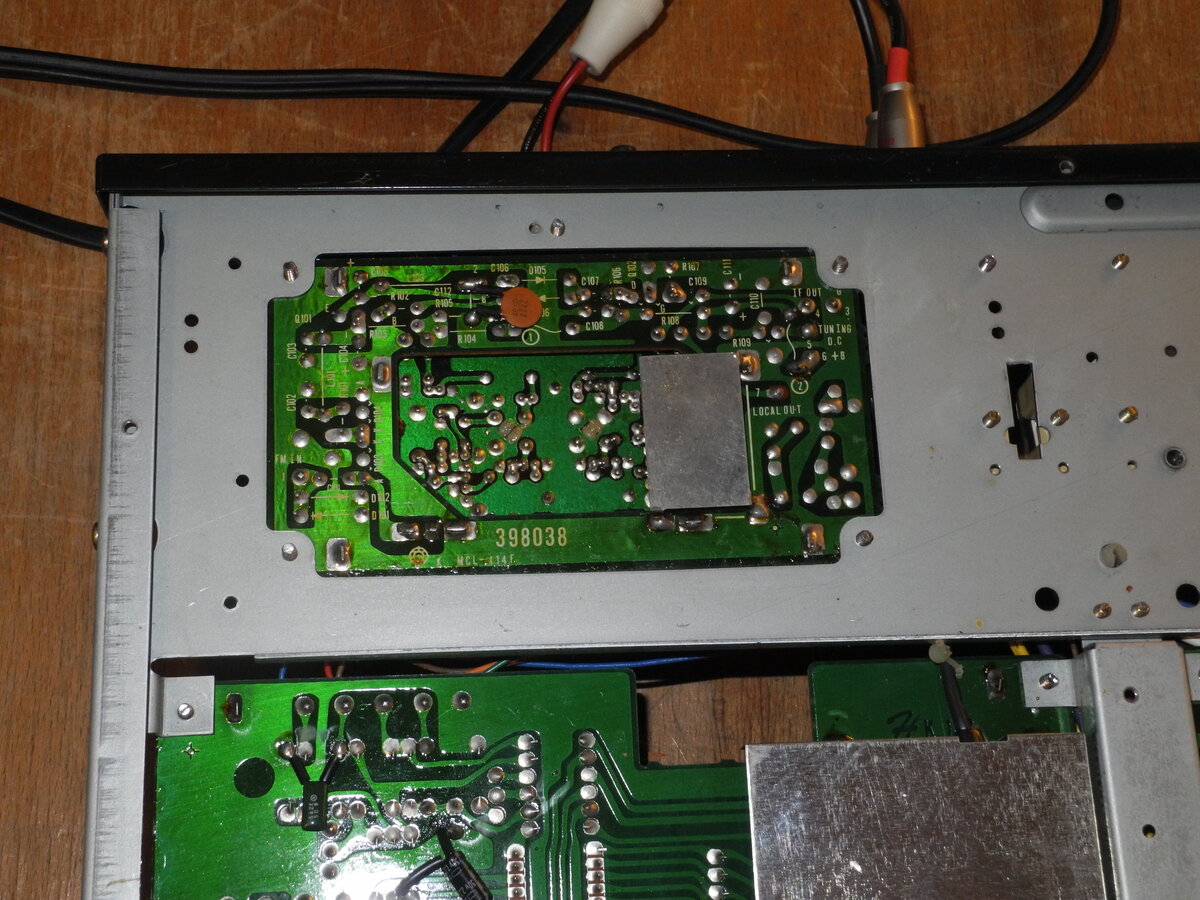

15. Hitachi FT-8000 - Bottom View15. Bottom View
16. Hitachi FT-8000 - Bottom View16. Bottom View
17. Hitachi FT-8000 - Bottom View17. Bottom View
18. Hitachi FT-8000 - Bottom View18. Bottom View

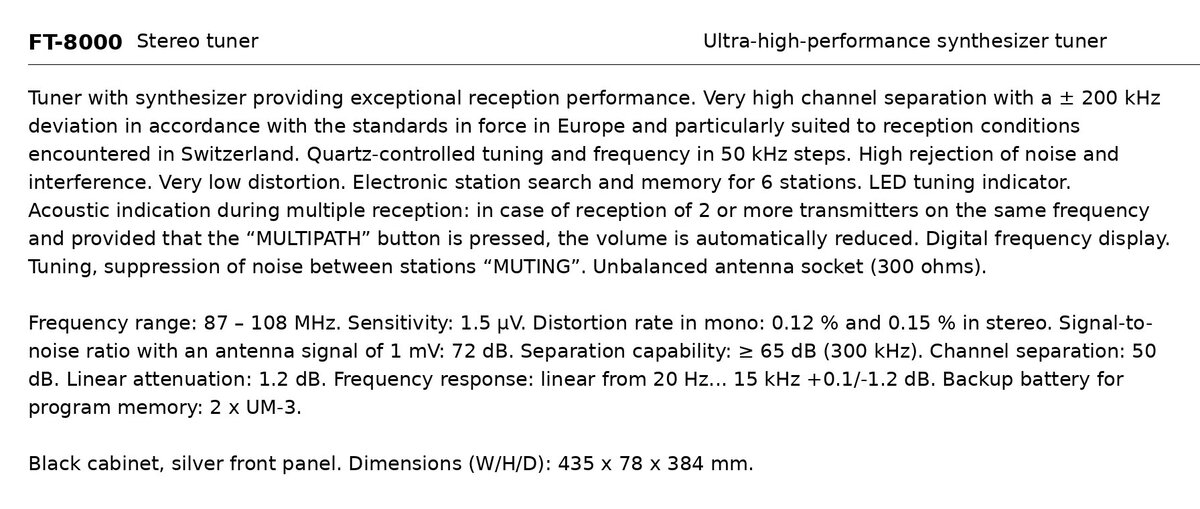

General Specifications

Antenna Input: 75Ω
FM Tuning Range: 87.5MHz-108.0MHz

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

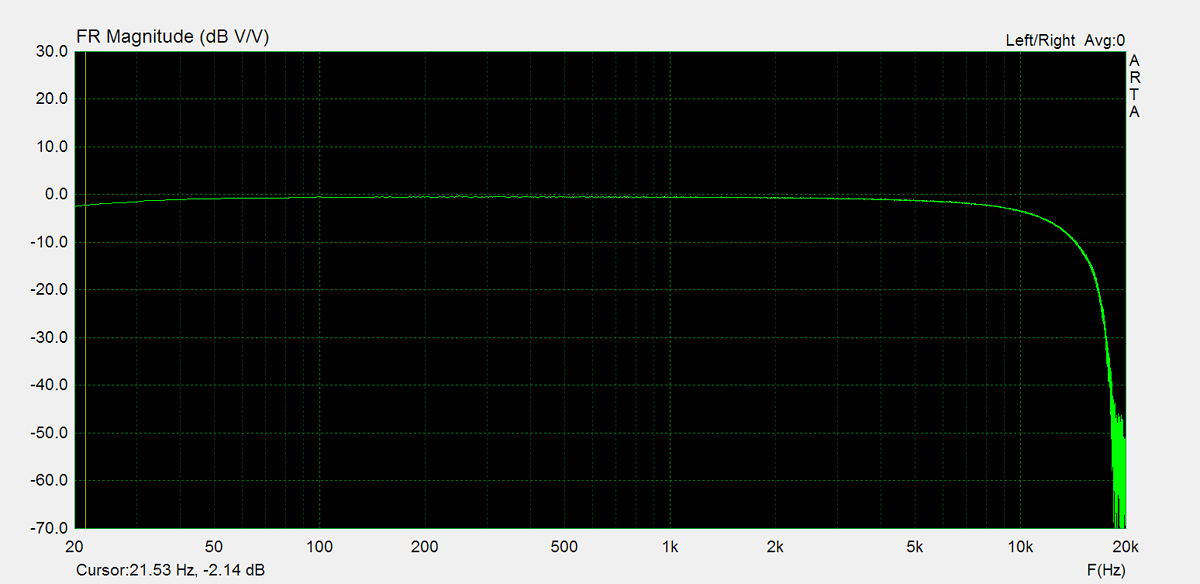

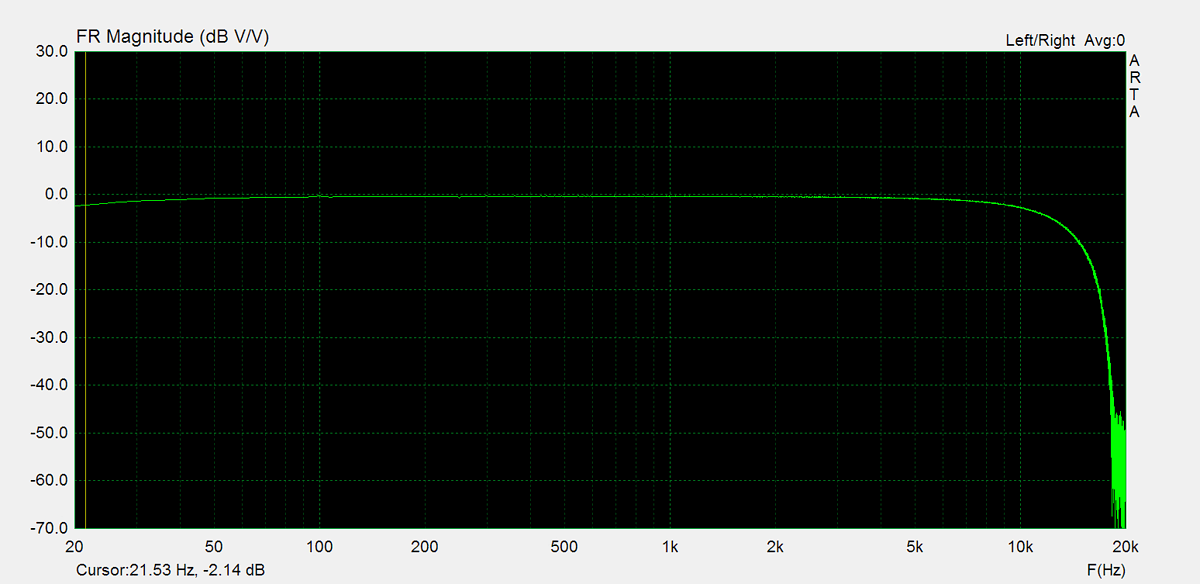

19. Hitachi FT-8000 - FR Mono - Left Chanel19. FR Mono - Left Chanel
20. Hitachi FT-8000 - FR Mono - Right Chanel20. FR Mono - Right Chanel

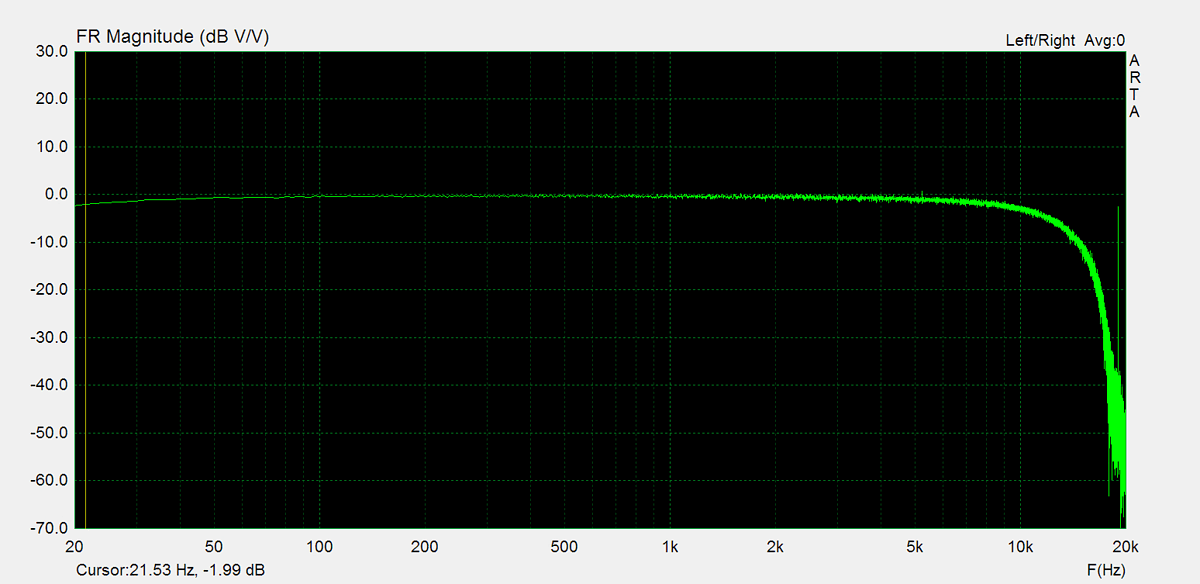

21. Hitachi FT-8000 - FR Stereo - Left Chanel21. FR Stereo - Left Chanel
22. Hitachi FT-8000 - FR Stereo - Right Chanel22. FR Stereo - Right Chanel
23. Hitachi FT-8000 - THD Mono - Left Chanel23. THD Mono - Left Chanel
24. Hitachi FT-8000 - THD Mono - Right Chanel24. THD Mono - Right Chanel
25. Hitachi FT-8000 - THD Stereo - Left Chanel25. THD Stereo - Left Chanel
26. Hitachi FT-8000 - THD Stereo - Right Chanel26. THD Stereo - Right Chanel
27. Hitachi FT-8000 - Separation Left Off - Left Chanel27. Separation Left Off - Left Chanel
28. Hitachi FT-8000 - Separation Right Off - Right Chanel28. Separation Right Off - Right Chanel

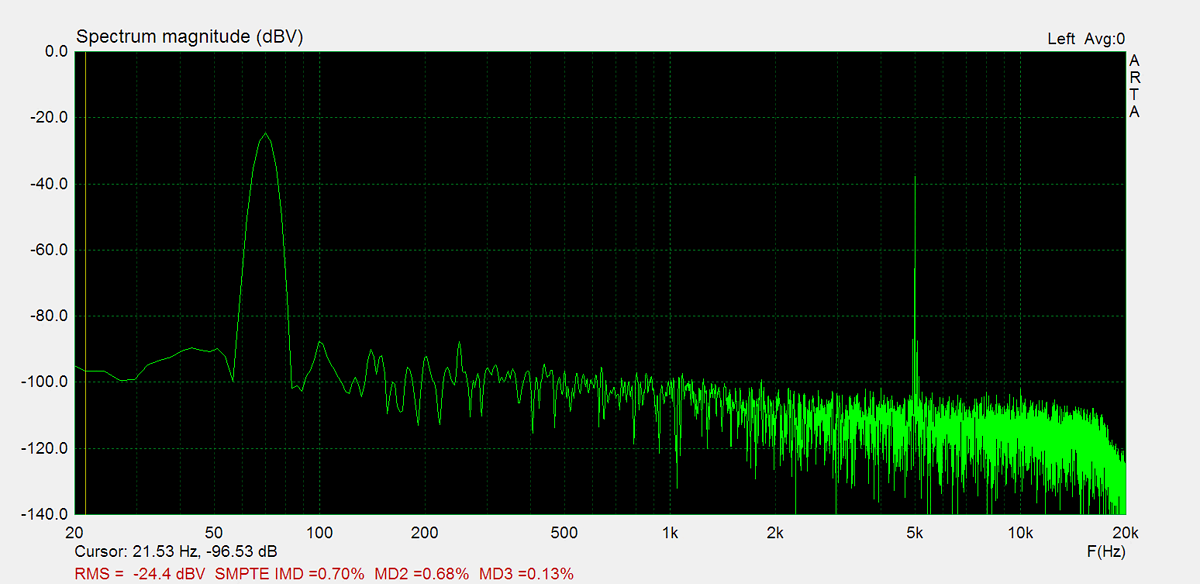

29. Hitachi FT-8000 - IMD Mono - Left Chanel29. IMD Mono - Left Chanel

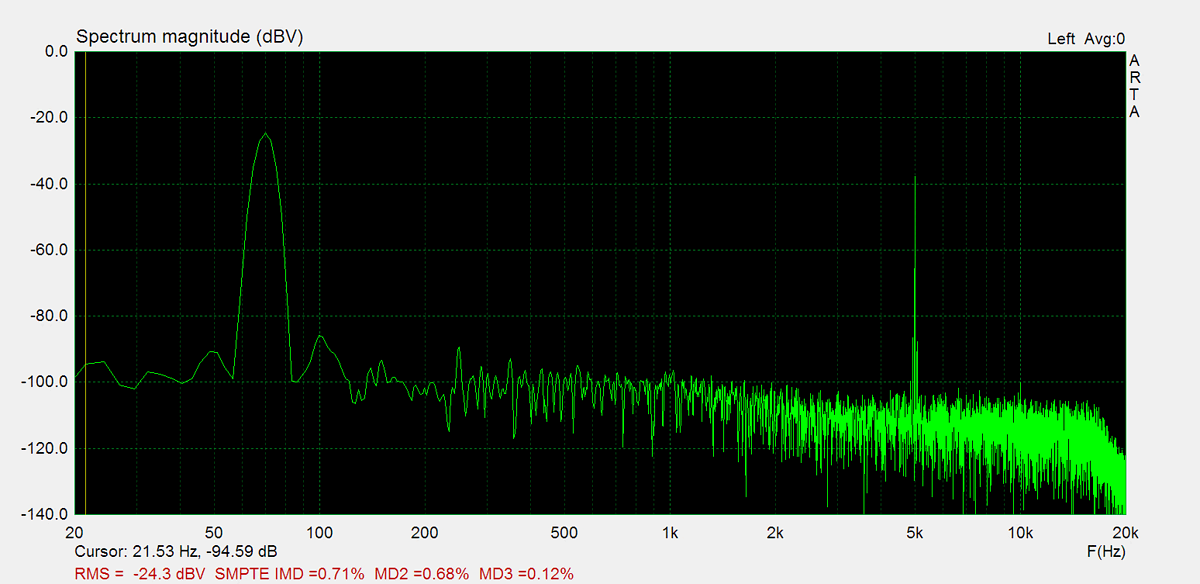

30. Hitachi FT-8000 - IMD Mono - Right Chanel30. IMD Mono - Right Chanel

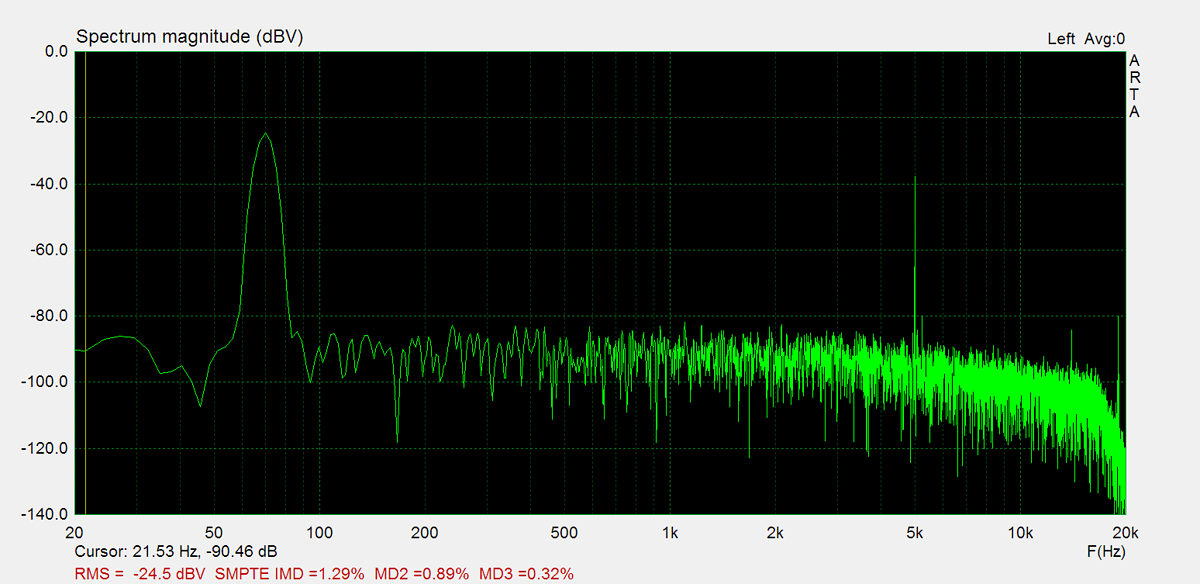

31. Hitachi FT-8000 - IMD Stereo - Left Chanel31. IMD Stereo - Left Chanel
32. Hitachi FT-8000 - IMD Stereo - Right Chanel32. IMD Stereo - Right Chanel

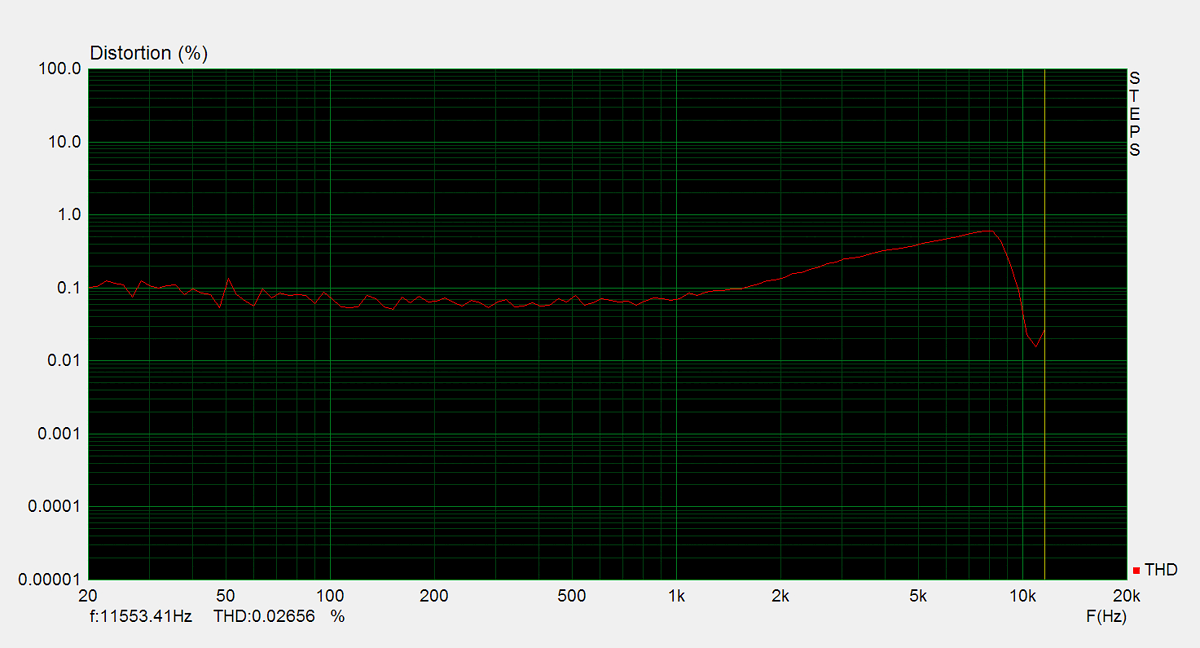

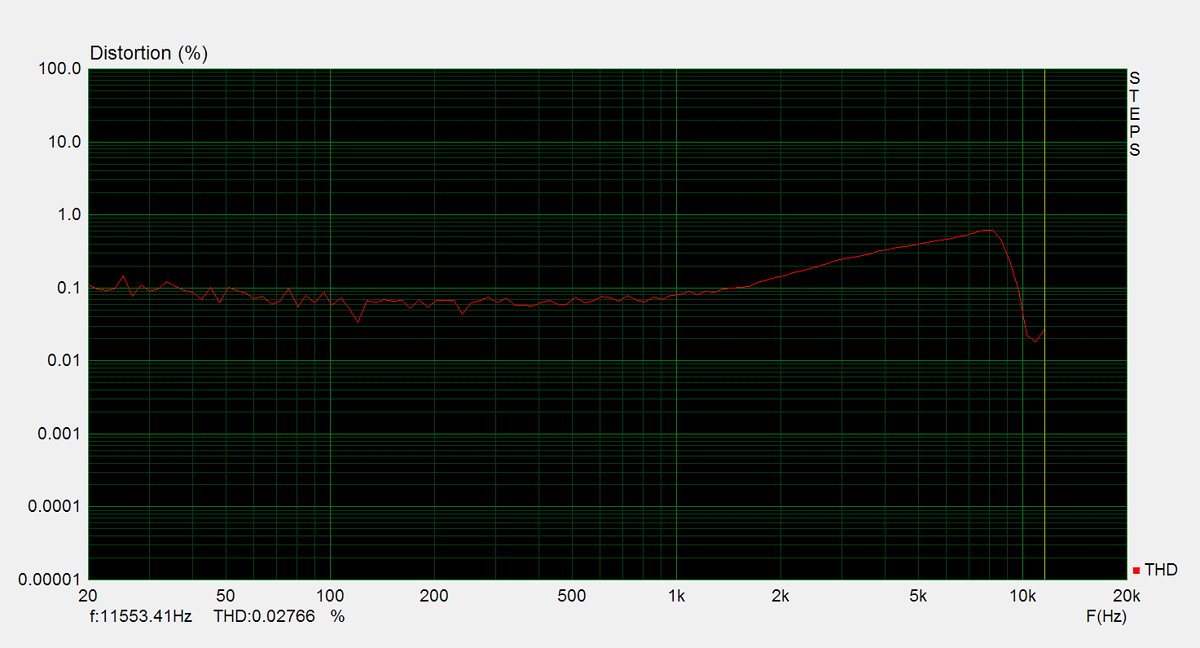

33. Hitachi FT-8000 - THD vs Frequency Mono - Left Chanel33. THD vs Frequency Mono - Left Chanel
34. Hitachi FT-8000 - THD vs Frequency Mono - Right Chanel34. THD vs Frequency Mono - Right Chanel

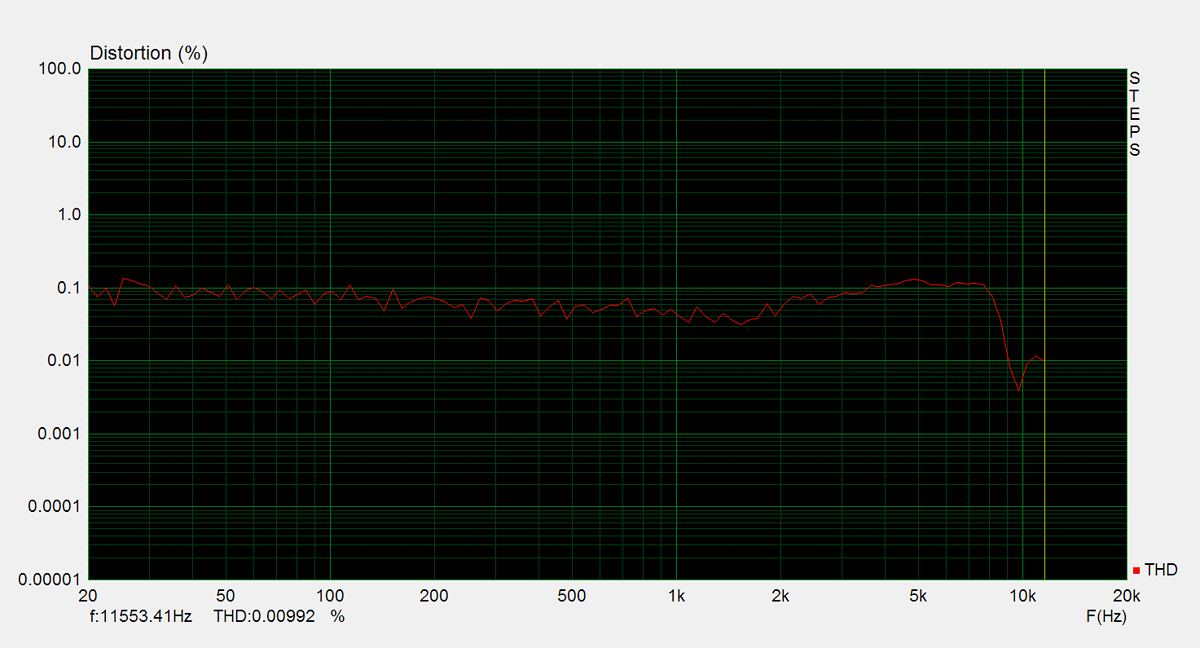

35. Hitachi FT-8000 - THD vs Frequency Stereo - Left Chanel35. THD vs Frequency Stereo - Left Chanel
36. Hitachi FT-8000 - THD vs Frequency Stereo - Right Chanel36. THD vs Frequency Stereo - Right Chanel
