Kenwood KT-7500

The Kenwood KT-7500 a decent stereo AM/FM tuner from the late 1970s.

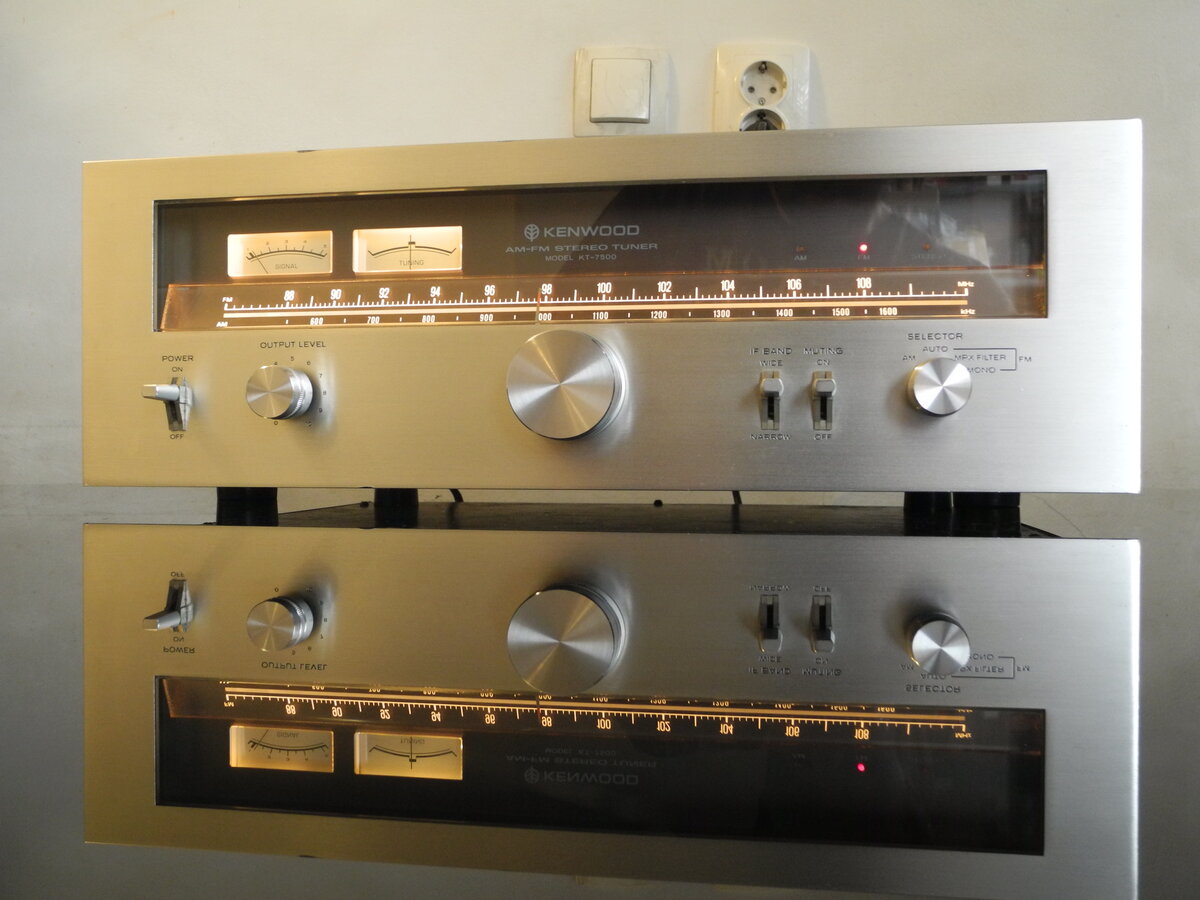

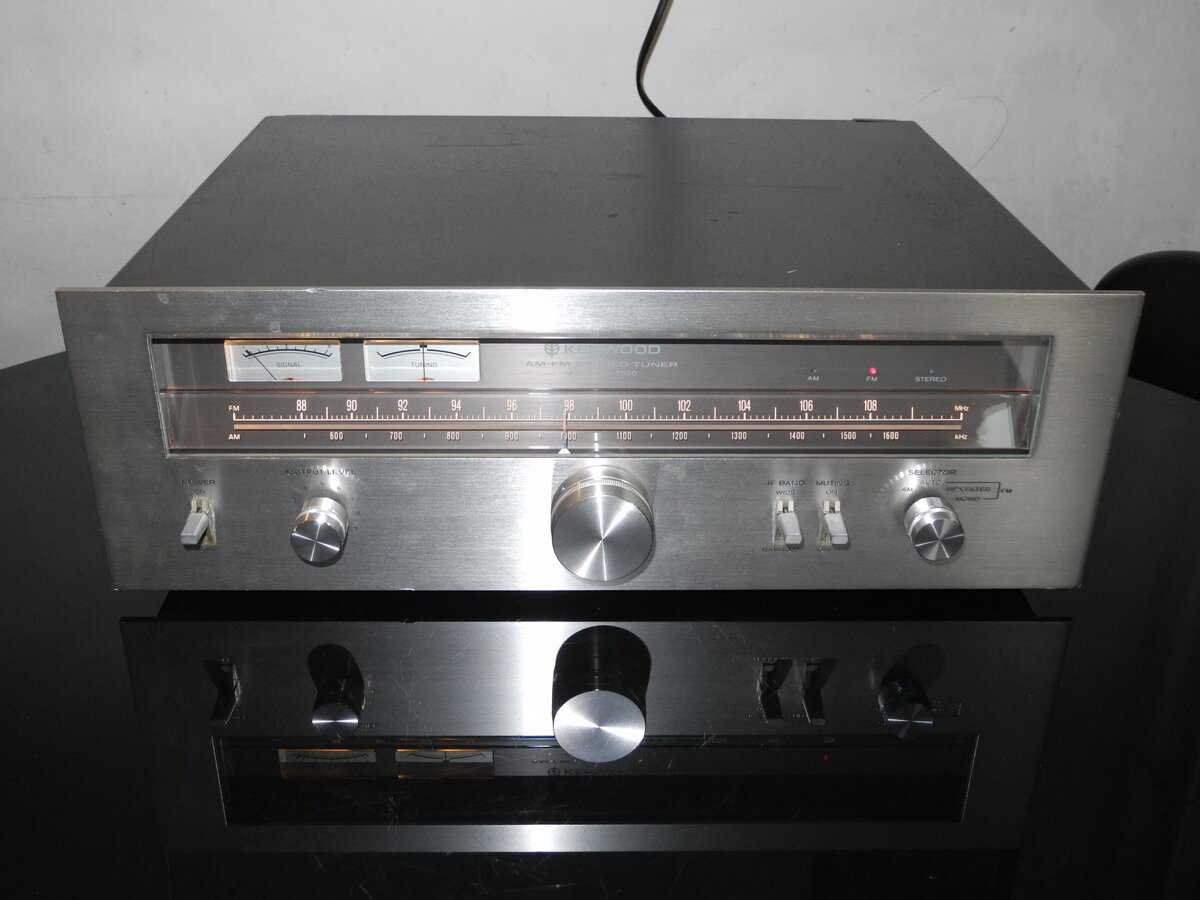

1. Kenwood KT-7500 - Front View1. Front View

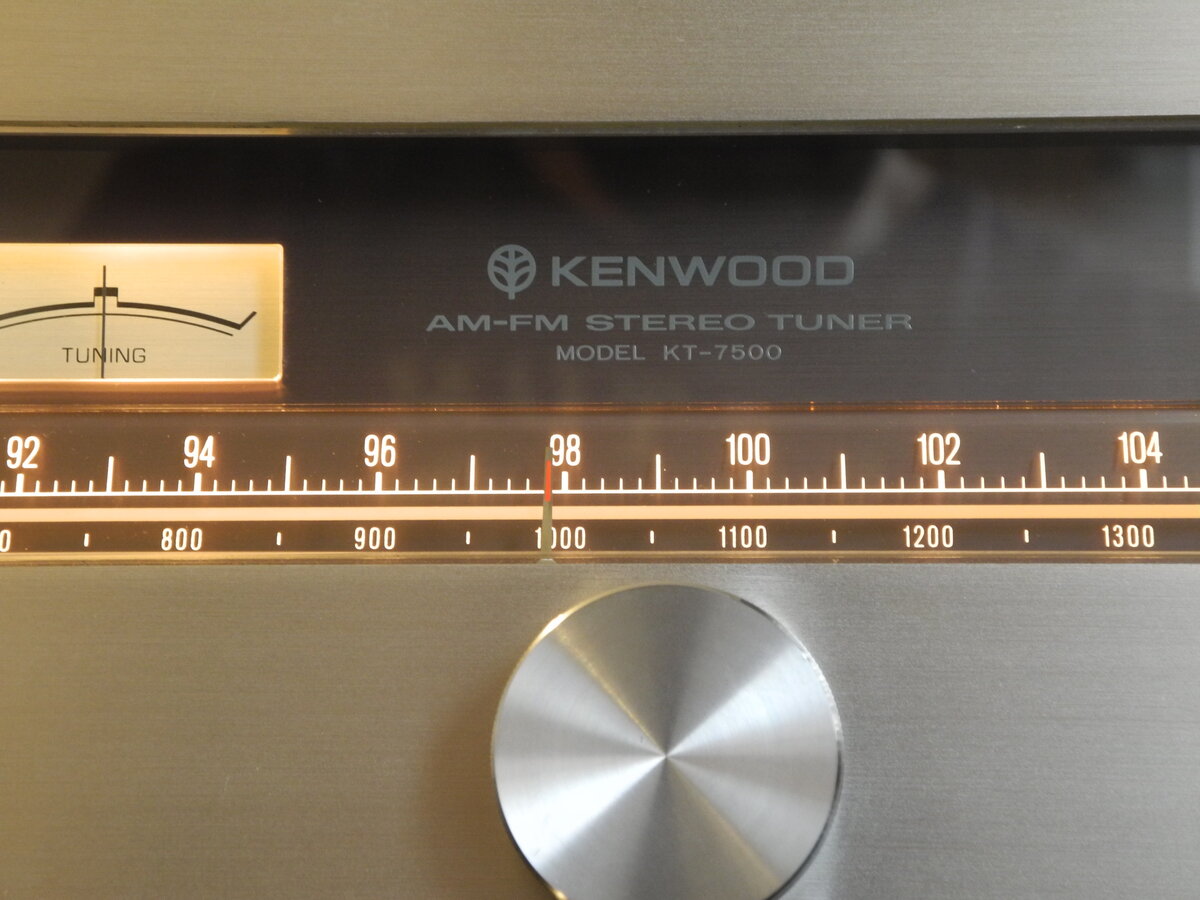

2. Kenwood KT-7500 - Zoom View2. Zoom View
3. Kenwood KT-7500 - Top View3. Top View

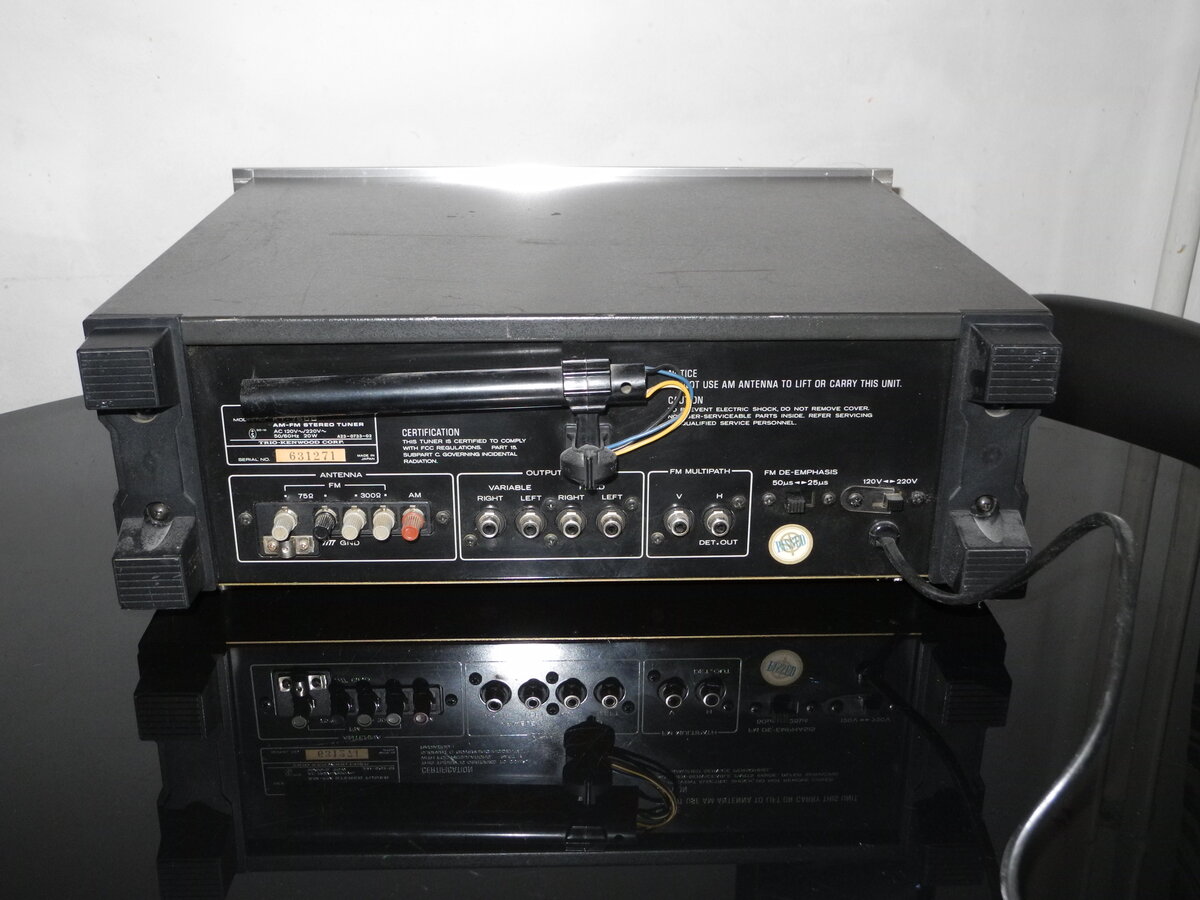

4. Kenwood KT-7500 - Back View4. Back View

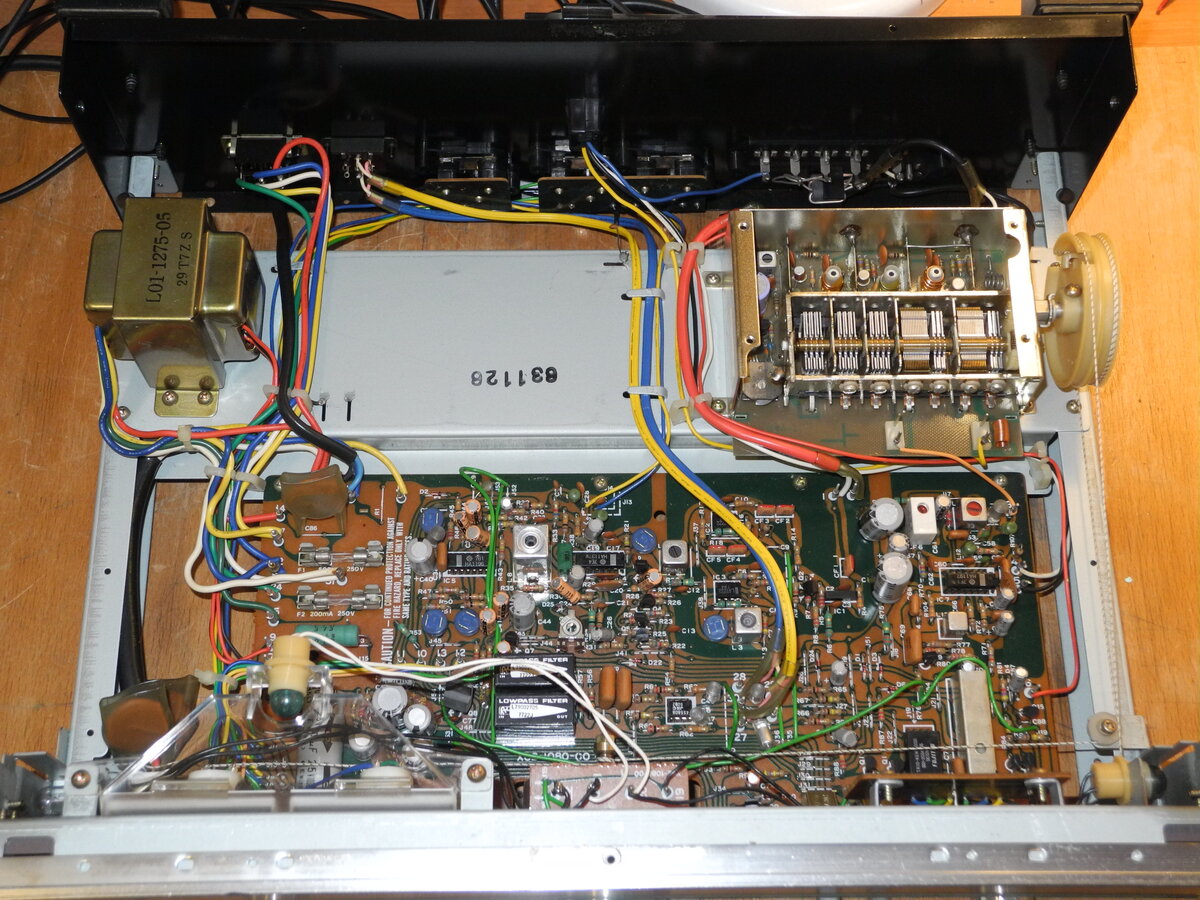

5. Kenwood KT-7500 - Inside View5. Inside View

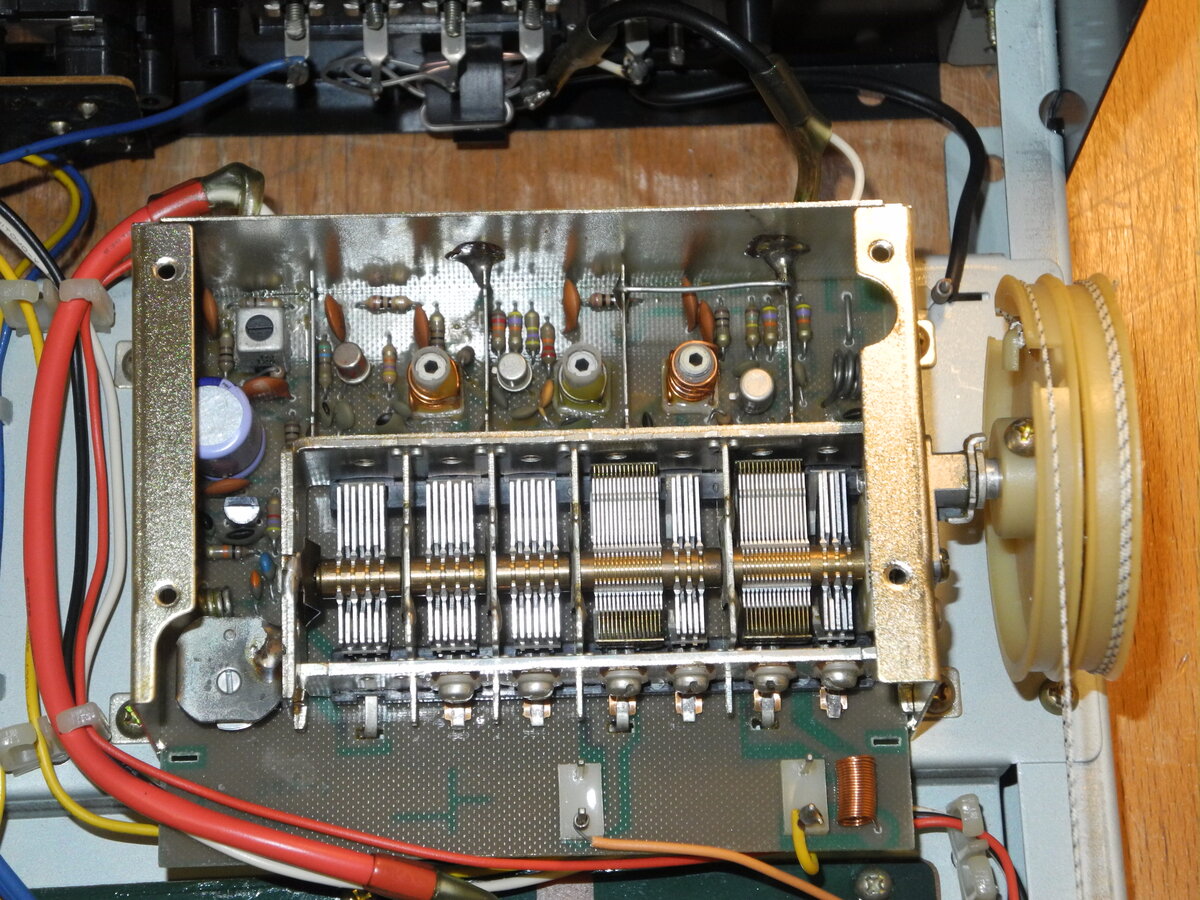

6. Kenwood KT-7500 - Frontend6. Frontend

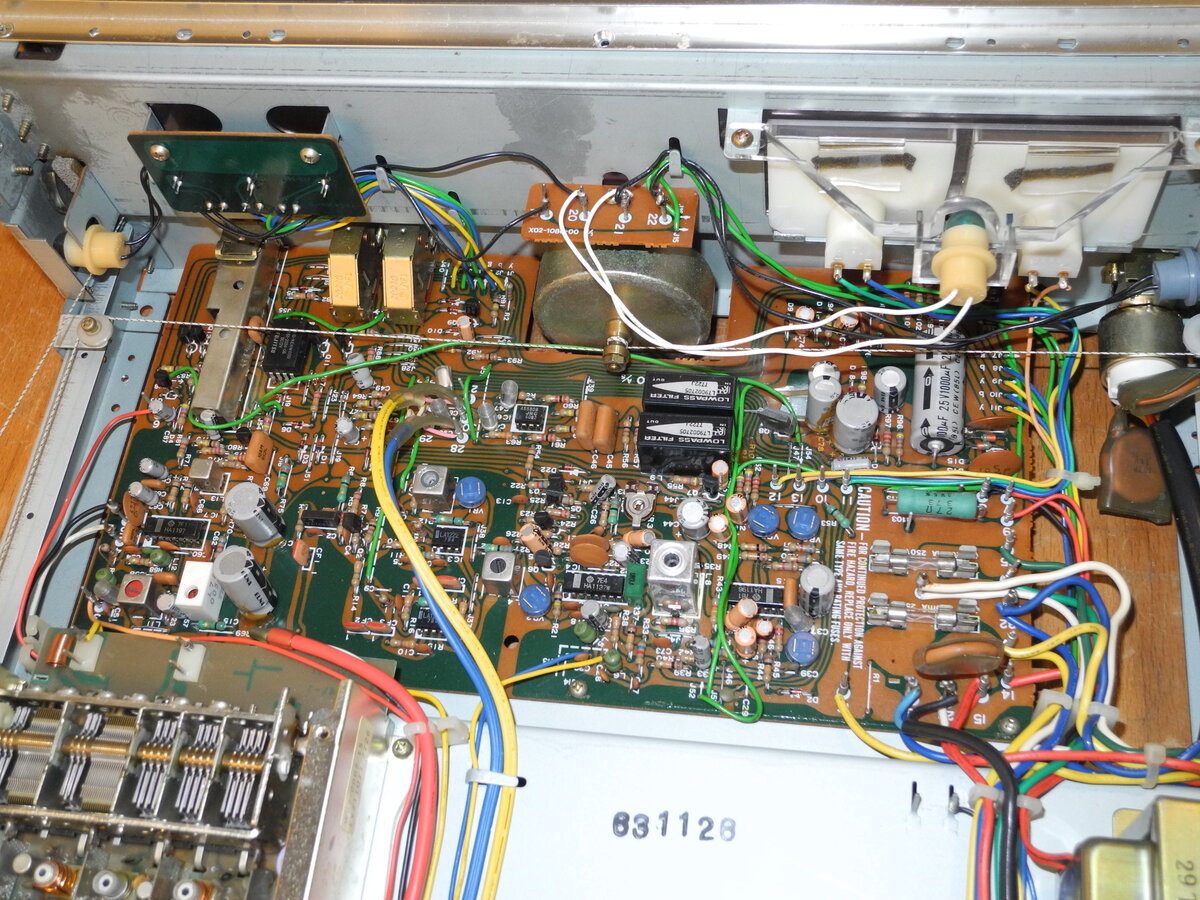

7. Kenwood KT-7500 - Inside View7. Inside View

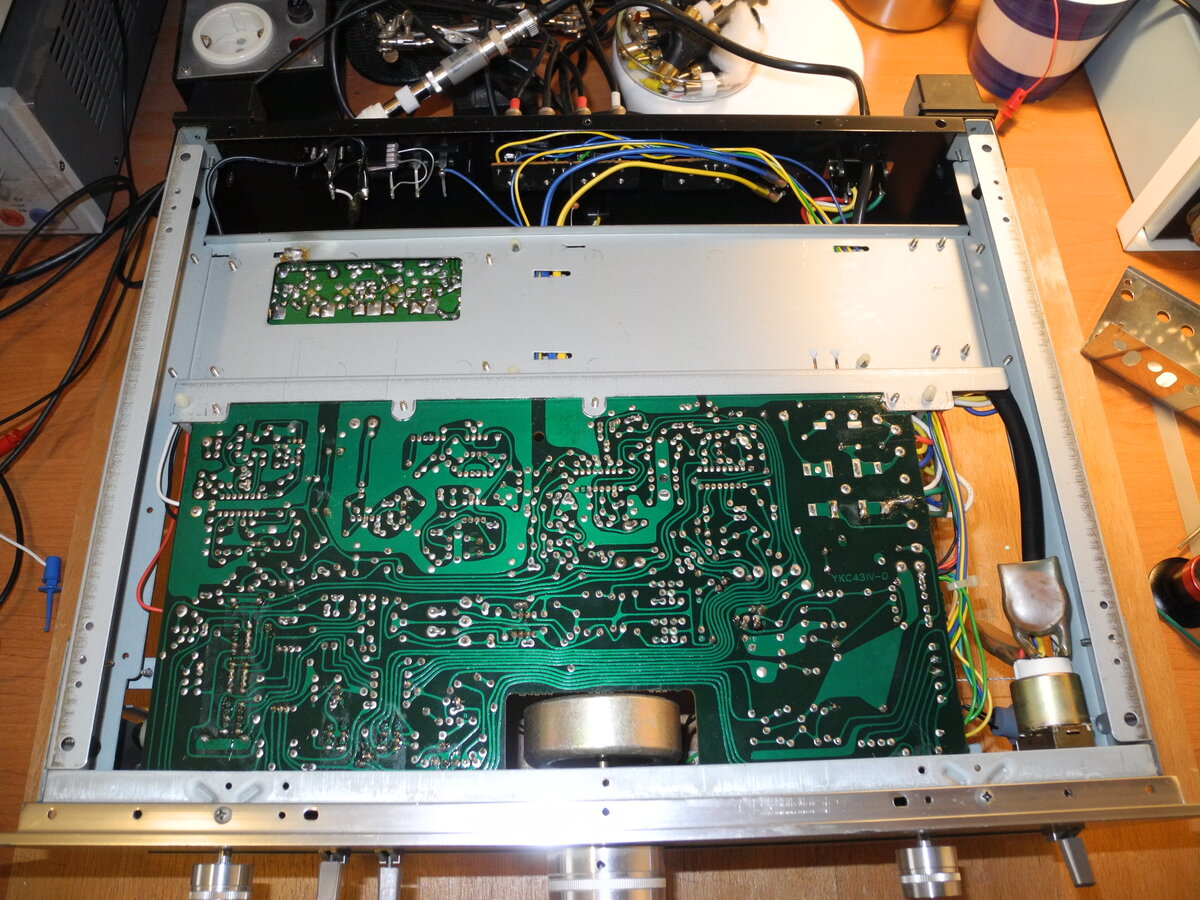

8. Kenwood KT-7500 - Bottom View8. Bottom View

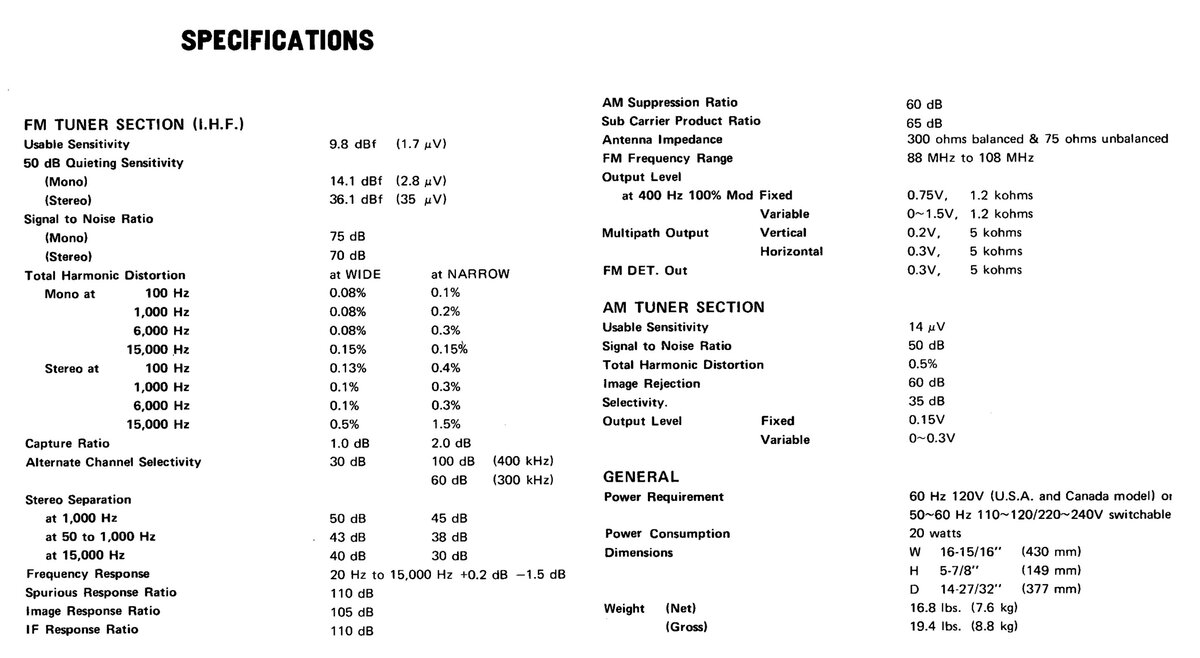

General Specifications

Antenna Input: 75Ω
FM Tuning Range: 87.5MHz-108.0MHz

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

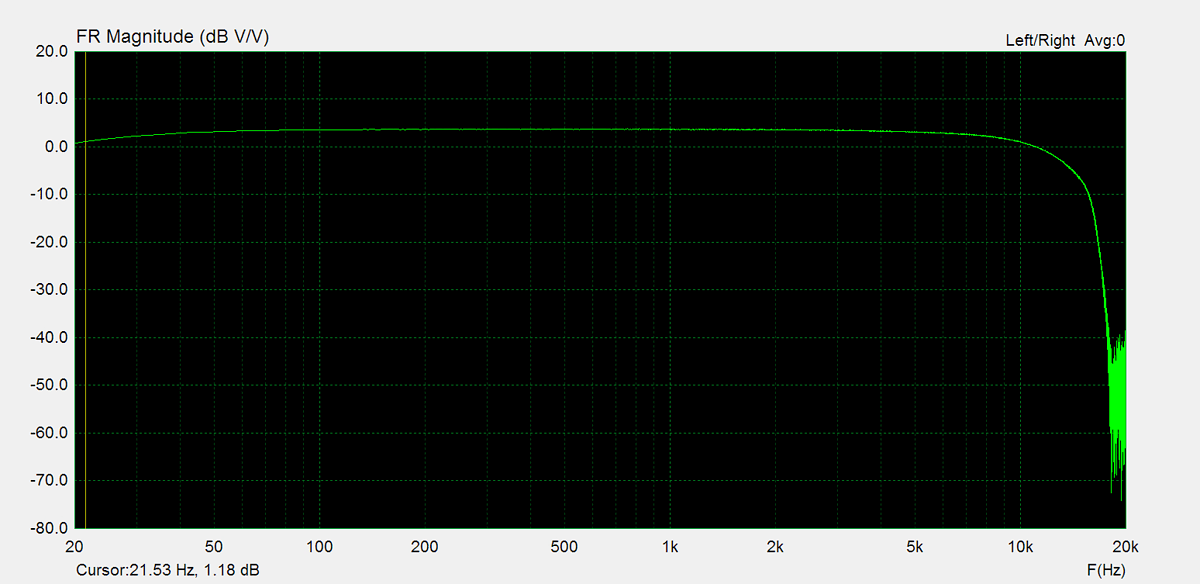

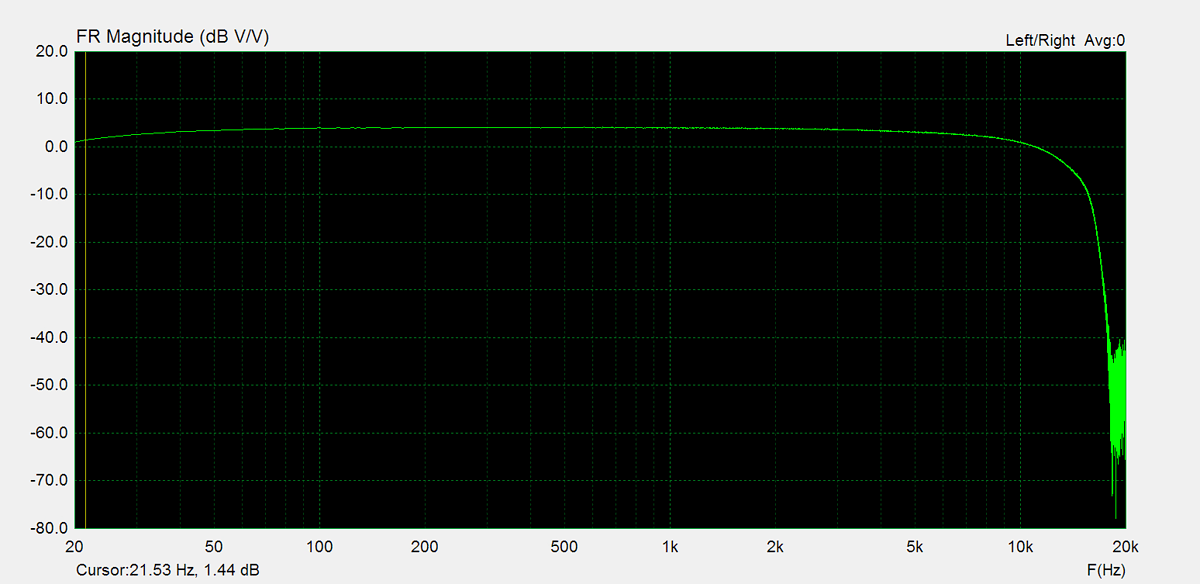

9. Kenwood KT-7500 - FR Mono - Left Chanel9. FR Mono - Left Chanel

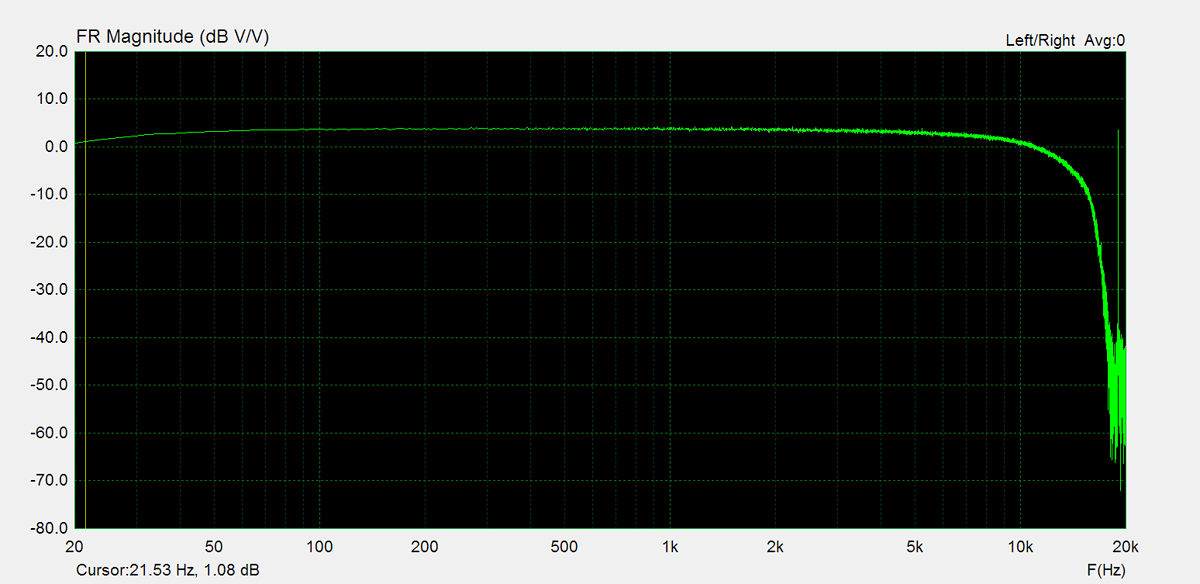

10. Kenwood KT-7500 - FR Mono - Right Chanel10. FR Mono - Right Chanel
11. Kenwood KT-7500 - FR Stereo - Left Chanel11. FR Stereo - Left Chanel
12. Kenwood KT-7500 - FR Stereo - Right Chanel12. FR Stereo - Right Chanel

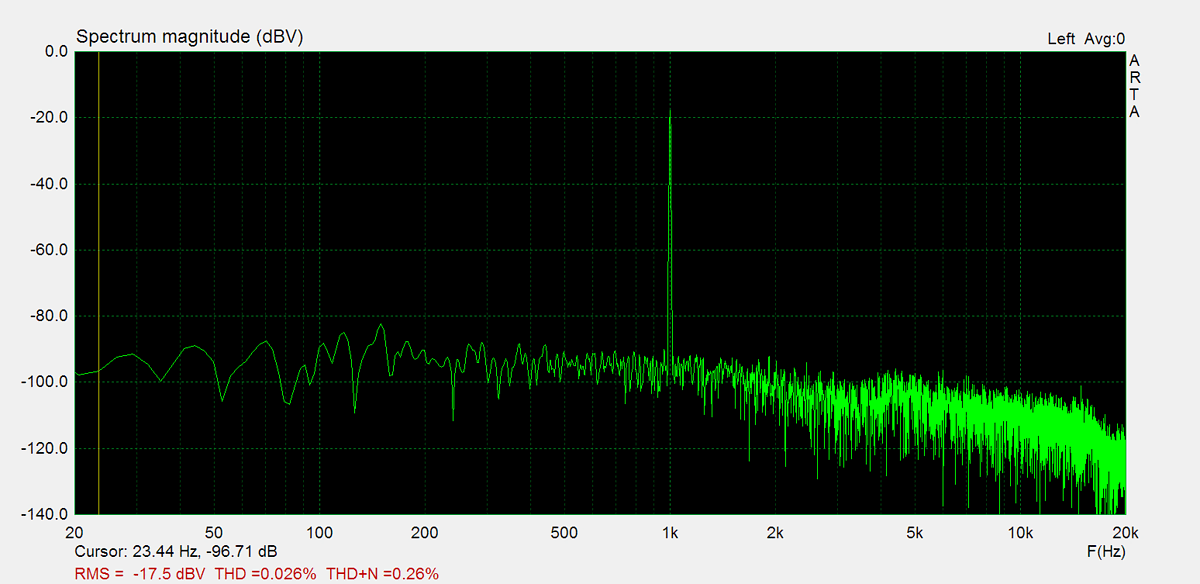

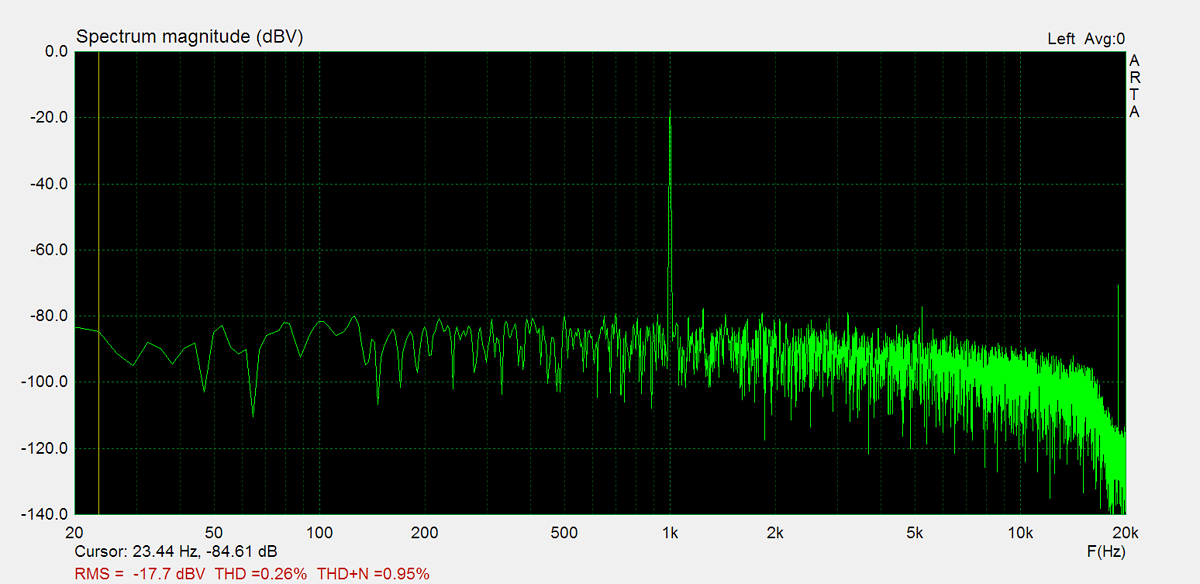

13. Kenwood KT-7500 - THD Mono - Left Chanel13. THD Mono - Left Chanel
14. Kenwood KT-7500 - THD Mono - Right Chanel14. THD Mono - Right Chanel
15. Kenwood KT-7500 - THD Stereo - Left Chanel15. THD Stereo - Left Chanel
16. Kenwood KT-7500 - THD Stereo - Right Chanel16. THD Stereo - Right Chanel

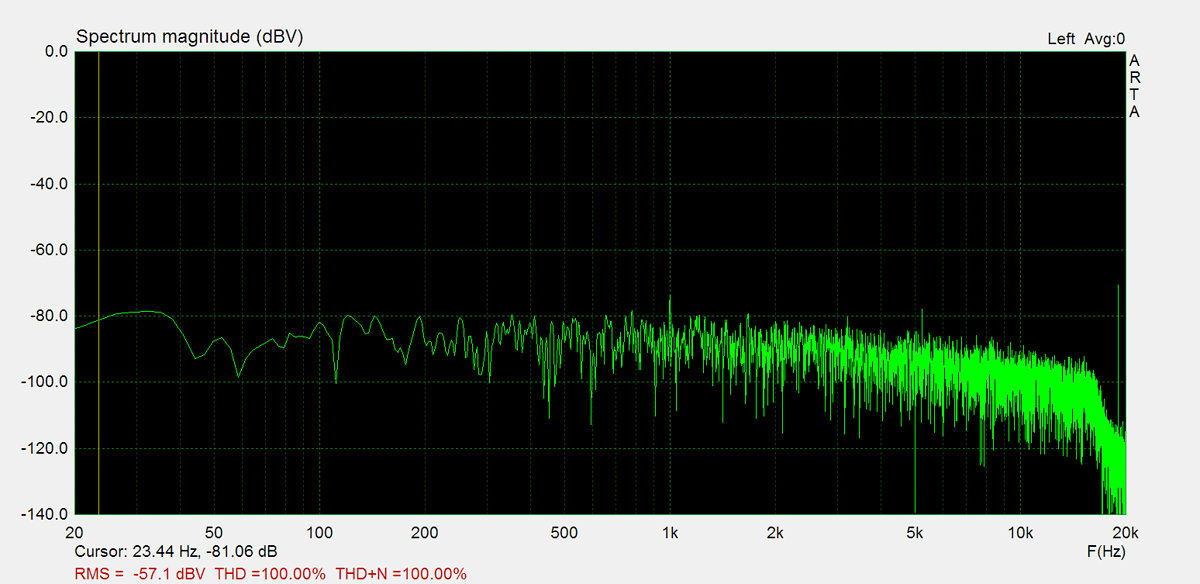

17. Kenwood KT-7500 - Separation Left Off - Left Chanel17. Separation Left Off - Left Chanel
18. Kenwood KT-7500 - Separation Right Off - Right Chanel18. Separation Right Off - Right Chanel

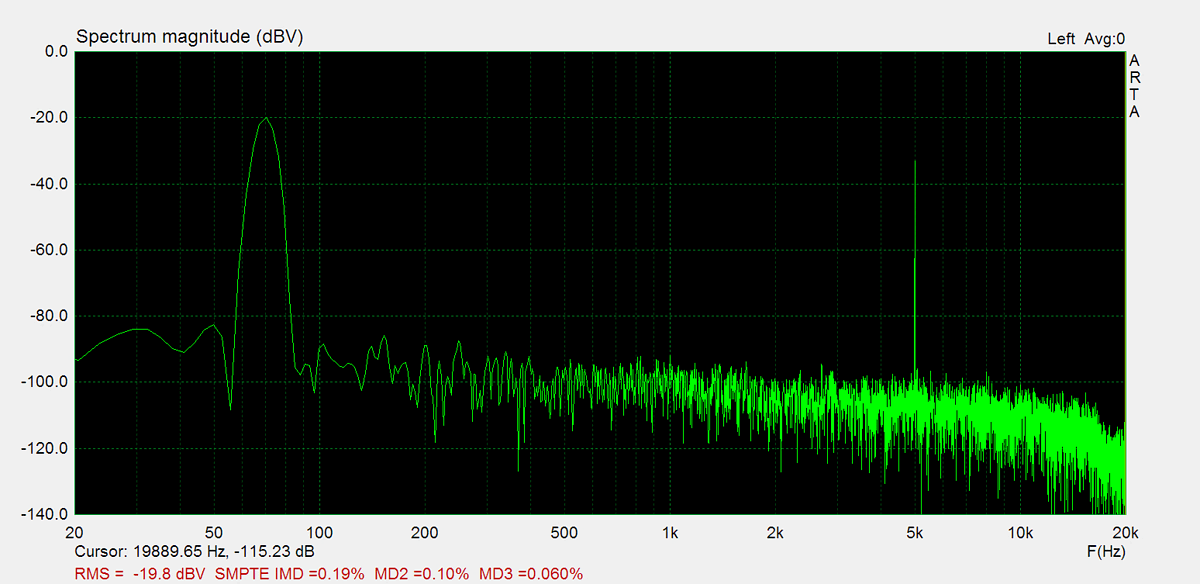

19. Kenwood KT-7500 - IMD Mono - Left Chanel19. IMD Mono - Left Chanel
20. Kenwood KT-7500 - IMD Mono - Right Chanel20. IMD Mono - Right Chanel
21. Kenwood KT-7500 - IMD Stereo - Left Chanel21. IMD Stereo - Left Chanel
22. Kenwood KT-7500 - IMD Stereo - Right Chanel22. IMD Stereo - Right Chanel

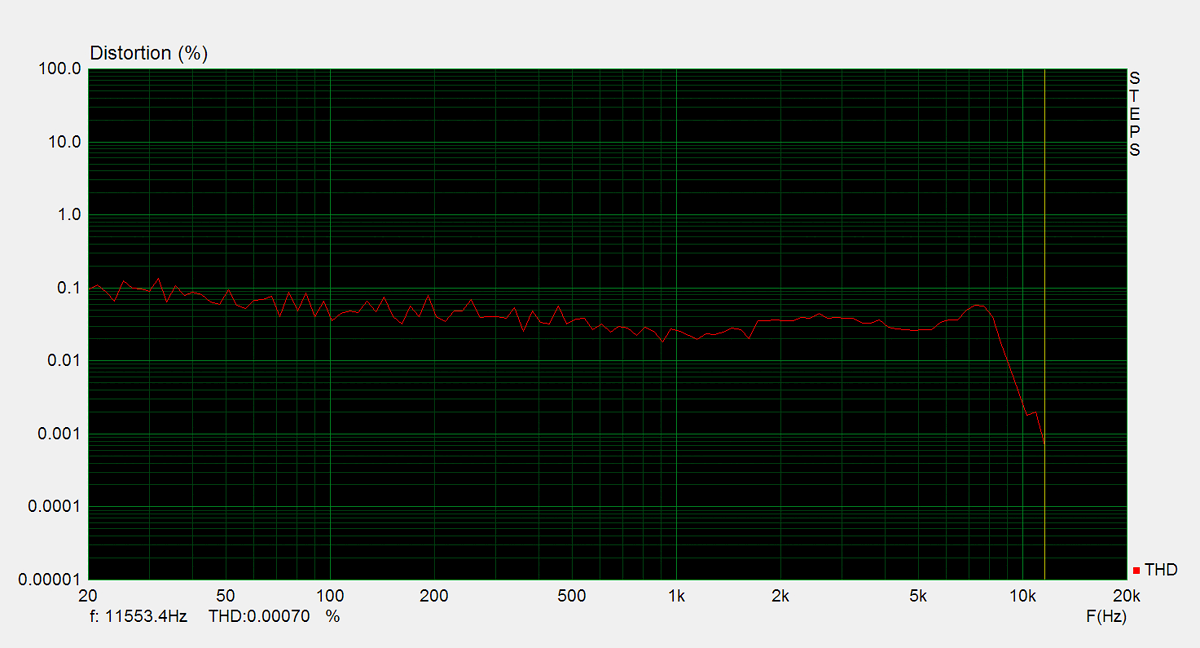

23. Kenwood KT-7500 - THD vs Frequency Mono - Left Chanel23. THD vs Frequency Mono - Left Chanel

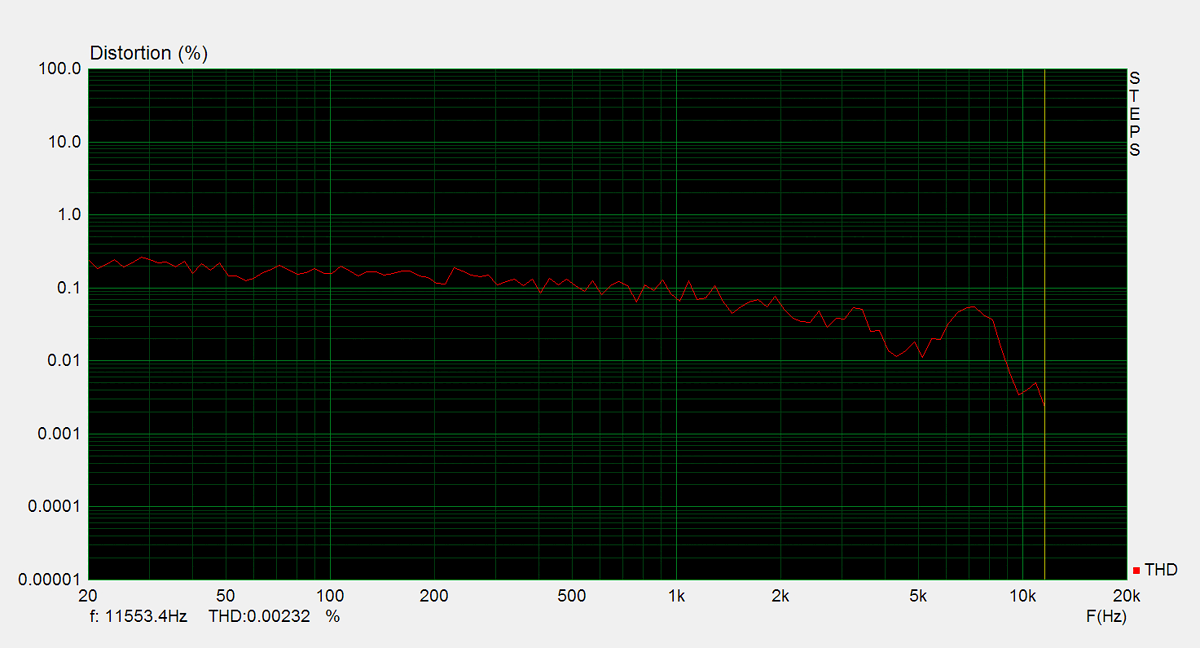

24. Kenwood KT-7500 - THD vs Frequency Mono - Right Chanel24. THD vs Frequency Mono - Right Chanel
25. Kenwood KT-7500 - THD vs Frequency Stereo - Left Chanel25. THD vs Frequency Stereo - Left Chanel
26. Kenwood KT-7500 - THD vs Frequency Stereo - Right Chanel26. THD vs Frequency Stereo - Right Chanel
