Sansui TU-217

Sansui TU-217 is a vintage stereo AM/FM tuner from the late 1970s.

Manufacturer: Sansui
Status: Defunct company
Source: Wikipedia (Sansui)

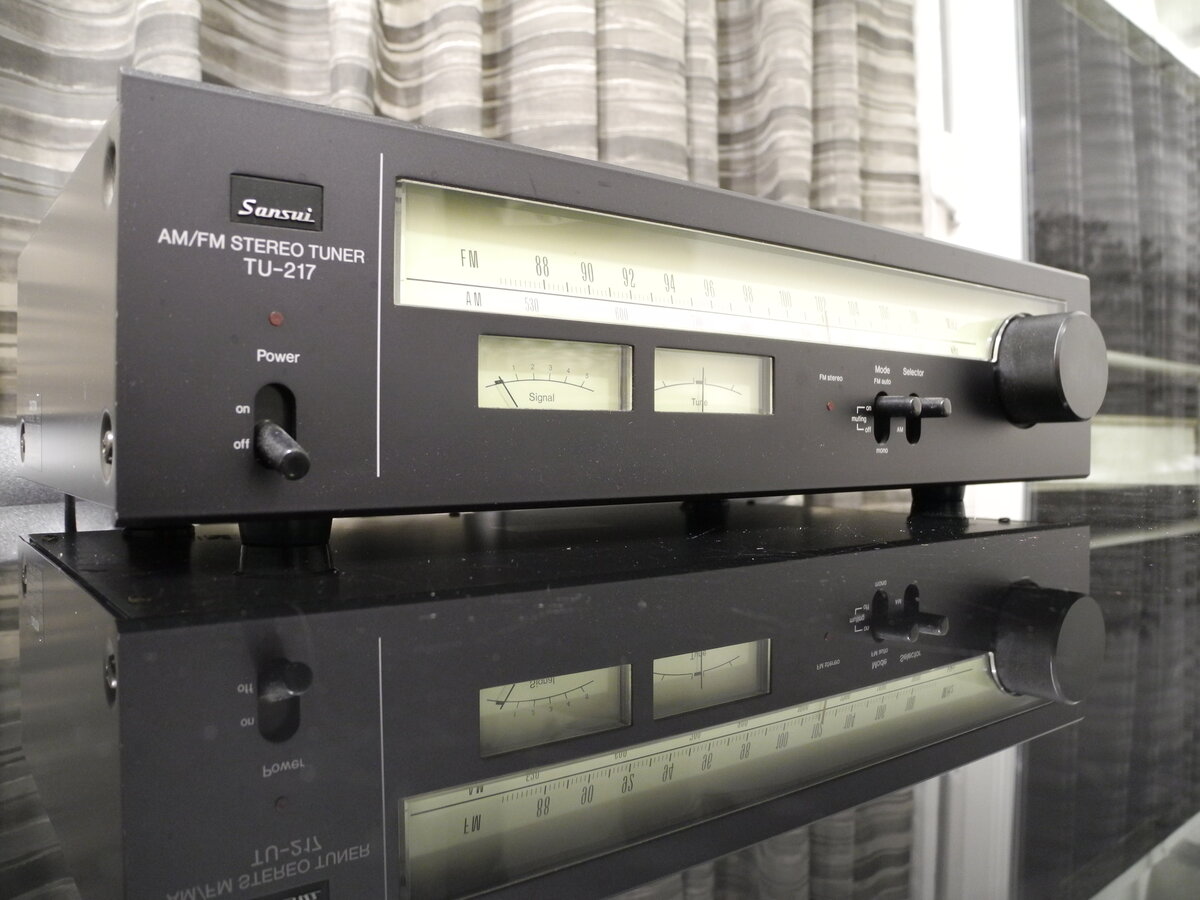

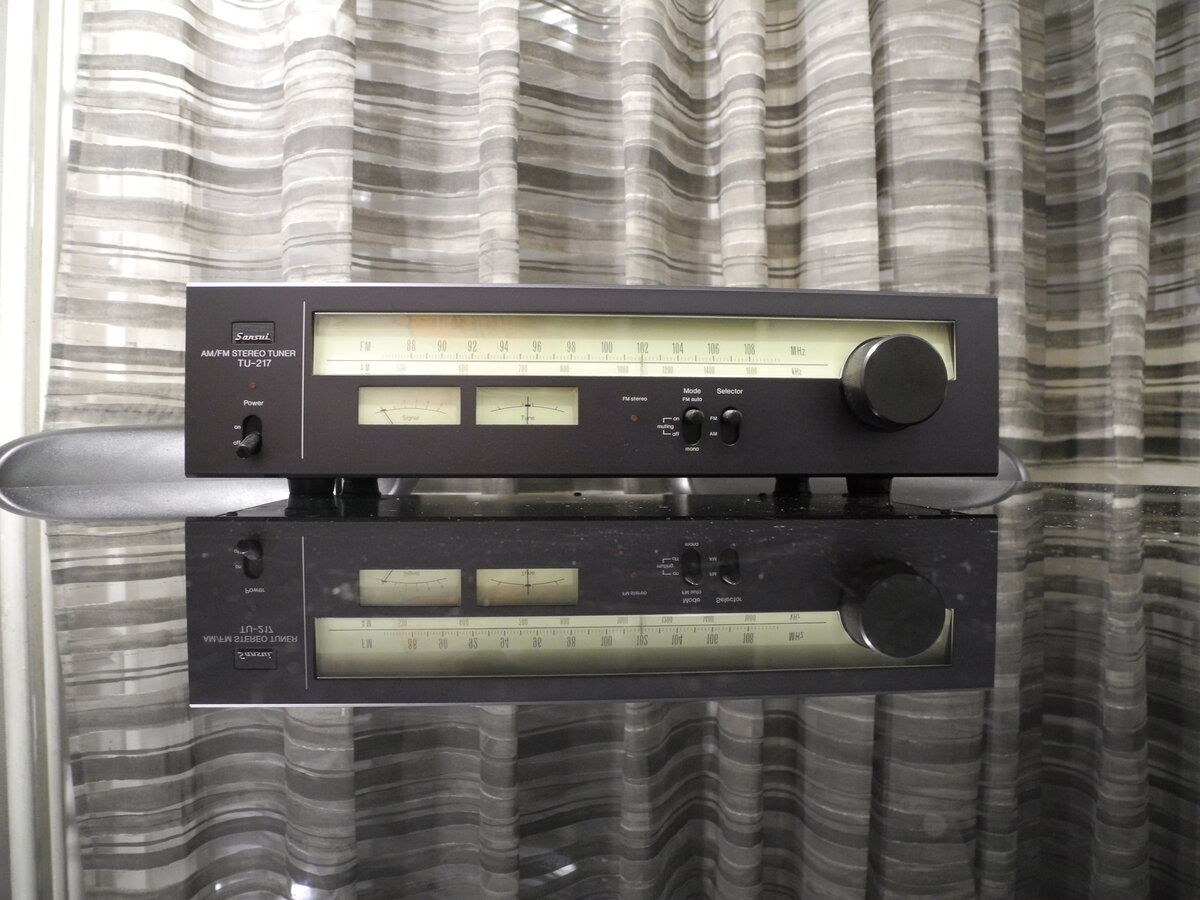

1. Sansui TU-217 - Front View1. Front View
2. Sansui TU-217 - Left View2. Left View
3. Sansui TU-217 - Right View3. Right View

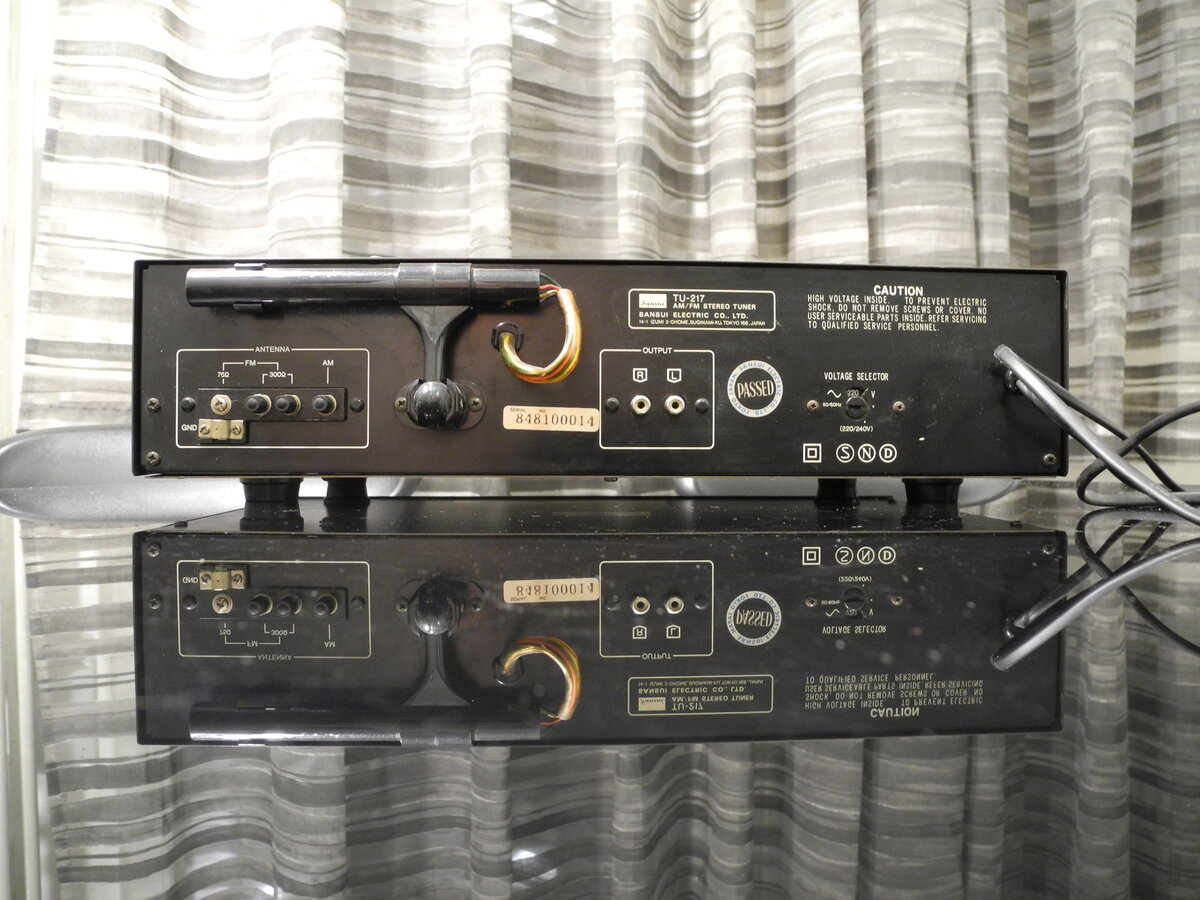

4. Sansui TU-217 - Back View4. Back View

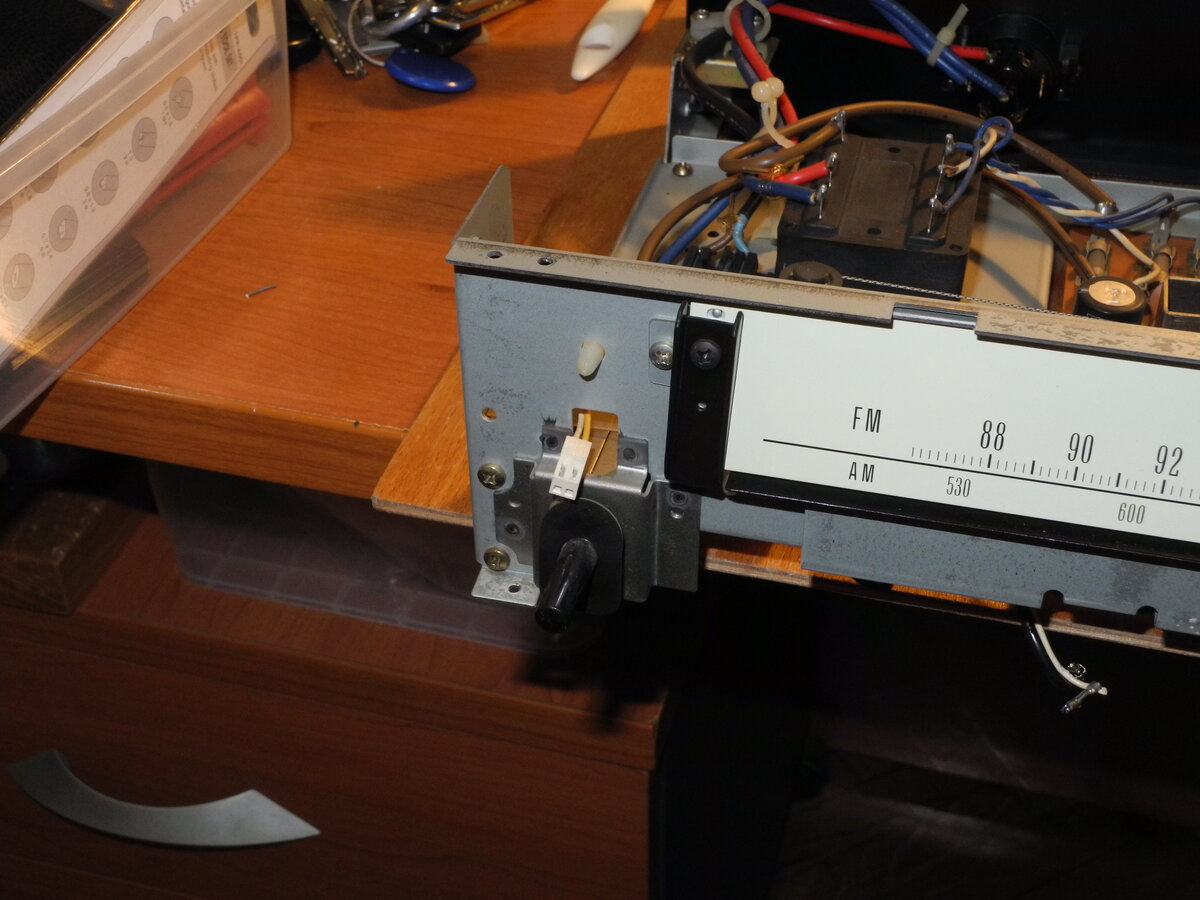

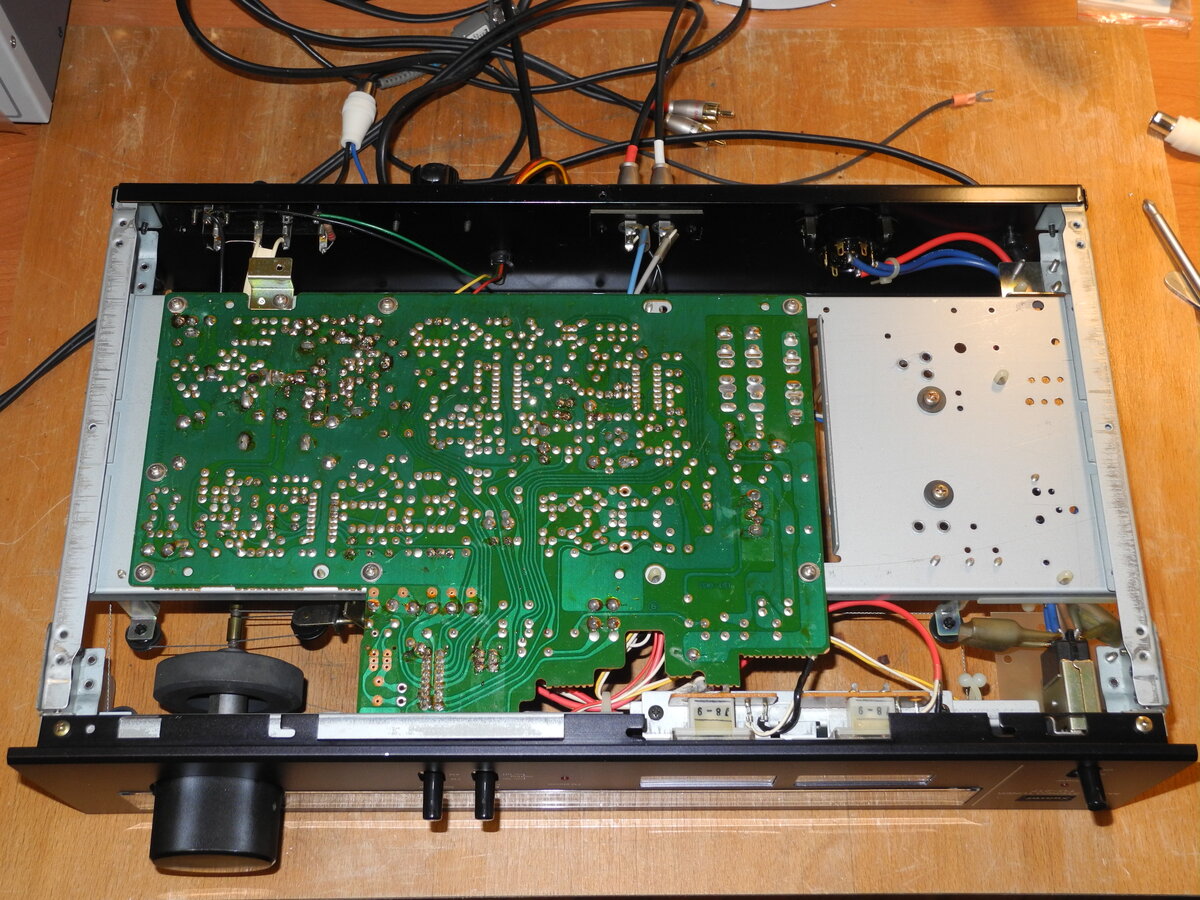

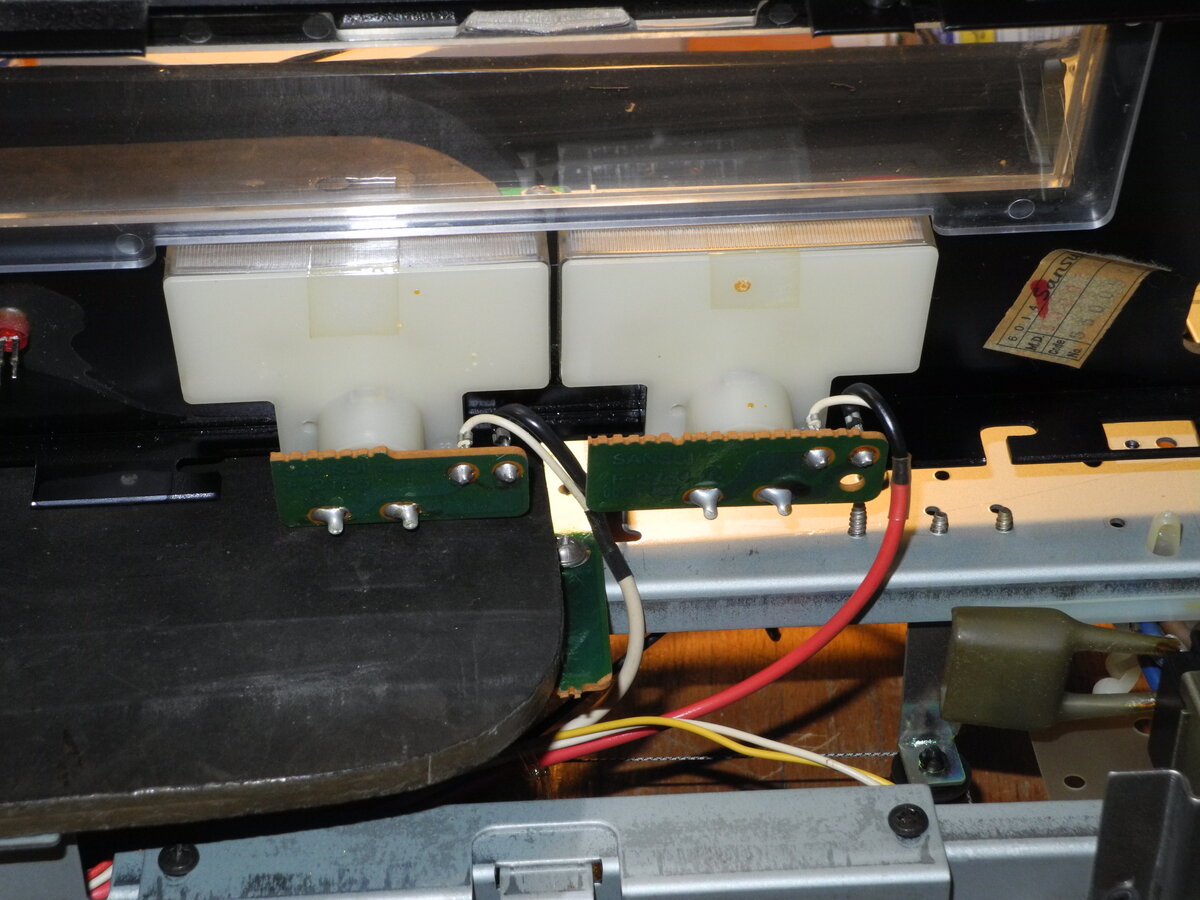

5. Sansui TU-217 - Inside View5. Inside View

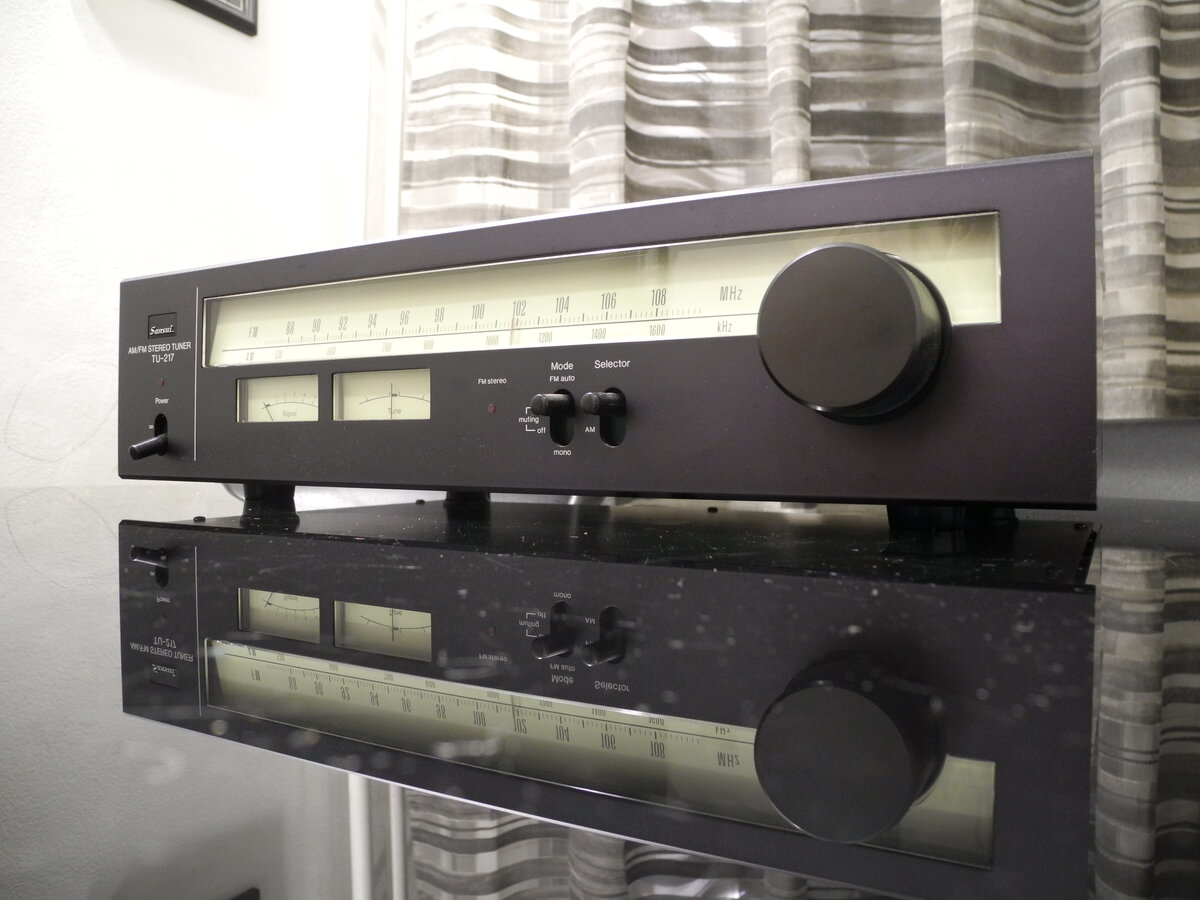

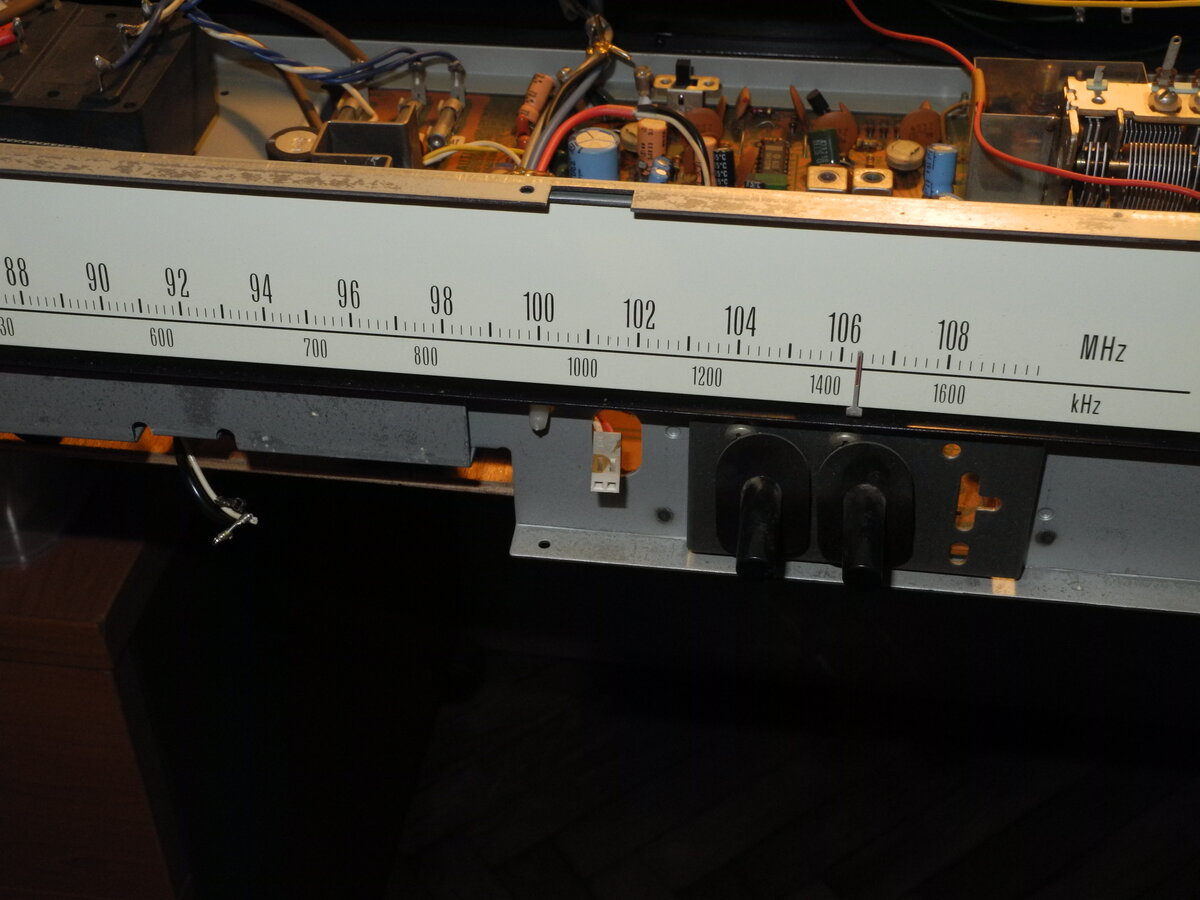

6. Sansui TU-217 - Panel View6. Panel View
7. Sansui TU-217 - Panel View7. Panel View

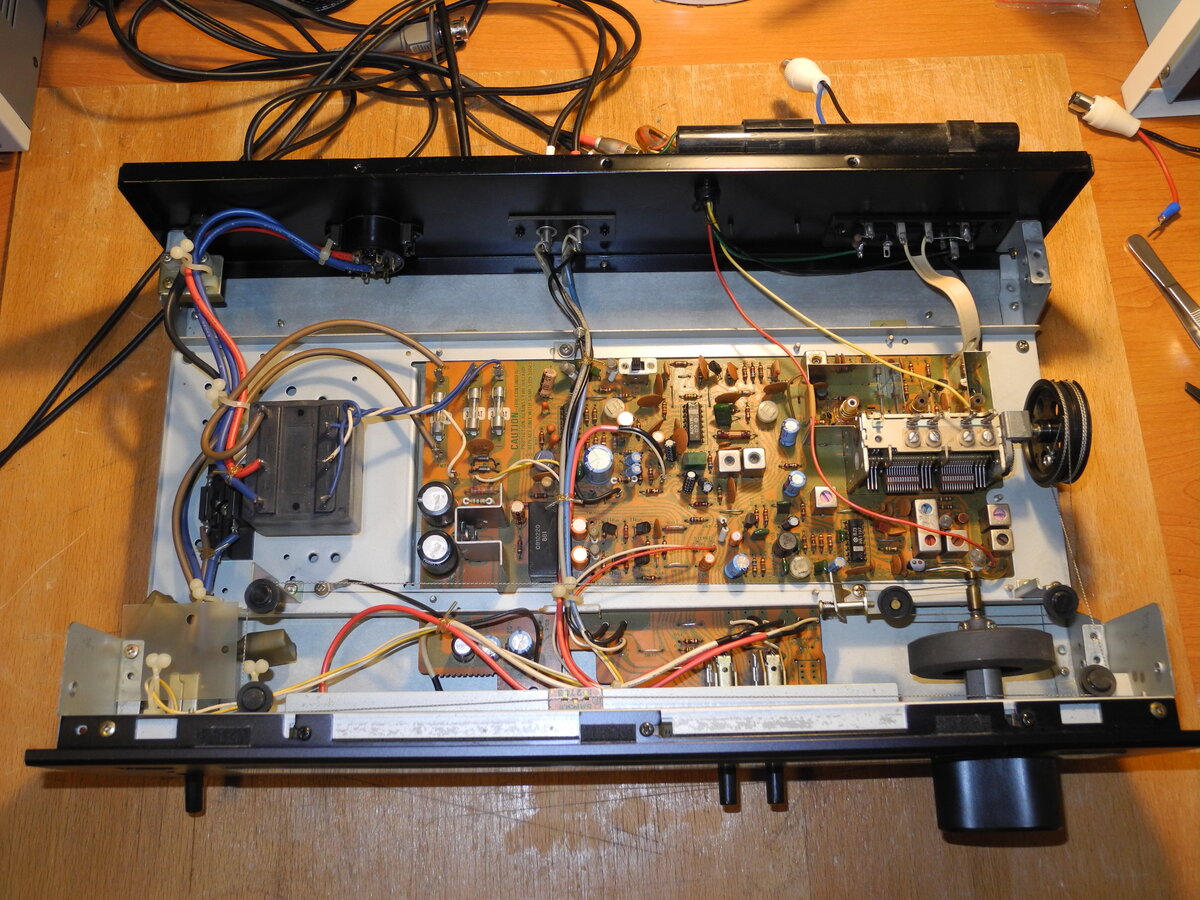

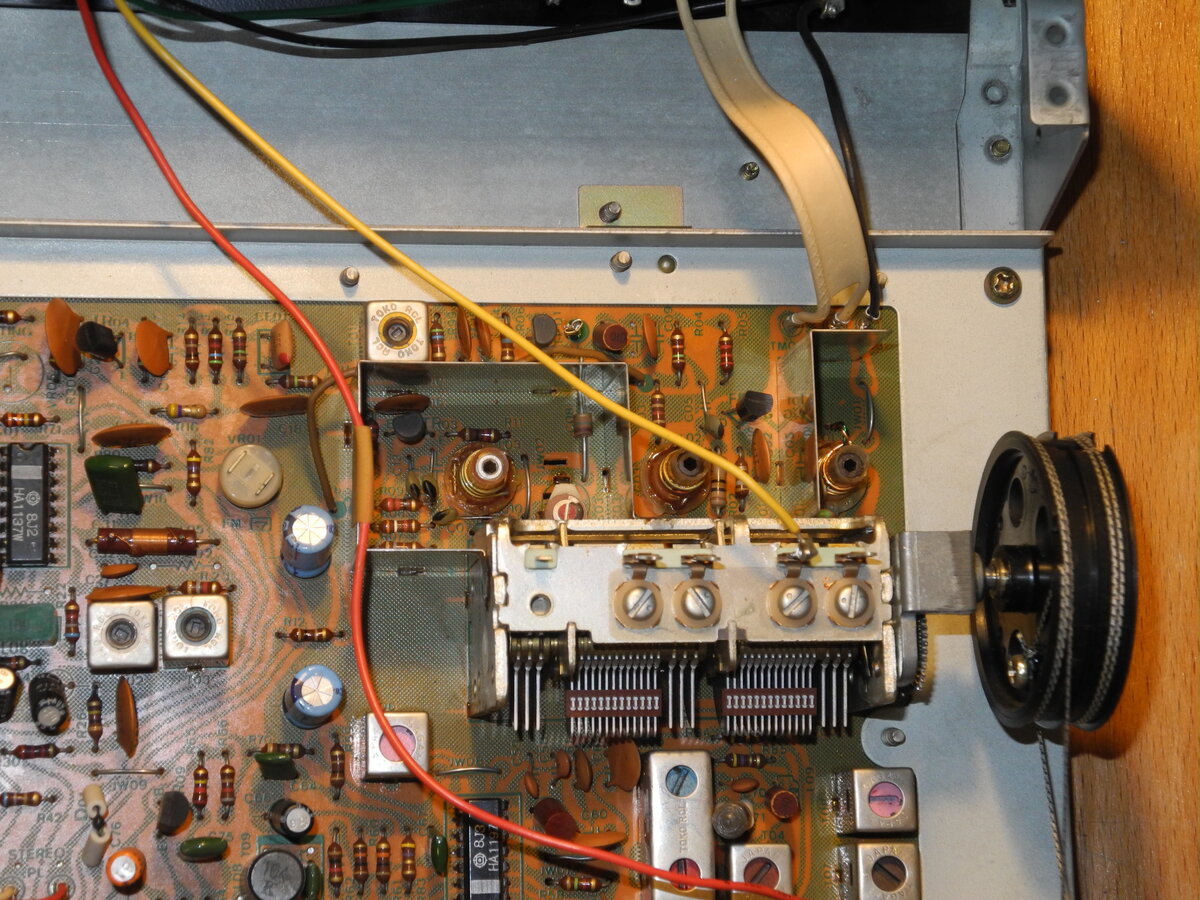

8. Sansui TU-217 - Inside View8. Inside View
9. Sansui TU-217 - Inside View9. Inside View
10. Sansui TU-217 - Bottom View10. Bottom View

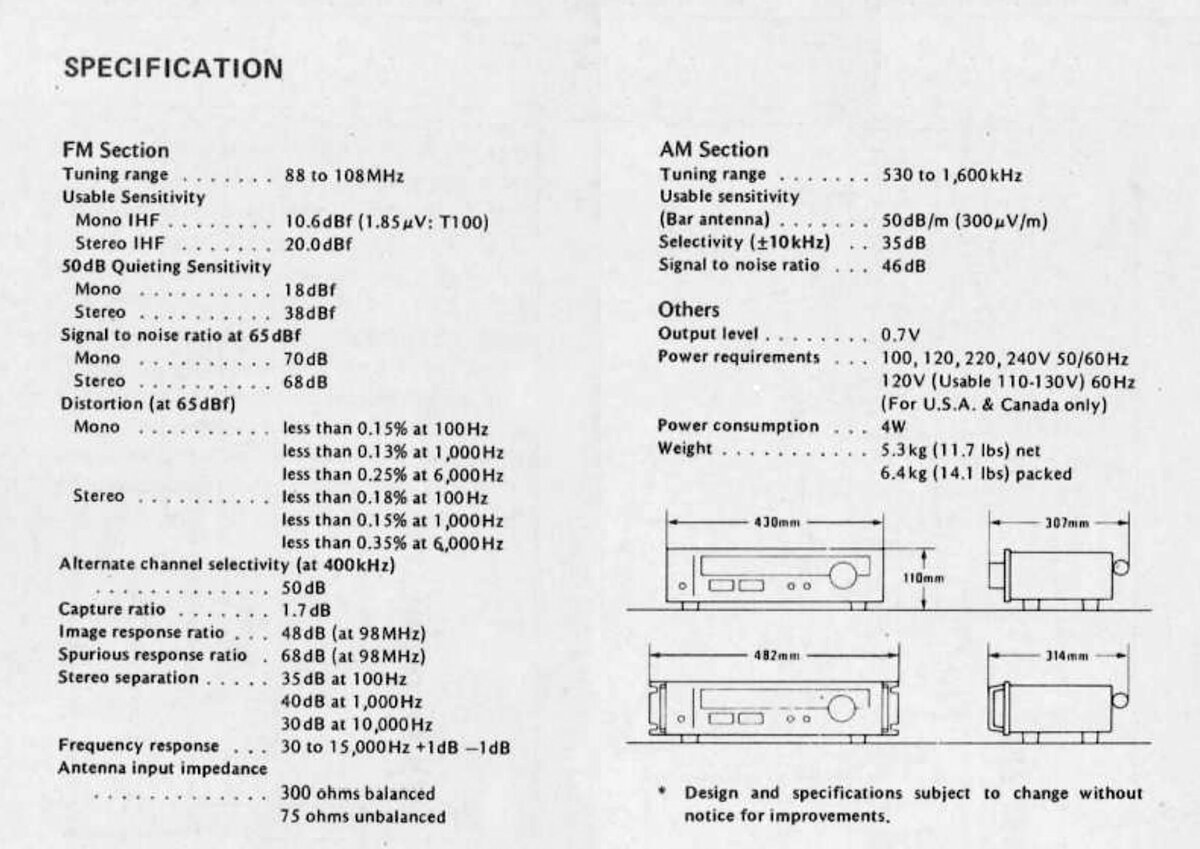

General Specifications

Antenna Input: 75Ω
FM Tuning Range: 88.0MHz-108.0MHz

Dimensions (WHD): 430×110×316mm
Weight: 4.7kg
Produced: 1978-1981
Initial price: 550DM

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

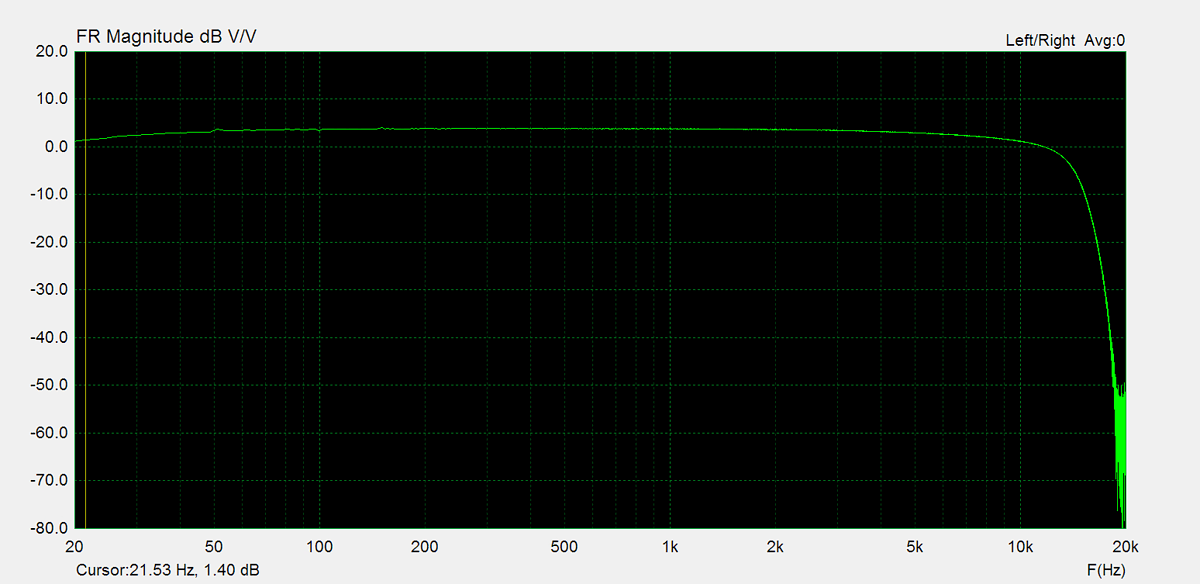

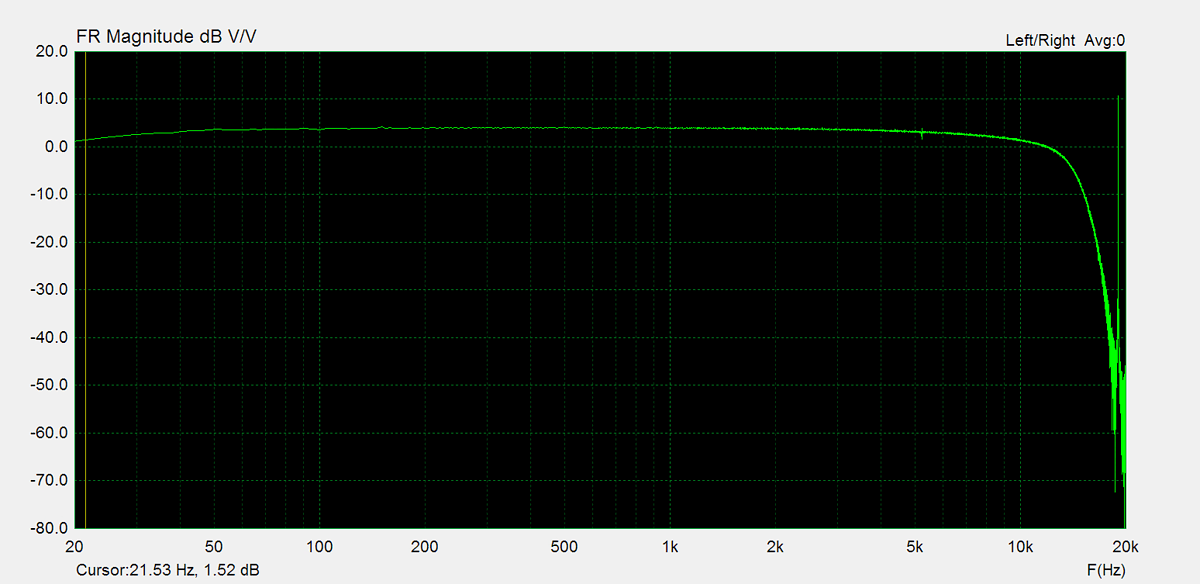

11. Sansui TU-217 - FR Mono - Left Chanel11. FR Mono - Left Chanel
12. Sansui TU-217 - FR Mono - Right Chanel12. FR Mono - Right Chanel

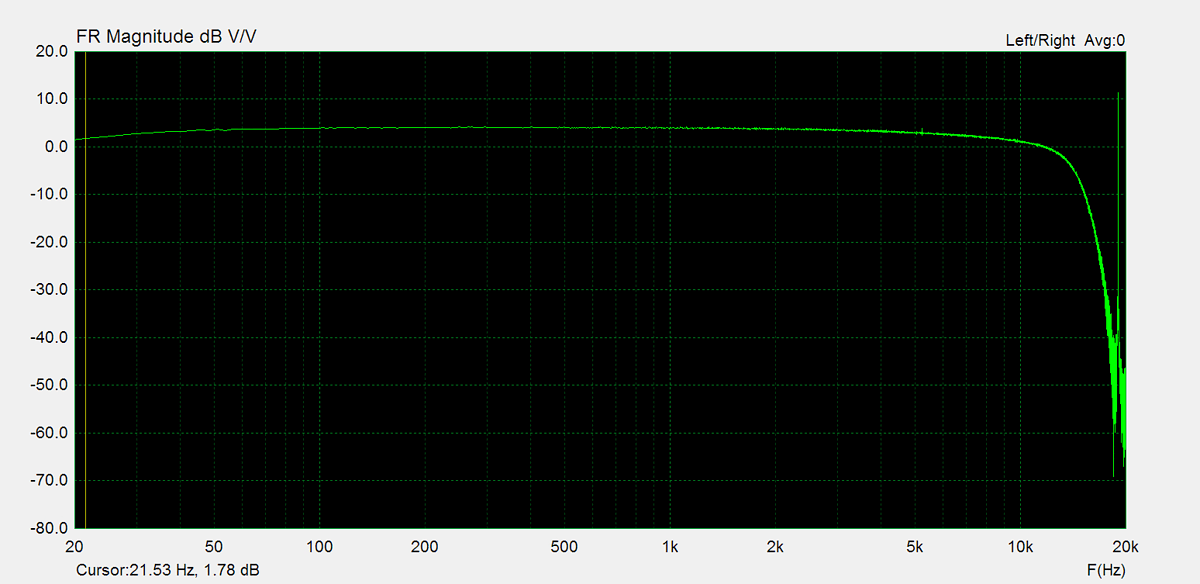

13. Sansui TU-217 - FR Stereo - Left Chanel13. FR Stereo - Left Chanel
14. Sansui TU-217 - FR Stereo - Right Chanel14. FR Stereo - Right Chanel

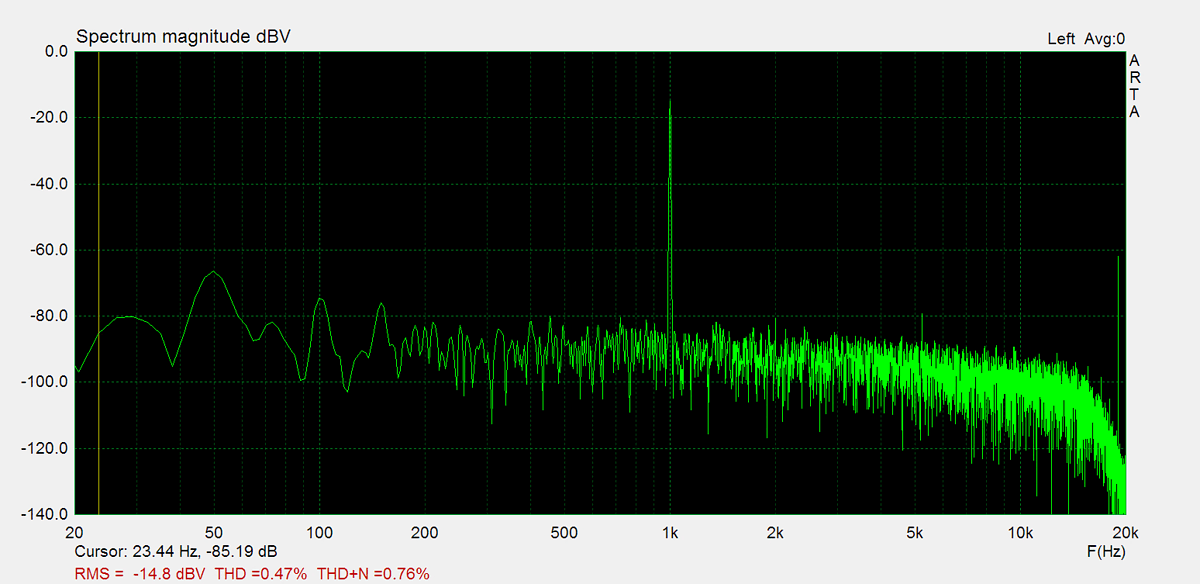

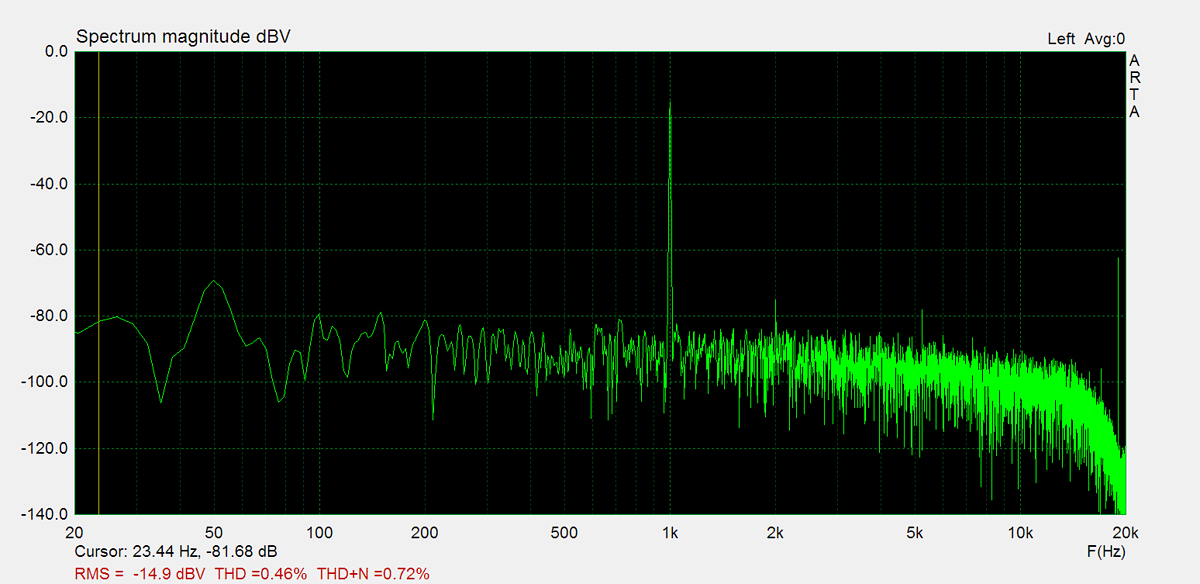

15. Sansui TU-217 - THD Mono - Left Chanel15. THD Mono - Left Chanel
16. Sansui TU-217 - THD Mono - Right Chanel16. THD Mono - Right Chanel
17. Sansui TU-217 - THD Stereo - Left Chanel17. THD Stereo - Left Chanel
18. Sansui TU-217 - THD Stereo - Right Chanel18. THD Stereo - Right Chanel

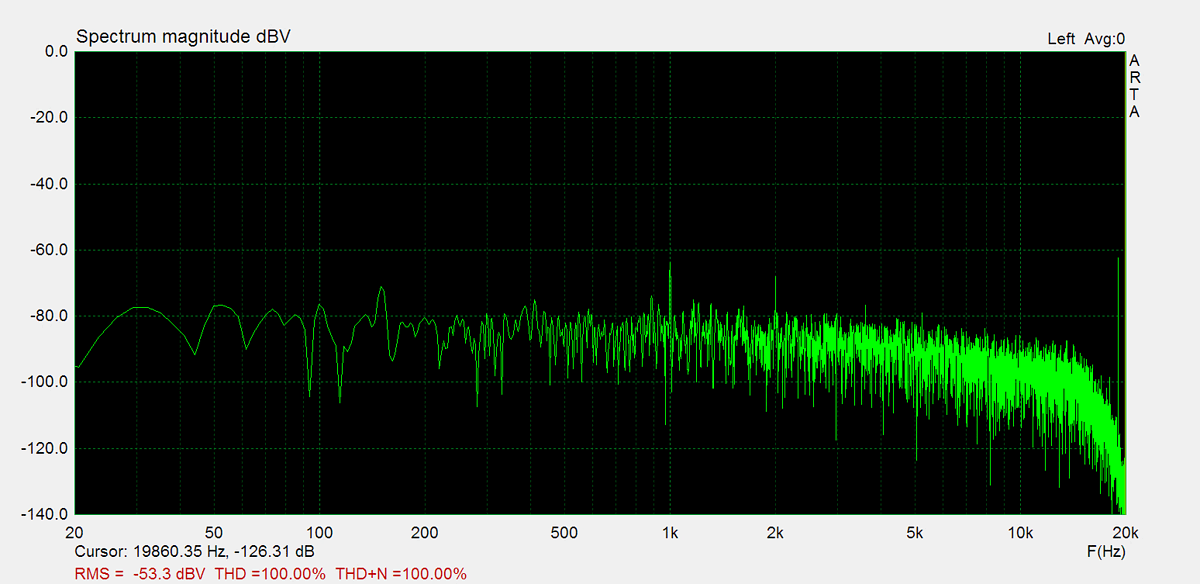

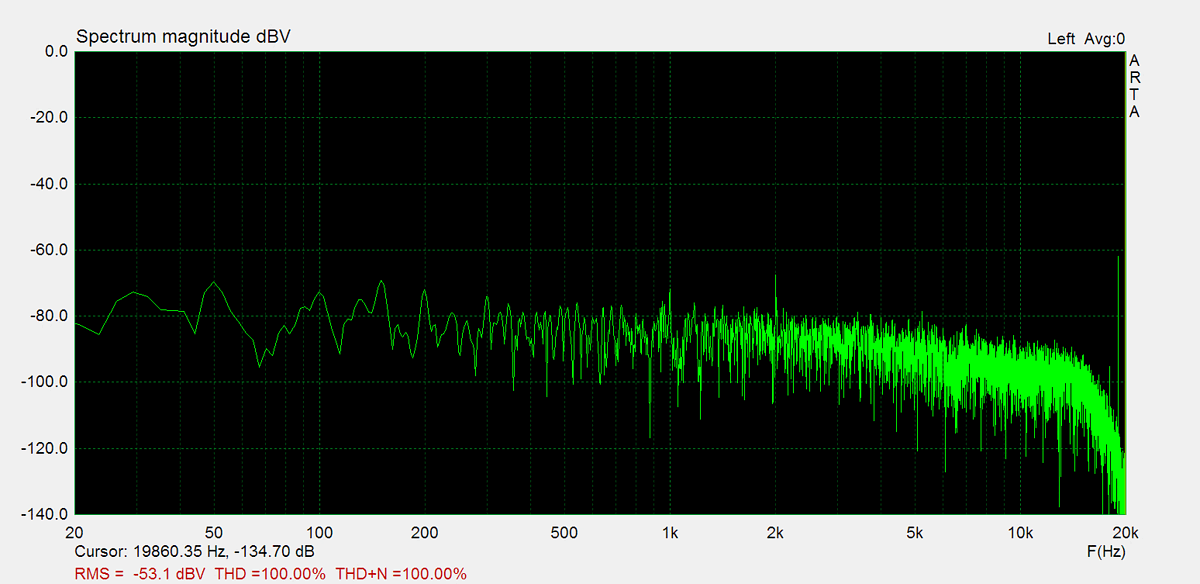

19. Sansui TU-217 - Separation Left Off - Left Chanel19. Separation Left Off - Left Chanel
20. Sansui TU-217 - Separation Right Off - Right Chanel20. Separation Right Off - Right Chanel

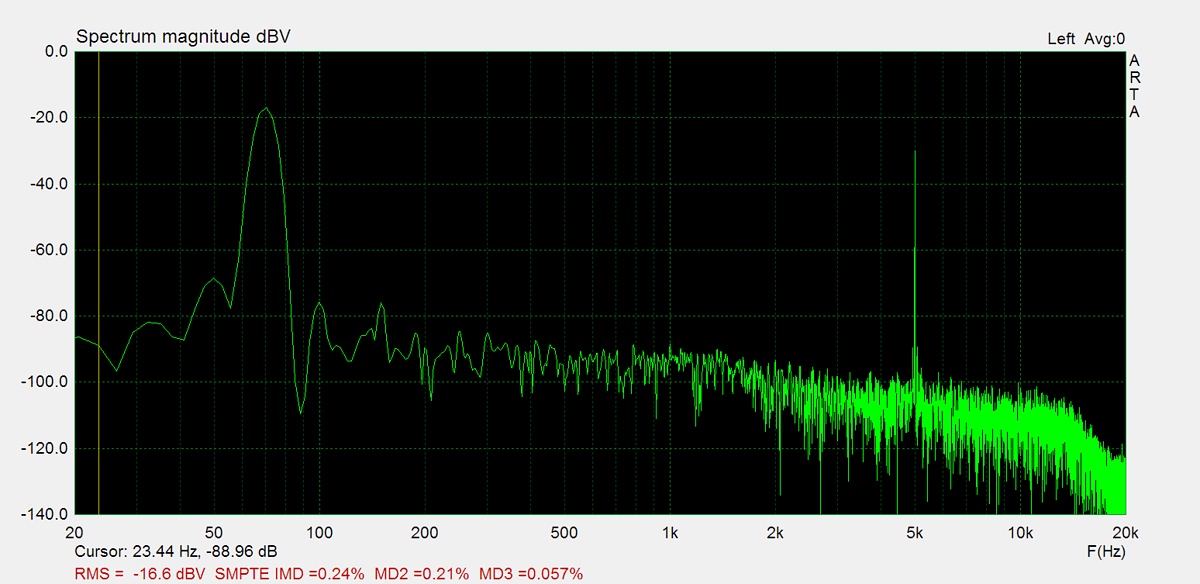

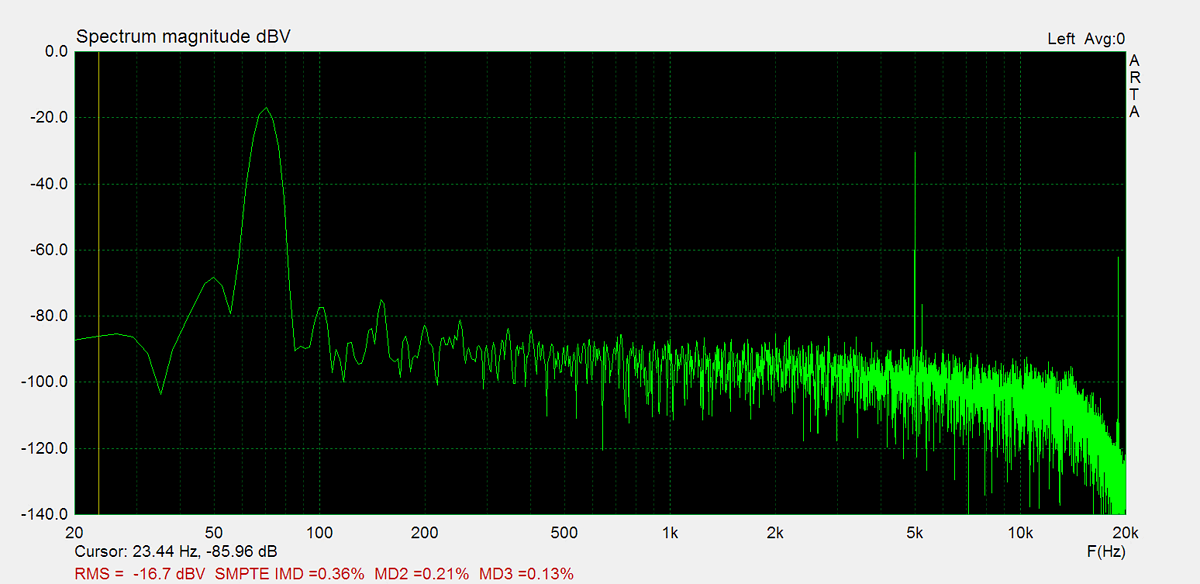

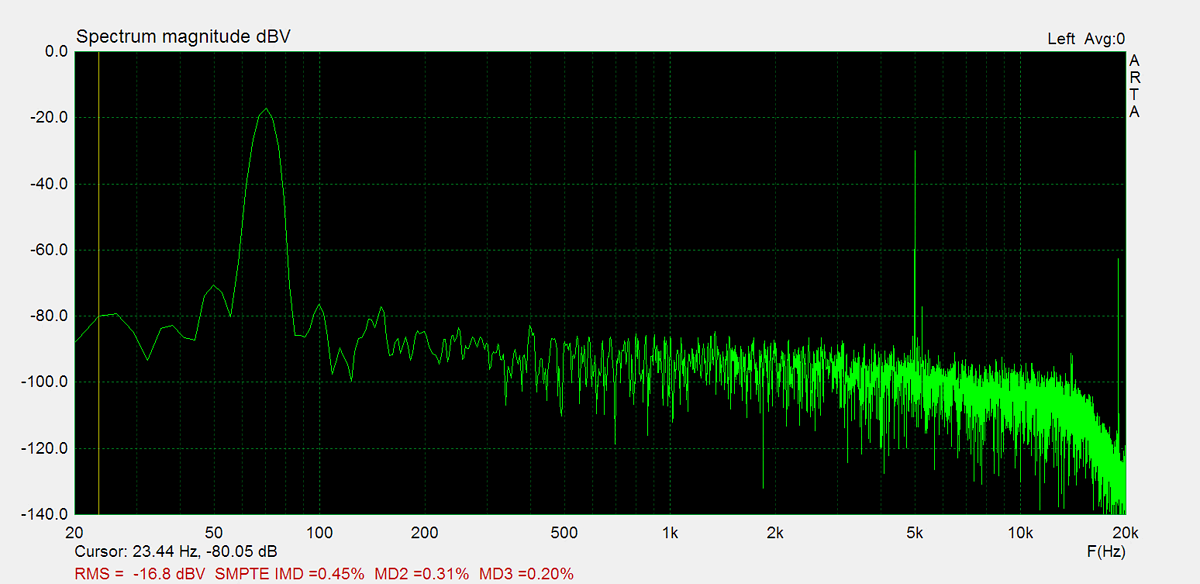

21. Sansui TU-217 - IMD Mono - Left Chanel21. IMD Mono - Left Chanel
22. Sansui TU-217 - IMD Mono - Right Chanel22. IMD Mono - Right Chanel
23. Sansui TU-217 - IMD Stereo - Left Chanel23. IMD Stereo - Left Chanel
24. Sansui TU-217 - IMD Stereo - Right Chanel24. IMD Stereo - Right Chanel

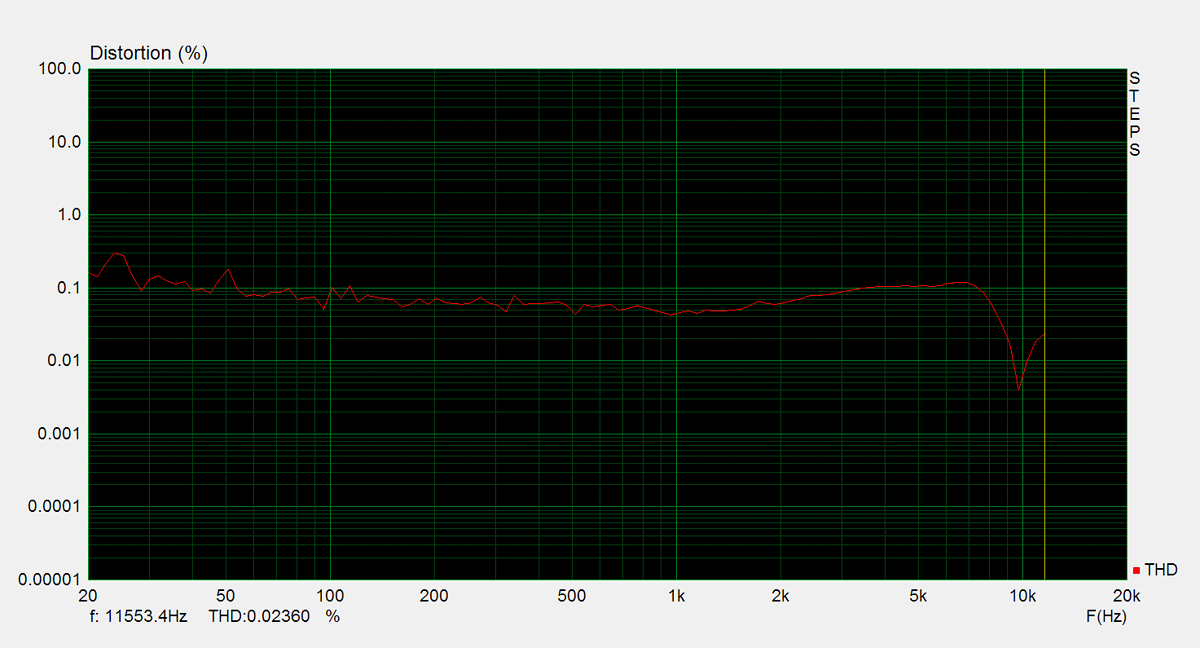

25. Sansui TU-217 - THD vs Frequency Mono - Left Chanel25. THD vs Frequency Mono - Left Chanel
26. Sansui TU-217 - THD vs Frequency Mono - Right Chanel26. THD vs Frequency Mono - Right Chanel
27. Sansui TU-217 - THD vs Frequency Stereo - Left Chanel27. THD vs Frequency Stereo - Left Chanel
28. Sansui TU-217 - THD vs Frequency Stereo - Right Chanel28. THD vs Frequency Stereo - Right Chanel
