Sanyo FMT-301

Sanyo FMT-301 is a vintage stereo AM/FM tuner from the late 1970s.

Manufacturer: Sanyo
Status: Defunct company
Source: Wikipedia (Sanyo)

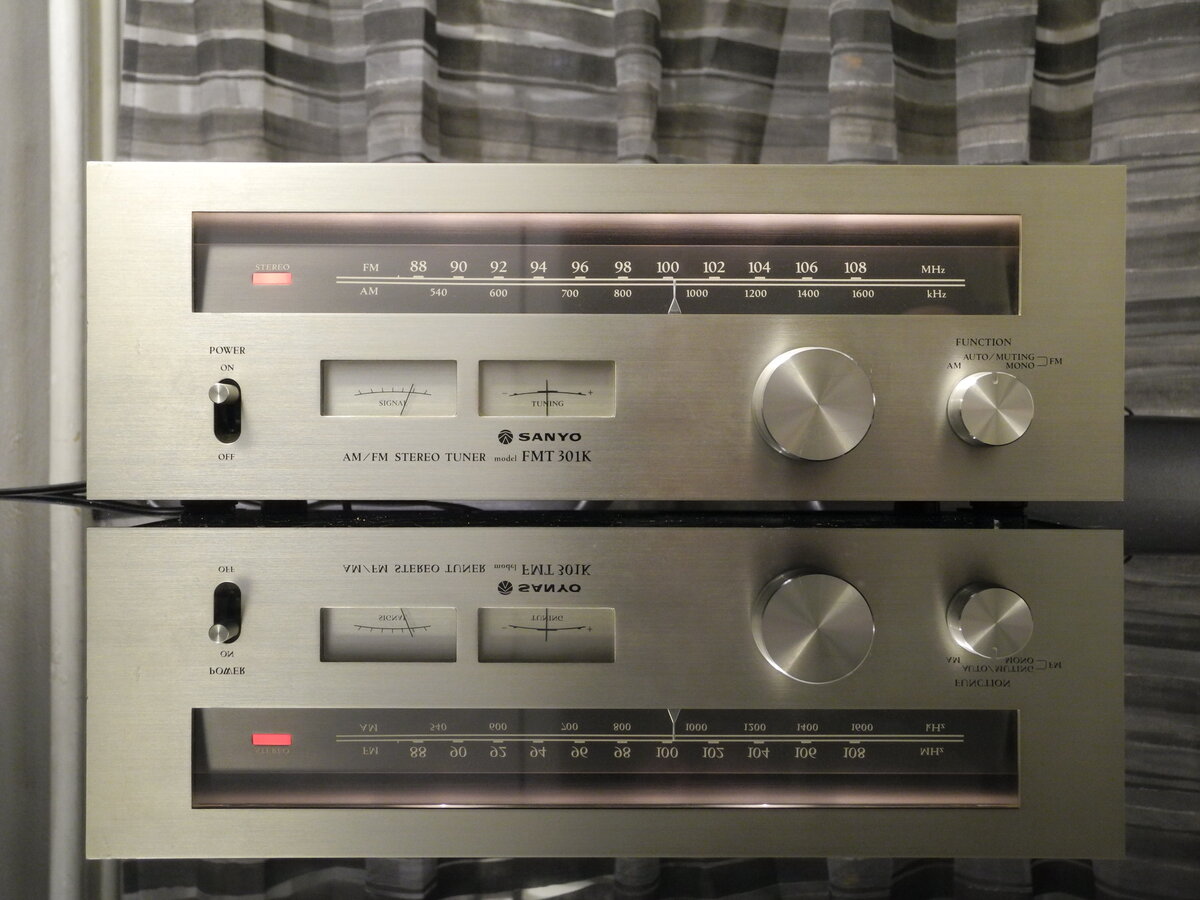

1. Sanyo FMT-301 - Front View1. Front View

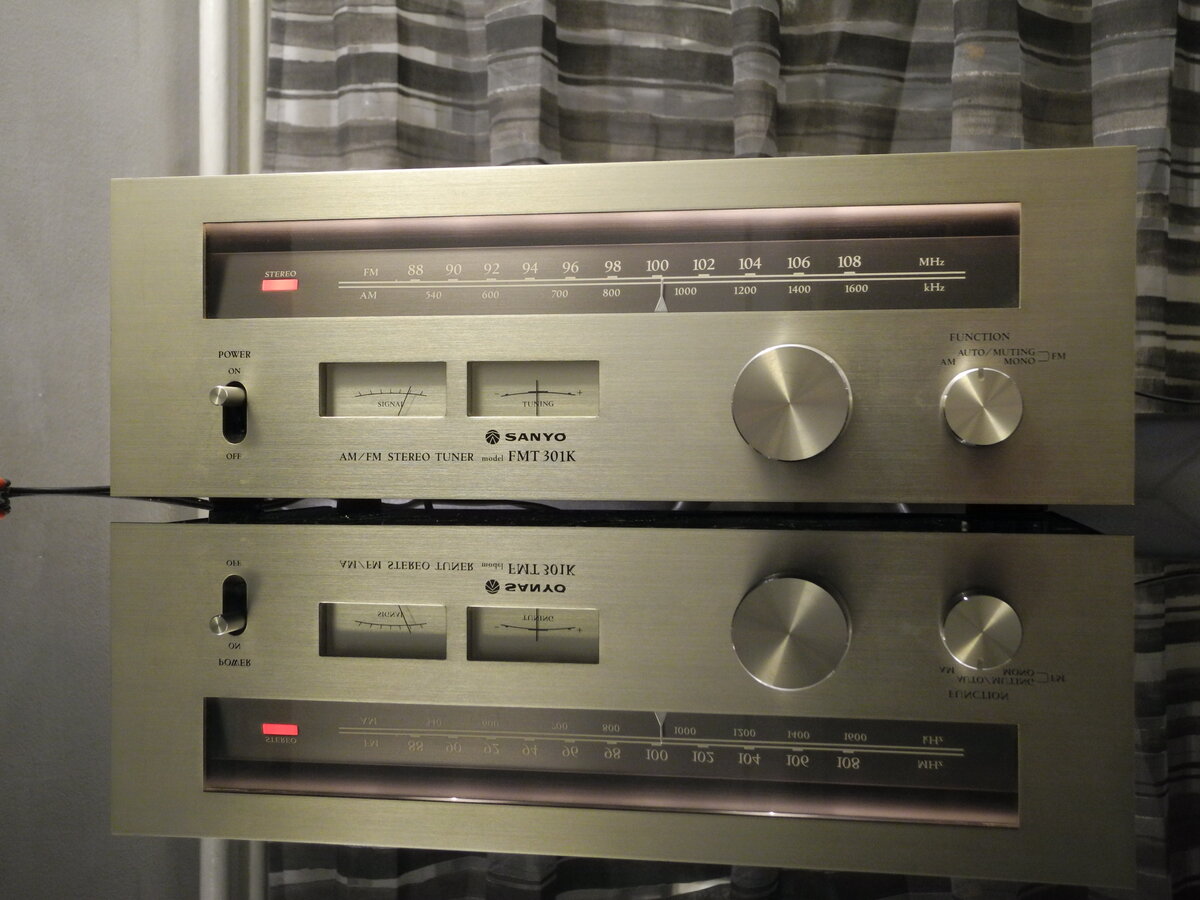

2. Sanyo FMT-301 - Front View2. Front View

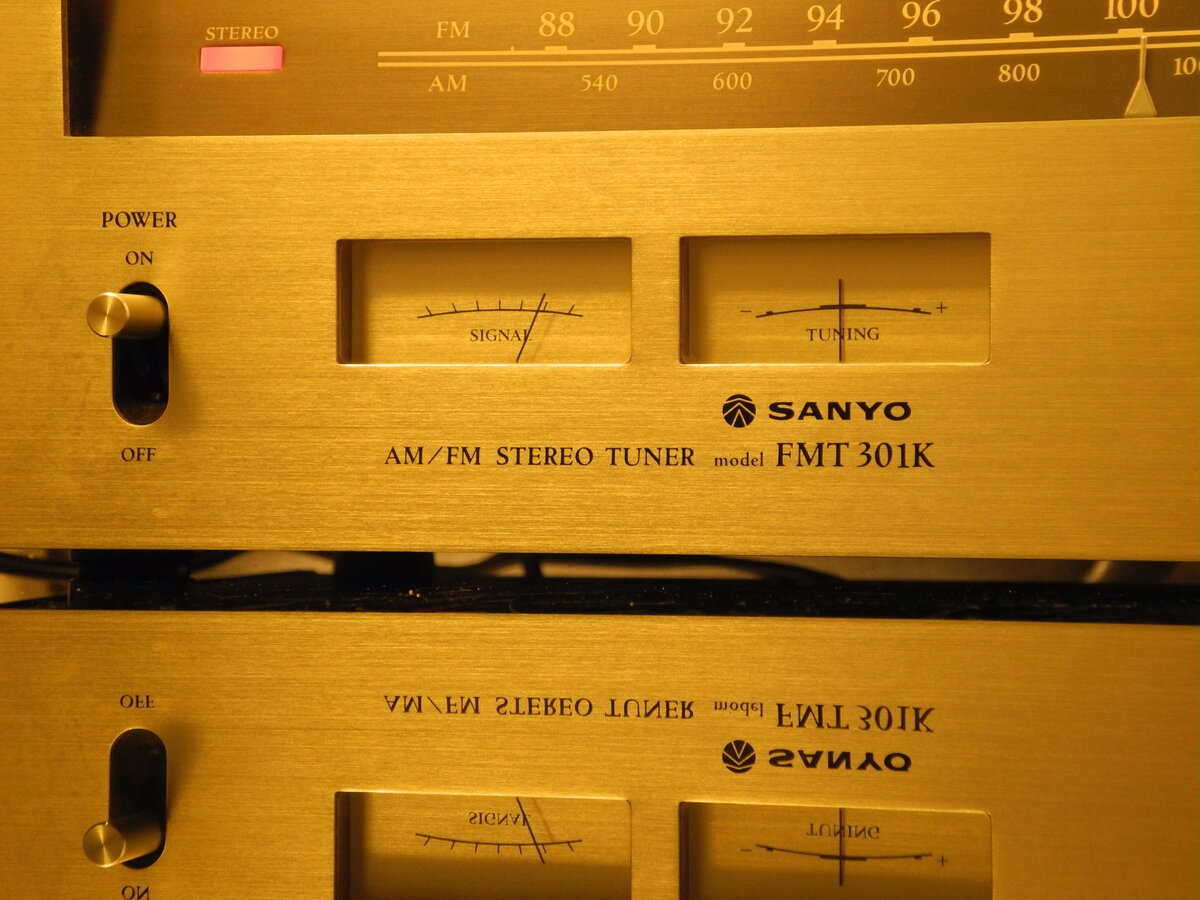

3. Sanyo FMT-301 - Zoom View3. Zoom View

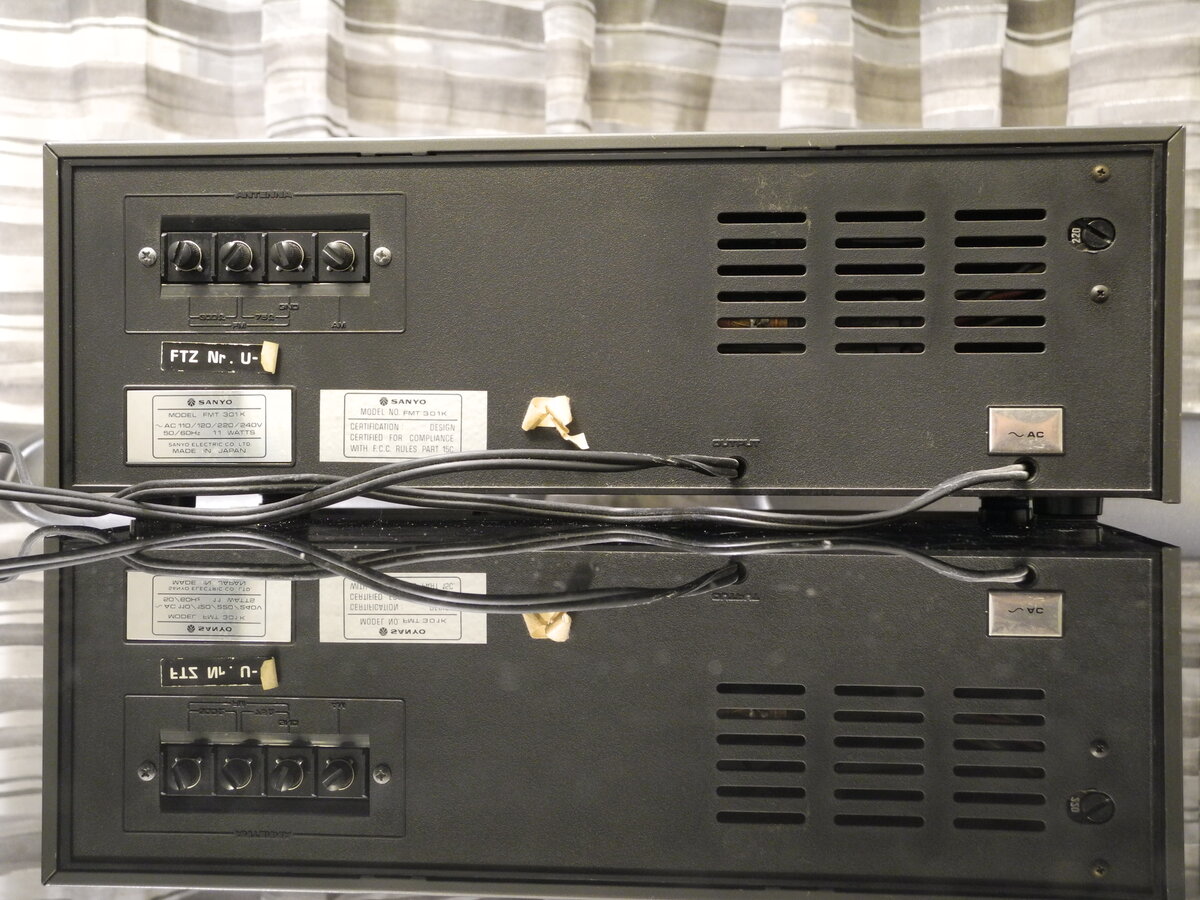

4. Sanyo FMT-301 - Back View4. Back View

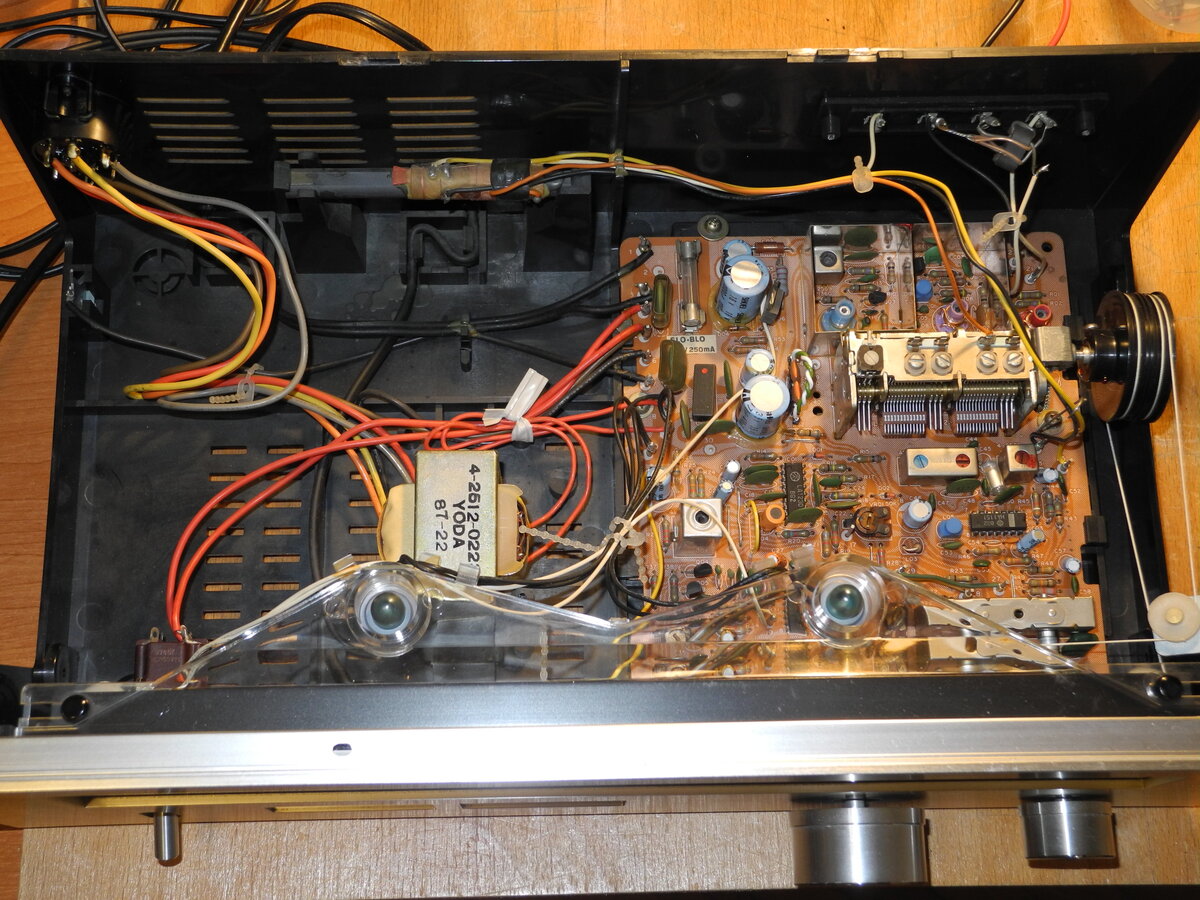

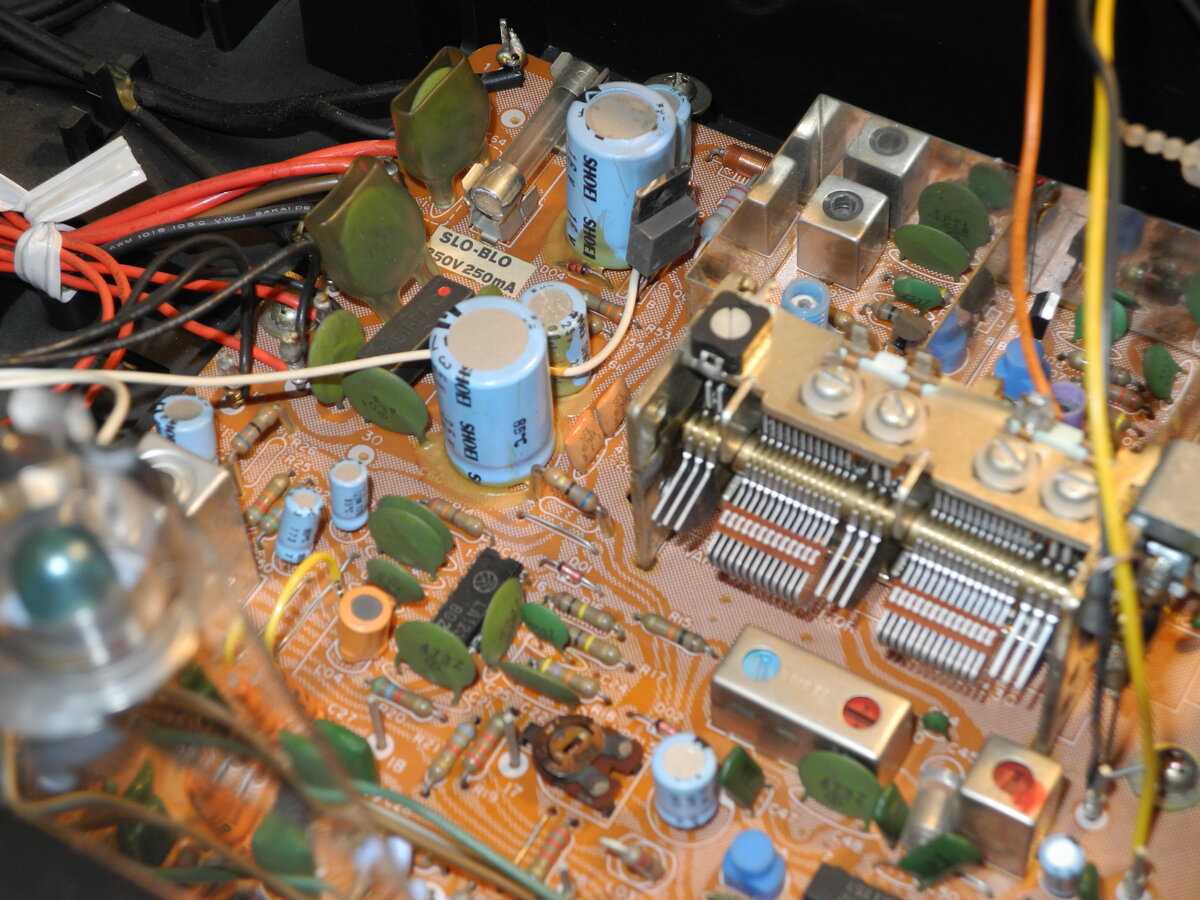

5. Sanyo FMT-301 - Inside View5. Inside View
6. Sanyo FMT-301 - Inside View6. Inside View
7. Sanyo FMT-301 - Inside View7. Inside View

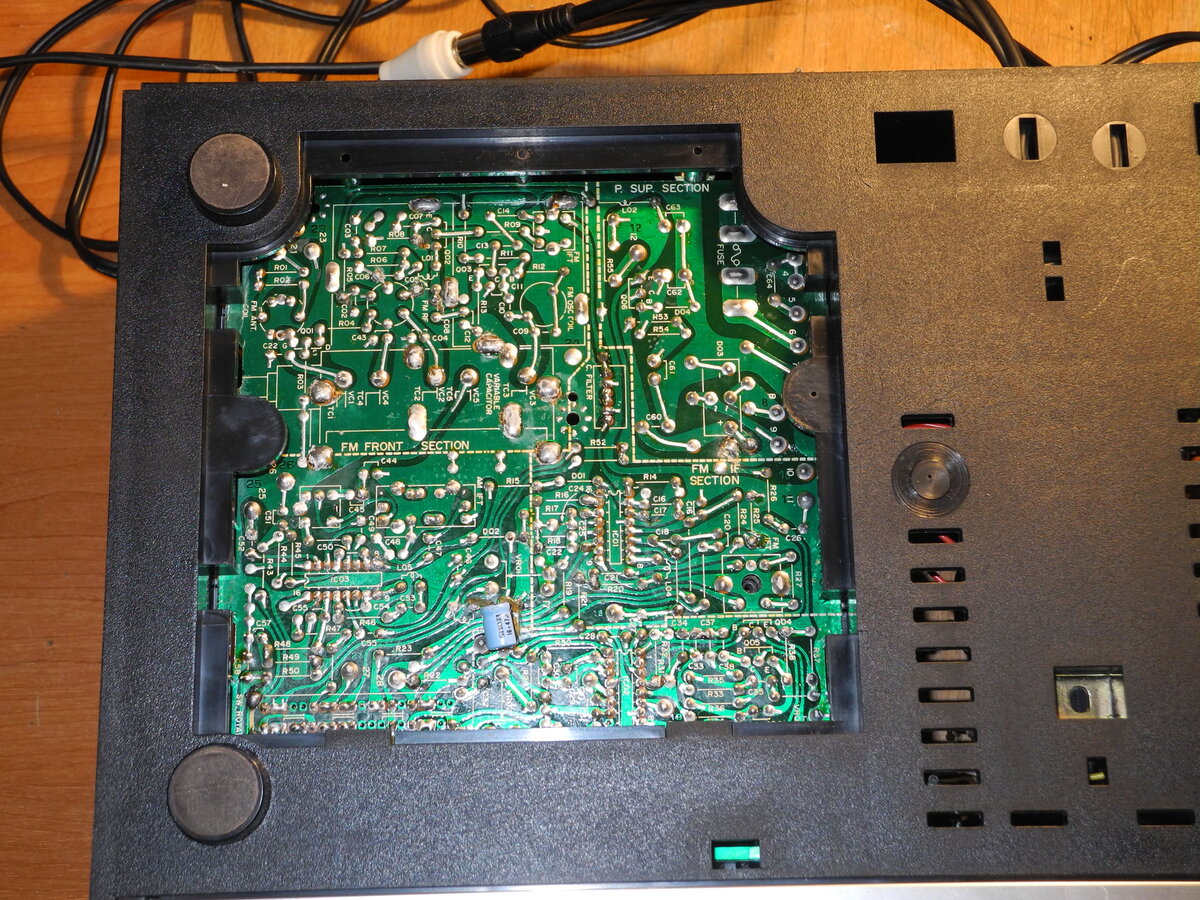

8. Sanyo FMT-301 - Bottom View8. Bottom View
9. Sanyo FMT-301 - On the Desk9. On the Desk

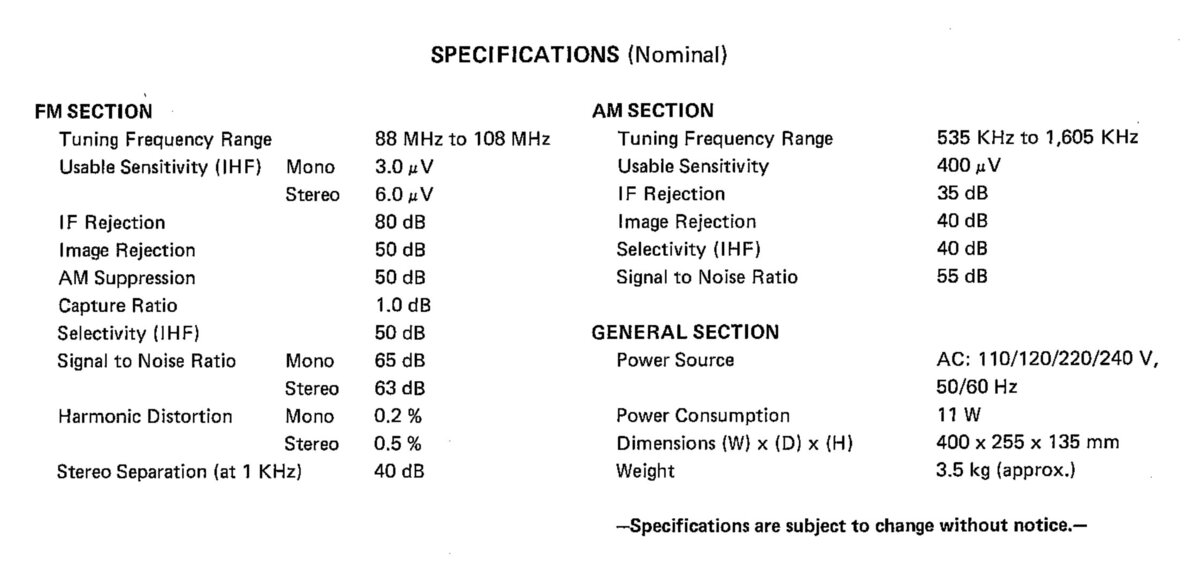

General Specifications

Antenna Input: 75Ω
FM Tuning Range: 88.0MHz-108.0MHz

Dimensions (WHD): 400×135×255mm
Weight: 3.5kg
Produced: 1979-1981
Initial price: 350DM

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

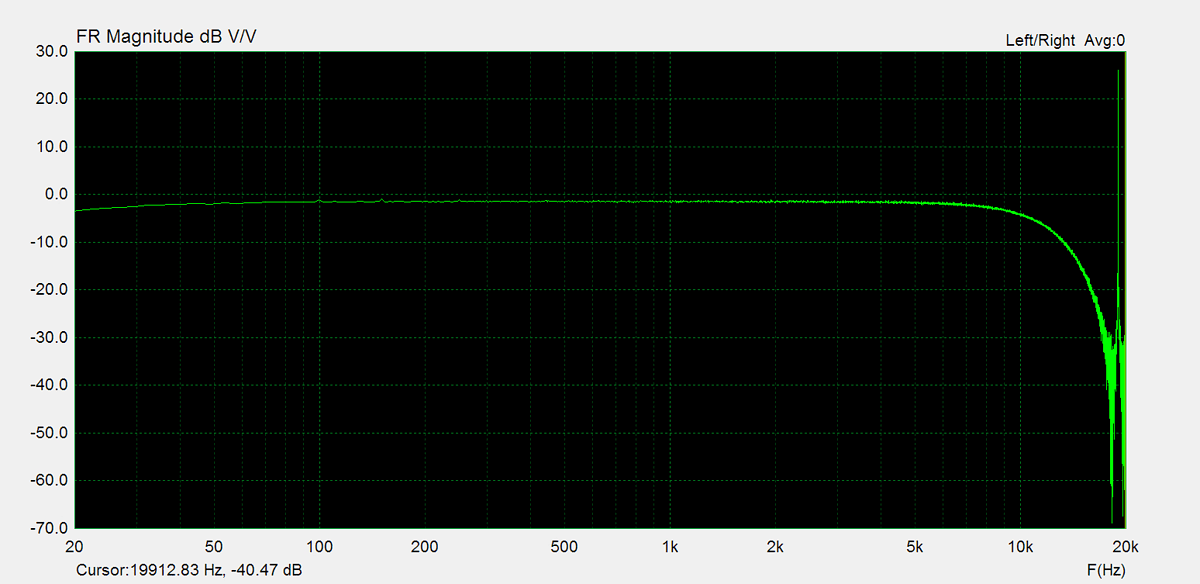

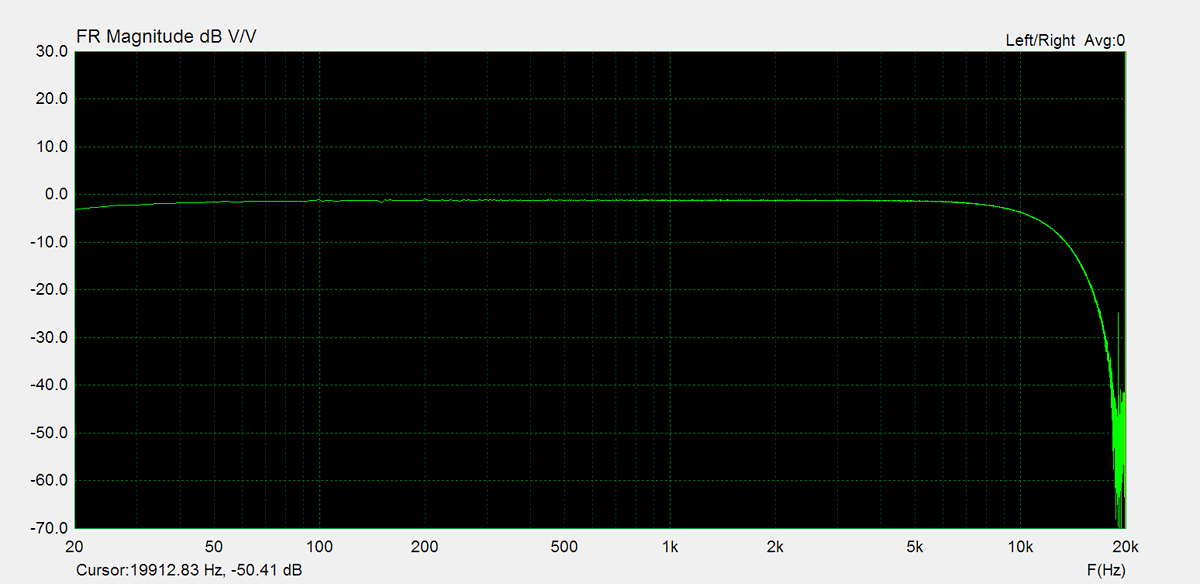

10. Sanyo FMT-301 - FR Mono - Left Chanel10. FR Mono - Left Chanel
11. Sanyo FMT-301 - FR Mono - Right Chanel11. FR Mono - Right Chanel

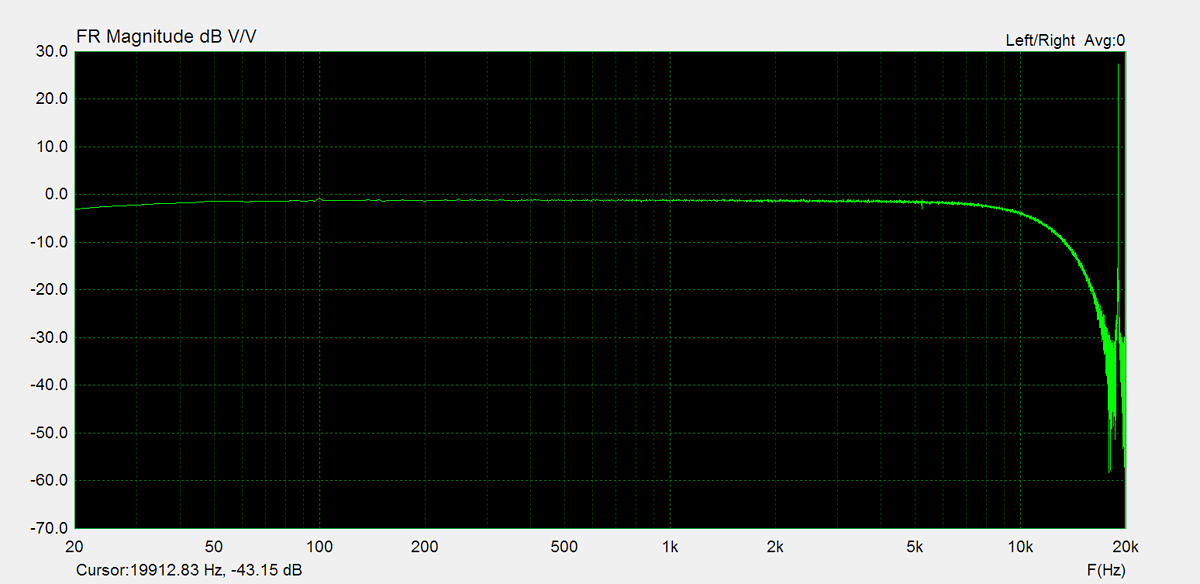

12. Sanyo FMT-301 - FR Stereo - Left Chanel12. FR Stereo - Left Chanel
13. Sanyo FMT-301 - FR Stereo - Right Chanel13. FR Stereo - Right Chanel

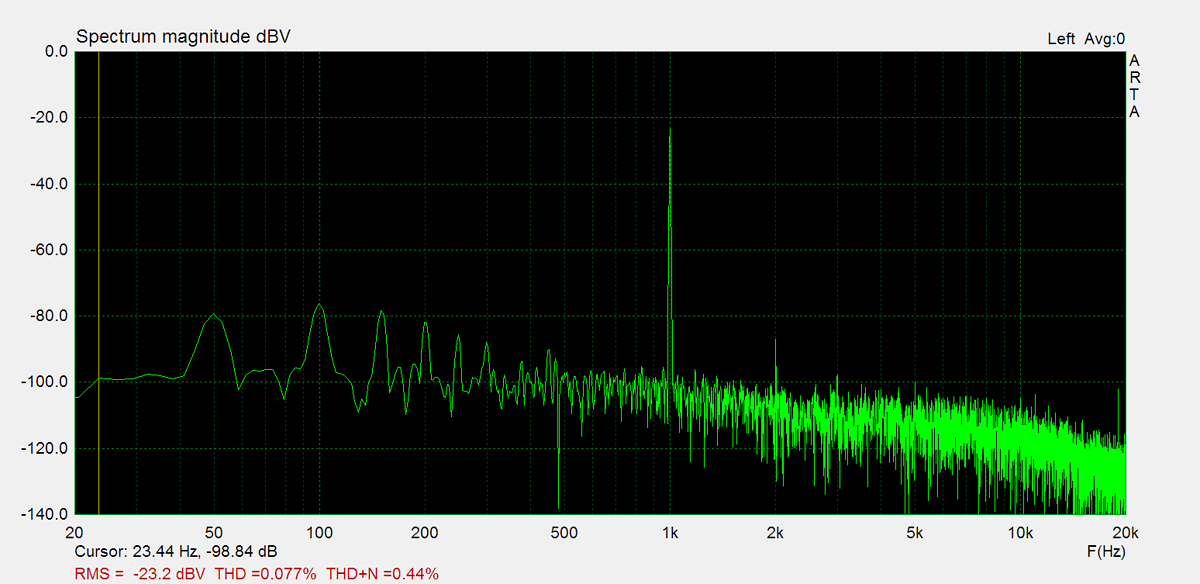

14. Sanyo FMT-301 - THD Mono - Left Chanel14. THD Mono - Left Chanel
15. Sanyo FMT-301 - THD Mono - Right Chanel15. THD Mono - Right Chanel

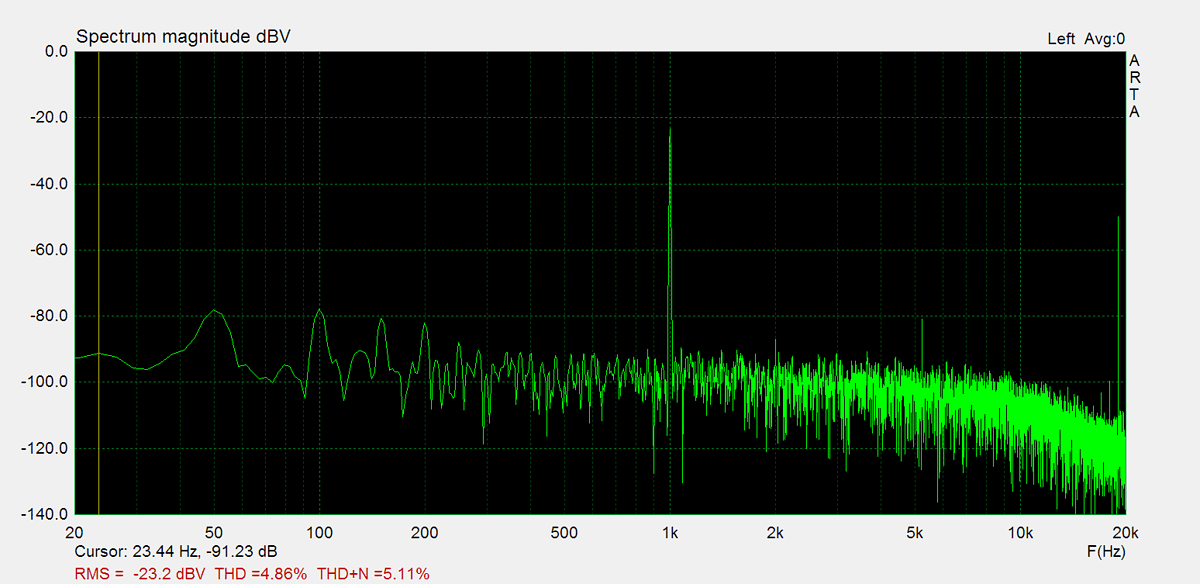

16. Sanyo FMT-301 - THD Stereo - Left Chanel16. THD Stereo - Left Chanel

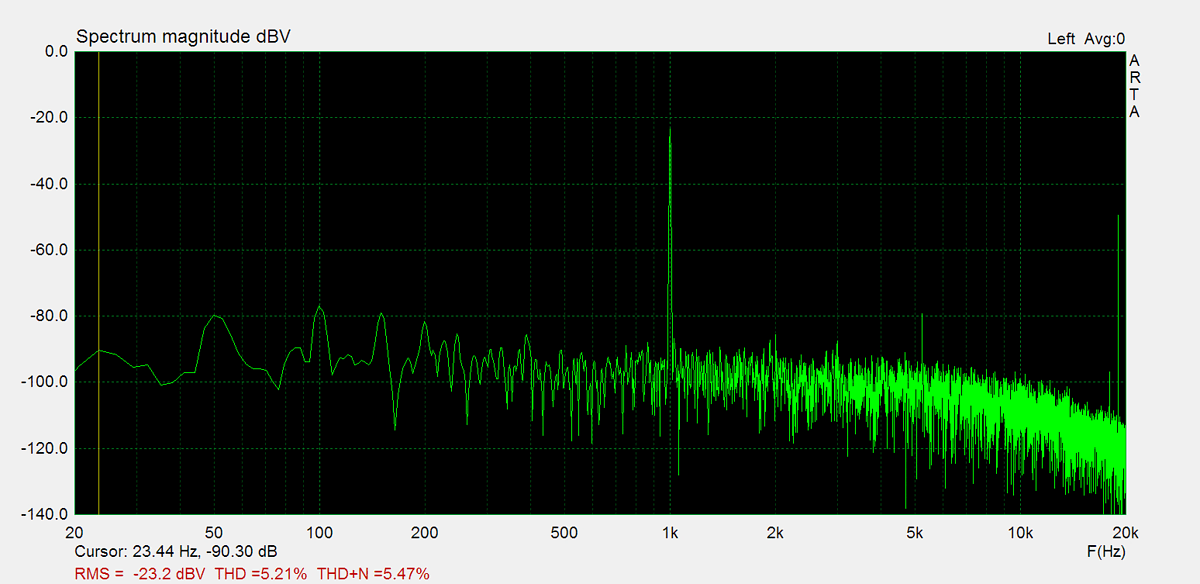

17. Sanyo FMT-301 - THD Stereo - Right Chanel17. THD Stereo - Right Chanel

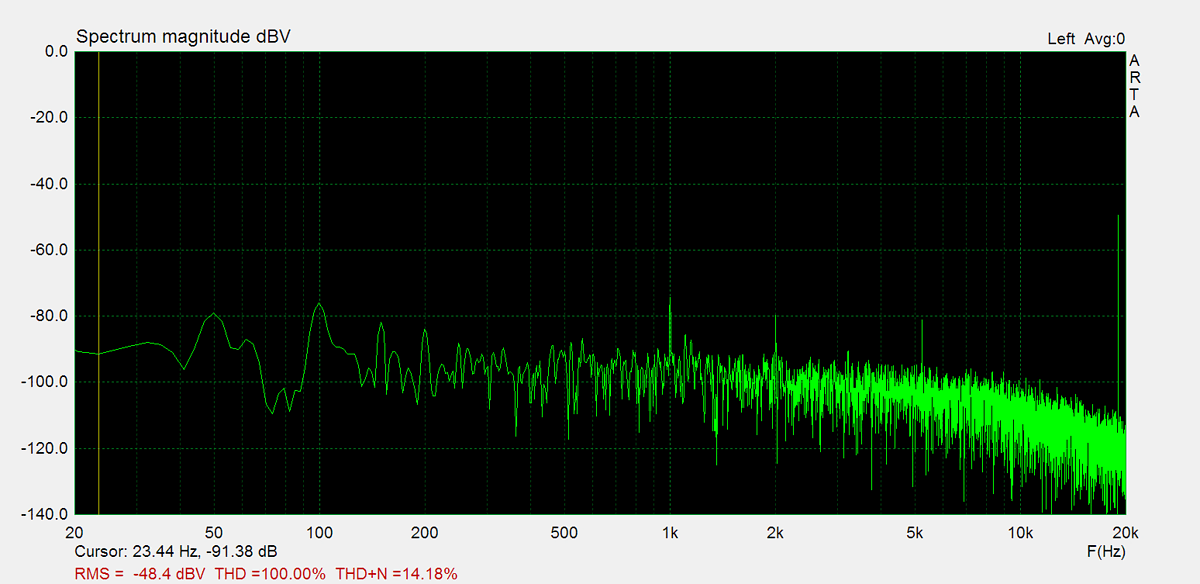

18. Sanyo FMT-301 - Separation Left Off - Left Chanel18. Separation Left Off - Left Chanel
19. Sanyo FMT-301 - Separation Right Off - Right Chanel19. Separation Right Off - Right Chanel

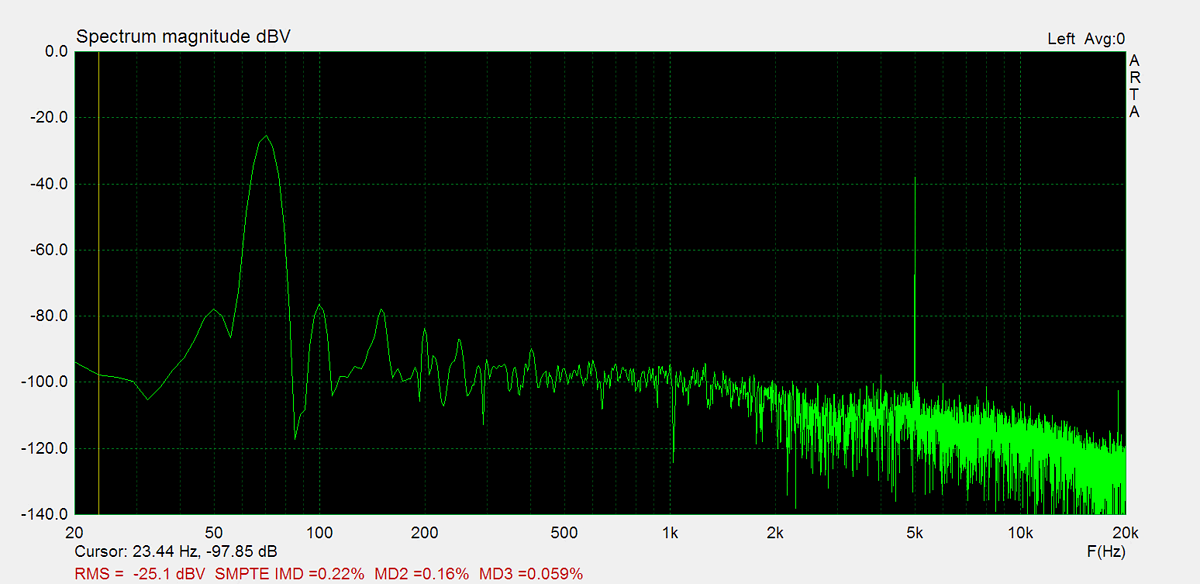

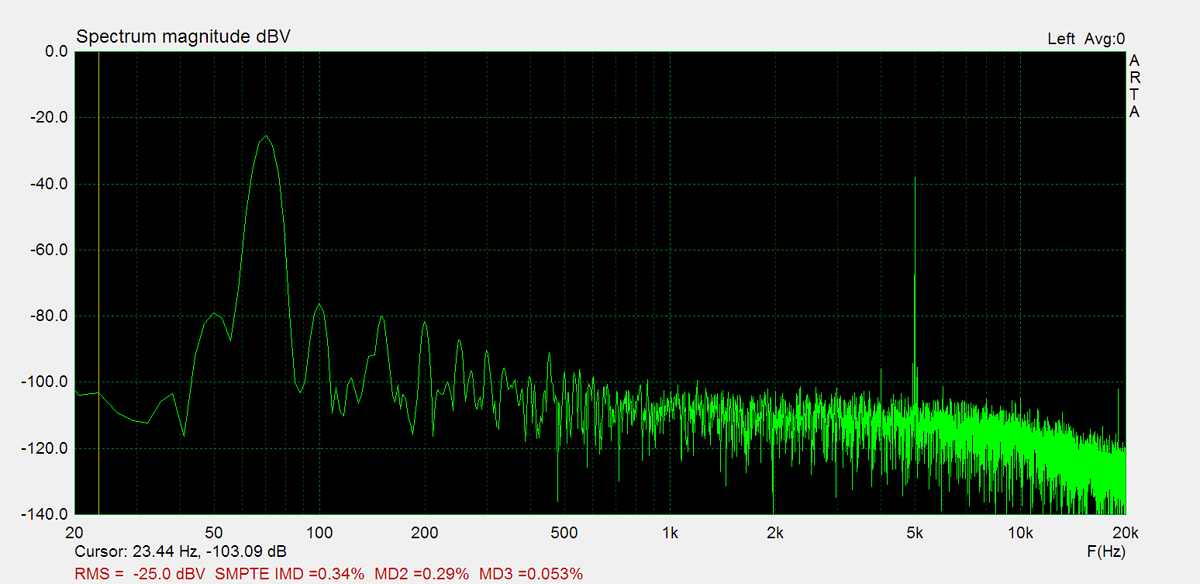

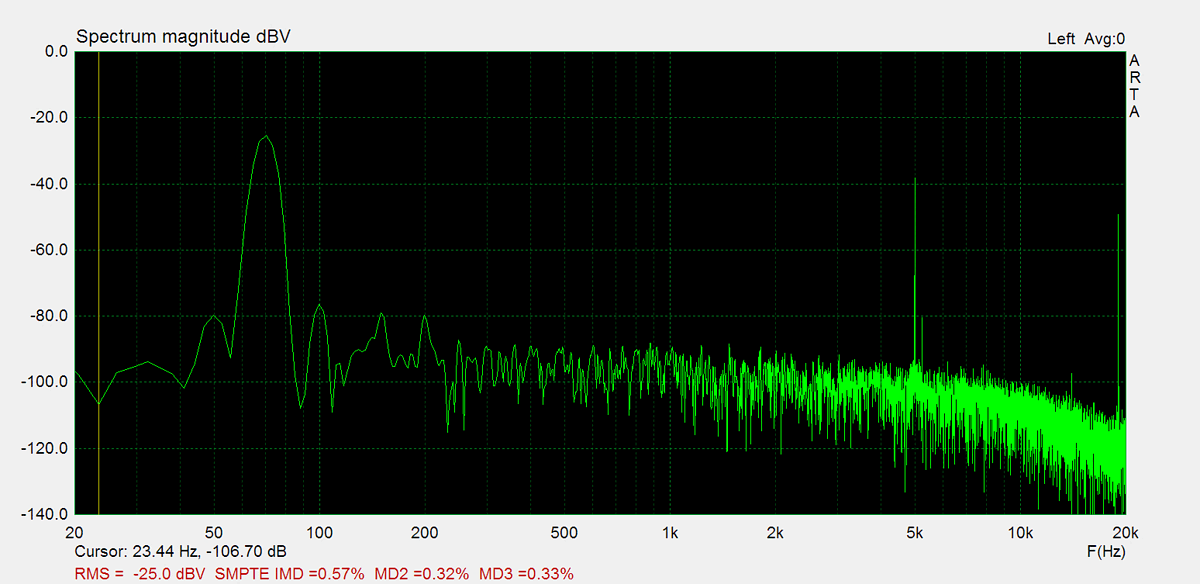

20. Sanyo FMT-301 - IMD Mono - Left Chanel20. IMD Mono - Left Chanel
21. Sanyo FMT-301 - IMD Mono - Right Chanel21. IMD Mono - Right Chanel

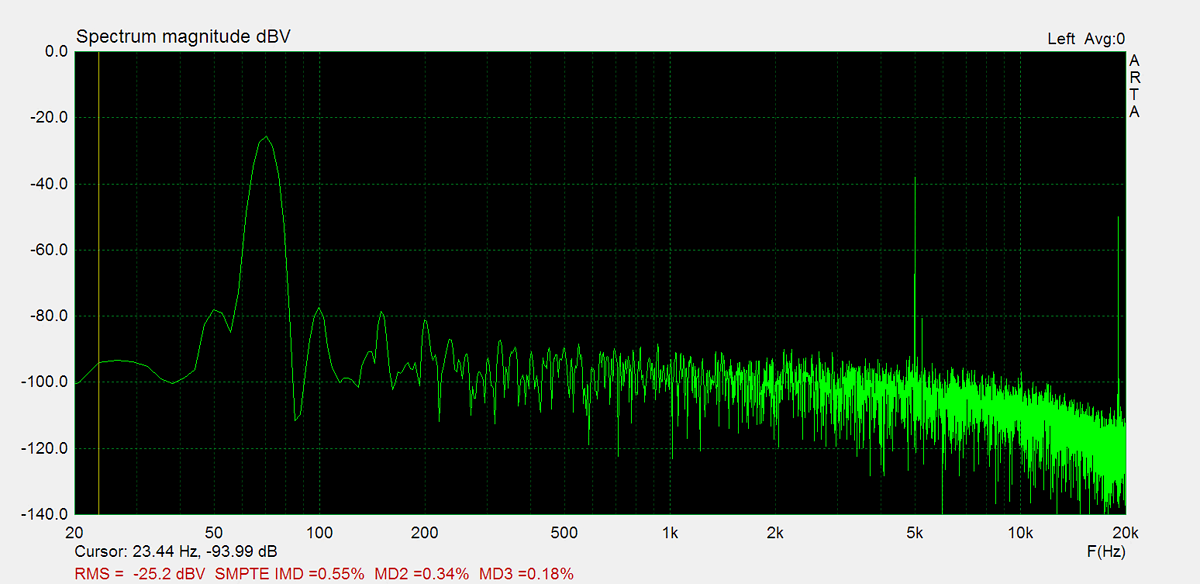

22. Sanyo FMT-301 - IMD Stereo - Left Chanel22. IMD Stereo - Left Chanel
23. Sanyo FMT-301 - IMD Stereo - Right Chanel23. IMD Stereo - Right Chanel

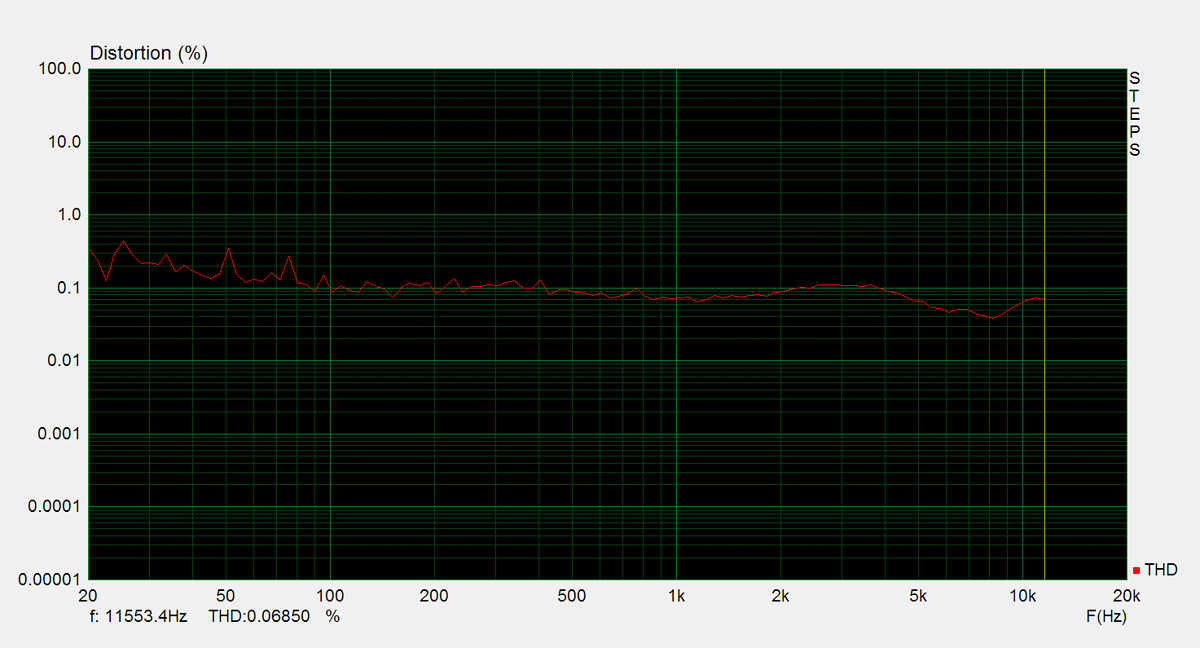

24. Sanyo FMT-301 - THD vs Frequency Mono - Left Chanel24. THD vs Frequency Mono - Left Chanel
25. Sanyo FMT-301 - THD vs Frequency Mono - Right Chanel25. THD vs Frequency Mono - Right Chanel
26. Sanyo FMT-301 - THD vs Frequency Stereo - Left Chanel26. THD vs Frequency Stereo - Left Chanel
27. Sanyo FMT-301 - THD vs Frequency Stereo - Right Chanel27. THD vs Frequency Stereo - Right Chanel
