Sony ST-S590ES
The Sony ST-S590ES is an RDS stereo FM/AM tuner from the early 1990s, part of Sony's high-end ES series.

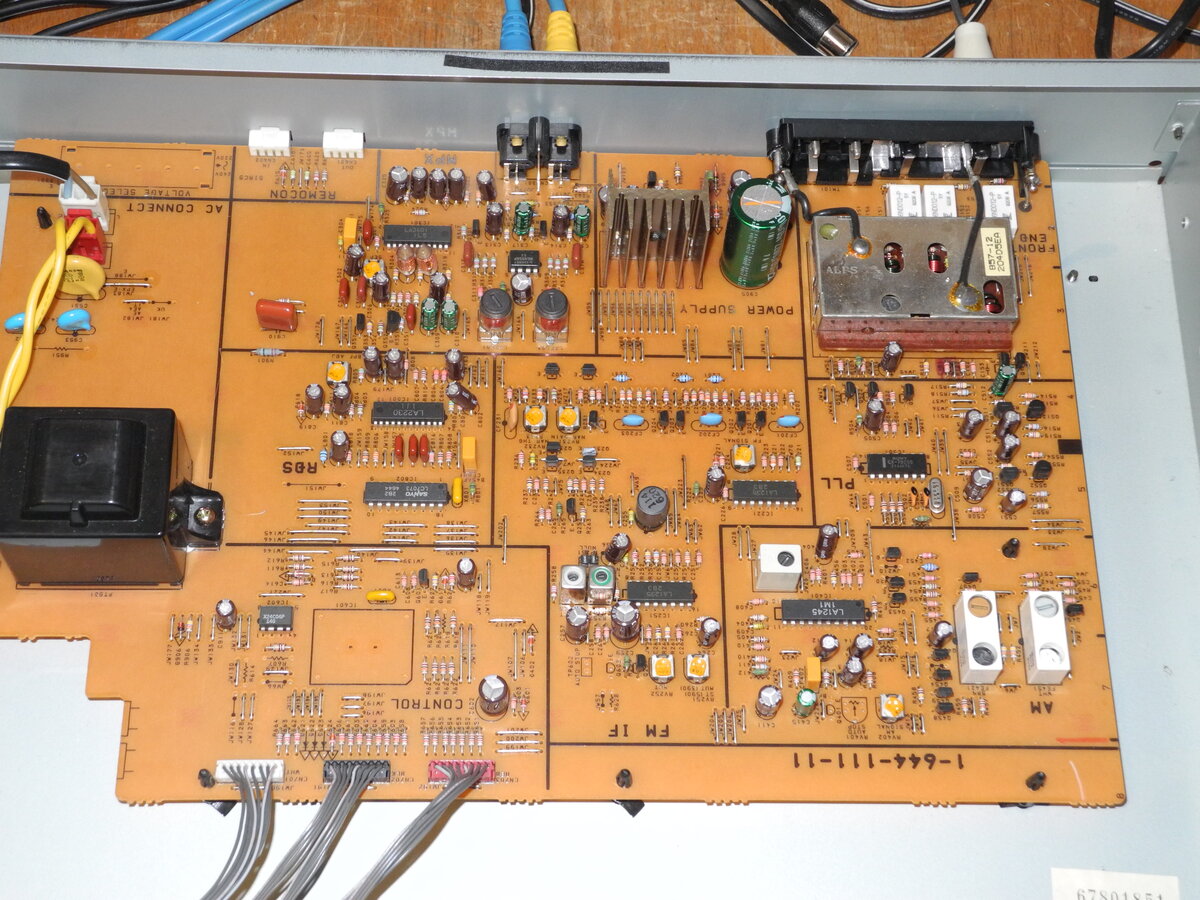

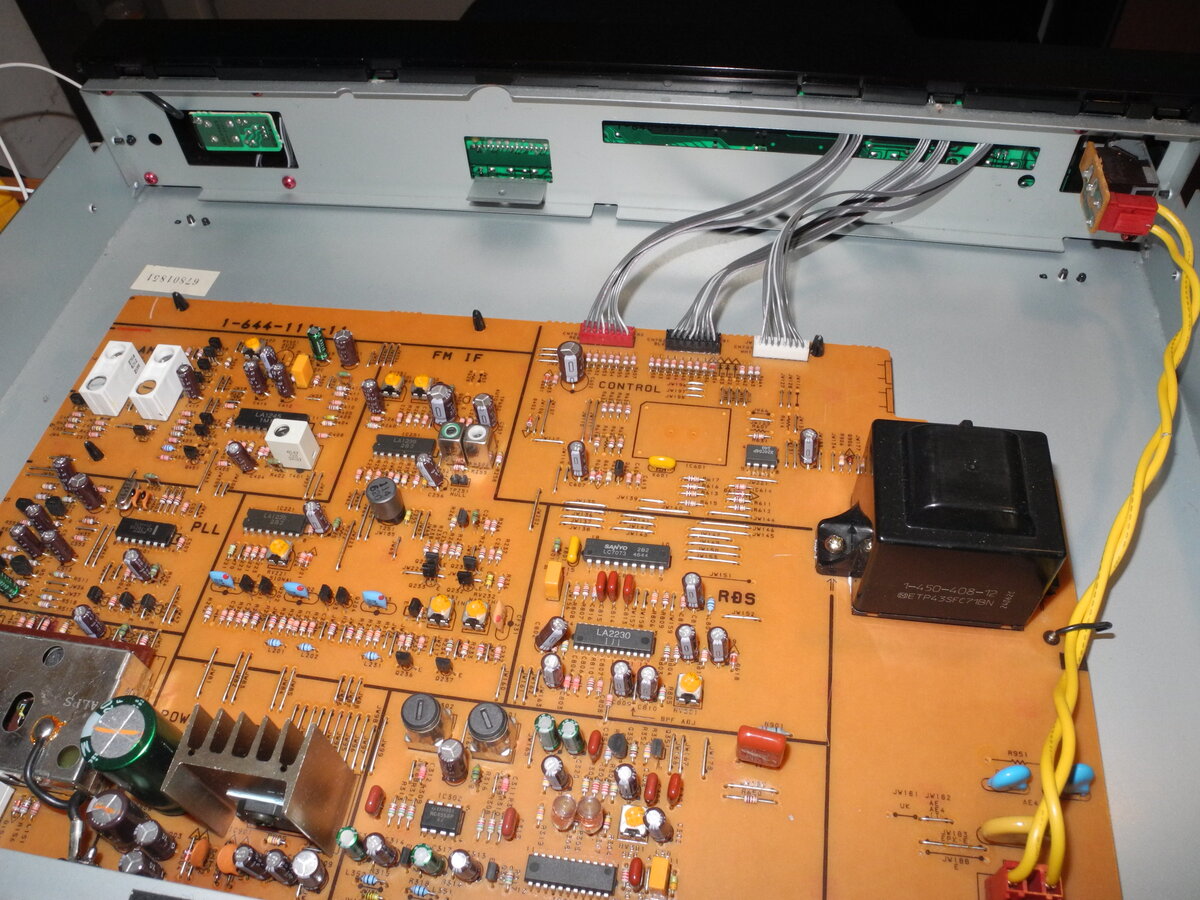

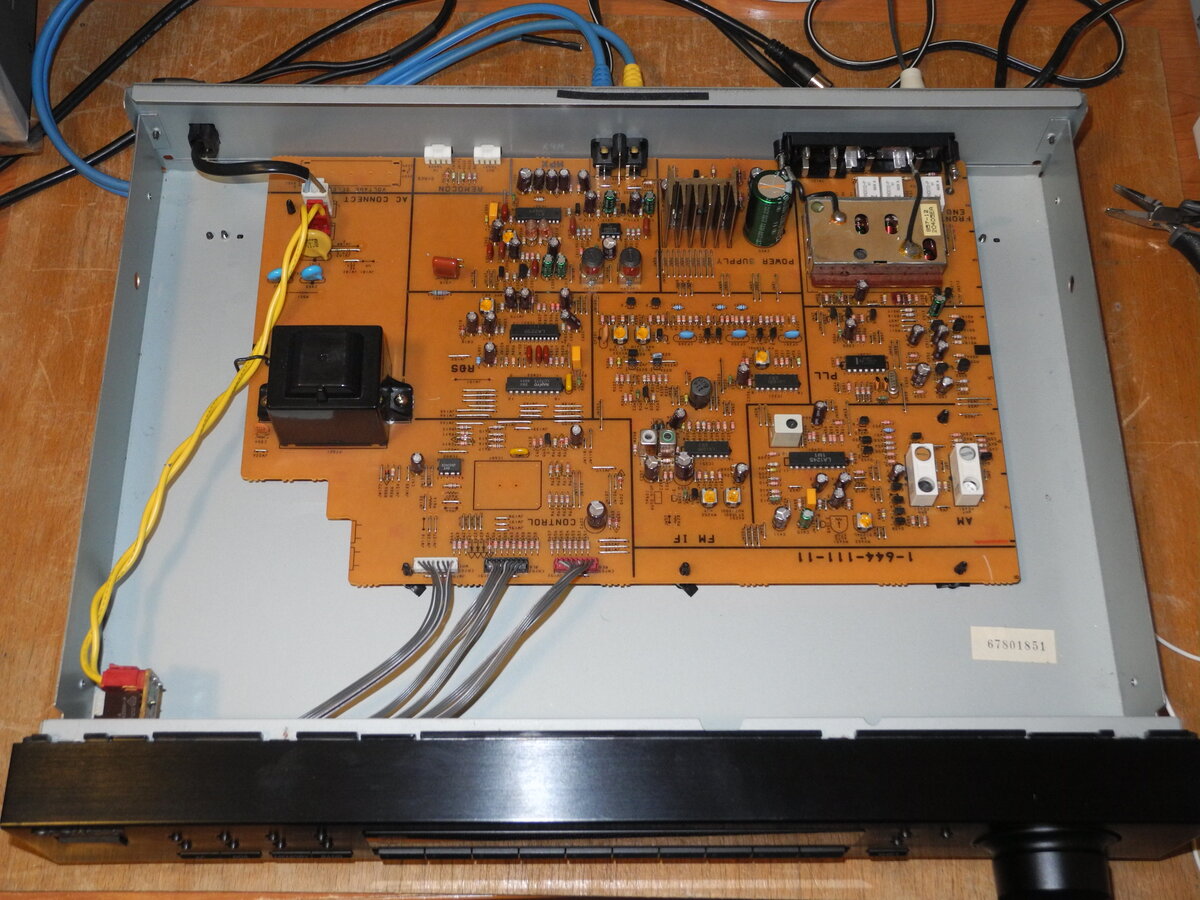

The FM tuner section is built around the FE101 front-end module, followed by four ceramic filters for effective IF selectivity. Signal processing is handled by the LA1235 IF amplifier and detector, while stereo decoding is performed by the LA3401. RDS data is decoded by the LA2230, with system control provided by the uPD75512 microcontroller.

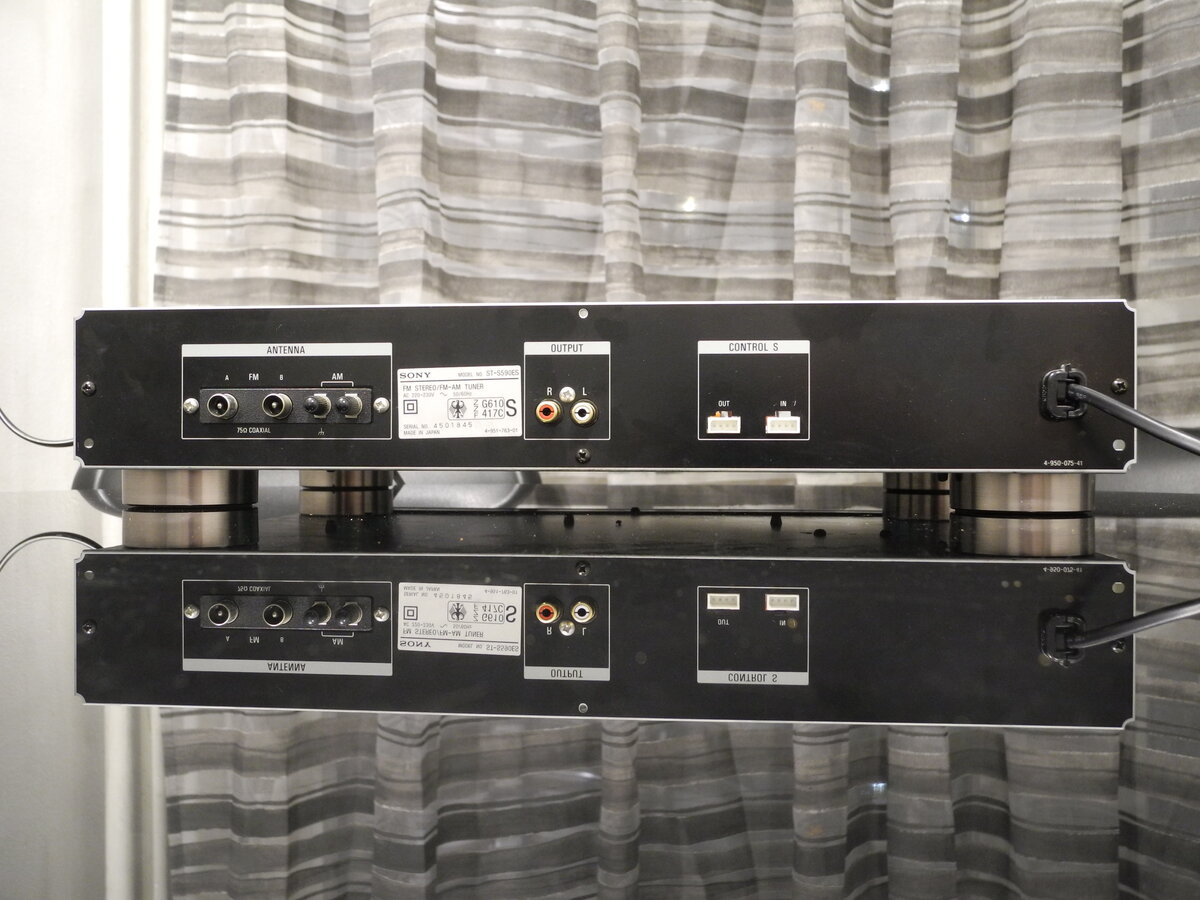

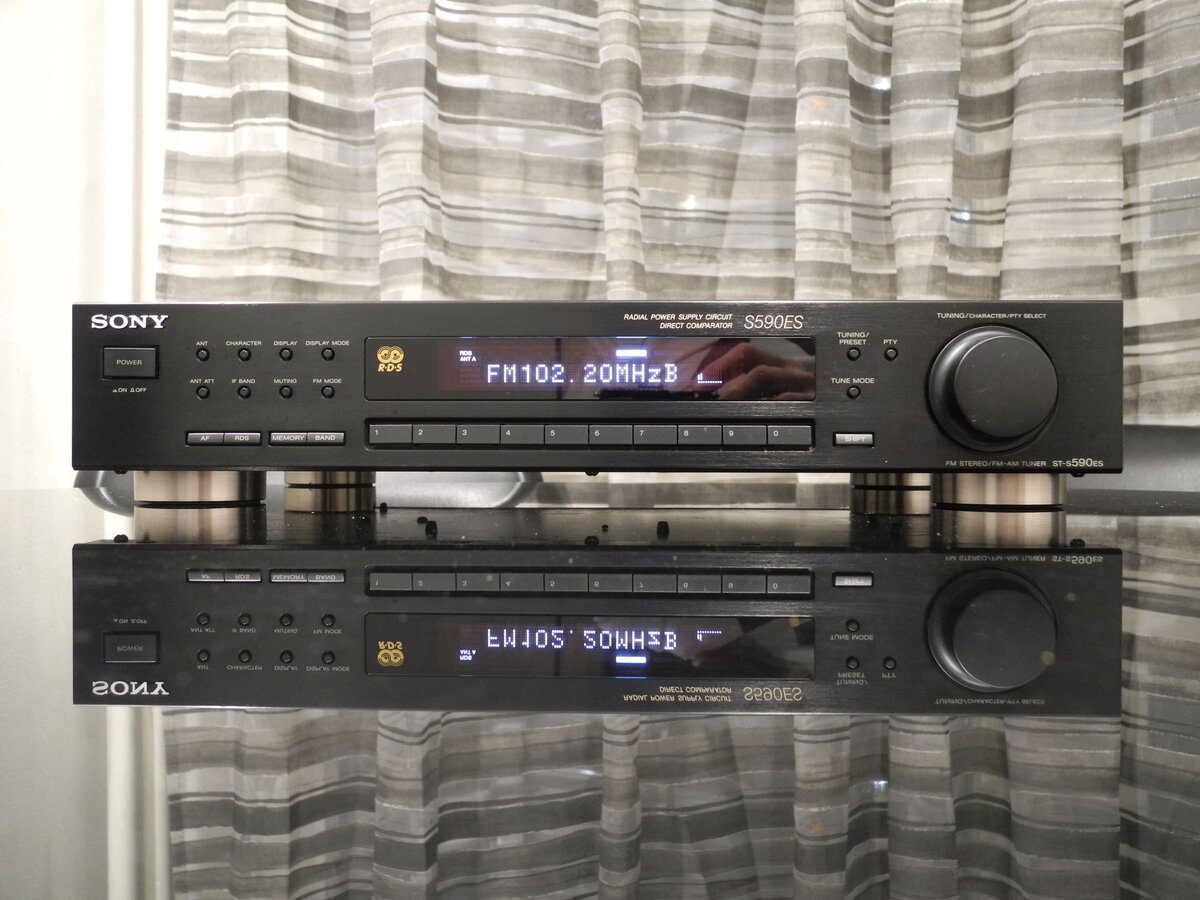

The Sony ST-S590ES supports remote control operation, dual antenna inputs, selectable Wide and Narrow IF bandwidth modes, and features a well-designed rotary tuning dial. Overall performance is very good, while its styling is typical of Sony components from the early 1990s.
Manufacturer: Sony
Status: Active company
Official website: sony.com
General Specifications
Antenna Input: 75ΩFM Tuning Range: 87.5MHz-108.0MHz
Quieting Sensitivity (46dB): 23uV
Signal-to-Noise Ratio: 76dB
Total Harmonic Distortion: 0.04%
Frequency Response (15Hz-15KHz): ±0.2dB
Stereo Separation (1KHz): 60dB
Dimensions (WHD): 430×85×345mm
Weight: 4.0kg
Produced: 1992-1994
Initial price: 590DM

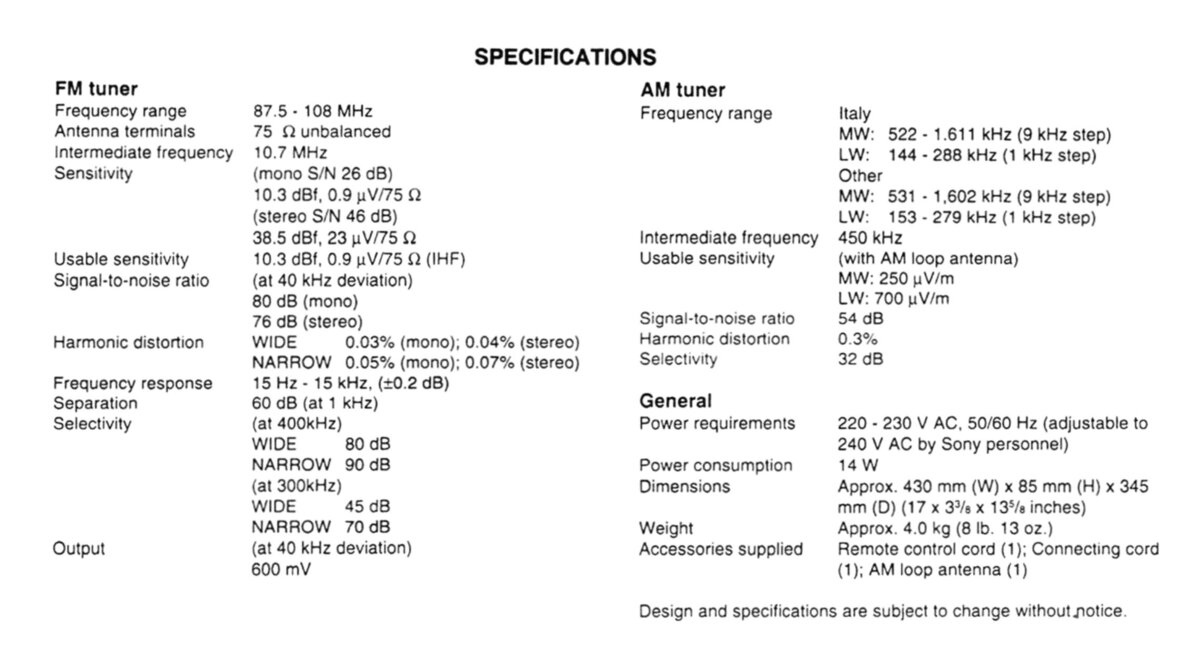

Factory Specification Sheet
Factory specification images are sourced directly from the device's original service manual or user manual. These documents are produced by the manufacturer and provide authoritative information on the product's specifications.
FM Tuner

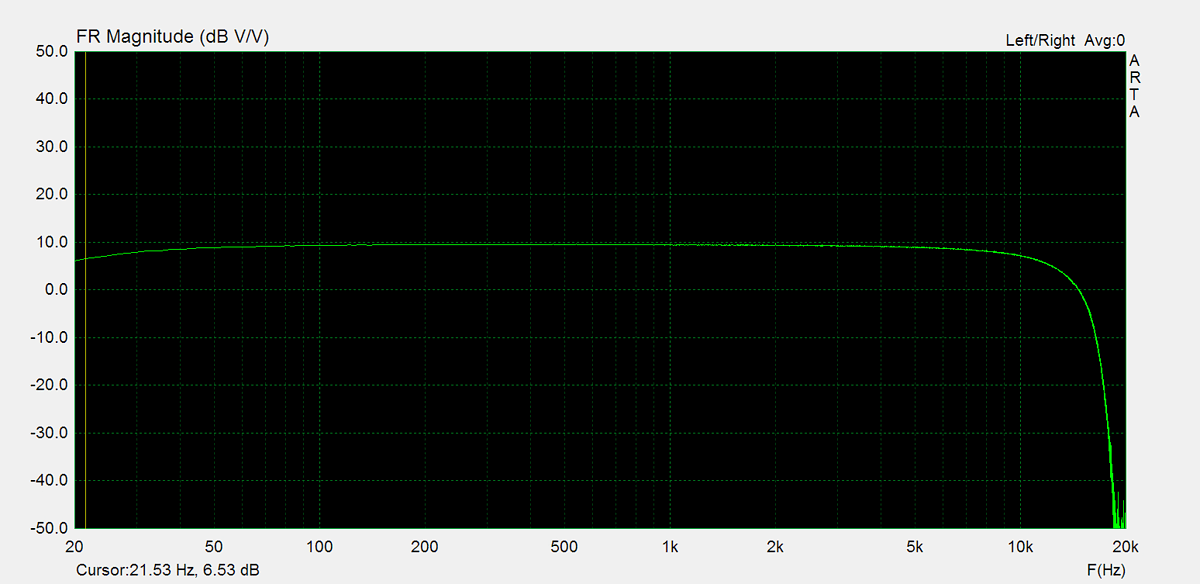

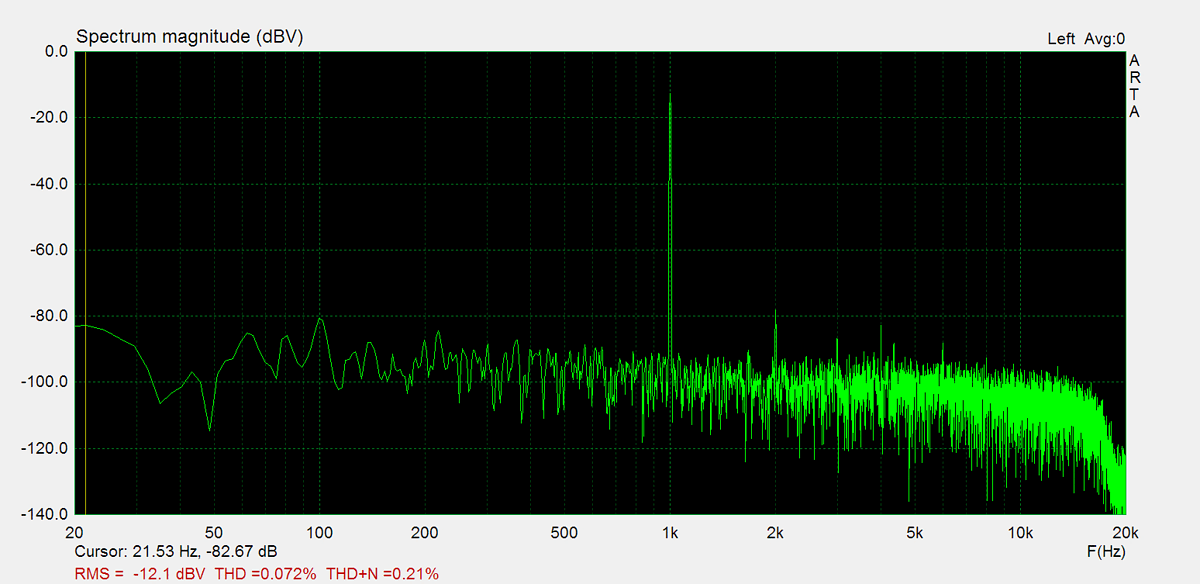

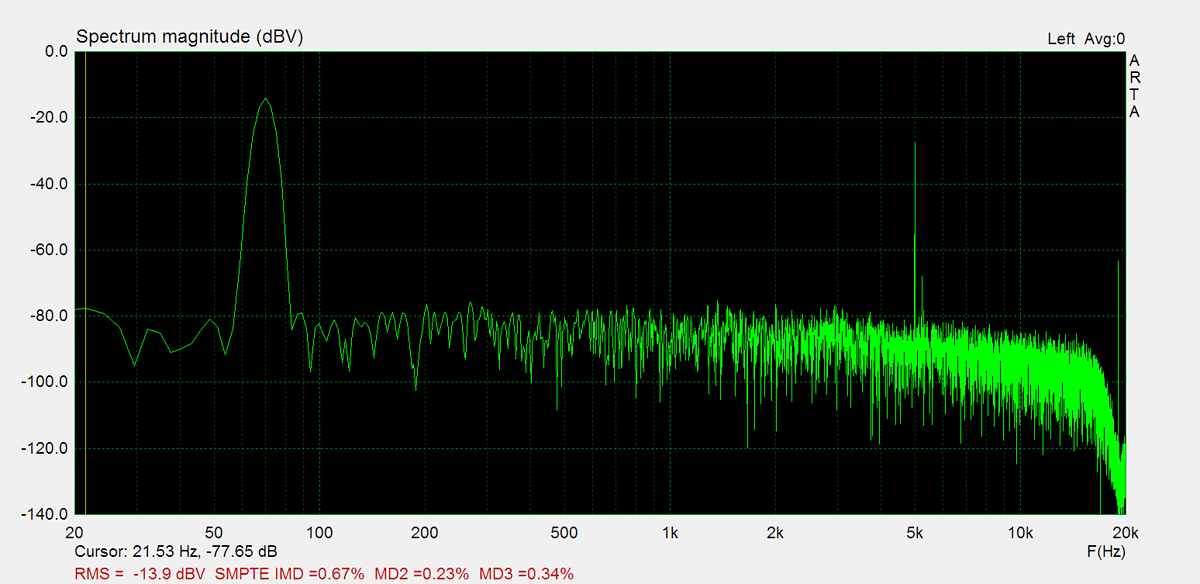

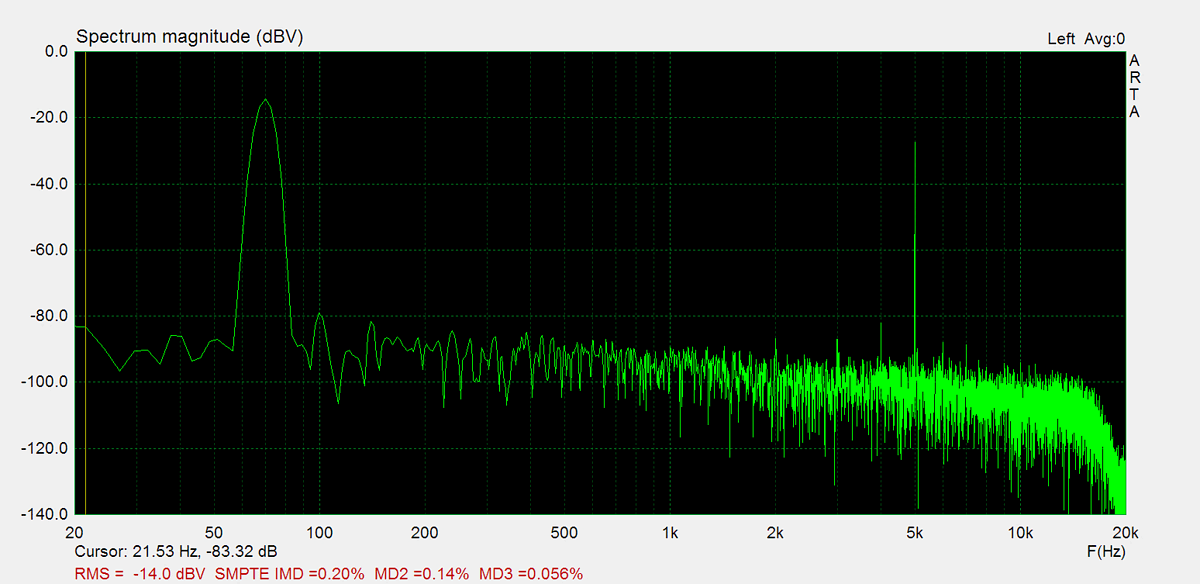

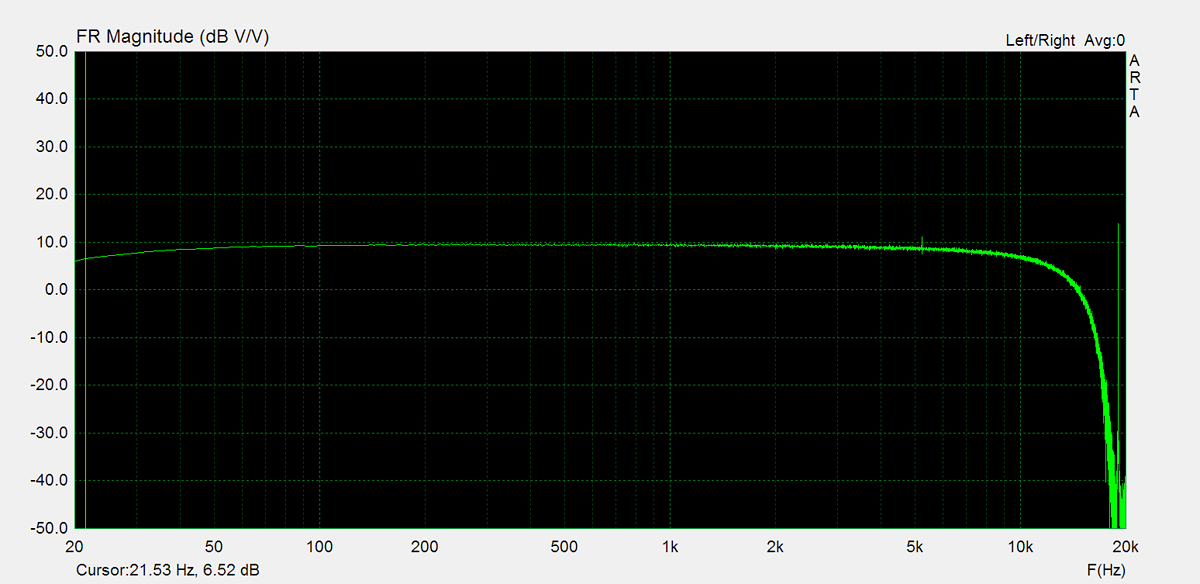

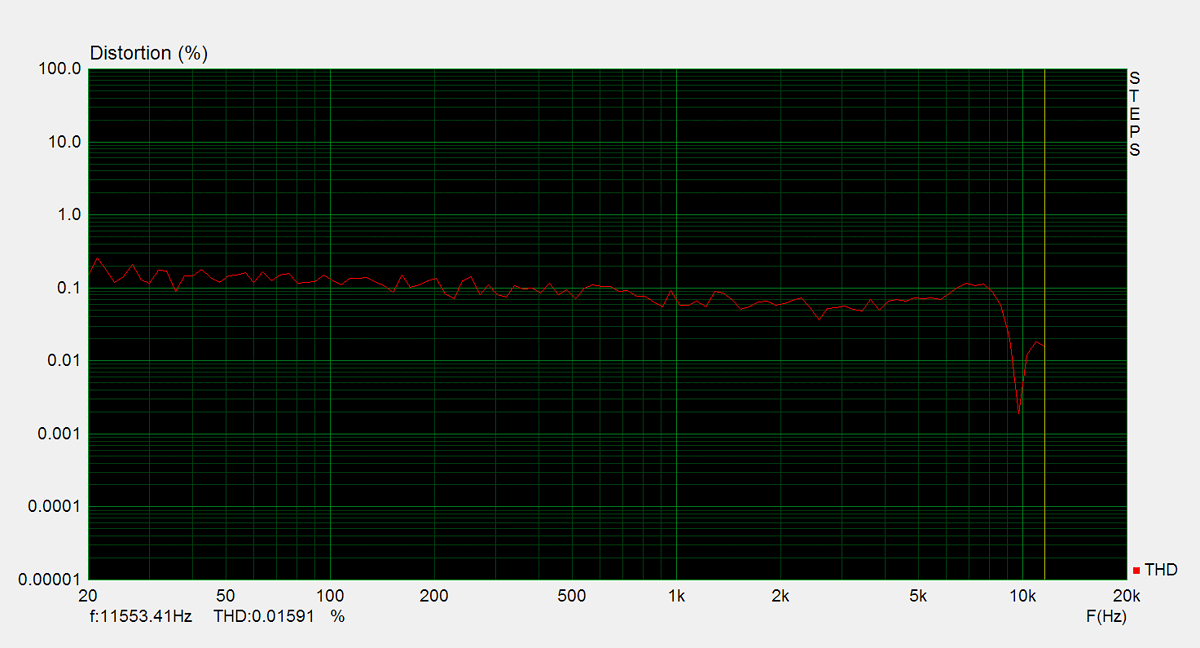

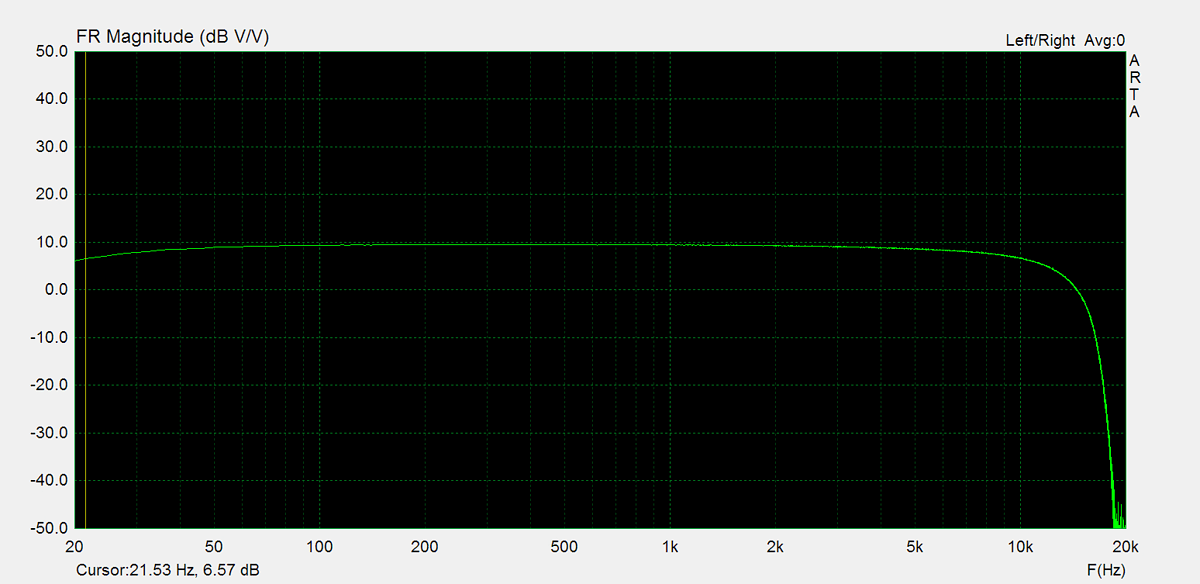

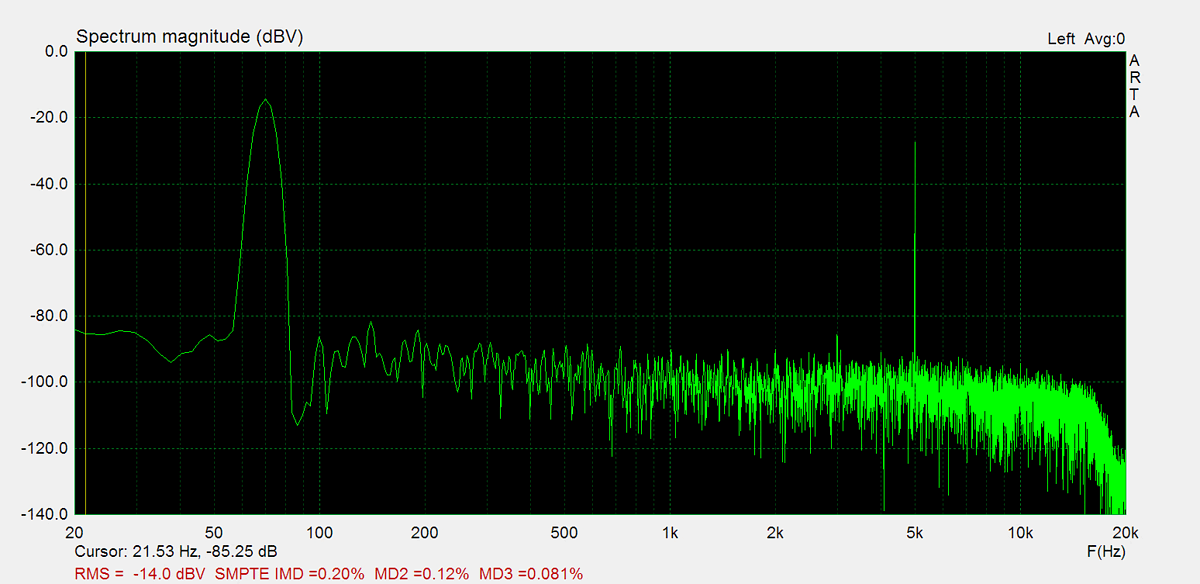

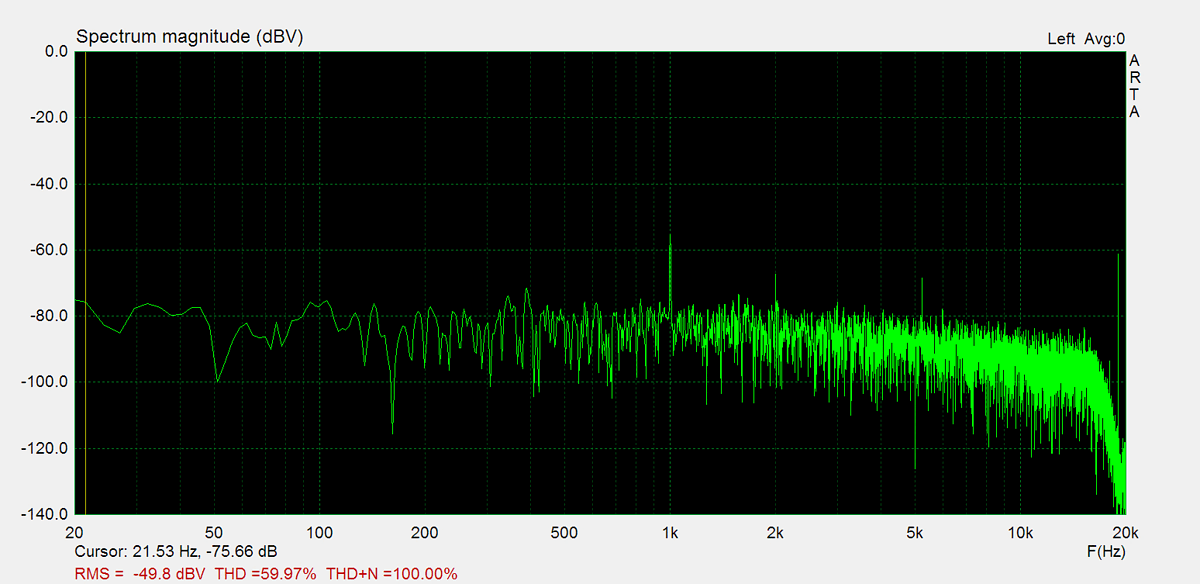

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.
