Technics ST-610L

The Technics ST-610L is a medium range FM/AM/LW stereo tuner from the early 1990s.

Manufacturer: Technics
Status: Active company
Official website: technics.com

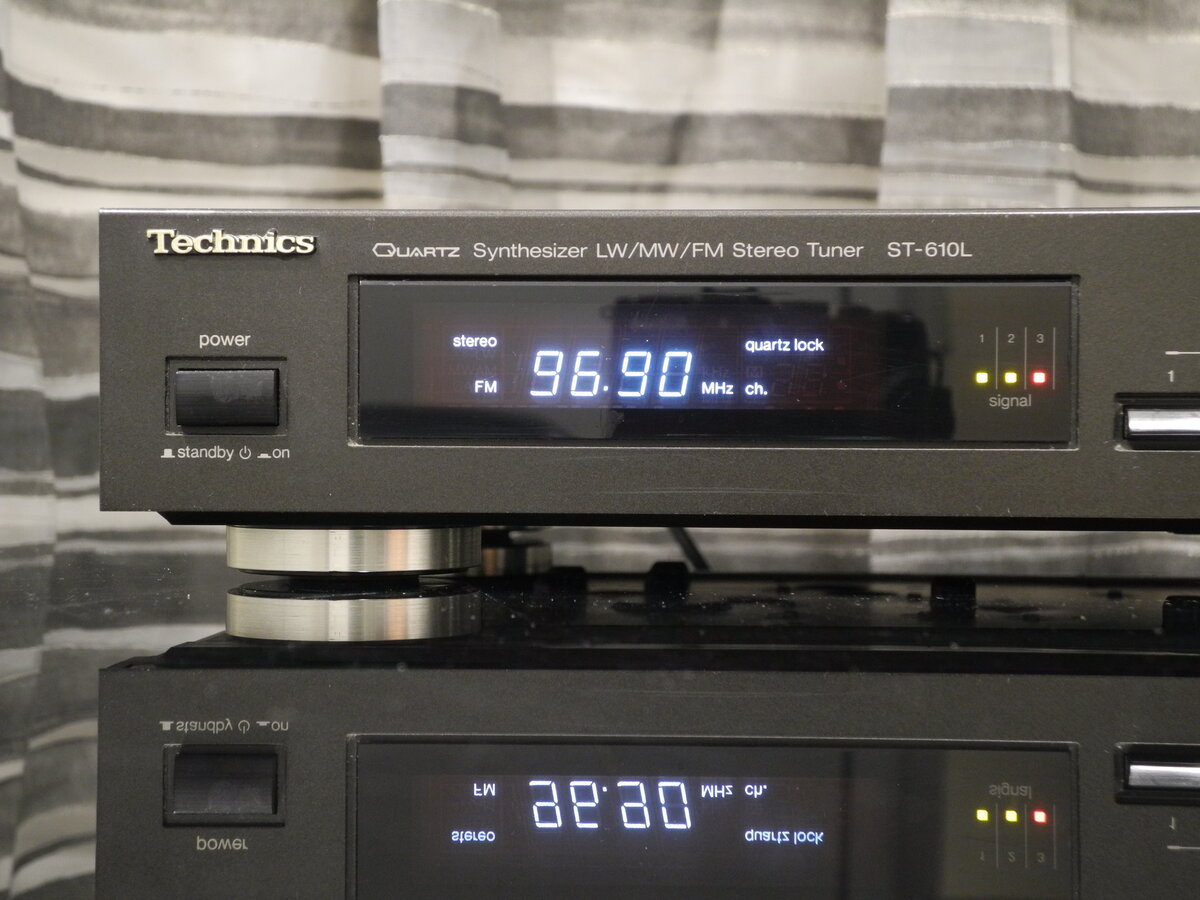

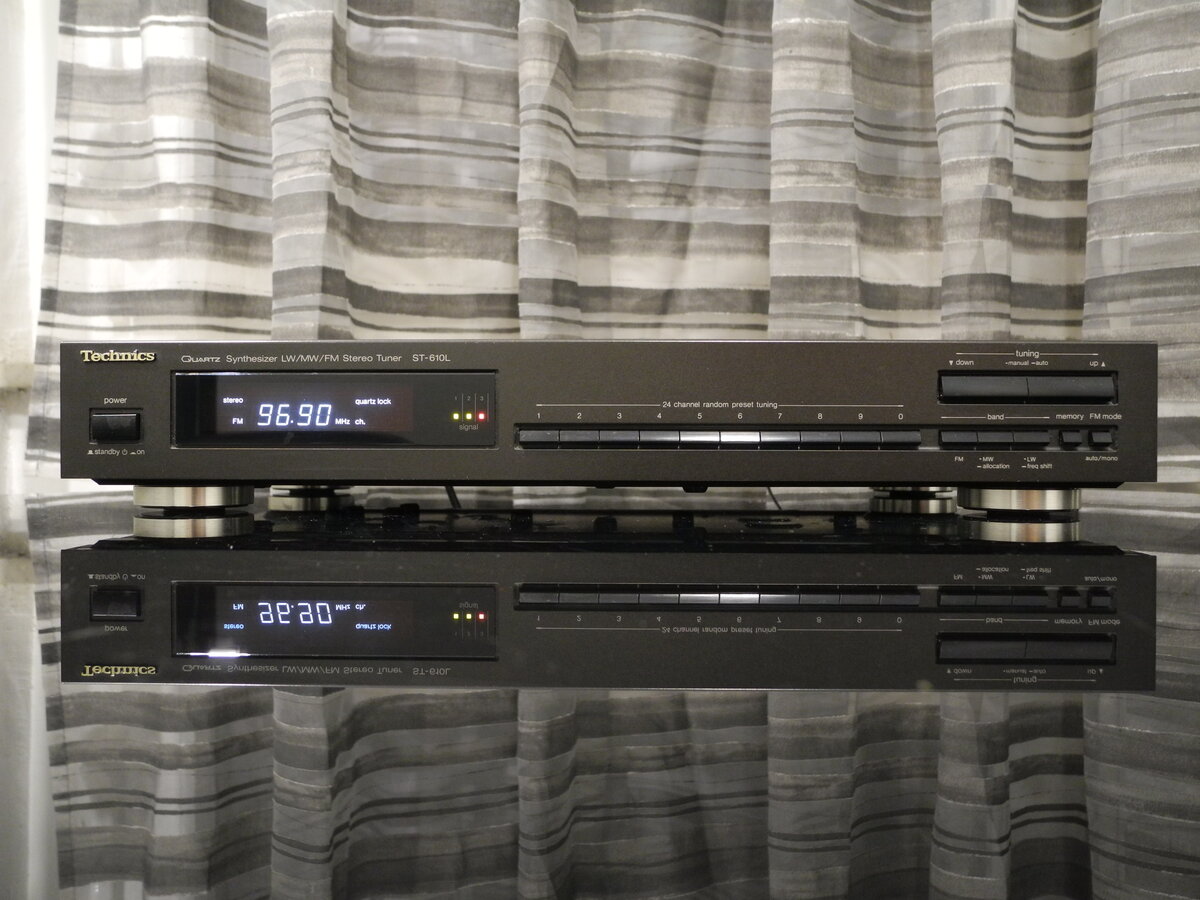

1. Technics ST-610L - Front View1. Front View

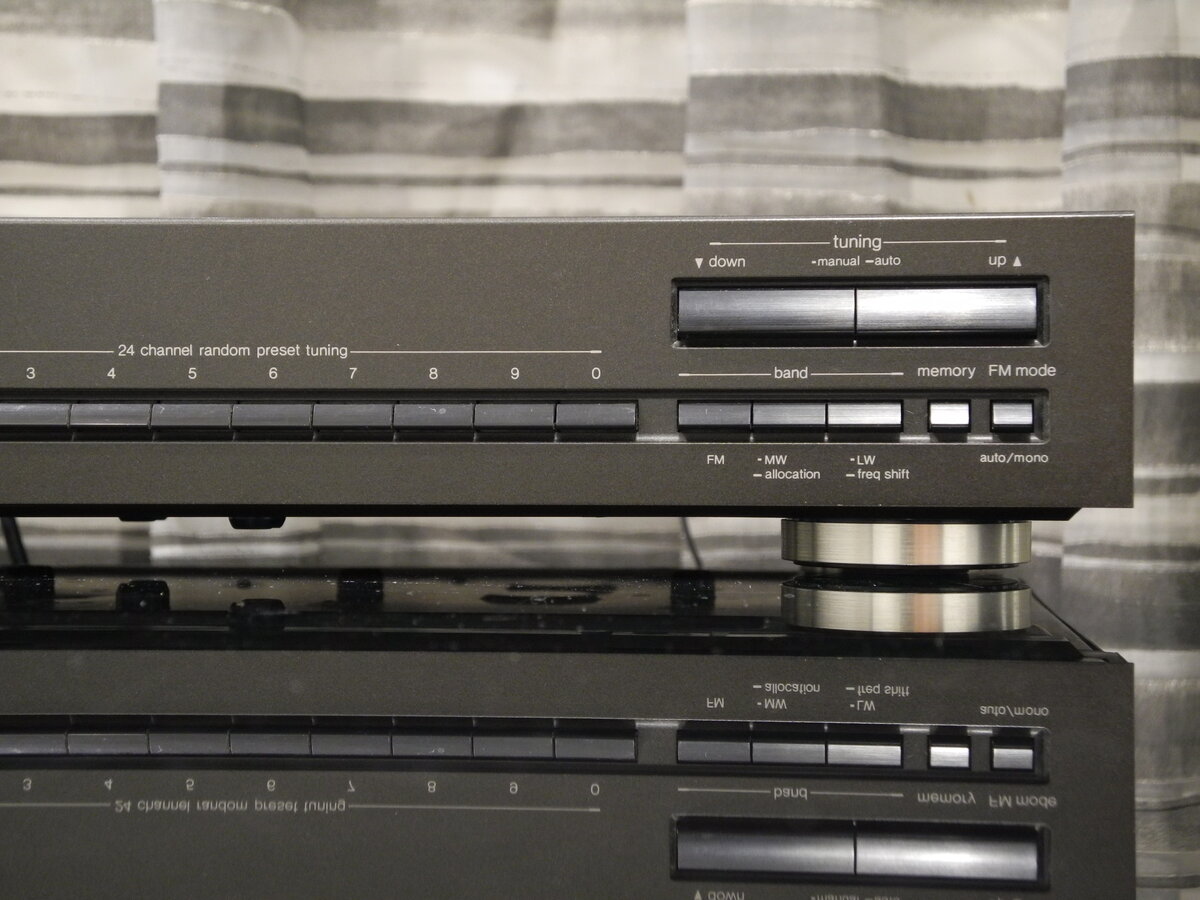

2. Technics ST-610L - Zoom Left2. Zoom Left
3. Technics ST-610L - Zoom Right3. Zoom Right

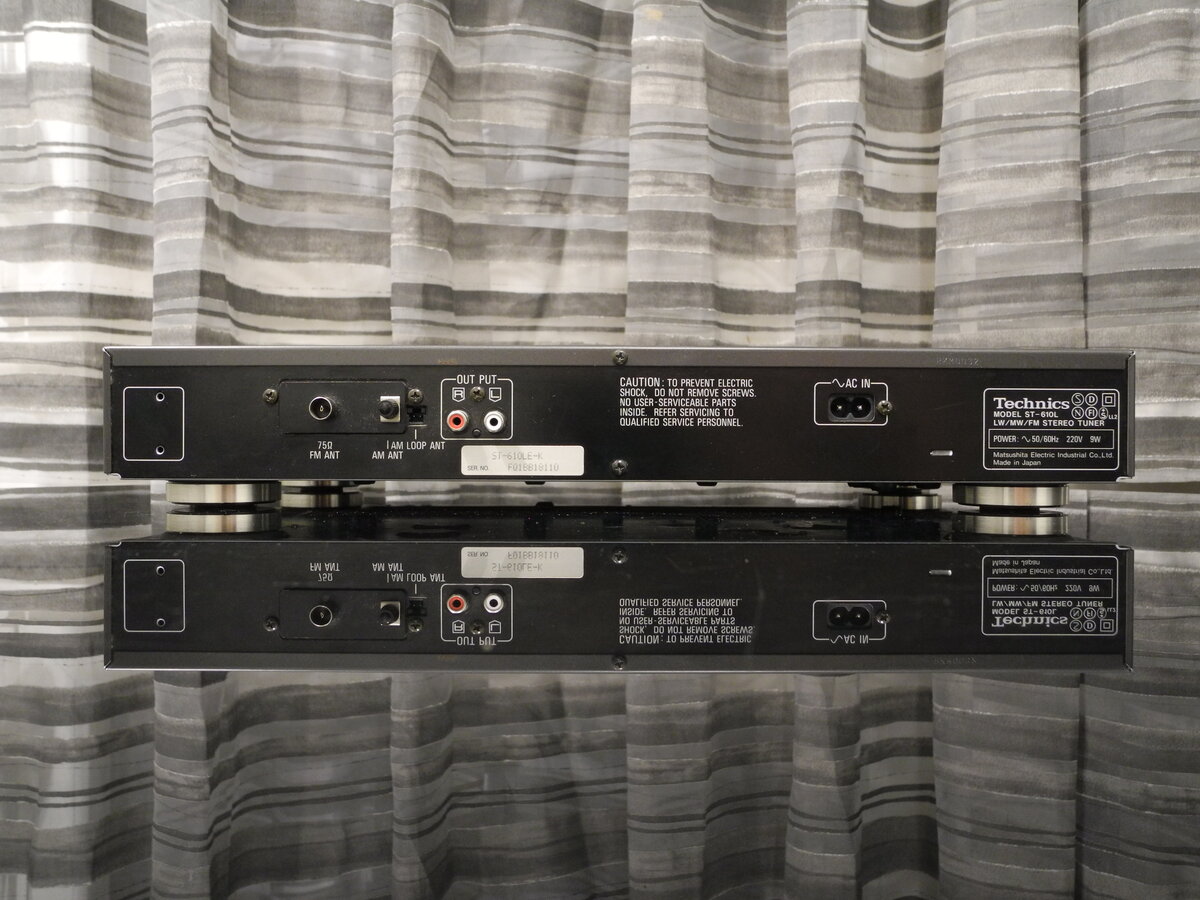

4. Technics ST-610L - Back View4. Back View

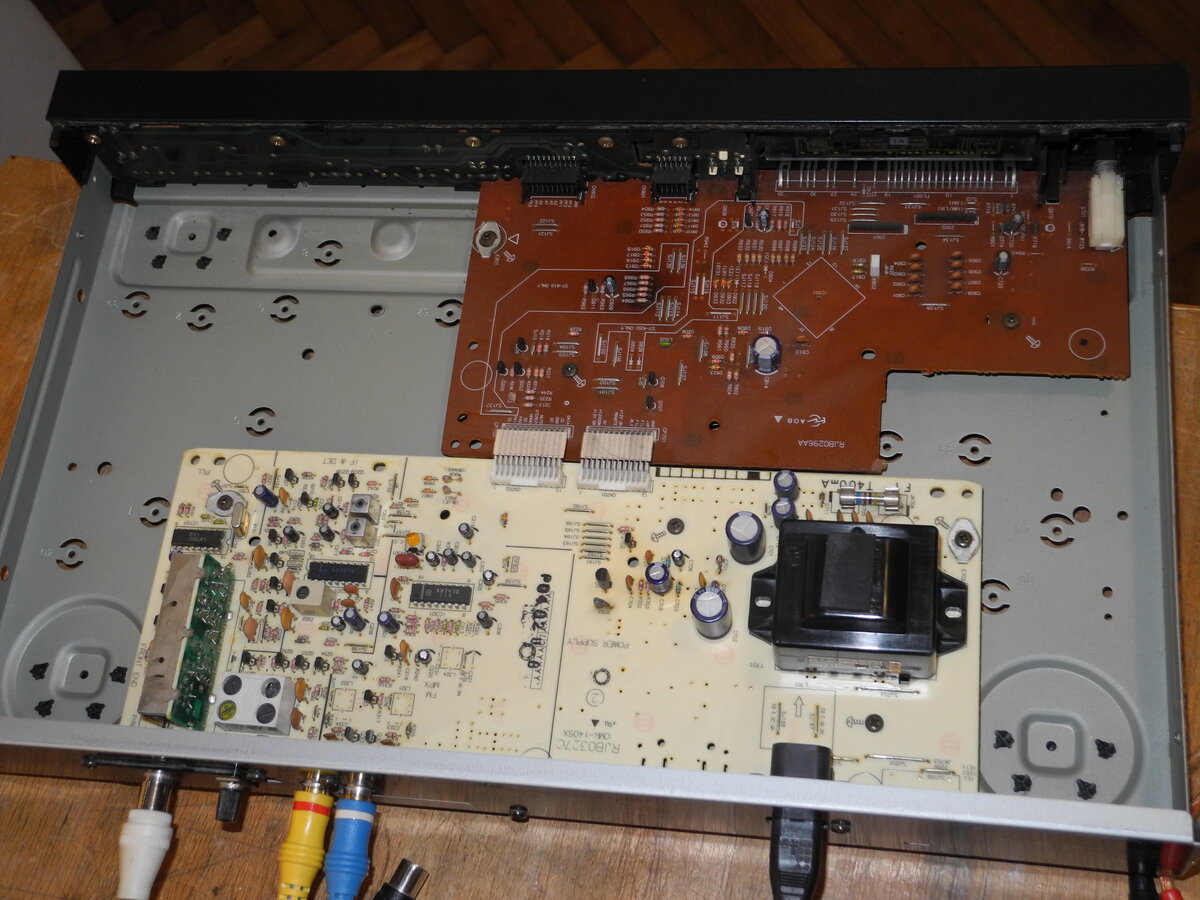

5. Technics ST-610L - Inside View5. Inside View

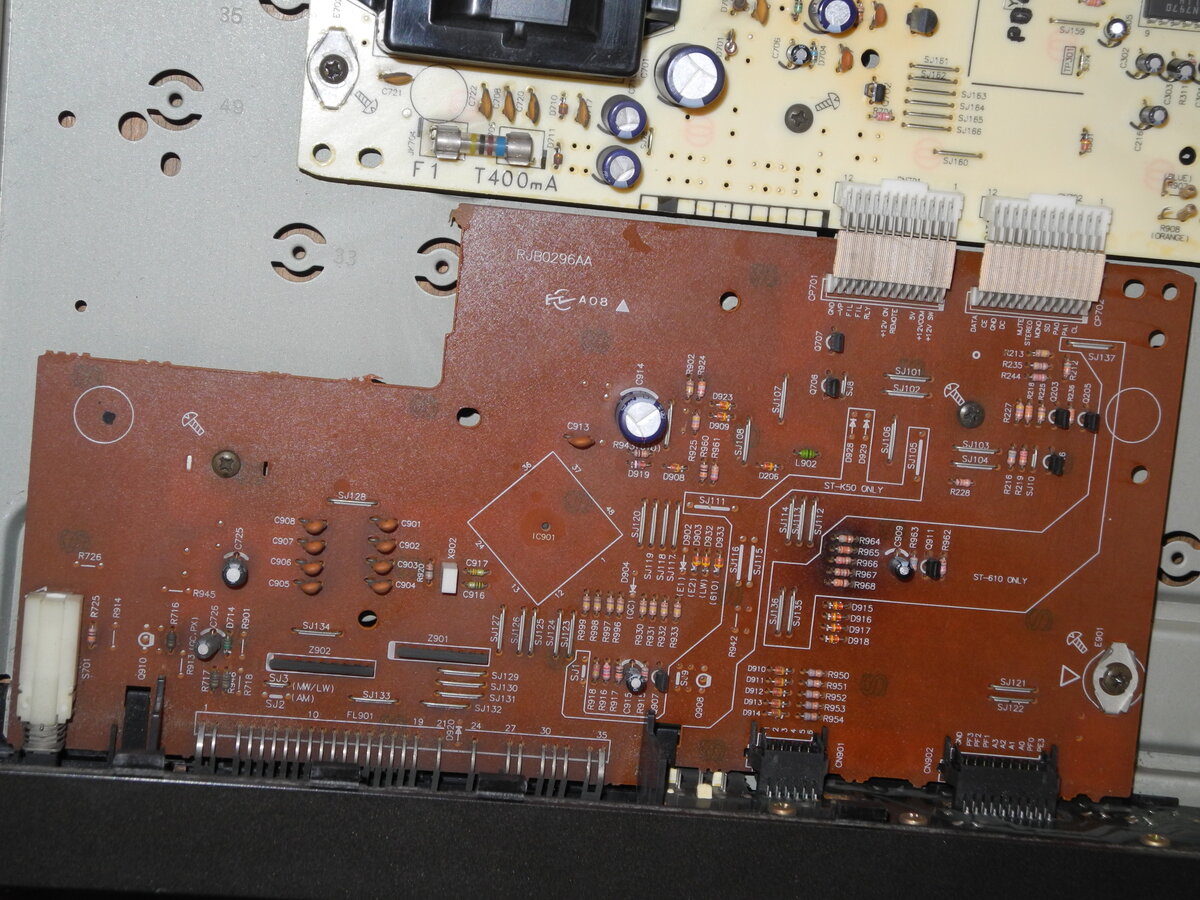

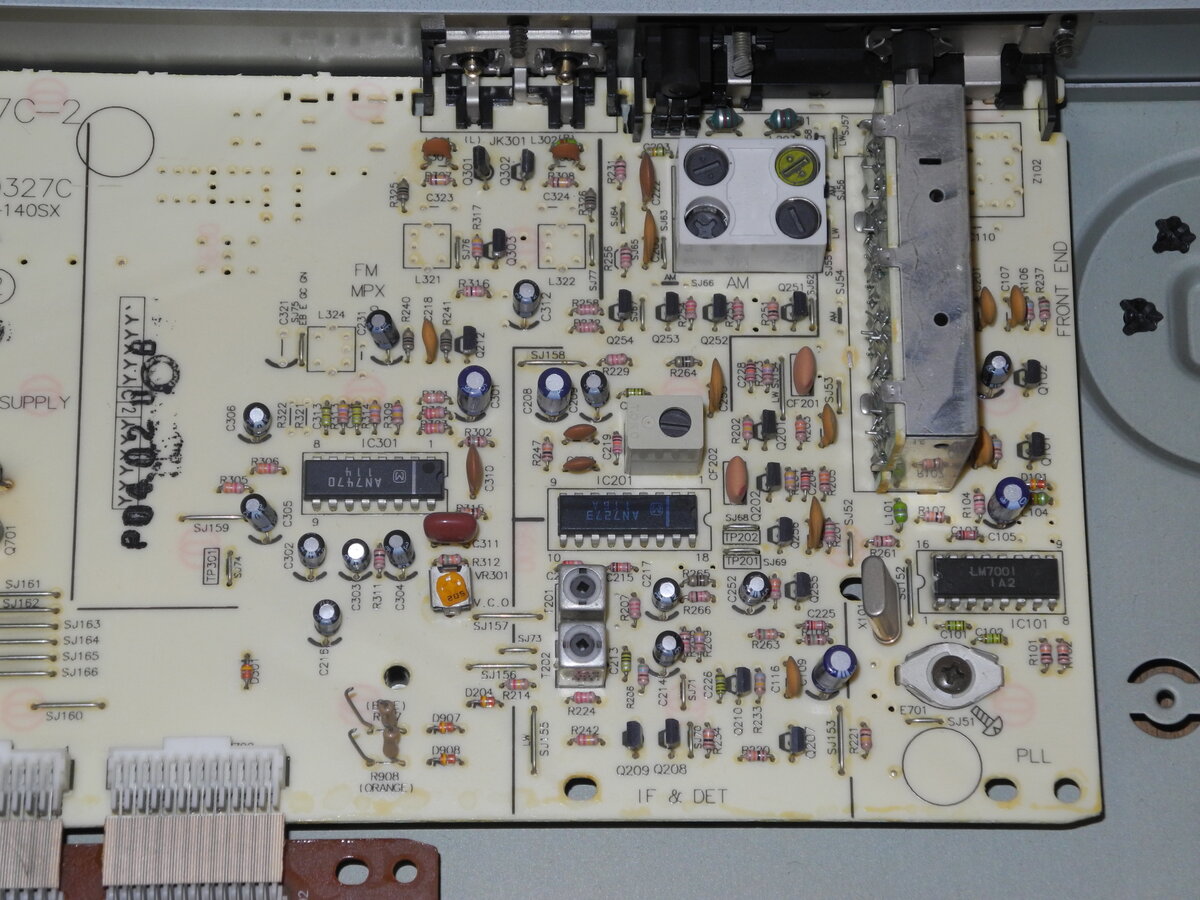

6. Technics ST-610L - Front End6. Front End

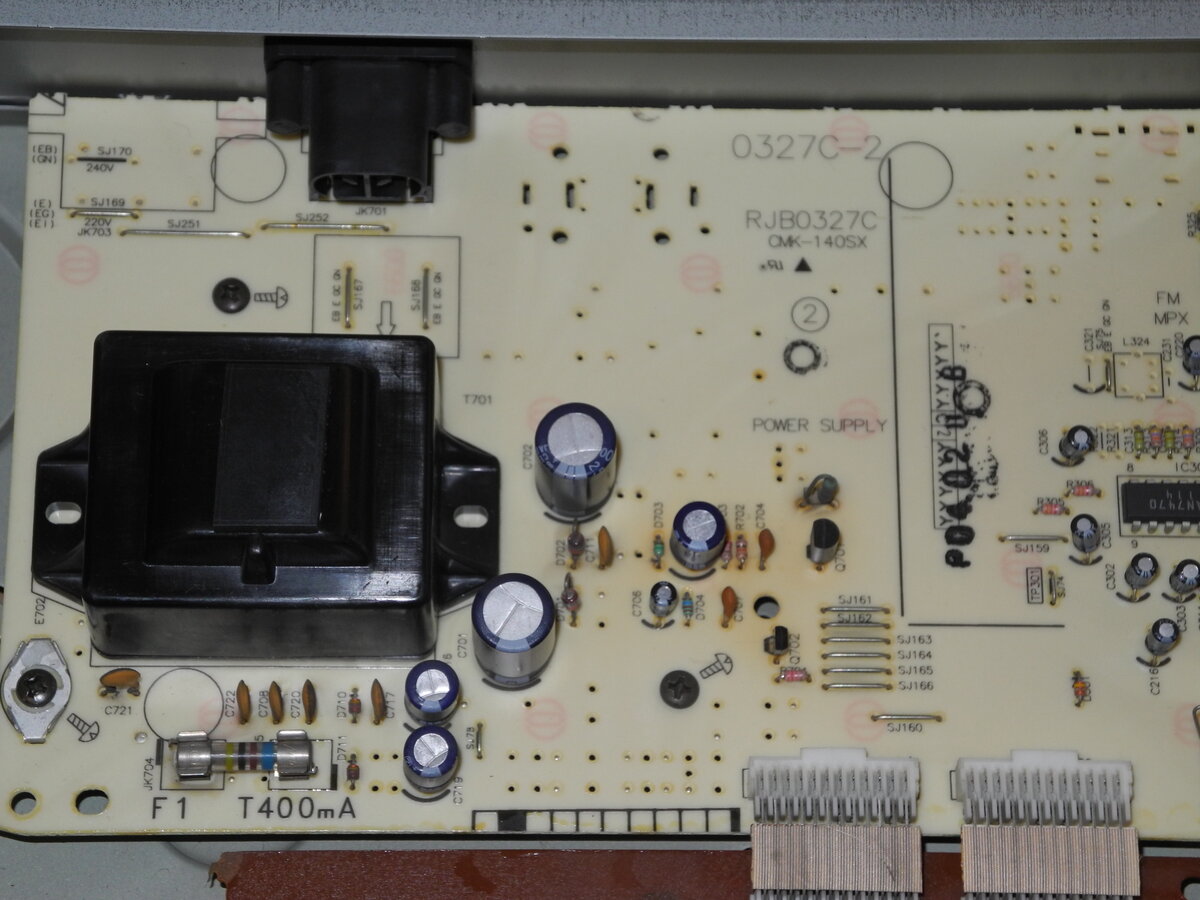

7. Technics ST-610L - Power Supply7. Power Supply

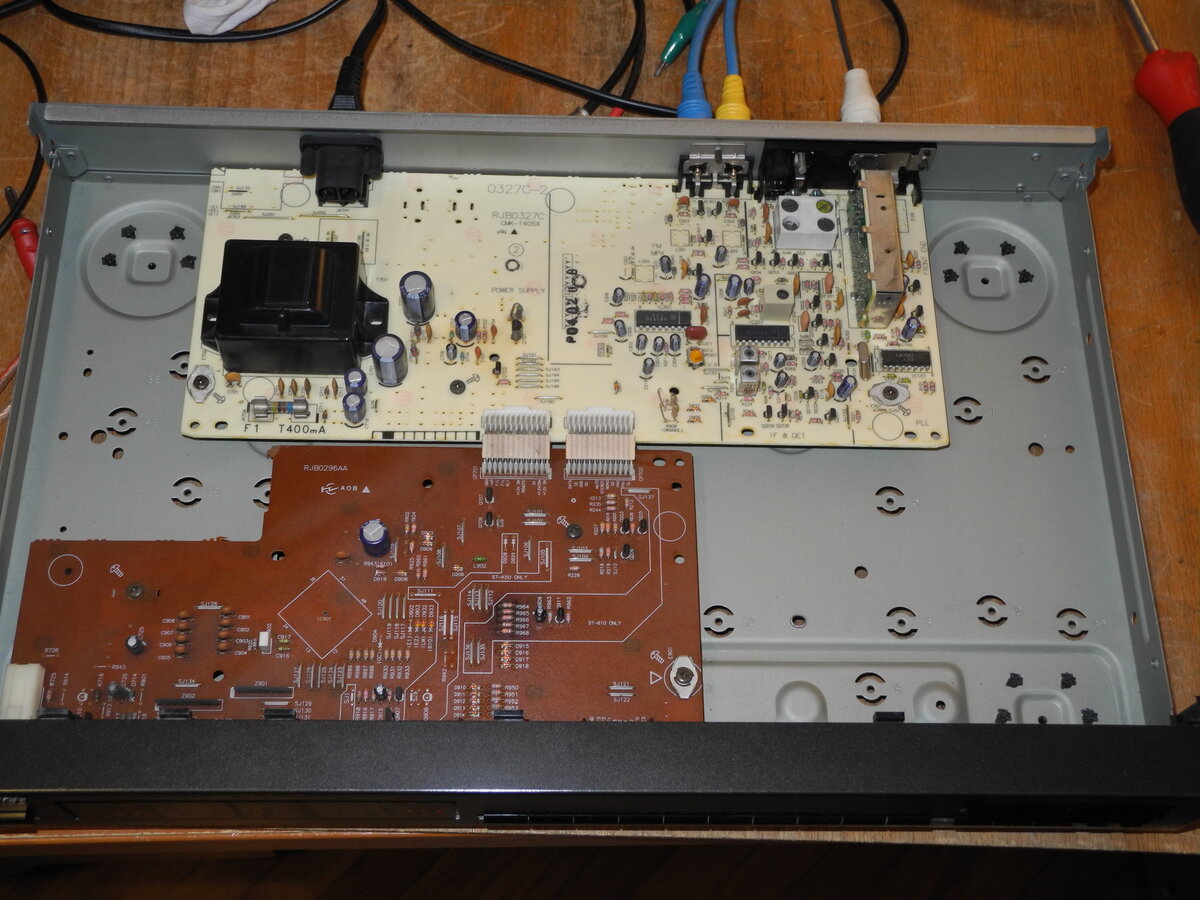

8. Technics ST-610L - Inside View8. Inside View
9. Technics ST-610L - Inside View9. Inside View

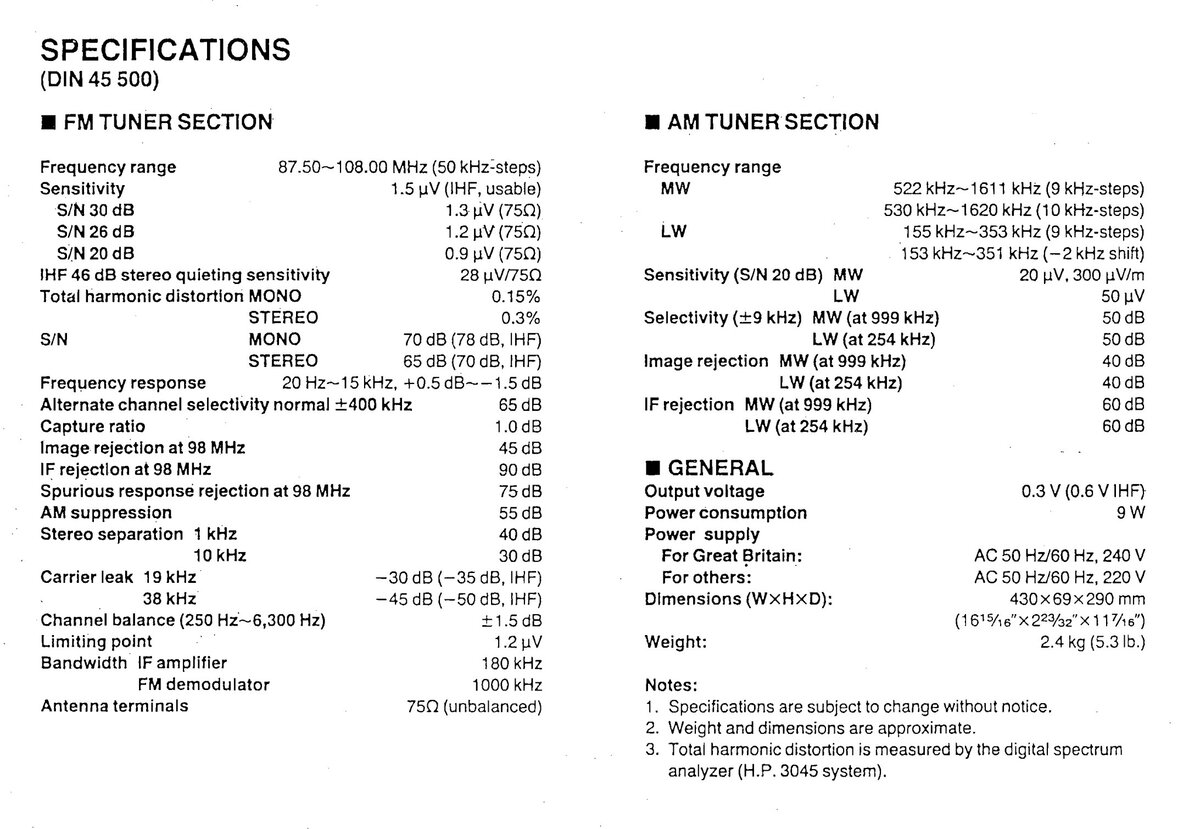

General Specifications

Antenna Input: 75Ω
FM Tuning Range: 87.5MHz-108.0MHz
Quieting Sensitivity (46dB): 28uV
Signal-to-Noise Ratio (70dBf): 65dB
Total Harmonic Distortion: 0.15%
Frequency Response (20Hz-15KHz): +0.5,-1.5dB
Stereo Separation (1KHz): 40dB

Dimensions (WHD): 430×69×290mm
Weight: 2.4kg
Produced: 1990-1991

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

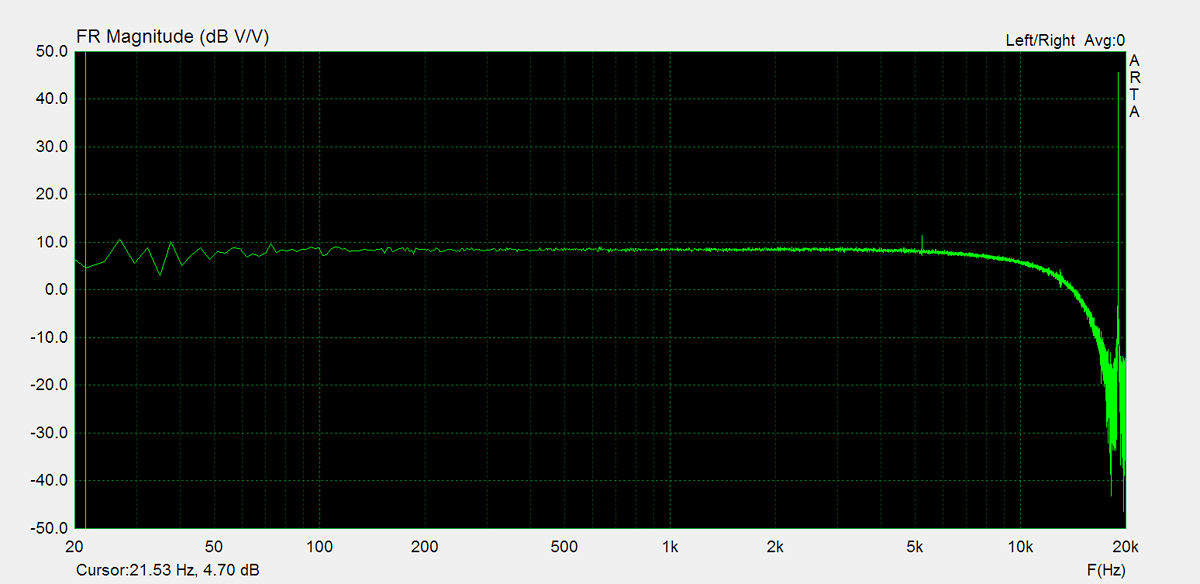

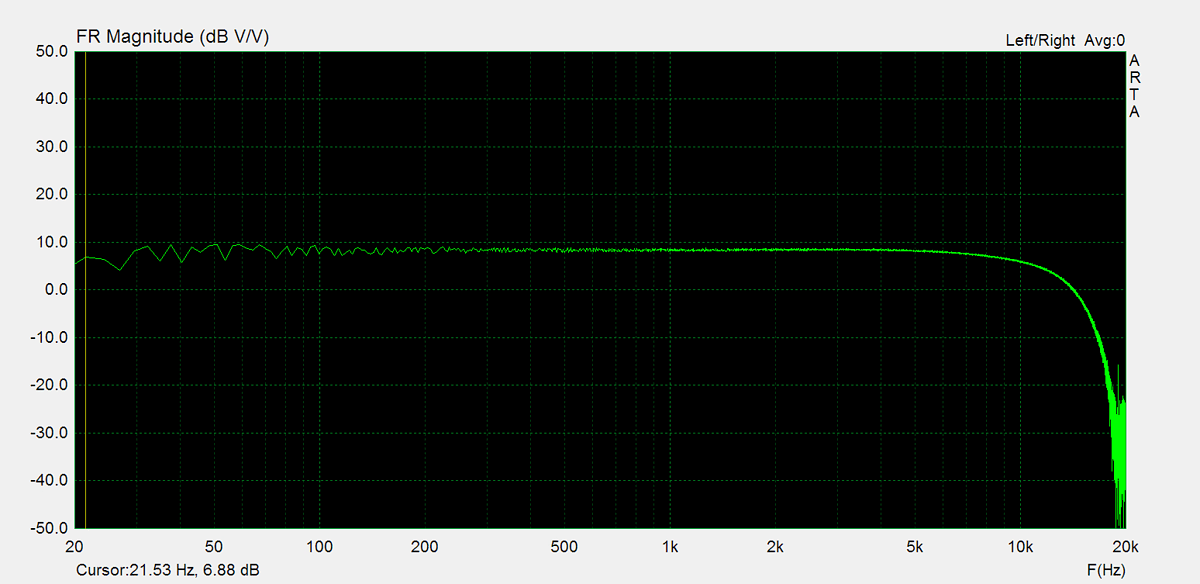

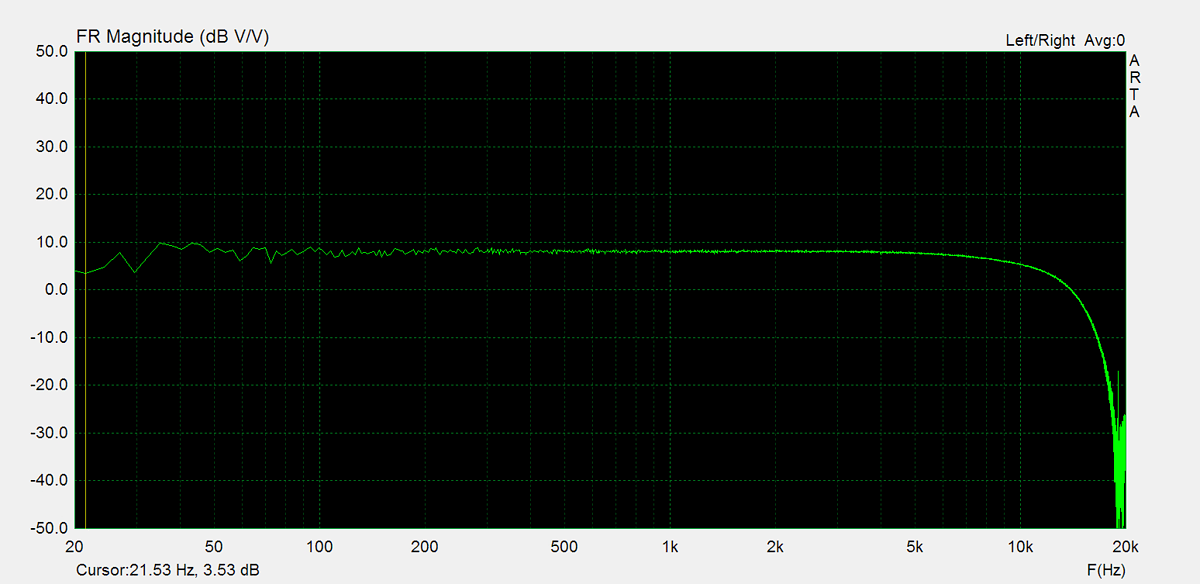

10. Technics ST-610L - FR Mono - Left Chanel10. FR Mono - Left Chanel
11. Technics ST-610L - FR Mono - Right Chanel11. FR Mono - Right Chanel

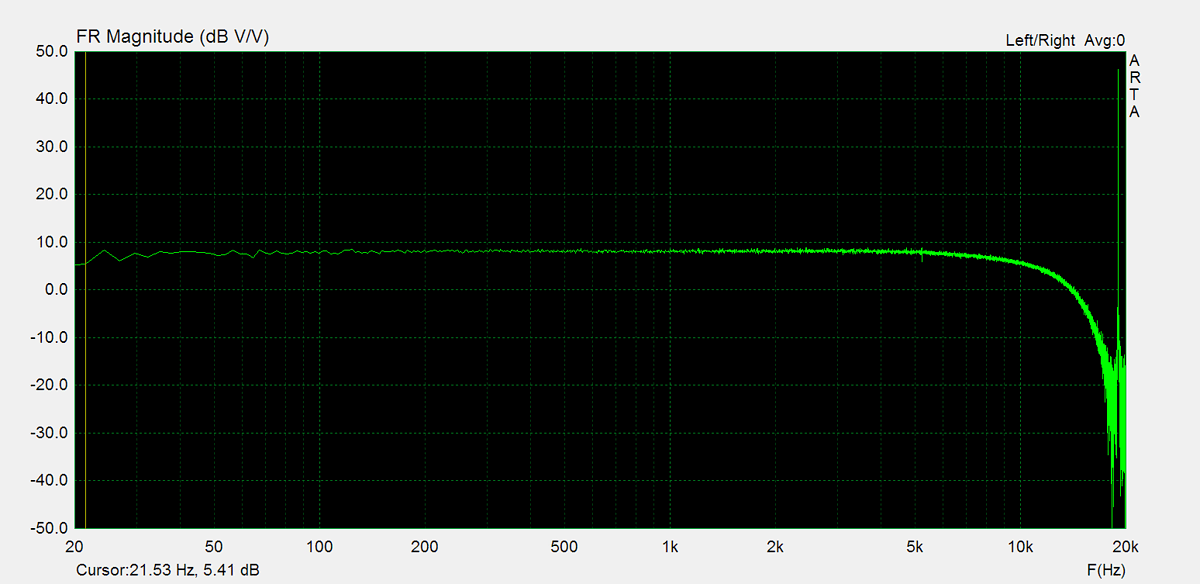

12. Technics ST-610L - FR Stereo - Left Chanel12. FR Stereo - Left Chanel
13. Technics ST-610L - FR Stereo - Right Chanel13. FR Stereo - Right Chanel

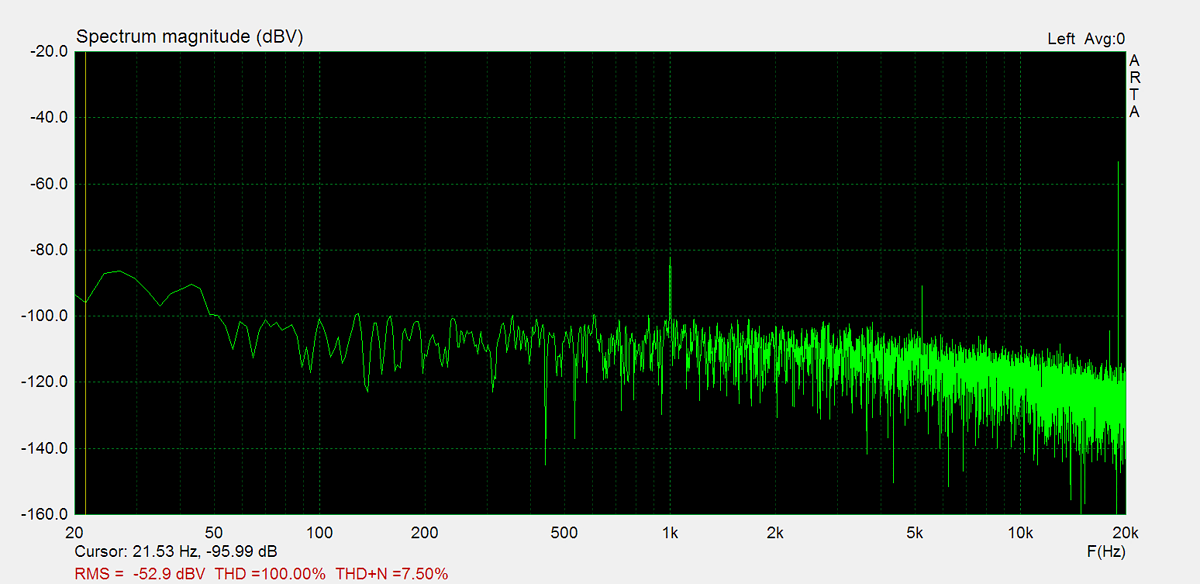

14. Technics ST-610L - THD Mono - Left Chanel14. THD Mono - Left Chanel
15. Technics ST-610L - THD Mono - Right Chanel15. THD Mono - Right Chanel

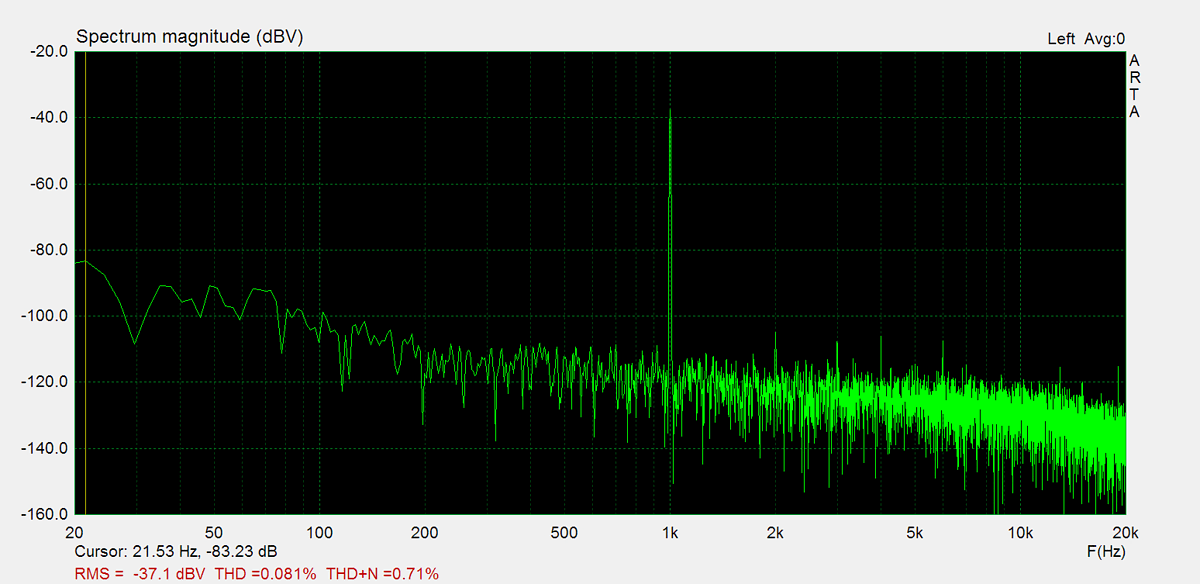

16. Technics ST-610L - THD Stereo - Left Chanel16. THD Stereo - Left Chanel
17. Technics ST-610L - THD Stereo - Right Chanel17. THD Stereo - Right Chanel
18. Technics ST-610L - Separation Left Off - Left Chanel18. Separation Left Off - Left Chanel
19. Technics ST-610L - Separation Right Off - Right Chanel19. Separation Right Off - Right Chanel
20. Technics ST-610L - IMD Mono - Left Chanel20. IMD Mono - Left Chanel
21. Technics ST-610L - IMD Mono - Right Chanel21. IMD Mono - Right Chanel

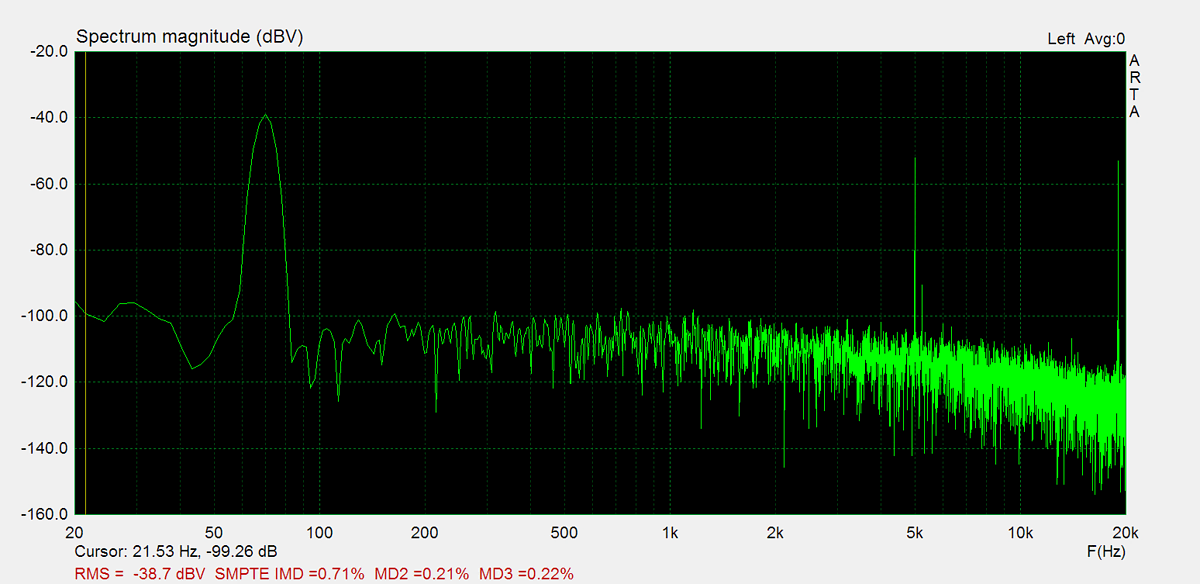

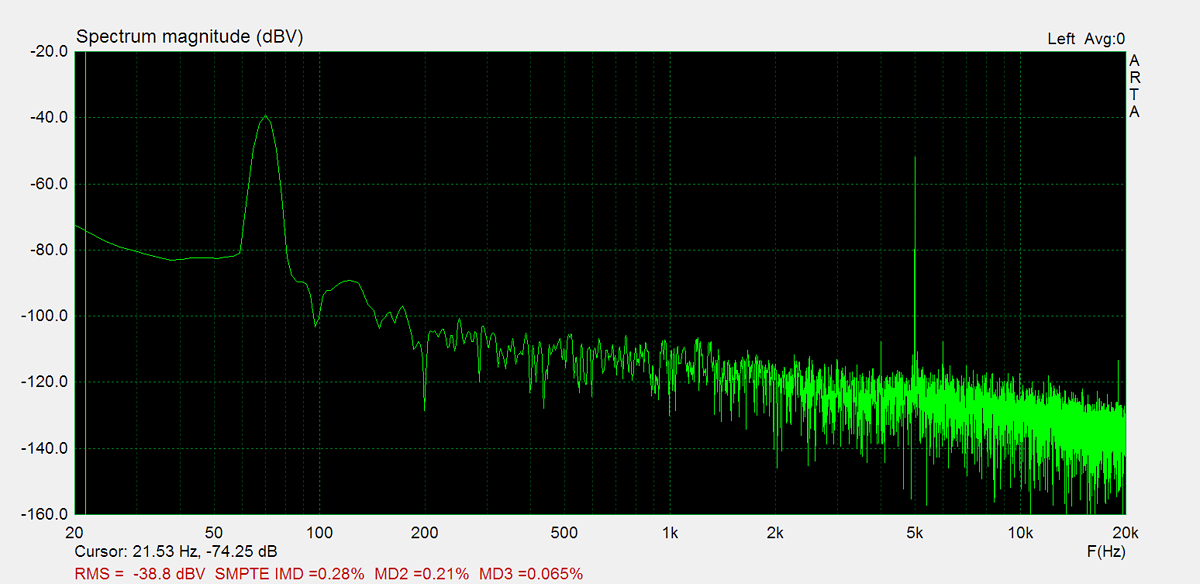

22. Technics ST-610L - IMD Stereo - Left Chanel22. IMD Stereo - Left Chanel

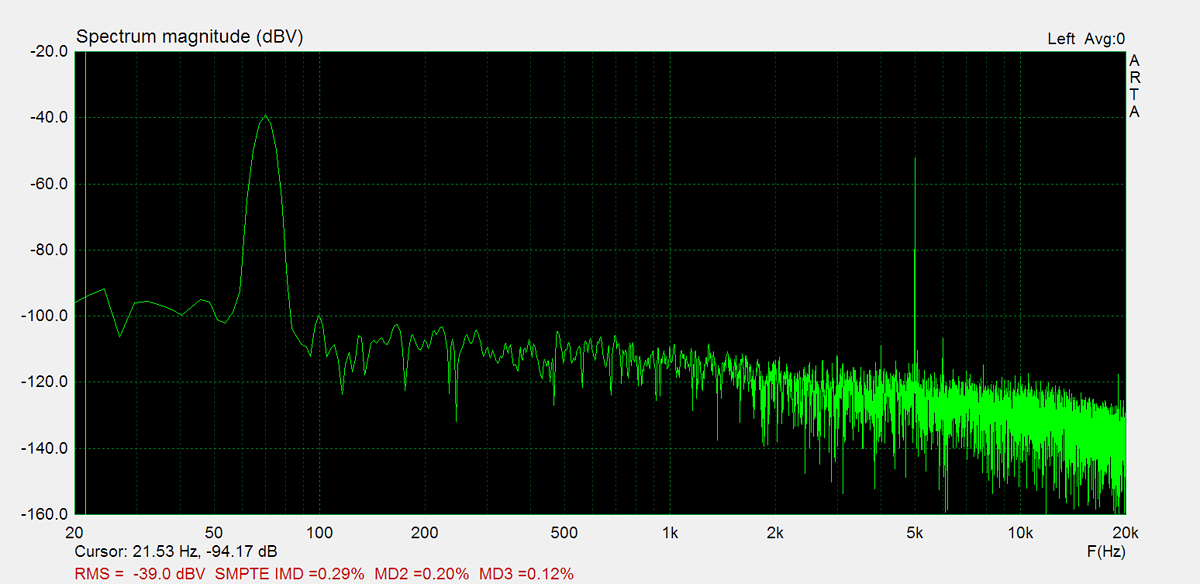

23. Technics ST-610L - IMD Stereo - Right Chanel23. IMD Stereo - Right Chanel

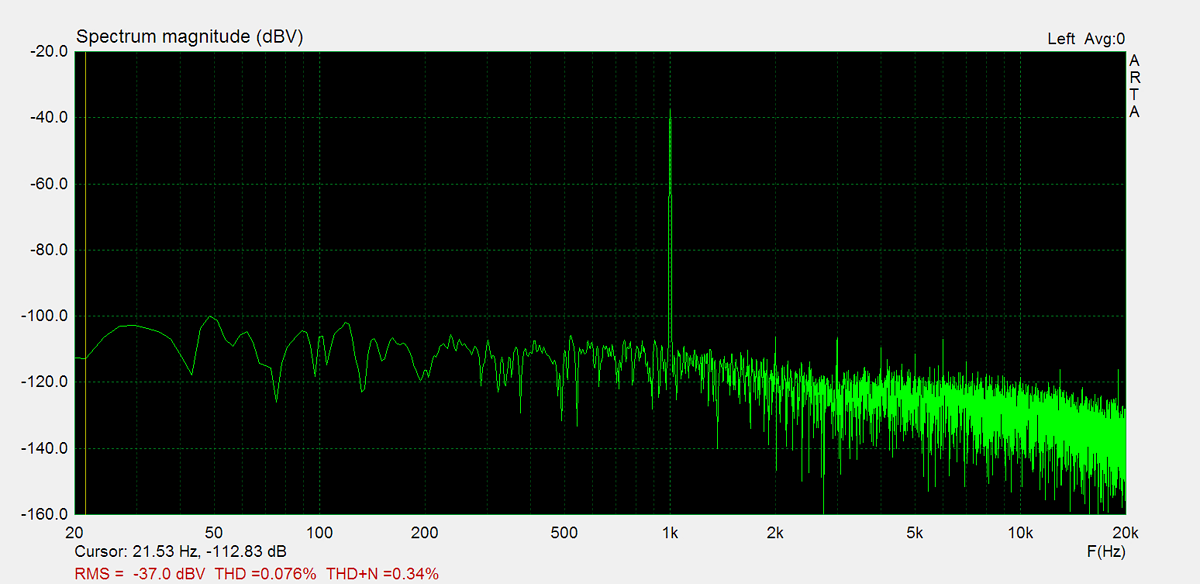

24. Technics ST-610L - THD vs Frequency Mono - Left Chanel24. THD vs Frequency Mono - Left Chanel

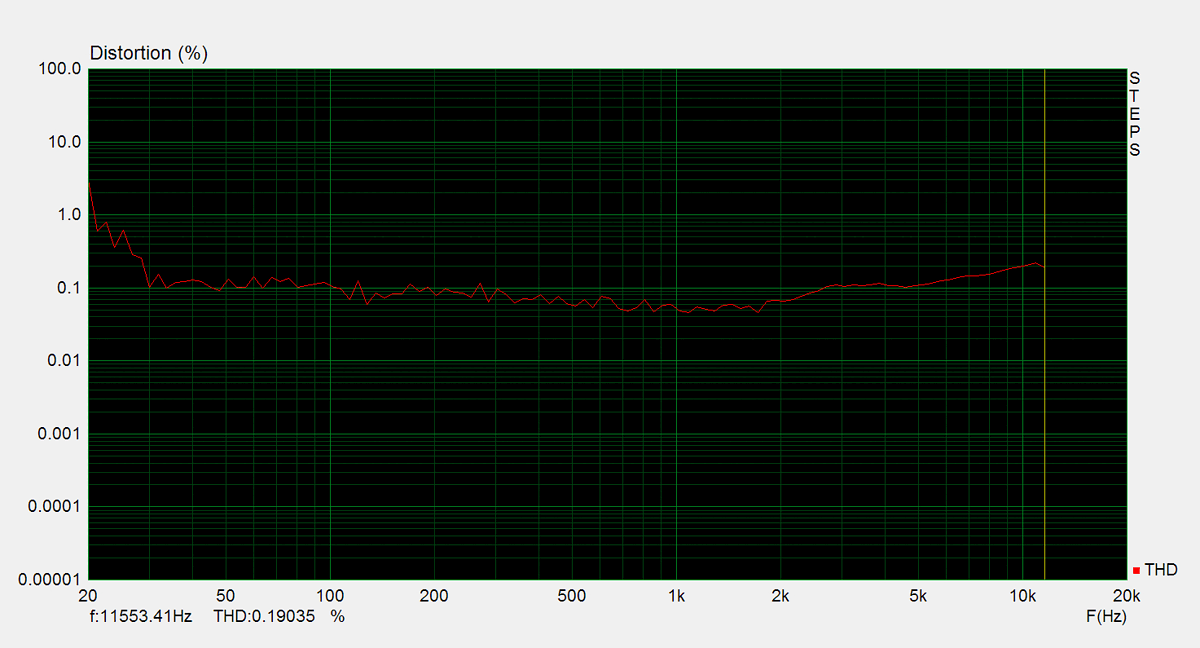

25. Technics ST-610L - THD vs Frequency Mono - Right Chanel25. THD vs Frequency Mono - Right Chanel

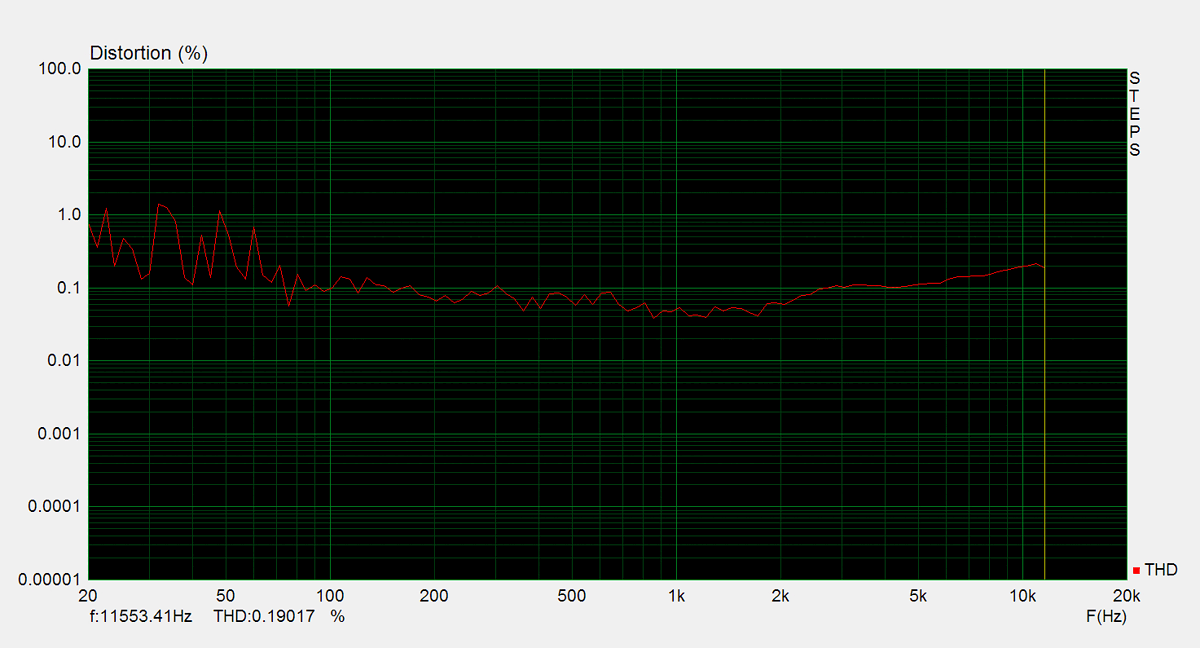

26. Technics ST-610L - THD vs Frequency Stereo - Left Chanel26. THD vs Frequency Stereo - Left Chanel
27. Technics ST-610L - THD vs Frequency Stereo - Right Chanel27. THD vs Frequency Stereo - Right Chanel
