Audio Segment

Technics ST-7300

The Technics ST-7300 is a premium FM stereo tuner renowned for its precise engineering and outstanding audio quality. Its exceptional performance and build make it highly desired by audiophiles and collectors alike.

Manufacturer: Technics
Status: Active company
Official website: technics.com

1. Technics ST-7300 - Front View1. Front View
2. Technics ST-7300 - Zoom View2. Zoom View
3. Technics ST-7300 - Right View3. Right View
4. Technics ST-7300 - Fron View4. Fron View
5. Technics ST-7300 - Back View5. Back View
6. Technics ST-7300 - Top View6. Top View
7. Technics ST-7300 - Bottom View7. Bottom View
8. Technics ST-7300 - Inside View8. Inside View
9. Technics ST-7300 - Inside View9. Inside View
10. Technics ST-7300 - Inside View10. Inside View
11. Technics ST-7300 - Inside View11. Inside View
12. Technics ST-7300 - Inside View12. Inside View
13. Technics ST-7300 - Inside View13. Inside View
14. Technics ST-7300 - Inside View14. Inside View
15. Technics ST-7300 - Inside View15. Inside View

General Specifications

Antenna Input: 75Ω
FM Tuning Range: 87.5MHz-108.0MHz
Quieting Sensitivity (50dB): 37dBf
Signal-to-Noise Ratio (80dBf): 85dB
Total Harmonic Distortion: 0.04%
Intermodulation Distortion: <0.03%
Frequency Response (10Hz-16KHz): +0,-1.0dB
Stereo Separation (1KHz): 50dB
Stereo and Muting Threshold: 20dBf

Dimensions (WHD): 445×95×325mm
Weight: 9.3kg
Produced: 1989-1995
Initial price: 2600DM

FM Tuner

Measurements of the tuner section were performed using an FM signal generator, with its output fed directly into the antenna input. AM measurements were not conducted.

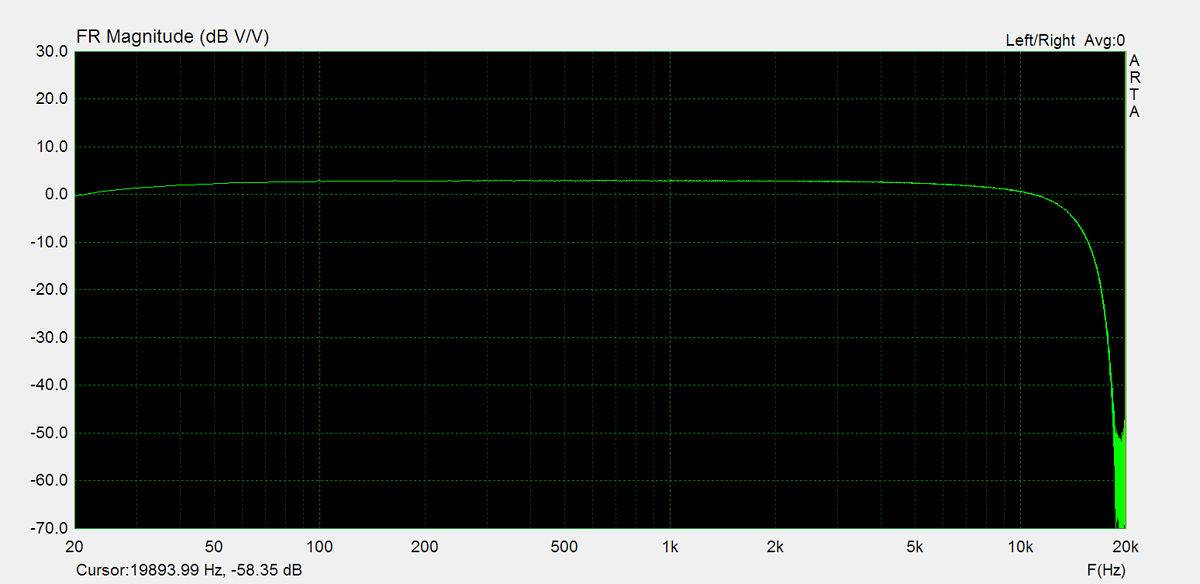

16. Technics ST-7300 - FR Mono - Left Chanel16. FR Mono - Left Chanel
17. Technics ST-7300 - FR Mono - Right Chanel17. FR Mono - Right Chanel
18. Technics ST-7300 - FR Stereo - Left Chanel18. FR Stereo - Left Chanel
19. Technics ST-7300 - FR Stereo - Right Chanel19. FR Stereo - Right Chanel
20. Technics ST-7300 - THD Mono - Left Chanel20. THD Mono - Left Chanel
21. Technics ST-7300 - THD Mono - Right Chanel21. THD Mono - Right Chanel
22. Technics ST-7300 - THD Stereo - Left Chanel22. THD Stereo - Left Chanel
23. Technics ST-7300 - THD Stereo - Right Chanel23. THD Stereo - Right Chanel
24. Technics ST-7300 - Separation Left Off - Left Chanel24. Separation Left Off - Left Chanel
25. Technics ST-7300 - Separation Right Off - Right Chanel25. Separation Right Off - Right Chanel
26. Technics ST-7300 - IMD Mono - Left Chanel26. IMD Mono - Left Chanel
27. Technics ST-7300 - IMD Mono - Right Chanel27. IMD Mono - Right Chanel
28. Technics ST-7300 - IMD Stereo - Left Chanel28. IMD Stereo - Left Chanel
29. Technics ST-7300 - IMD Stereo - Right Chanel29. IMD Stereo - Right Chanel
30. Technics ST-7300 - THD vs Frequency Mono - Left Chanel30. THD vs Frequency Mono - Left Chanel
31. Technics ST-7300 - THD vs Frequency Mono - Right Chanel31. THD vs Frequency Mono - Right Chanel
32. Technics ST-7300 - THD vs Frequency Stereo - Left Chanel32. THD vs Frequency Stereo - Left Chanel
33. Technics ST-7300 - THD vs Frequency Stereo - Right Chanel33. THD vs Frequency Stereo - Right Chanel
